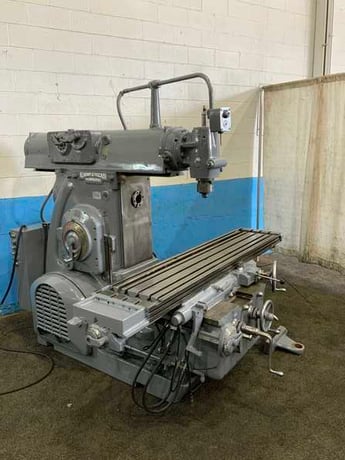

Kearney & Trecker #420TF-17, Vertical/Horizontal Mill, 80" x 17" Table, 1500 RPM, 15 HP

SERIAL ..........................

MODEL ........................... 420TF-17

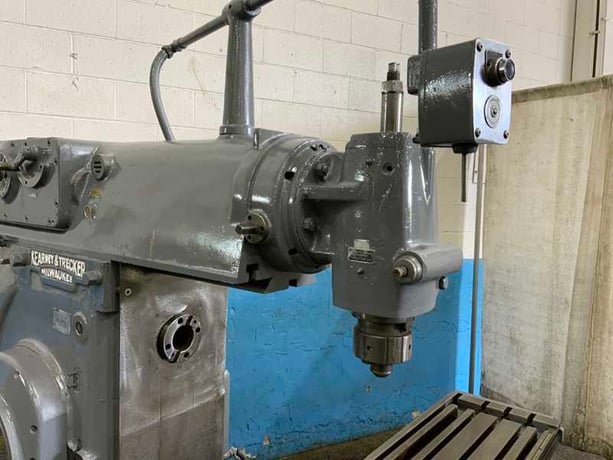

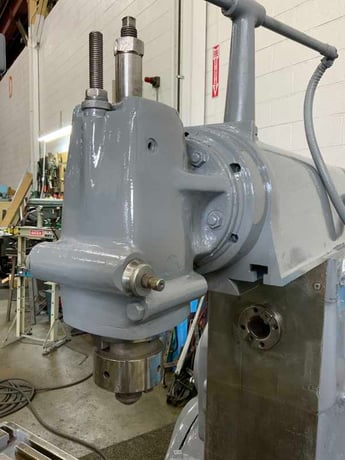

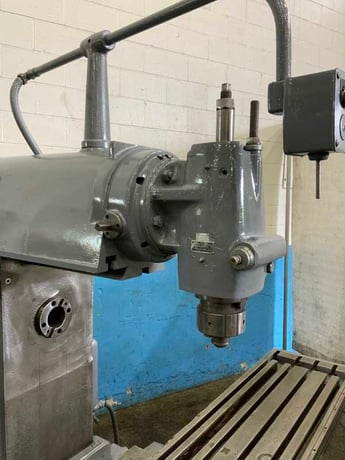

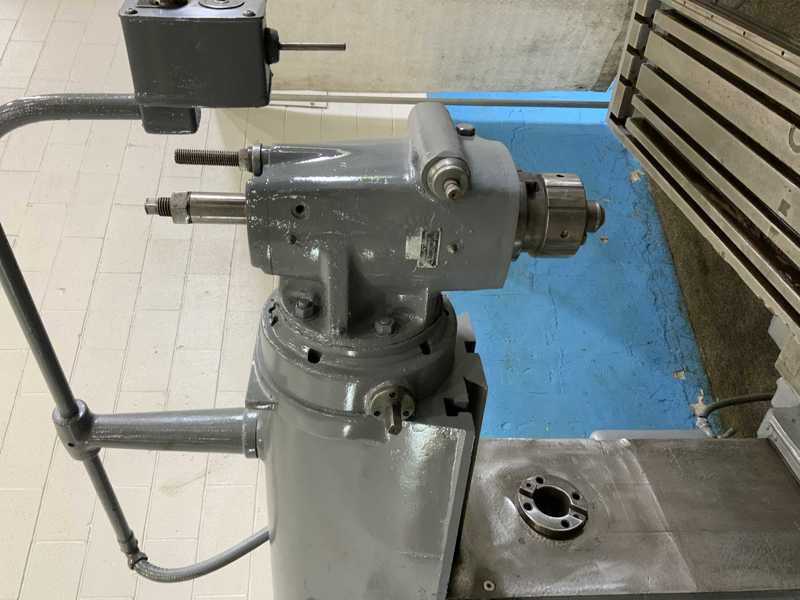

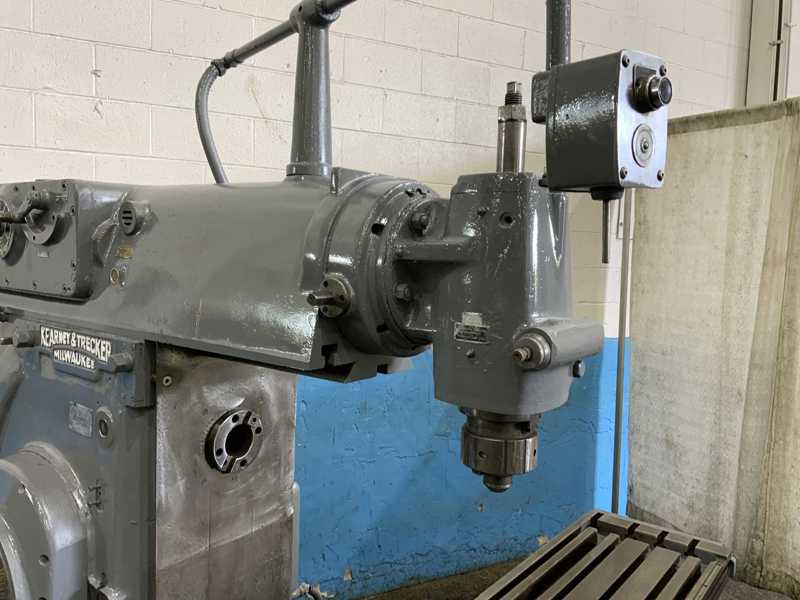

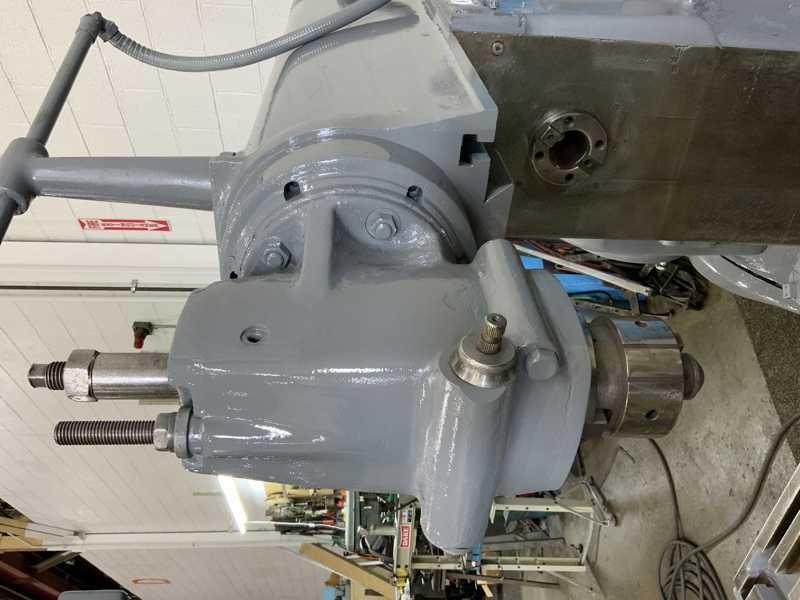

MACHINE EQUIPPED WITH TOOLMAKERS VERTICAL HEAD ON OVERARM

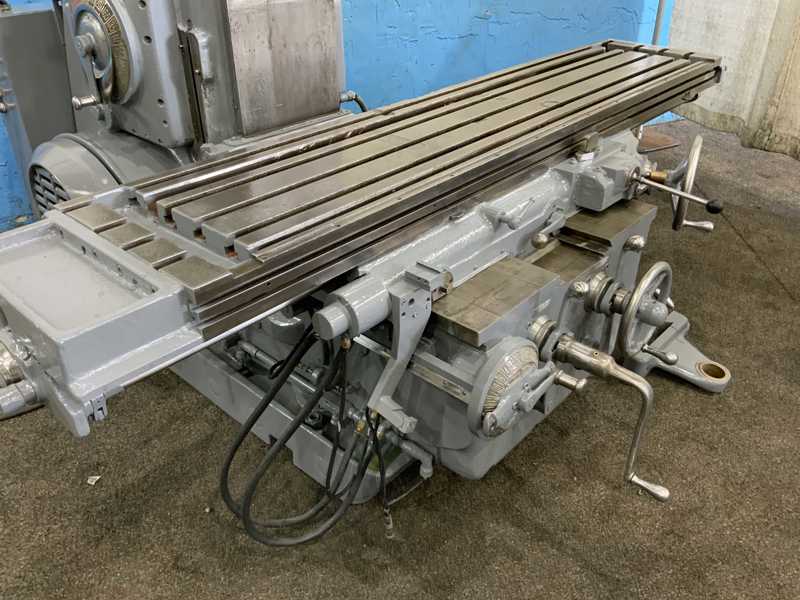

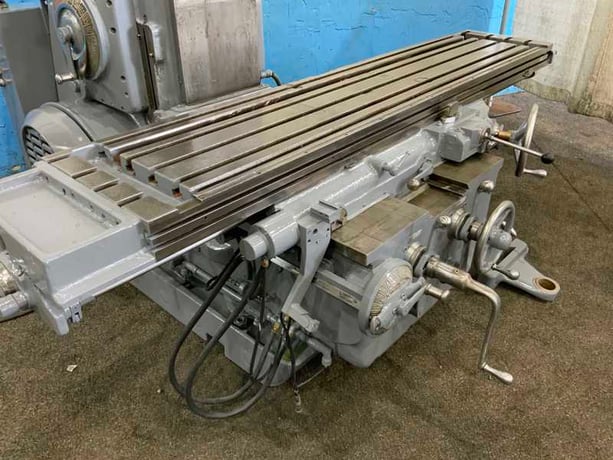

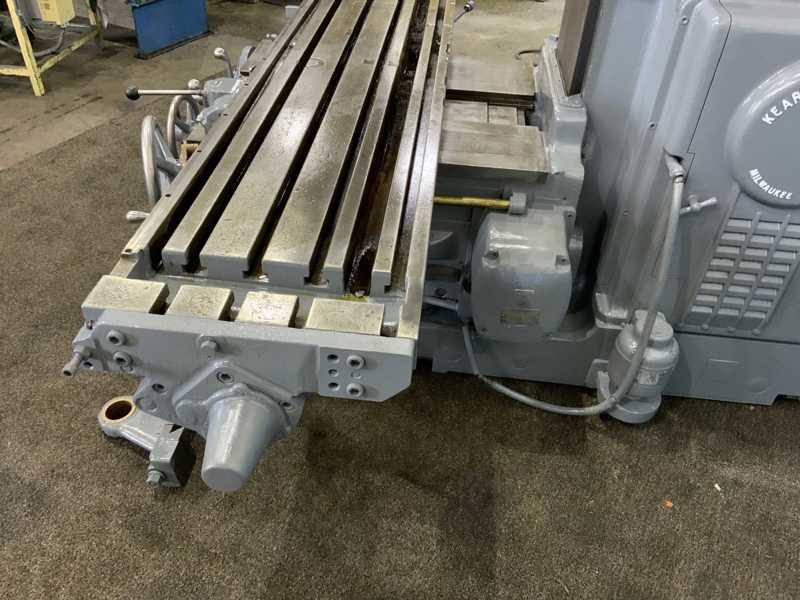

TABLE AREA (T-SLOTTED) .......... 80" X 17"

LONGITUDINAL TABLE TRAVEL ....... 42"

CROSS TABLE TRAVEL .............. 14"

VERTICAL TABLE TRAVEL ........... 18"

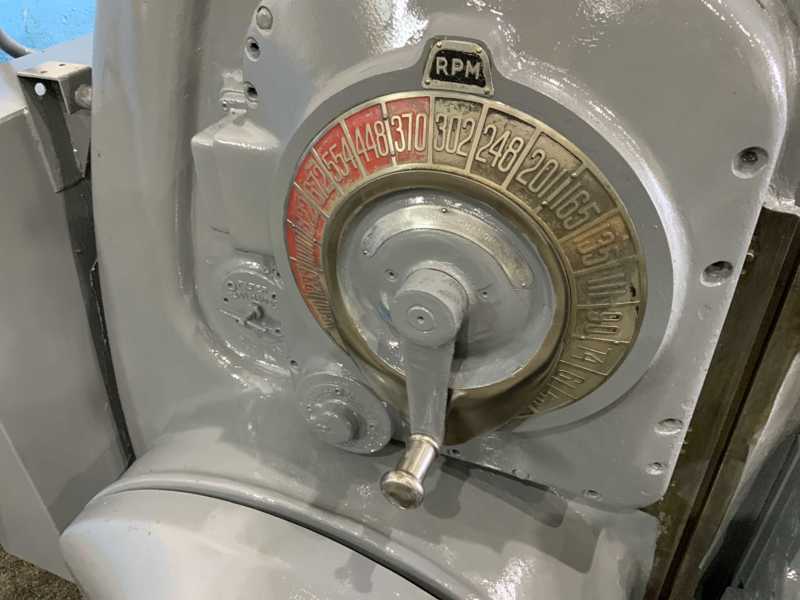

MAIN SPINDLE SPEEDS ............. (24) 15 TO 1500 RPM

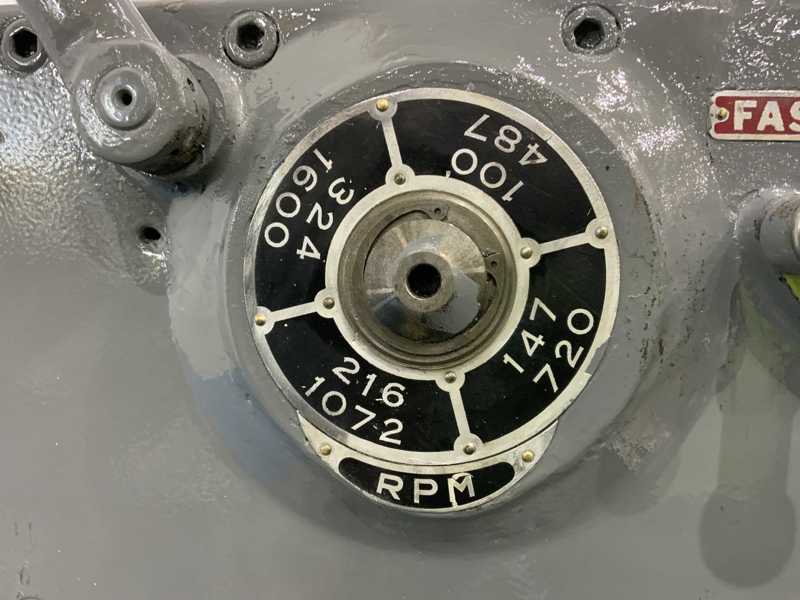

TOOLMAKER'S OVERARM SPEEDS ...... (8) 50 TO 800 RPM

LONGITUDINAL & CROSS FEEDS ...... (32) 3/8 TO 90 IPM

VERTICAL FEEDS .................. (32) 1/8 TO 30 IPM

RAPID TRAVERSE .................. 150 IPM

TAPER IN SPINDLE ................ #50 NS

DISTANCE SPINDLE TO TABLE ....... 0" MINIMUM TO 18" MAXIMUM

TABLE WAYS ...................... HARDENED & REPLACEABLE

COOLANT ......................... YES

MAIN SPINDLE MOTOR .............. 15 HORSEPOWER

OVERARM SPINDLE MOTOR ........... 5 HORSEPOWER
