Description
KARATS LR-15N Roll Lathe, 2017 model, used condition. Features a substantial 1600.0 swing and 8000.0 centers, ideal for precision work. Reliable choice for your machining needs.

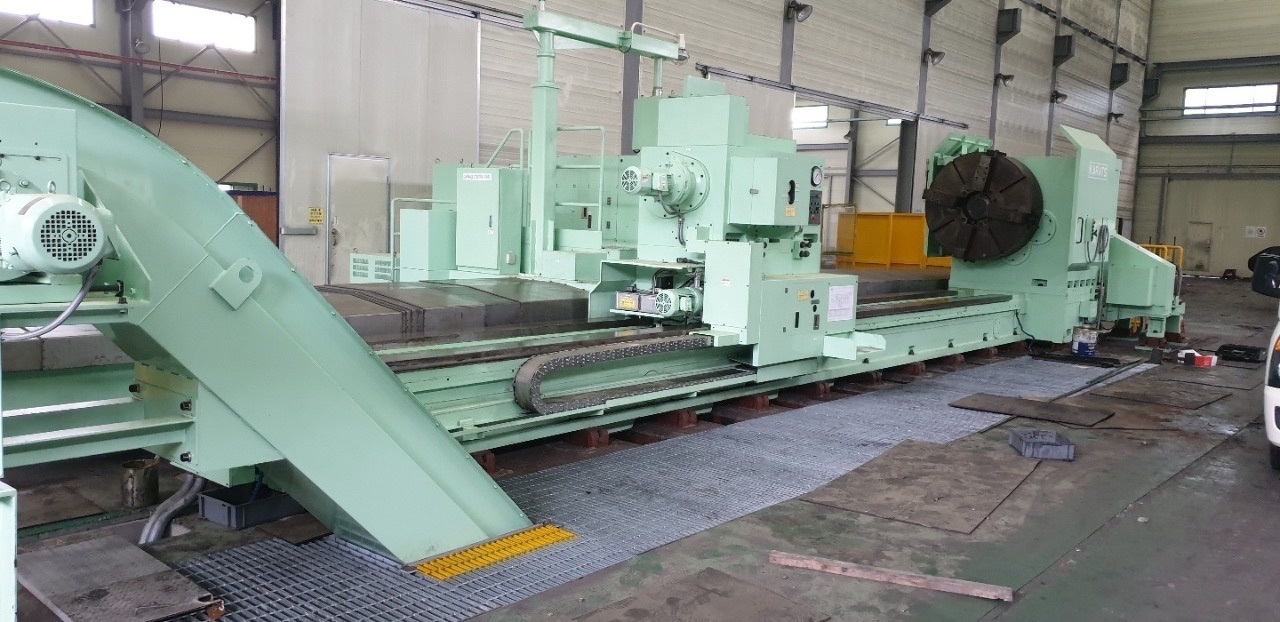

2017 KARATS LR-15N
SPECIFICATIONS:
Swing Over Bed............. 63"
Machining Length........... 315"
Distance Between Centers... 315"
Chuck Size 1............... 55"
Spindle Speeds 1........... 145 RPM
Spindle Horsepower 1....... 134 hp
Rapid Traverse Rate - X1... 98 in/min.
Rapid Traverse Rate - Z1... 197 in/min.
Gear Ranges................ 2
Tailstock Quill Diameter... 17.7"
Tailstock Quill Travel..... 11.8"
Programmable Tailstock..... YES
Tailstock Travel........... 275"
# Axis..................... 2
Tailstock.................. 'Yes'
Live Tooling............... 'No'
Sub Spindle................ 'No'
Control.................... CNC (FANUC CNC CONTROL)
Dimensions................. 5600mm x 17500mm
Weight..................... 80,000 KG
EQUIPPED WITH:
55" 4 JAW FACE PLATE
2017 KARATS LR-15N
SPECIFICATIONS:
Swing Over Bed............. 63"
Machining Length........... 315"
Distance Between Centers... 315"
Chuck Size 1............... 55"
Spindle Speeds 1........... 145 RPM
Spindle Horsepower 1....... 134 hp
Rapid Traverse Rate - X1... 98 in/min.
Rapid Traverse Rate - Z1... 197 in/min.
Gear Ranges................ 2
Tailstock Quill Diameter... 17.7"
Tailstock Quill Travel..... 11.8"
Programmable Tailstock..... YES
Tailstock Travel........... 275"
# Axis..................... 2
Tailstock.................. 'Yes'
Live Tooling............... 'No'
Sub Spindle................ 'No'
Control.................... CNC (FANUC CNC CONTROL)
Dimensions................. 5600mm x 17500mm
Weight..................... 80,000 KG
EQUIPPED WITH:
55" 4 JAW FACE PLATE
