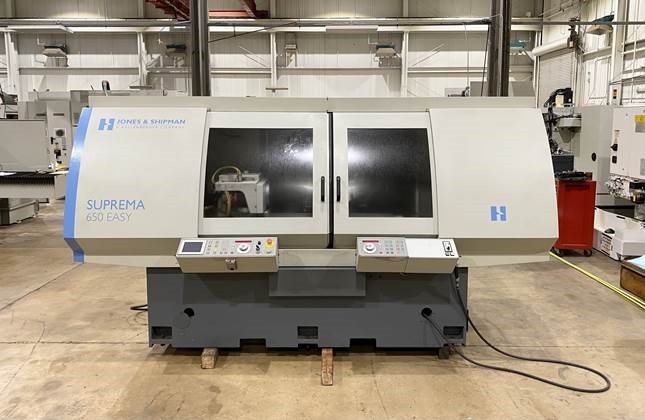

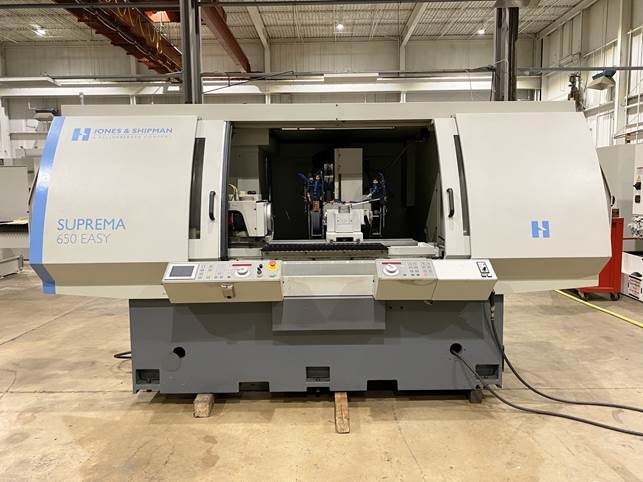

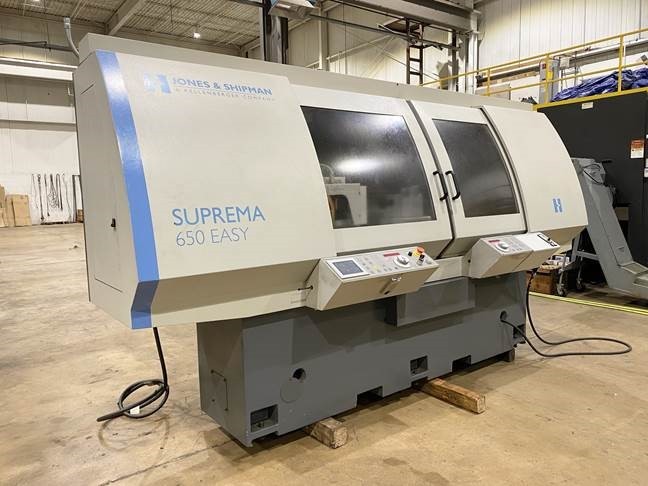

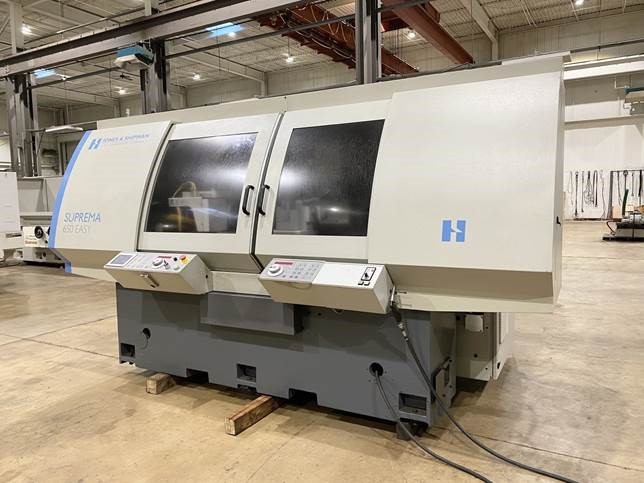

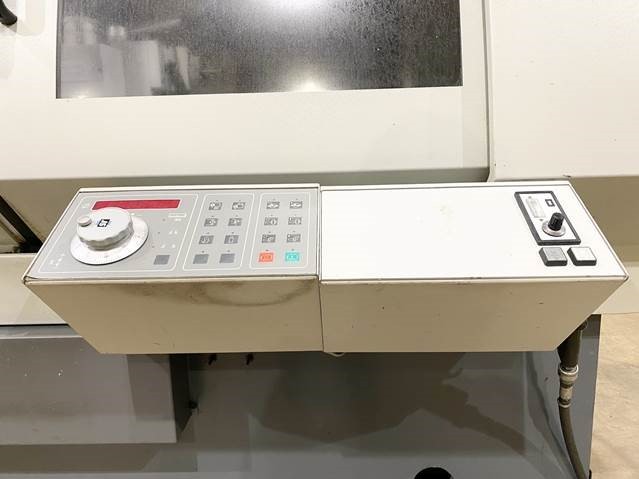

Jones & Shipman #Suprema-Easy-650" M, universal ID/OD cylindrical grinder, , 2-od and 1-id spindle design, 2011 installed 2012

JONES & SHIPMAN SUPREMA EASY 650 M UNIVERSAL I.D./O.D. CYLINDRICAL GRINDER, NEW 2011 INSATLEED 2012, 2-OD AND 1-ID SPINDLE DESIGN

CATALOG SPECIFICATIONS:

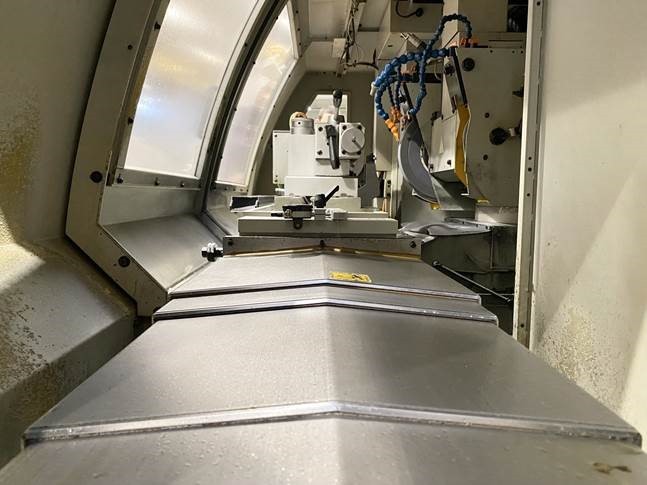

Table:

Swing:....................................... 12.5"

Distance Between Centers:.................... 25.5"

Table Travel ................................ 29.5"

Max. Traverse Speed ......................... 472" IPM

HPG Increments .............................. 0.00005", 0.0005", or 0.005"

Table Swivel ................................ 18 Deg. CCW, 16 Deg. CW

Wheelhead:

Total Infeed Travel:......................... 10.236""

Max. Speed .................................. 236" IPM

Minimum Programmable Increment .............. 0.00005"

HPG Increments .............................. 0.00005", 0.0005", or 0.005"

Swivel Range ................................ 190 Degrees CW

45 Deg. CCW

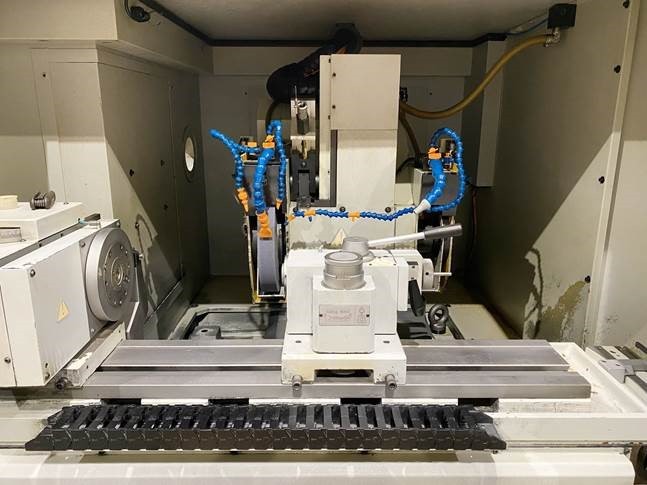

External Grinding Wheels:

Grinding Wheel Size, L.H. Standard:.......... 14" x 2"W x 5"B

R.H Standard: .......... 12" x 1"W x 5"B

Spindle Speeds (3):.......................... 1773, 2069 & 2400 RPM

Motor Power: ................................ 5.5 H.P.

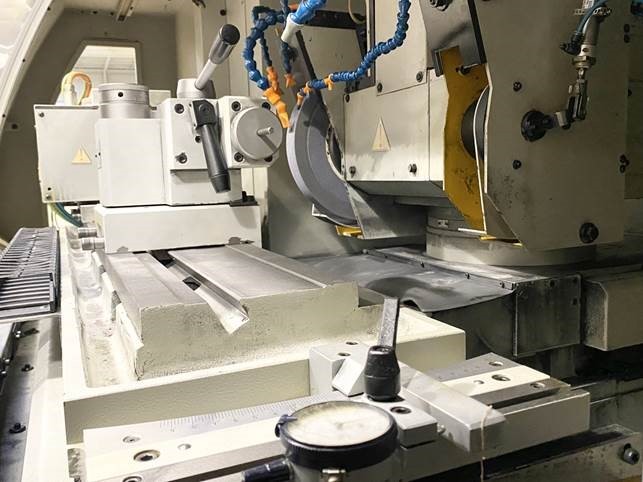

Headstock:

Swivel:...................................... 15 Degrees CW

90 Deg. CCW

Speed, Infinitely Variable:.................. 30 to 450 RPM

Centers, Standard/Reduced ................... #5 MT/#3 MT

Approximate Weight: ......................... 11,000 Lbs.

Equipped with:

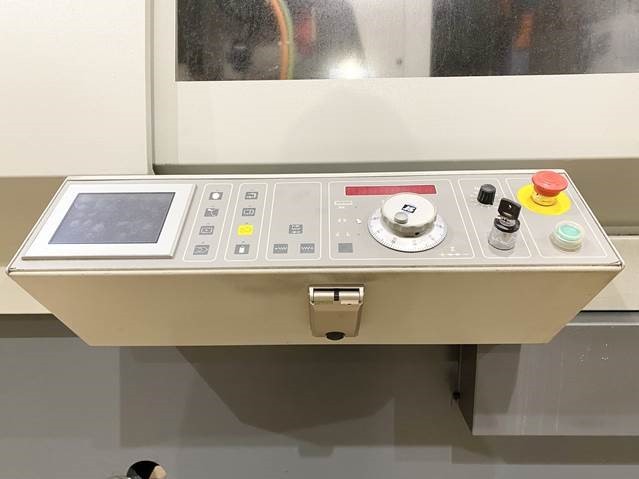

Full Software Pack, Linear Scales X/Z, and Easycomms

Variable Speed 4 kW External Wheelhead Drive

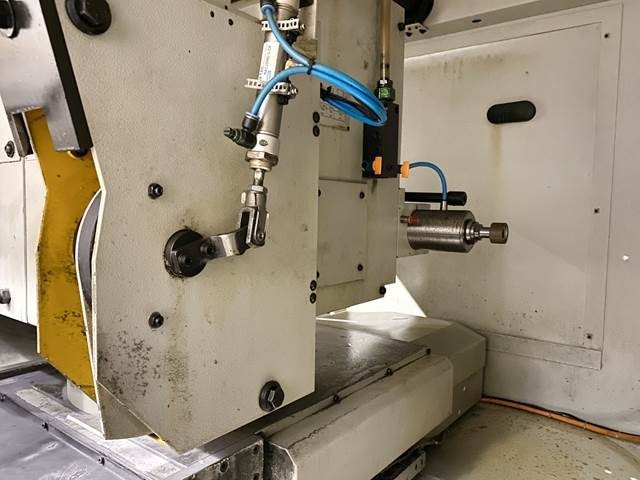

Variable Speed Internal Grinding Wheel

Lateral Locator (Shoulder) Gauge

Manual Grinding Wheel B-Axis Swivel Encoder for Accuracy

Coolant Clarifier 160 LTR X 60 Flow, with Magnetic Drum

Movomatic Gap Elimination

Tailstock

2-OD AND 1-ID SPINDLE DESIGN
