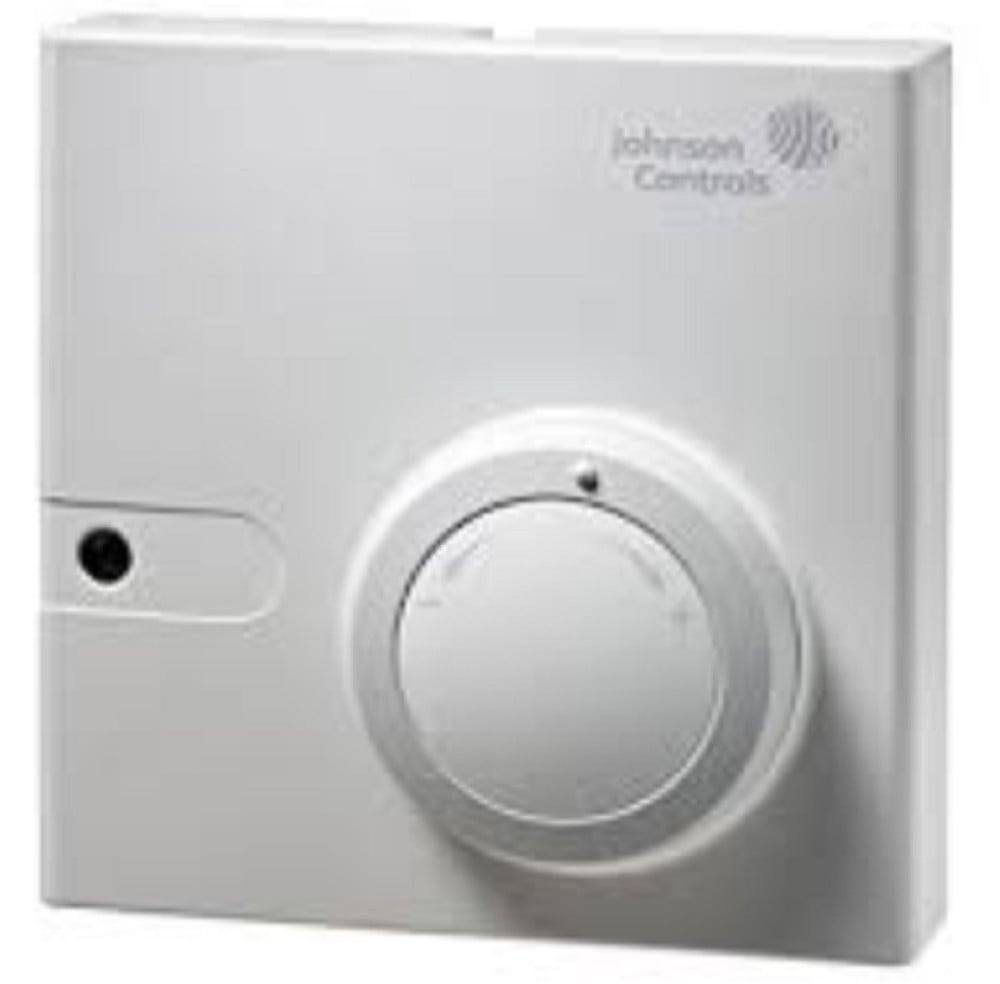

Johnson Controls NS-ATP7001-2 Network Zone Sensor, Surface Mount, Warm/Cool Dial [New]

$148 USD

Request Formal Quote

Size (mm): 80 x 80. Surface Mounted. Warmer/Cooler Dial. With Occupancy Override, With Modular Jack. No Logo, No LCD Display, No F/C Toggle, No Fan Control, No Address Switches, No VAV Balancing Feature. The NS Series Network Sensor offering includes NS Series Network Zone Sensors and NS Series Network Discharge Air Sensors. The NS Series Network Sensors are designed to function directly with Metasys? system Field Equipment Controllers (FECs), Input/Output Modules (IOMs), VAV Modular Assembly (VMA16) Controllers, and Facility Explorer FX-PC Series Programmable Controllers (FX-PCGs, FX-PCVs, and FX-PCXs). The sensors are also compatible with Verasys? and Johnson Controls Smart Equipment.The majority of NS Series Network Zone Sensors monitor room temperature; however, options are available to also monitor zone humidity, carbon dioxide (CO2), local temperature setpoint adjustments, and other variables. These data are transmitted to a controller on the Sensor Actuator (SA) Bus.Some models of NS Series Network Zone Sensors include an onboard passive infrared (PIR) occupancy sensor that detects motion to determine if a space is occupied. This feature maximizes up to 30% energy savings in high-energy usage environments such as schools, dormitories, offices, hospitals, and hotels by adjusting the temperature of the space based on the occupancy status. In addition, the PIR occupancy sensor facilitates trending of floor space usage in these environments.The NS Series Network Zone Sensors include models with either a temperature setpoint dial or setpoint pushbuttons and LCD that allows occupants to view the zone temperature, Relative Humidity (RH), and view and adjust the zone temperature setpoint. Some temperature and humidity models include an RH pushbutton to toggle between temperature and RH on the display. These models also have the capability to set the default display to either temperature or RH. Some models also include an ??F/??C pushbutton to toggle between degrees Fahrenheit (F) and degrees Celsius (C).. Johnson Controls. Johnson Controls. NS-ATP7001-2.
