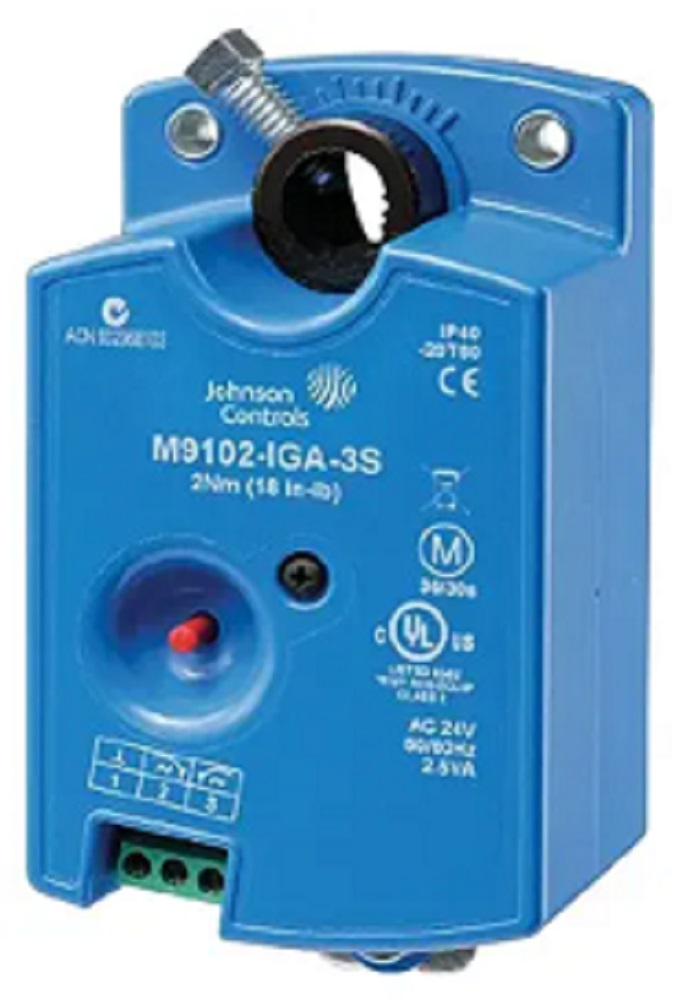

Johnson Controls M9102-AGA-3S Electric Non-Spring Return Floating

$99 USD

Request Formal Quote

Johnson Controls M9102-AGA-3S Electric Non-Spring Return Floating - Johnson Controls M9102-AGA-3S Electric Non-Spring Return Floating without Timeout ActuatorThe M9102 and M9104 Series Actuators are direct-mount, non-spring return electric actuators that operate on AC 24 V power. These synchronous motor-driven actuators provide floating control (AGA), floating control with automatic shut-off (IGA), and proportional control with selectable DC 0...10 V or DC 2...10 V (GGA). The -2S models are equipped with plenum cables, and the -3S models are equipped with terminal blocks.All models are compact in size, and are easily installed on Variable Air Volume (VAV) boxes, Variable Volume and Temperature (VVT) twoposition zone applications, or small- to medium-sized dampers with a round shaft up to 1/2 in. (13 mm) in diameter or a 3/8 in. (10 mm) square shaft.The M9102 Series Electric Non-Spring Return Actuators provide a running torque of 18 lbin (2 Nm), and the nominal travel time is 30 seconds at 60 Hz (36 seconds at 50 Hz) for 90 of rotation. The M9104 Series Electric Non-Spring Return Acuators provide a running torque of 35 lbin (4 Nm), and the nominal travel time is 60 seconds at 60 Hz (72 seconds at 50 Hz) for 90 of rotation. - Johnson Controls - Johnson Controls - M9102-AGA-3S - M9102-AGA-3S
