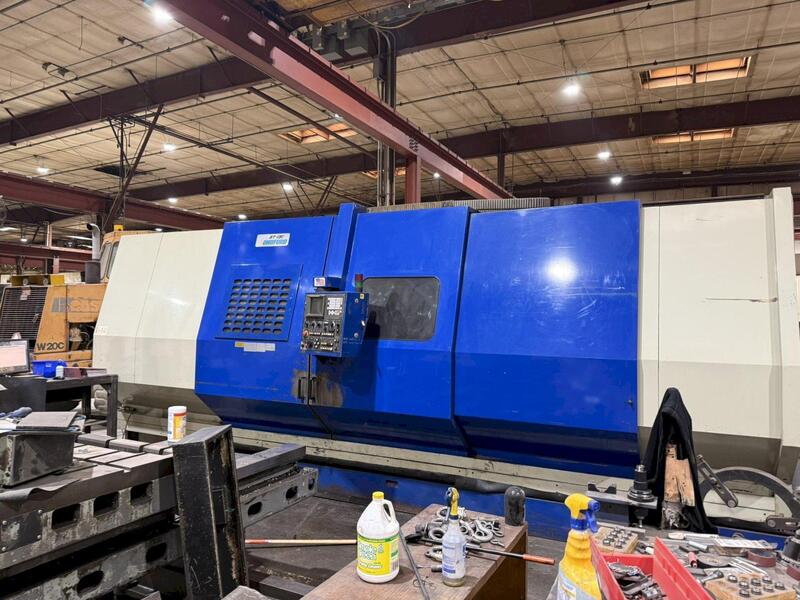

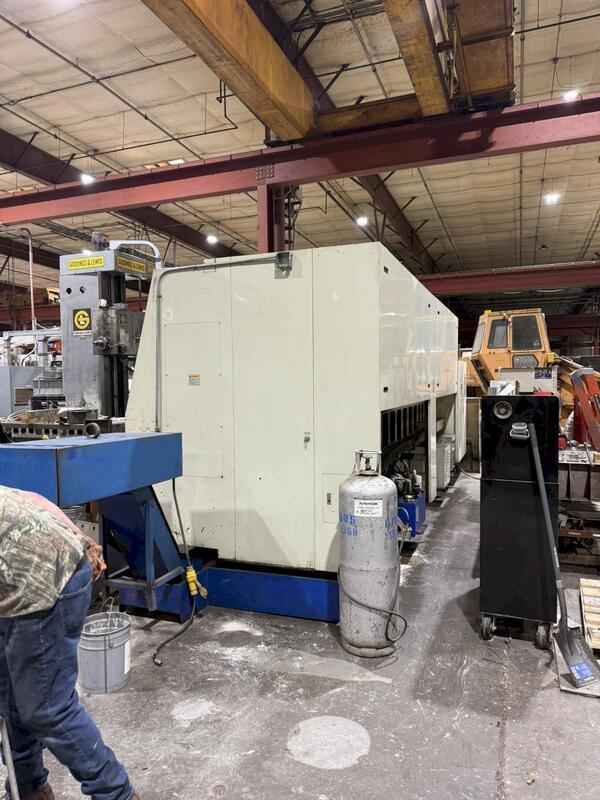

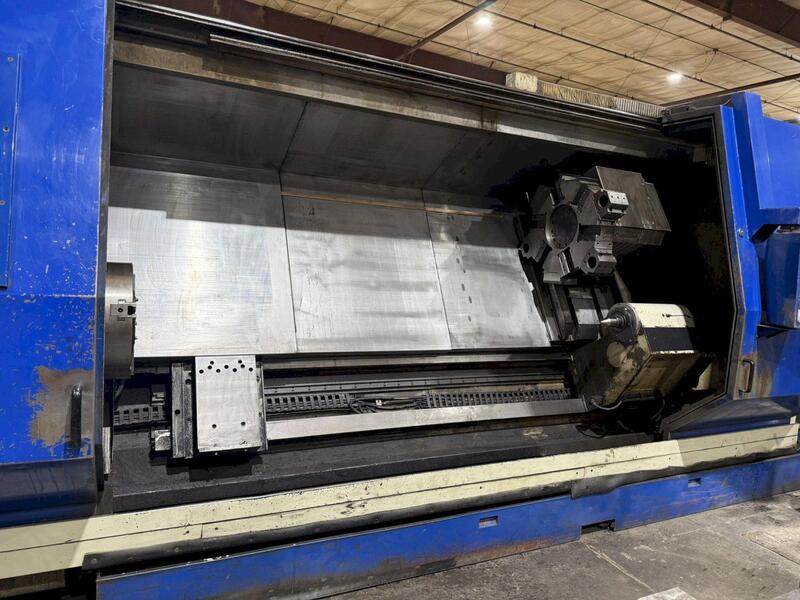

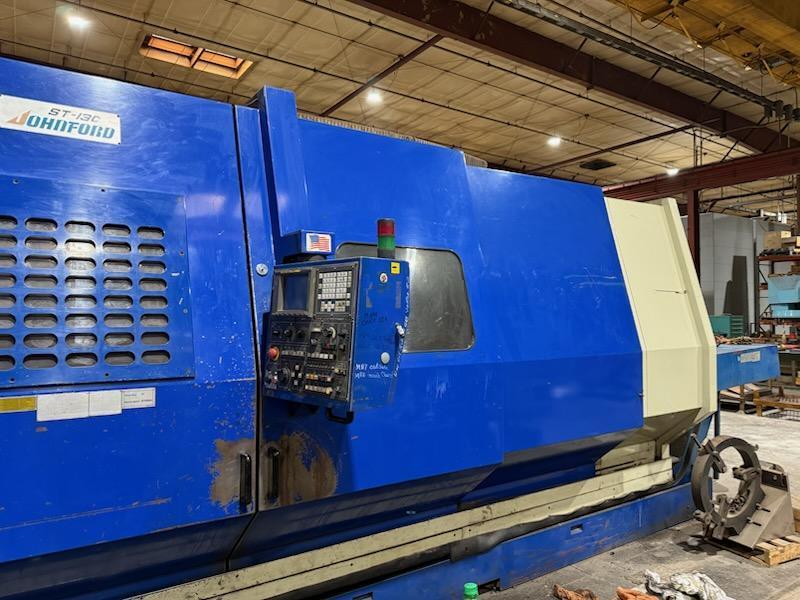

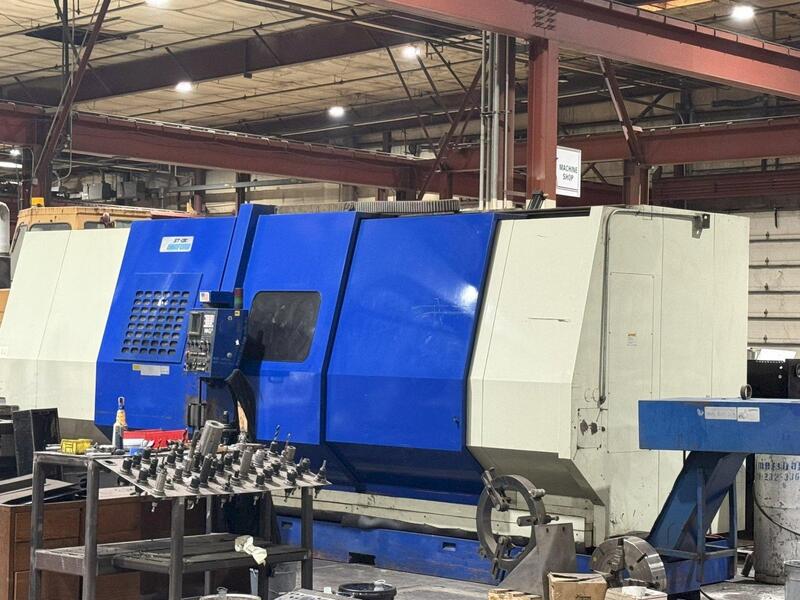

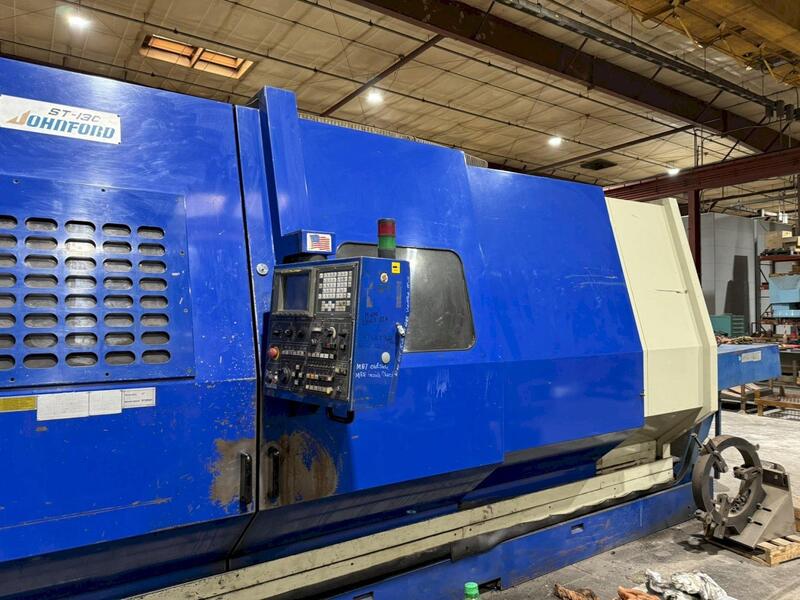

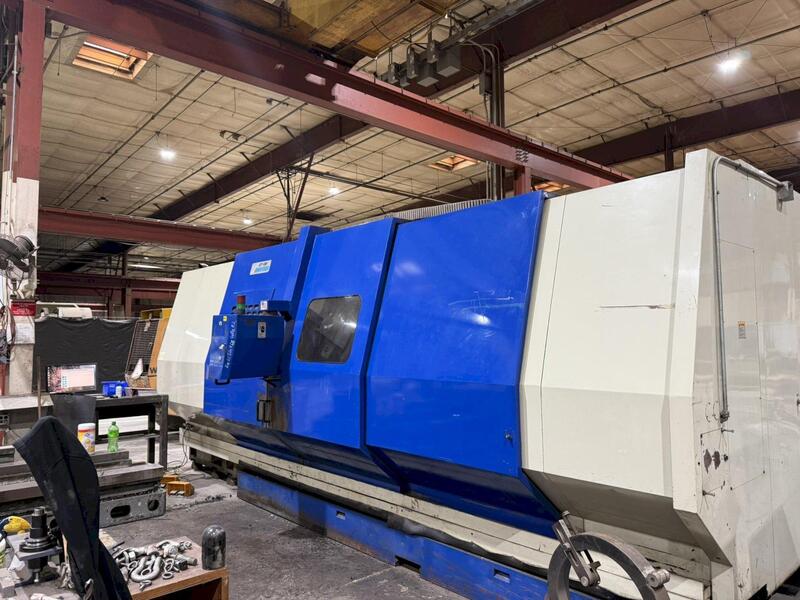

Johnford #ST-130C, CNC Lathe, 36.2" swing, 27.6" swing over cross slide, 20"/24" chuck, 5.5" bar, 7.9" spindle diameter, 6" bore, A2-15, 12 tool, 30/37 HP, 1500 RPM, Fanuc 18-T Control

SPECIFICATIONS:
SWING OVER BED -------------------- 36.2 in
SWING OVER CROSS SLIDE ------------ 27.6 in

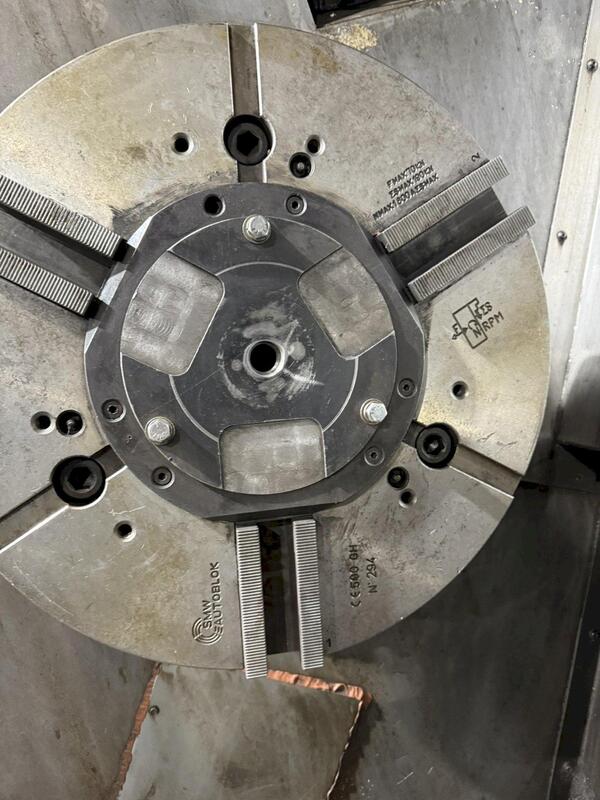

CHUCK SIZE ------------------------ 20.1 in, 24 in
BAR CAPACITY ---------------------- 5.5 in
SPINDLE NOSE ---------------------- A2-15
SPINDLE BORE ---------------------- 6 in
SPINDLE SPEED, STEP(S) ------------ AUTO 4 SPEEDS
SPINDLE SPEED RANGE (RPM) ---------BELT TYPE GEAR BOX 1500 (Std.) 1400 GEARED HEADSTOCK 1200
SPINDLE MOTOR --------------------- 30,37 (STD) 37/45 (OPT.)
SPINDLE BEARING DIAMETER ---------- 7.9 in

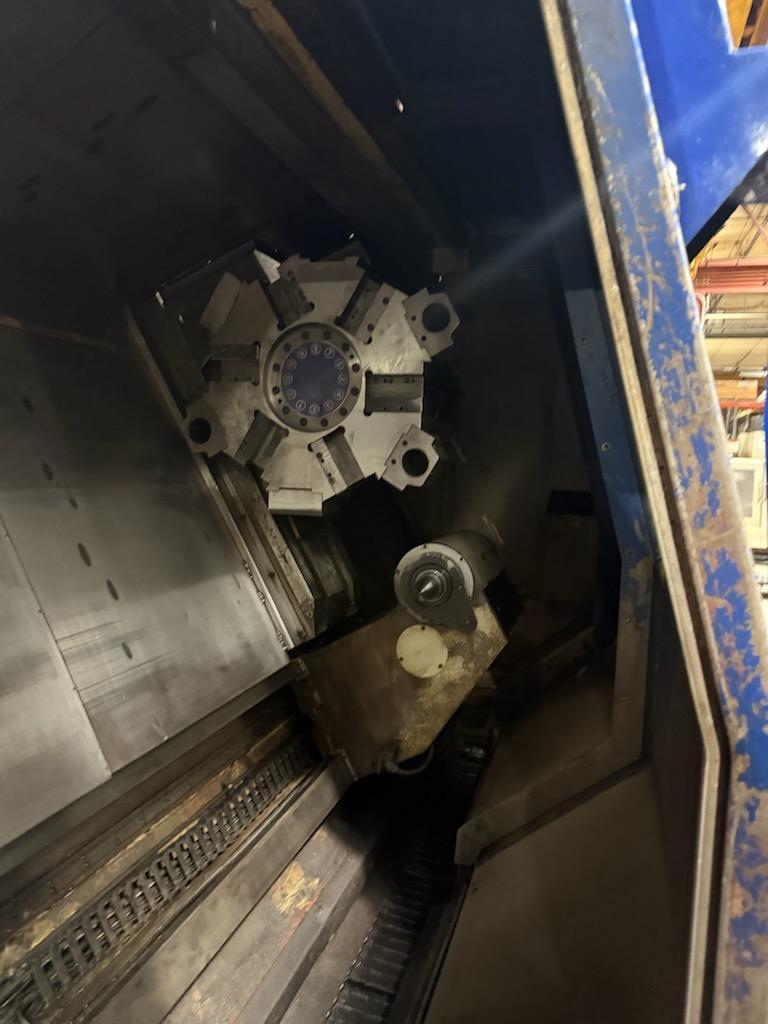

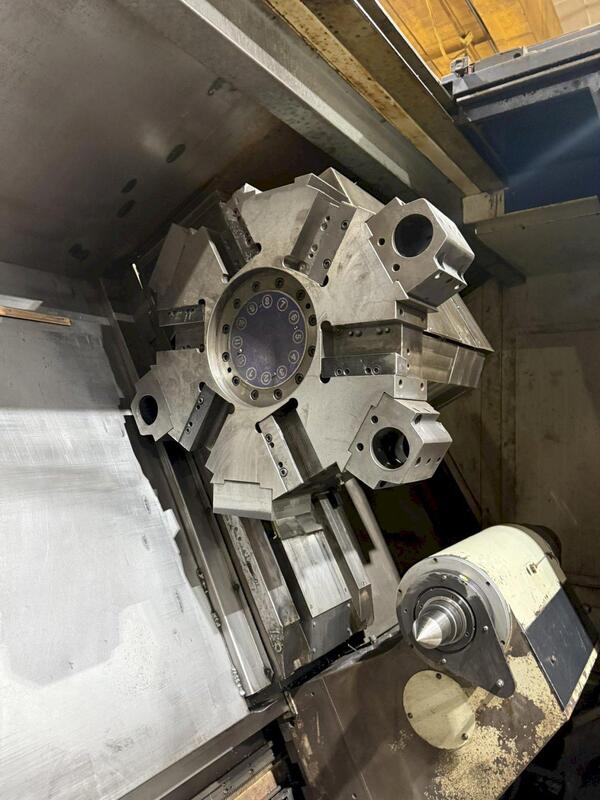

NO. OF TOOLS ---------------------- 12
CROSS TRAVEL X AXIS --------------- 14.6 in
Y AXIS TRACEL (OPT.) -------------- 3 in
LONGITUDINAL TRAVEL Z AXIS -------- 78.7 in /94.5 in /120.1 in, 159.4 in /198.8 in /212.6 in
RAPID TRAVERSE FT/MIN ------------- X:32.8 Y:32.8 Z:39.4
TAILSTOCK TRAVEL ------------------ 66.9 in /82.7 in /110.2 in, 141.7 in /181.1 in /212.6 in
TAILSTOCK QUILL TRAVEL ------------ 5.9 in
TAILSTOCK QUILL DIAMETER ---------- 7.9 in
TAILSTOCK SPINDLE TAPER ----------- MT#7
SERVO MOTOR X AXIS (KW) ----------- 7
SERVO MOTOR Y AXIS (OPT.) (KW) ---- 3
SERVO MOTOR Z AXIS (KW) ----------- 7
BED INCLINATION ------------------- 60 DEGREES
WEIGHT ---------------------------- 20300 LBS
MACHINE DIMENSIONS W X H ---------- 98.6 in X 114 in
L ---------- 22 ft1 in
EQUIPPED WITH:
FANUC SERIES 18-T CONTROL
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
DELIVERY:
IMMEDIATE, SUBJECT TO PRIOR SALE
