Johnford #ST-130BX-HP+ATC, CNC lathe, 47.2" swing, 15" chuck, 4.6" bar, A2-11, Siemens 840D, tailstock, chip conveyor, 2009

Johnford ST-130BX-HP+ATC CNC Lathe, Siemens 840D Controller, 1200mm Swing Over Bed, 925mm Swing Over Cross Slide, Auto Lubrication With Arm, 2800 x 1250mm Capacity, From Aerospace Facility
BEST PRICING IF PURCHASED WHILE STILL
IN PLANT UNDER POWER

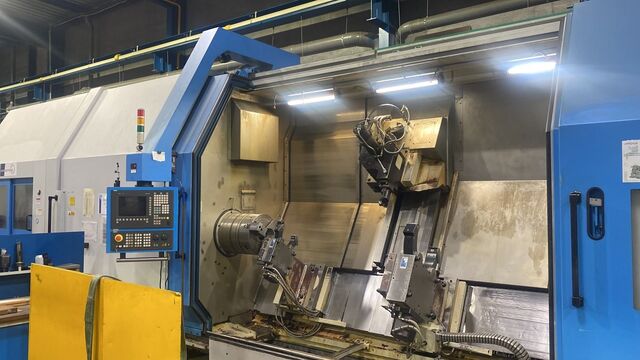

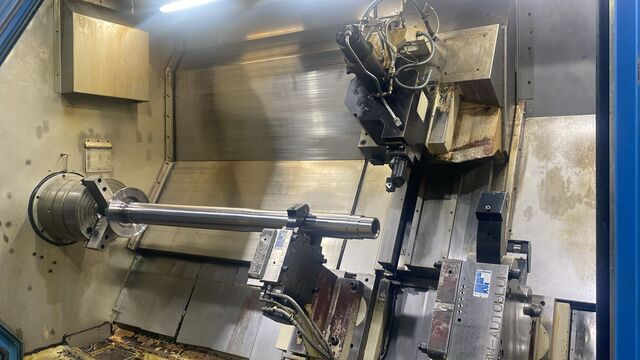

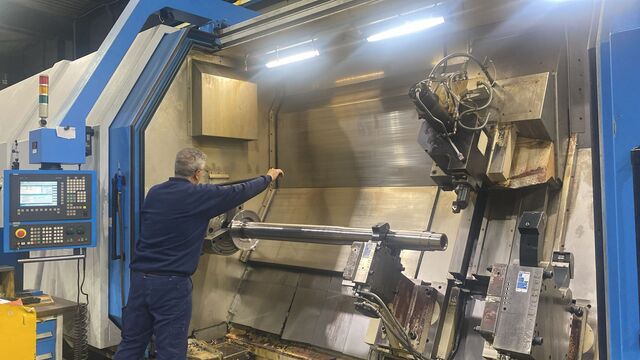

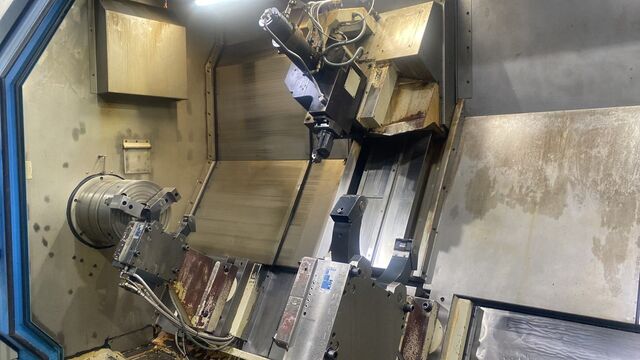

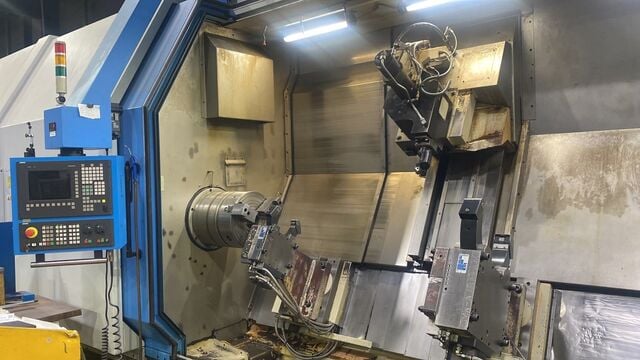

JOHNFORD ST-130BX-HP+ATC CNC LATHE

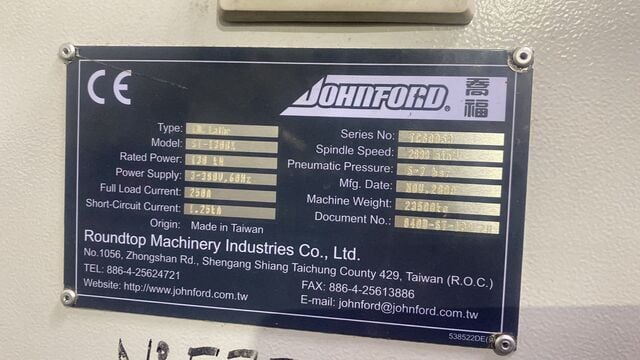

S/N TCG9053 YEAR: 2009
Specifications
Capacity.............................2800x1250mm (110.2 x 49.2”)
Swing Over Bed..........................1200mm (47.2”)
Swing Over Cross Slide..................925mm (36.4”)
Chuck Size..............................381mm (15”)
Bar Capacity............................116mm (4.6”)
Spindle Nose............................A2-11
Spindle Bore............................132mm (5.2”)
Spindle Speed...........................Auto 4-Speeds
Spindle Speed Range.....................2000 RPM
Spindle Motor...........................22/26 KW
Spindle Bearing Diameter................180mm (7.1”)
No. Of Tools............................48
X-Axis Cross Travel.....................520mm (20.5”)
Y-Axis Travel...........................+/- 75mm (3”)
Z-Axis Longitudinal Trave...............l3050mm (120.1”)
Rapid Traverse (m/min)..................X:10/Y:10/Z:10
Tailstock Travel........................2800mm (110.2”)
Tailstock Quill Travel..................150mm (5.9”)
Tailstock Quill Diameter................200mm (7.9”)
Tailstock Spindle Taper.................MT# 7
X-Axis Servo Motor......................7 KW
Y-Axis Servo Motor......................3 KW
Z-Axis Servo Motor......................7 KW
Bed Indication..........................60 Degrees
Weight..................................23,500 KG (51,809 LBS)
Dimensions
Width...................................2,645mm (104.1”)
Height..................................3,175mm (125”)
Length..................................8,612mm (339.1”)
Equipped With
Coolant system.
Forkardt 400mm (15.7”) chuck..
Tailstock.

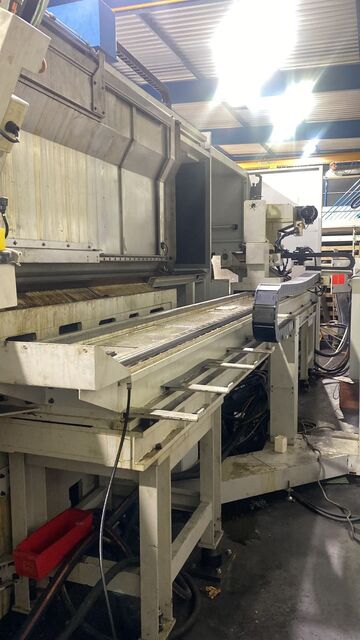

Chip conveyor.

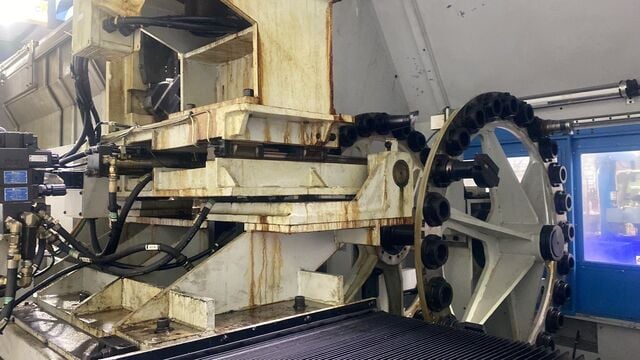

48-Tool changer.
Auto lubrication with arm.

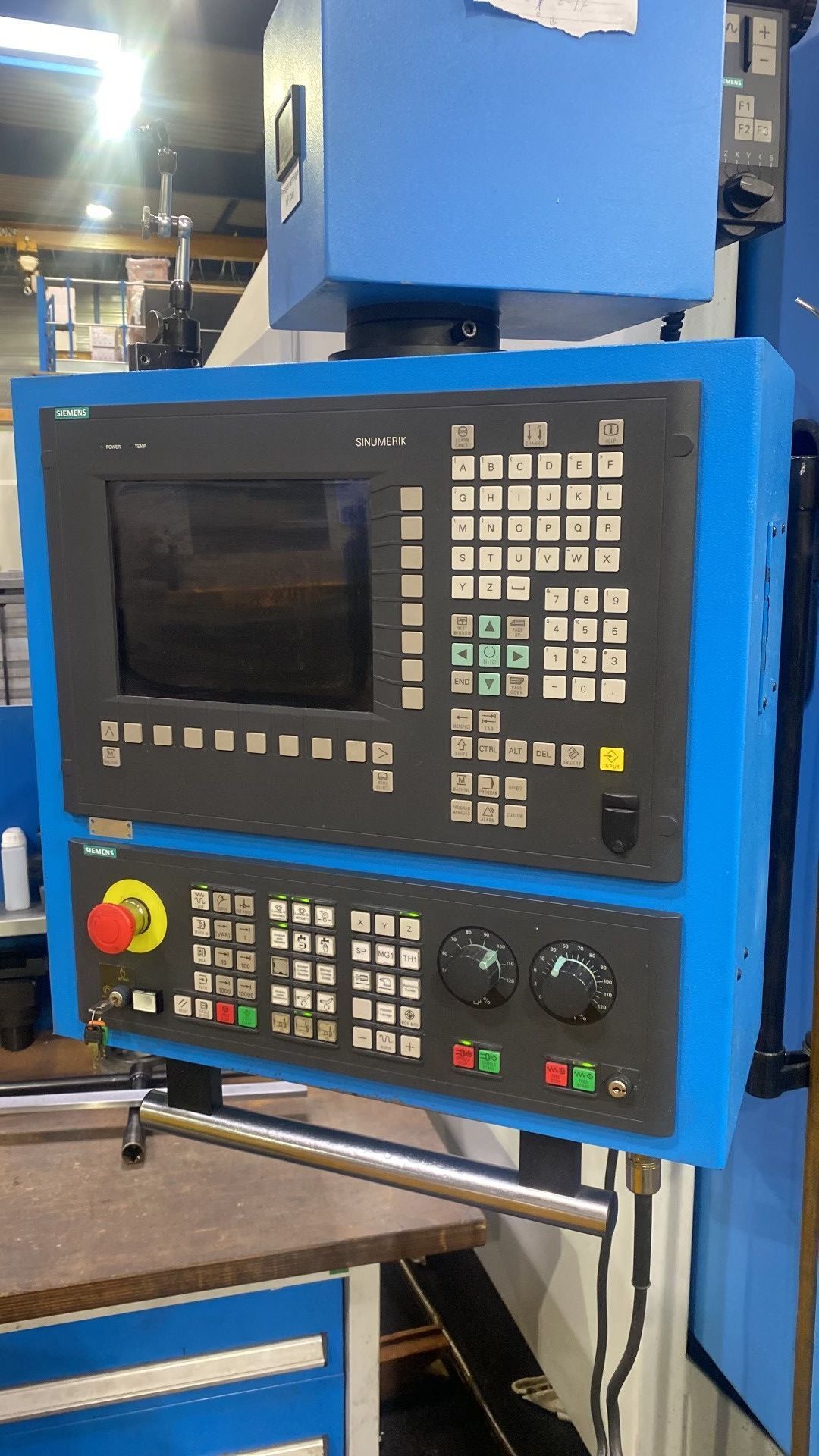

Siemens 840D controller.
STILL IN PLANT. LOADED ON A TRUCK IN PARIS.
Specifications are deemed accurate, however, subject to verification or prior sale.
