JOBS #Ever5-8000x4000, 5-Axis CNC Gantry Mill, 315" X Travel, 157" Y Travel, 59" Z Travel, 15,000 RPM, 80 automatic tool changer, 5 Heads, 2021

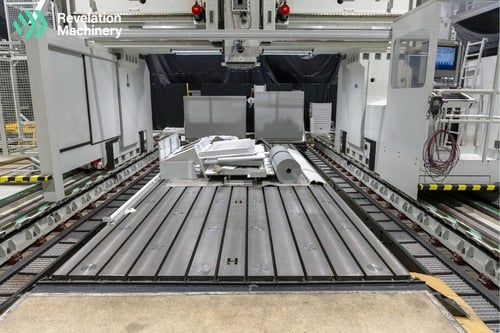

Table Size: 314″ x 118″ (8,000 x 3,000 mm)
Table Depth: 9.8″ (250 mm)
Max Table Weight: 11,023 lbs (5,000 kg)
X-Axis Travel: 314.96″ (8,000 mm)
Y-Axis Travel: 157.48″ (4,000 mm)
Z-Axis Travel: 59.06″ (1,500 mm)
X/Y/Z Travel Speed: 1,259 IPM
A-Axis: 220° (+/- 110°)
C-Axis: 400° (+/- 200°)

A-Axis Rotation Speed: 60°/sec (10 RPM)
A-Axis Accuracy: +/- 0.002°
A-Axis Repeatability: +/- 0.001°
C-Axis Rotation Speed: 60°/sec (10 RPM)
C-Axis Accuracy: +/- 0.002°
C-Axis Repeatability: +/- 0.001°

Spindle Speed: 20 – 15,000 RPM
Max Torque: 2,581 lbft Continuous (10,325 lbft with Hydraulic Clamping)
Automatic Tool Changer: 80 Positions
Tool Taper (All Heads): HSK-A100
Max Tool Weight: 55 lbs
Max Tool Length: 13.8″
Automatic Head Changer: 5 Head Positions

5 Spindle Heads Included:

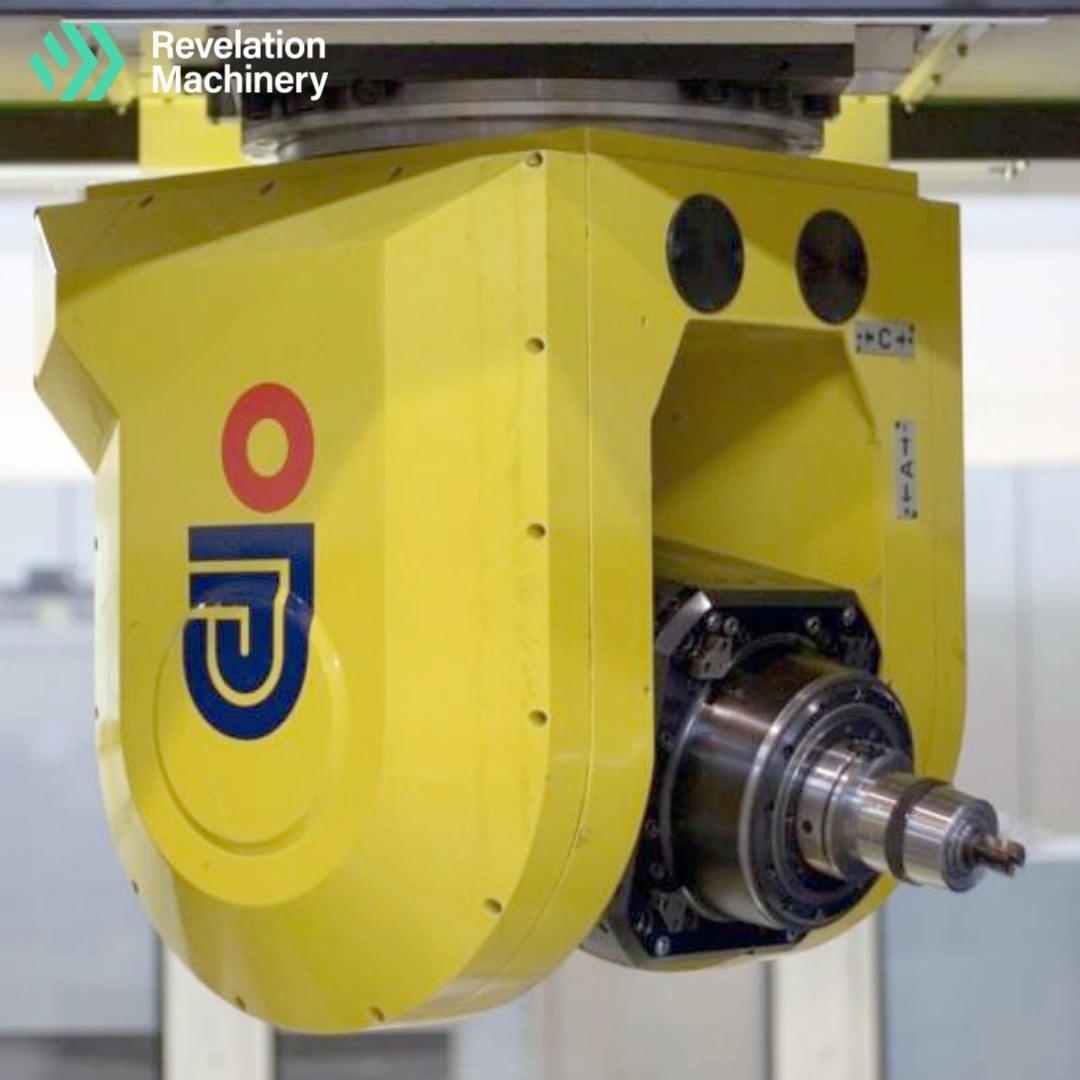

* Continuous 5-Axis T3K Head- 15,000 RPM Fischer Spindle; A-Axis: 215° (-120/+95°); 885 lbft Continuous (3,687 lbft with Hydraulic Clamp); Heidenhain RON 285

* T35C Geared Fork Head- 5,000 RPM; A-Axis: 220° (+/-110°); 3,319 lbft with Hydraulic Clamp; Direct Encoder

* Universal TUNI 45° Head- 5,000 RPM; Indexing: 0.02°; 8,113 lbft with Hydraulic Clamp; Encoder on Motor; Accuracy: +/-0.0008°

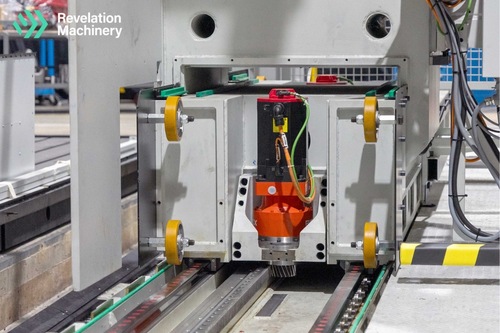

* 90° Right Angle Power Head- 5,000 RPM; Through Tool Coolant

* Straight Power T3A Head- 5,000 RPM; Through Tool Coolant

EQUIPPED WITH:
Fanuc 31i-B5 CNC Control
iHMI 19″ Display
Dual Speed Gearbox
Through Tool Coolant- 725 PSI
Coolant Nozzles- 124 PSI
Coolant Tank- 528 Gallon
Paper Filtration

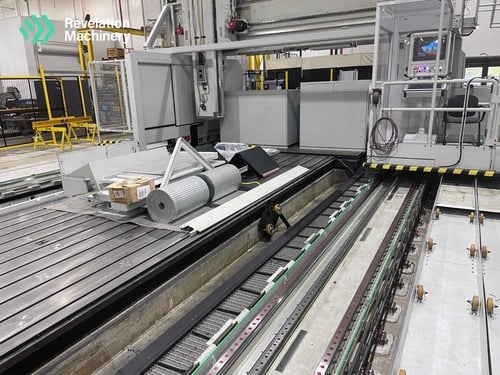

2x Belt-Type Chip Conveyors
Heidenhain Linear Scale X/Y/Z Axes
Renishaw RMP60 Touch Probe
Blum Laser Tool Measuring System
2x High Definition Cameras & Joystick
Surveillance System & Monitor

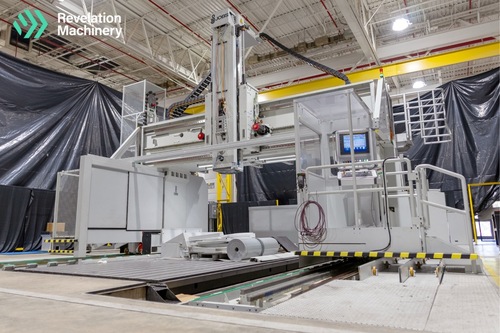

Operator Platform
Independent Cooling Units
80 Position Automatic Tool Changer

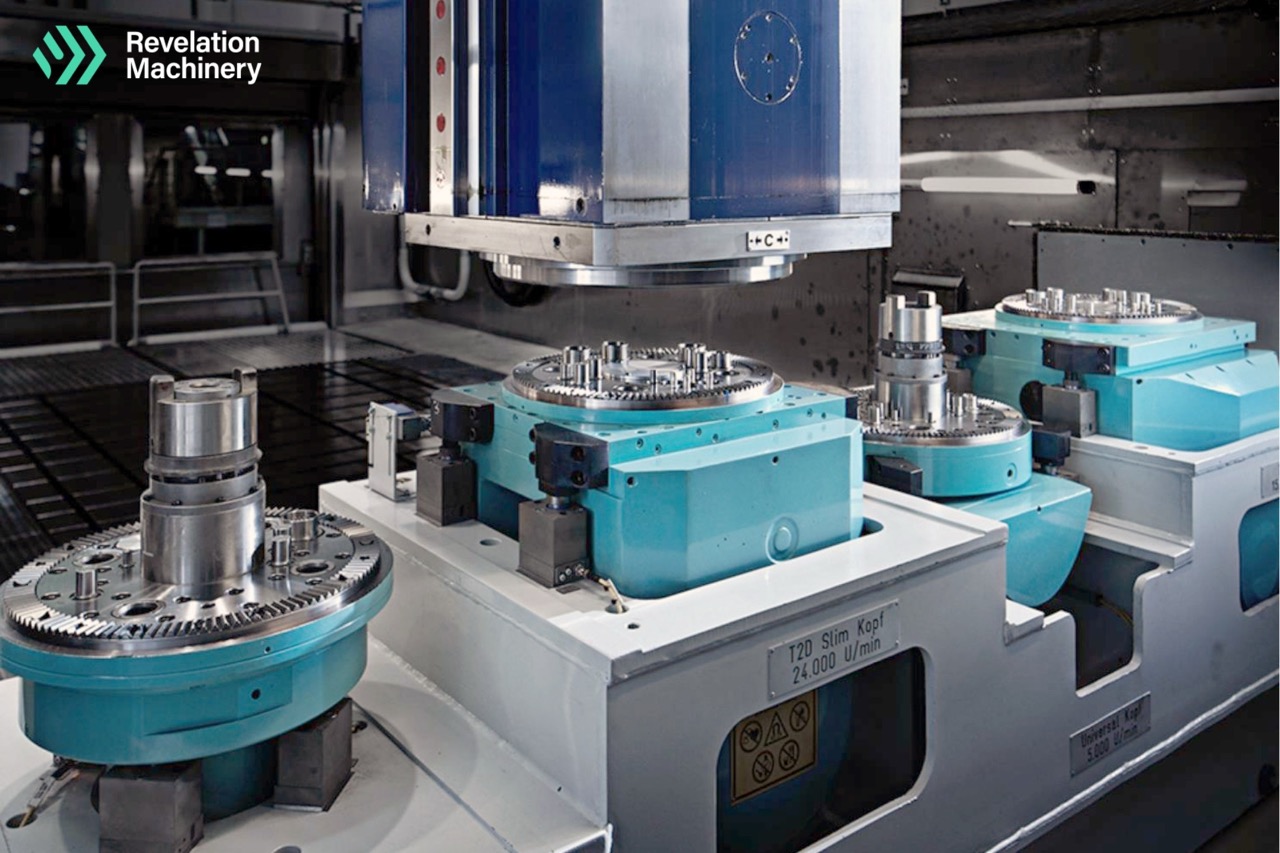

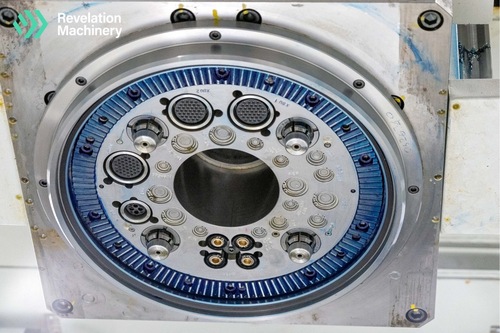

5 Position Translating Automatic Head Changer- Jobs BUSS System
5x Interchangeable Heads (HSK-A100)

1 Year Warranty & Installation Included.
Shipping Not Included.

Large-format 5-axis aerospace-class gantry mill equipped with Fanuc 31i-B5 CNC control with continuous simultaneous 5-axis machining capability.

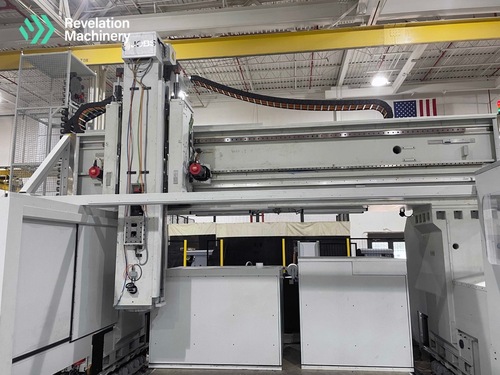

Heavy-duty bridge/gantry construction.
Automatic tool changer and automatic head changing system with multi-head spindle configuration for roughing and high-speed finishing. Includes high-speed spindle and heavy-duty geared milling head configurations in BUSS-style interchangeable head system.
Designed for large-part precision machining and high material removal rates.
Features high-rigidity gantry design, advanced contouring and 5-axis interpolation with precision linear axis motion systems.
Industrial production-grade CNC platform ideal for large-part machining, precision 5-axis milling, tooling and mold applications, and structural machining in high-performance production environments.
Chip conveyor and coolant system.
