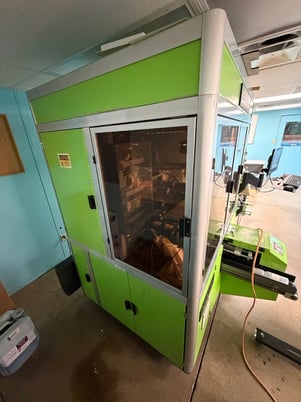

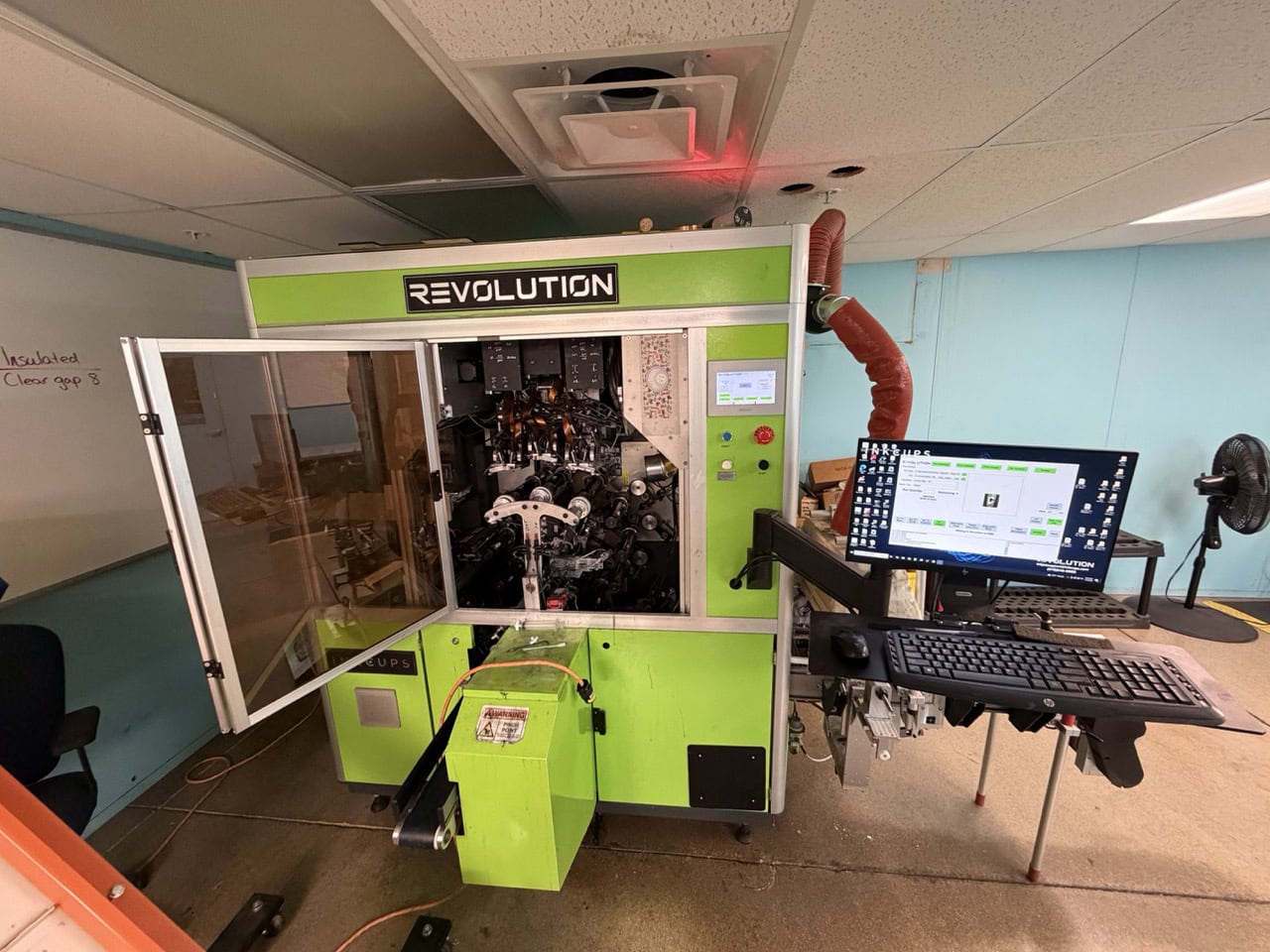

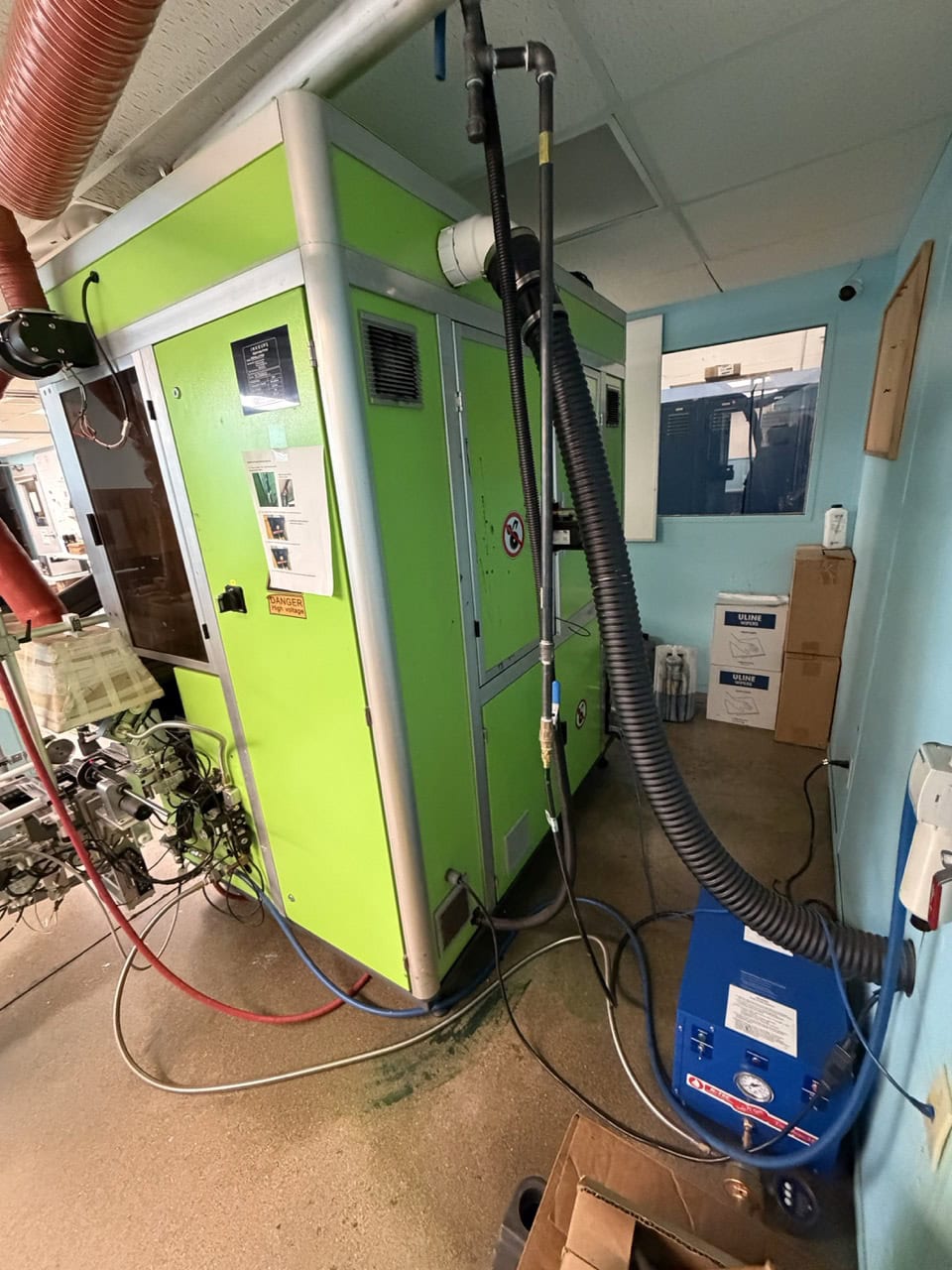

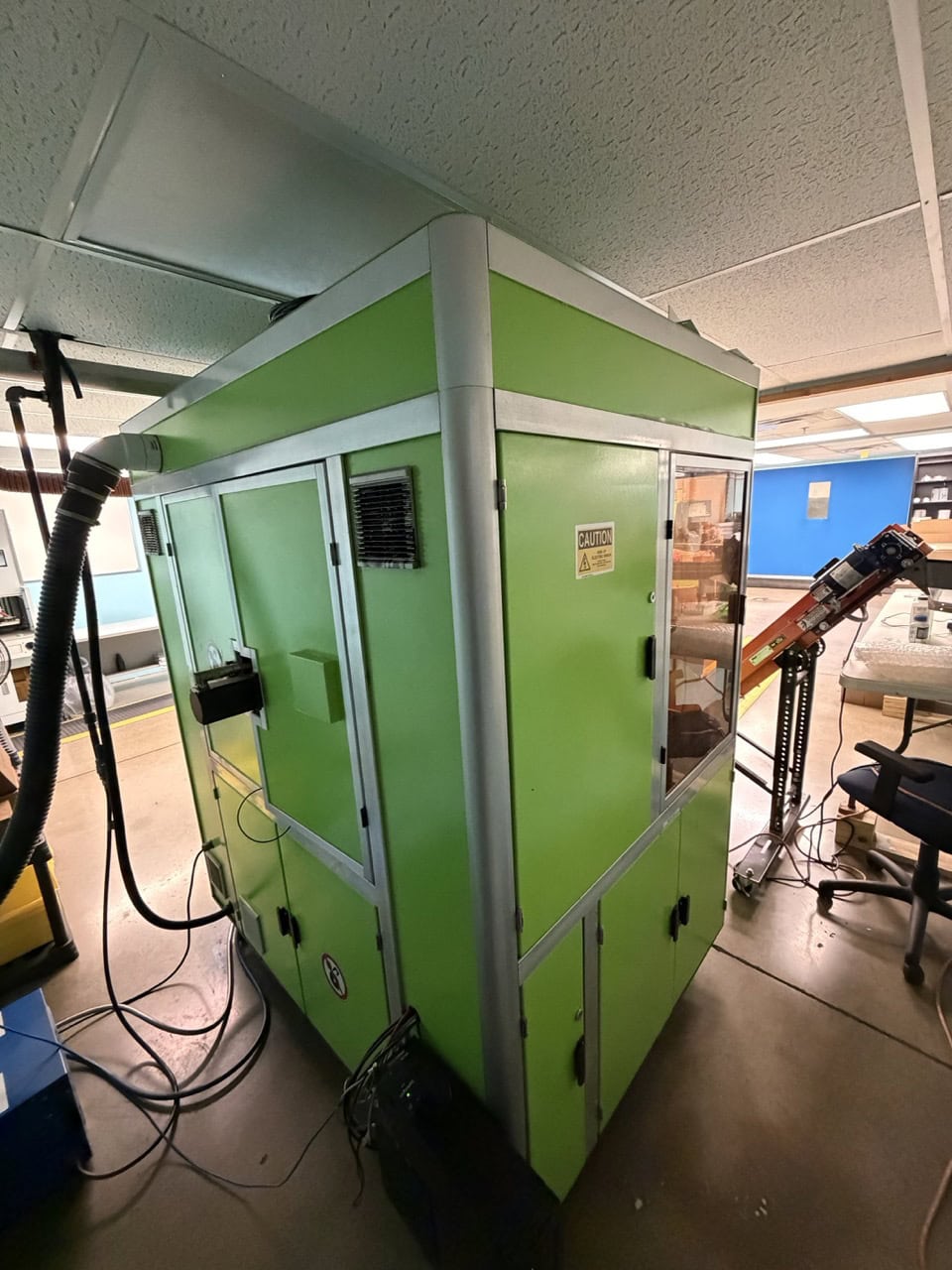

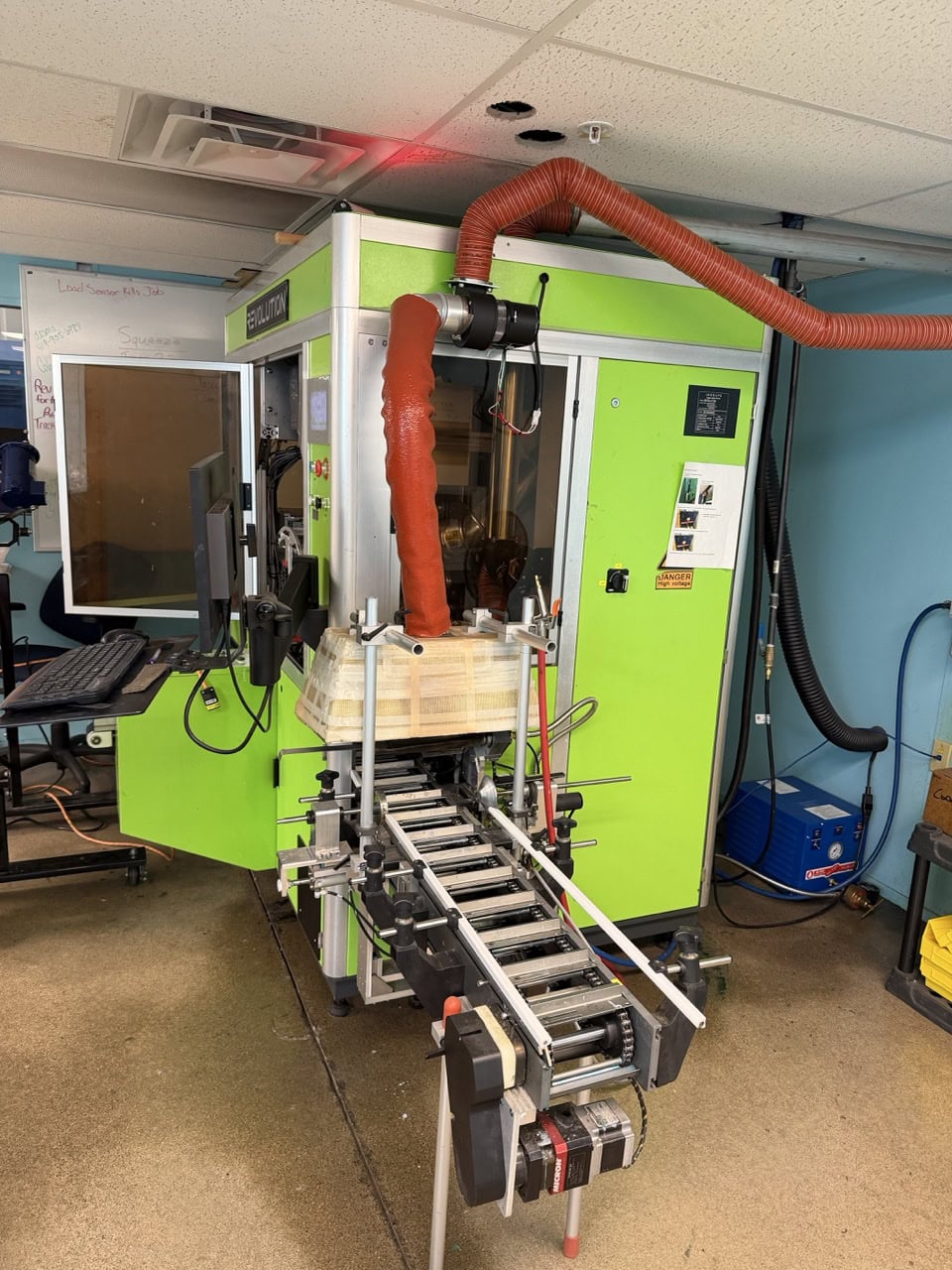

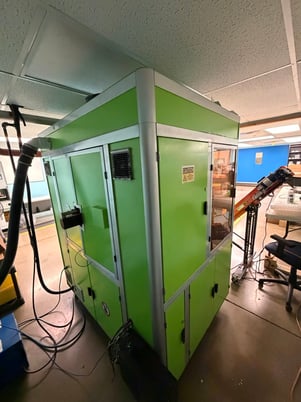

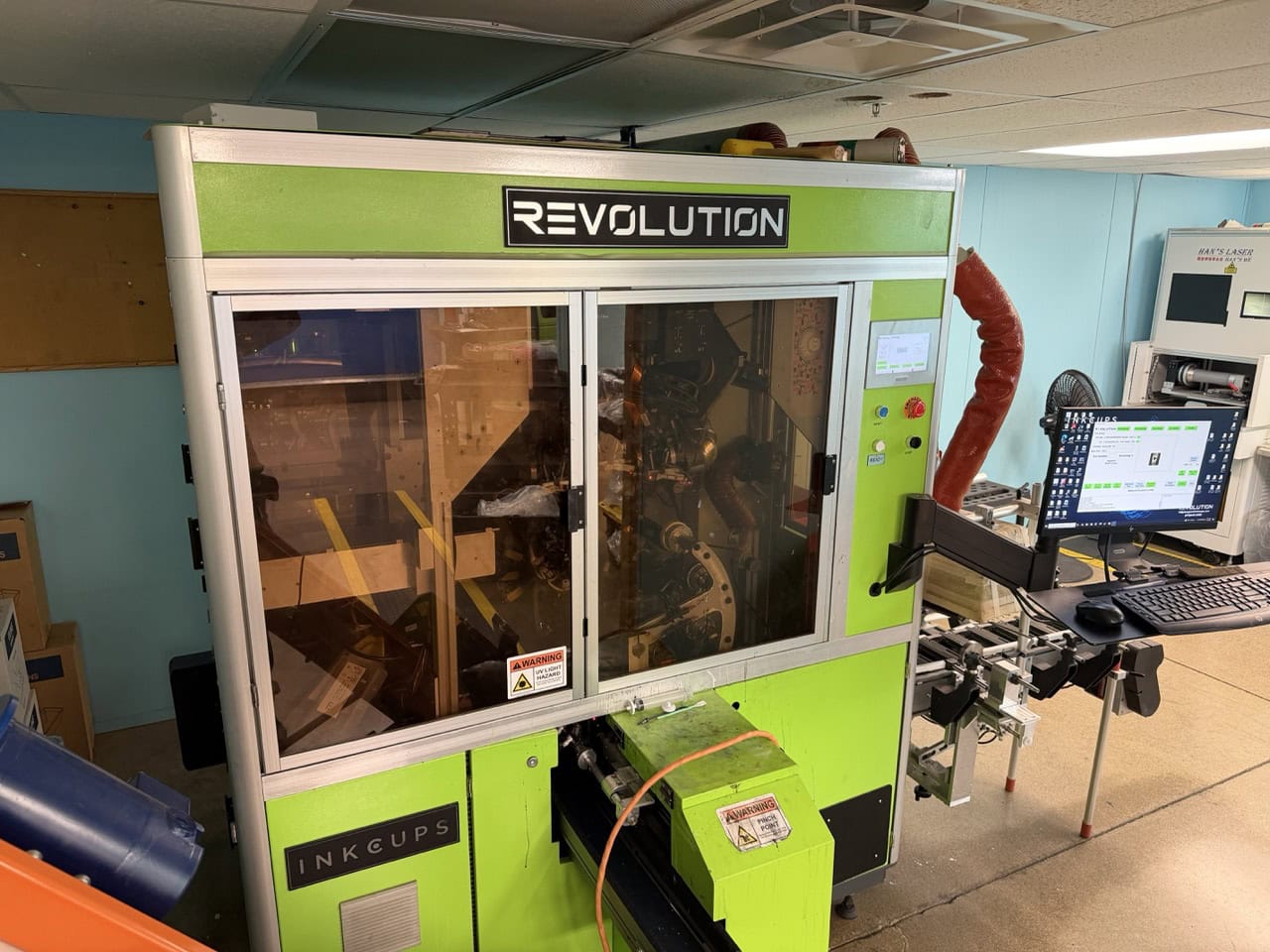

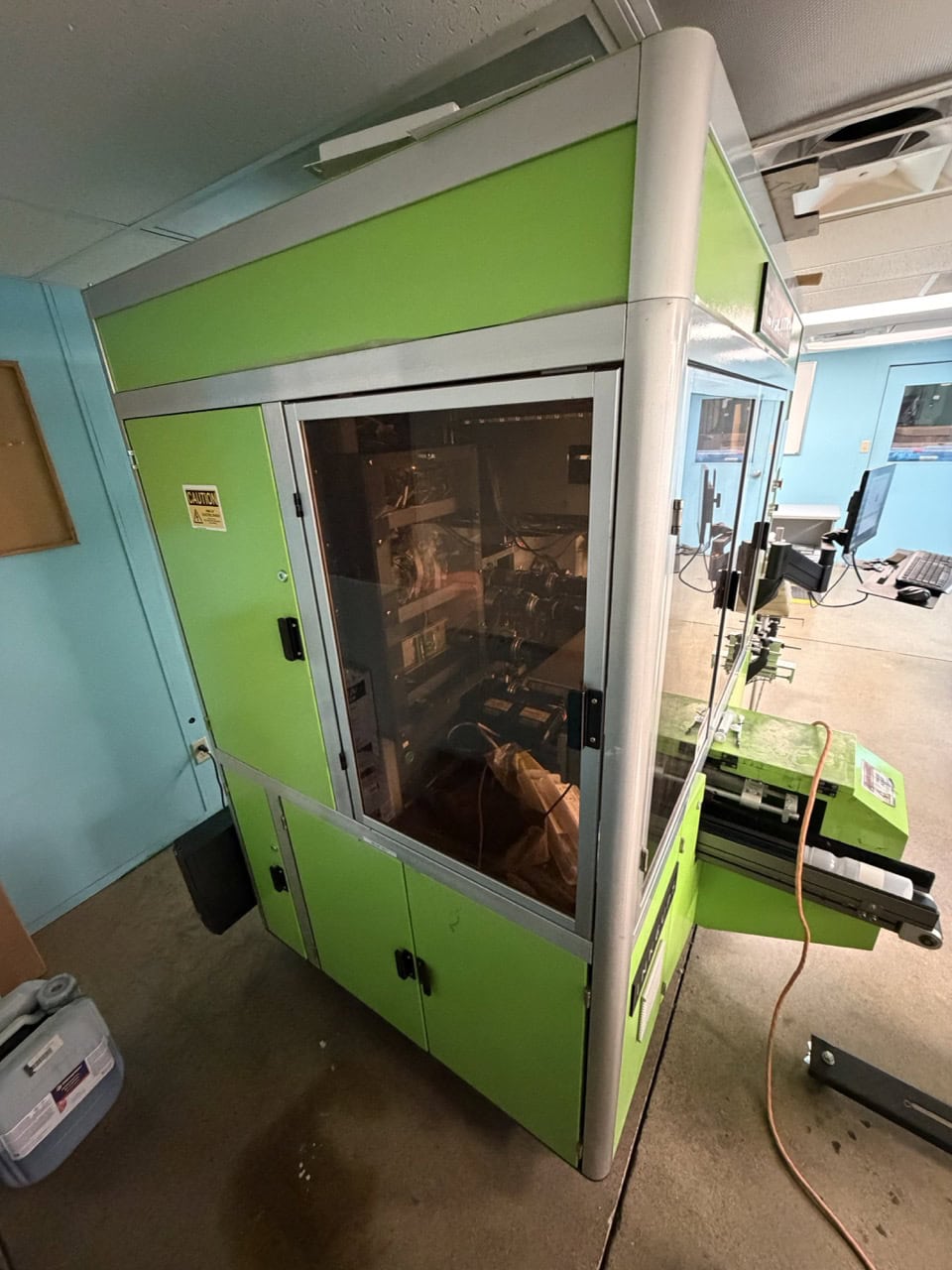

Inkcups #Revolution, High Speed UV Ink Jet System, 600 PPH, 2019

Print Type: Open-Ended Cylinders And Tapered Vessels
Production Rate: Up To 600 Parts Per Hour
Part Diameter Range: 2.0″ – 4.5″
Maximum Taper Angle: 10°
Cylinder Length Range: 3.0″ – 12″
Standard Print Length: Up To 4.25″
Extended Print Length: Up To 8.66″
Curing Length: 4.33″
Maximum Resolution: 1200 DPI × 1200 DPI
Ink Colors: White, Cyan, Magenta, Yellow, Black, Varnish
Machine Dimensions (L × W × H): 107″ × 47.2″ × 74″
Power Requirement: 3-Phase 380/220 VAC or Single-Phase 220 VAC

Equipped With

Servo-Driven Printing System
Patented Helical Imaging Engine
Automatic Load / Unload System
Programmable Angle Adjustment
Integrated Corona Treatment System
Integrated Vacuum Tooling System
Mechanical Turret Indexing System
Mechanical Indexing Infeed Conveyor
12 Vacuum Mandrel Tooling Fixtures
UV LED Pin And Final Cure System
Bulk Ink System
Helix / Revolution Software Package
