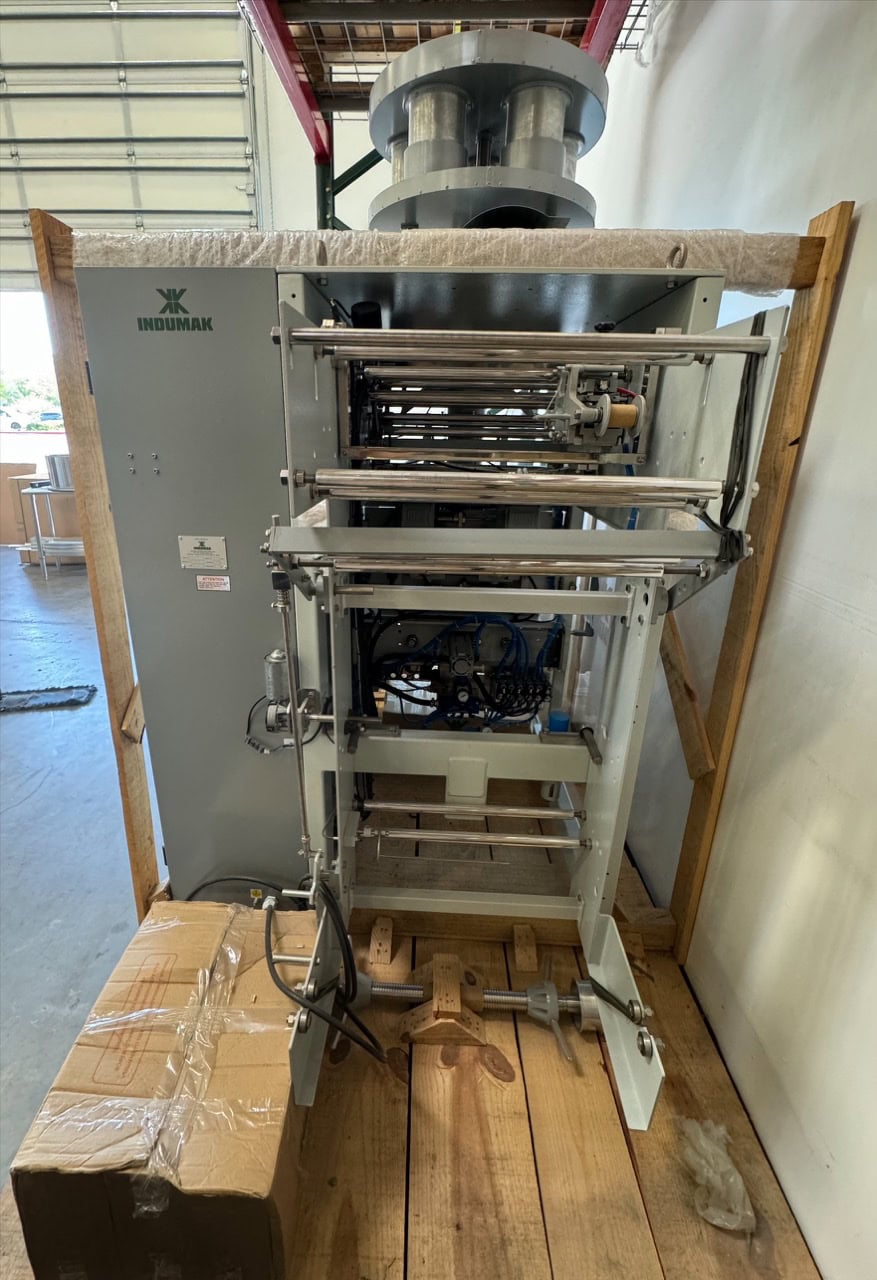

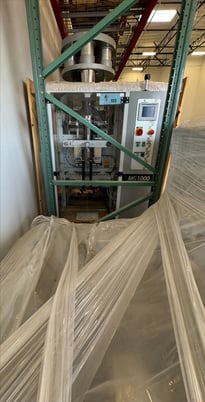

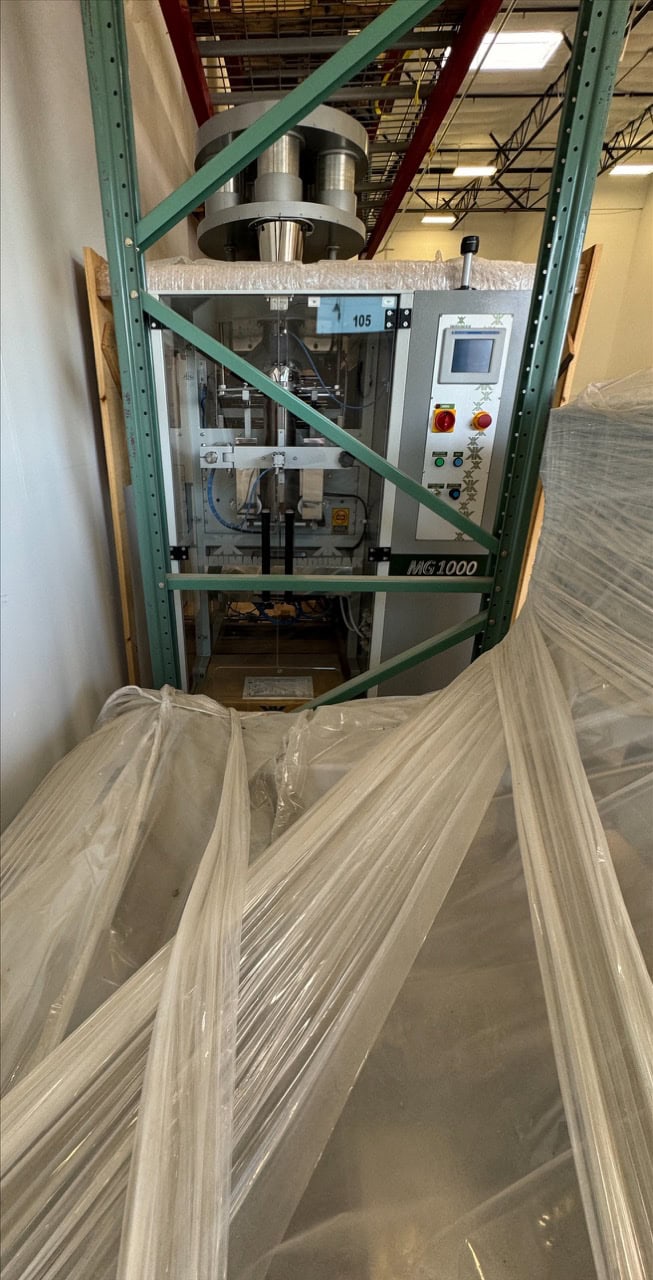

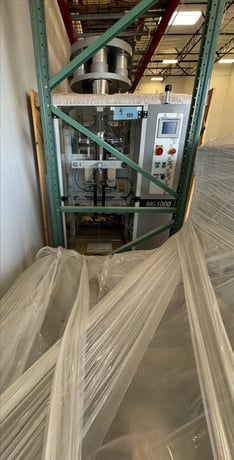

Indumak #MG-1000 CGS vertical form fill and seal bagger, volumetric filler, incline conveyor, 2016

Equipment Overview
This Indumak MG1000 vertical form-fill-seal machine with integrated CGS carousel doser is confirmed unused and operational. Built in 2016, the unit has never been in production. It is electrically powered, HMI responsive, and the doser is fully functional. The machine is crated and stored professionally, with sealing bars, touchscreen, wiring, and doser in visually flawless condition. Ideal for snack, popped, or granular product lines.

Key Features and Specifications

System Configuration:
Type: Vertical Form-Fill-Seal (VFFS)
Integrated Doser: CGS Carousel Gravity System
Operator Panel: Rockwell PV600 touchscreen
PLC: Rockwell Automation
Structure: SAE 1020 steel frame + AISI 304 stainless interfaces
Construction Year: 2016
HMI Verified: Yes, confirmed via video review
Doser Rotation: Smooth, confirmed via 82s video

Packaging Specs:
Bag Width: 70 – 285 mm
Bag Length: 65 – 350 mm
Bag Styles: Pillow, Gusseted, Flat Bottom
Max Output: Up to 65 cycles/min
Film Roll Width: Max 620 mm
Film Core Size: 76 mm
Film Types: Heat-sealable BOPP, laminated film
Reel Handling: Motorized film centering and brake
Photocell: Registered, confirmed present

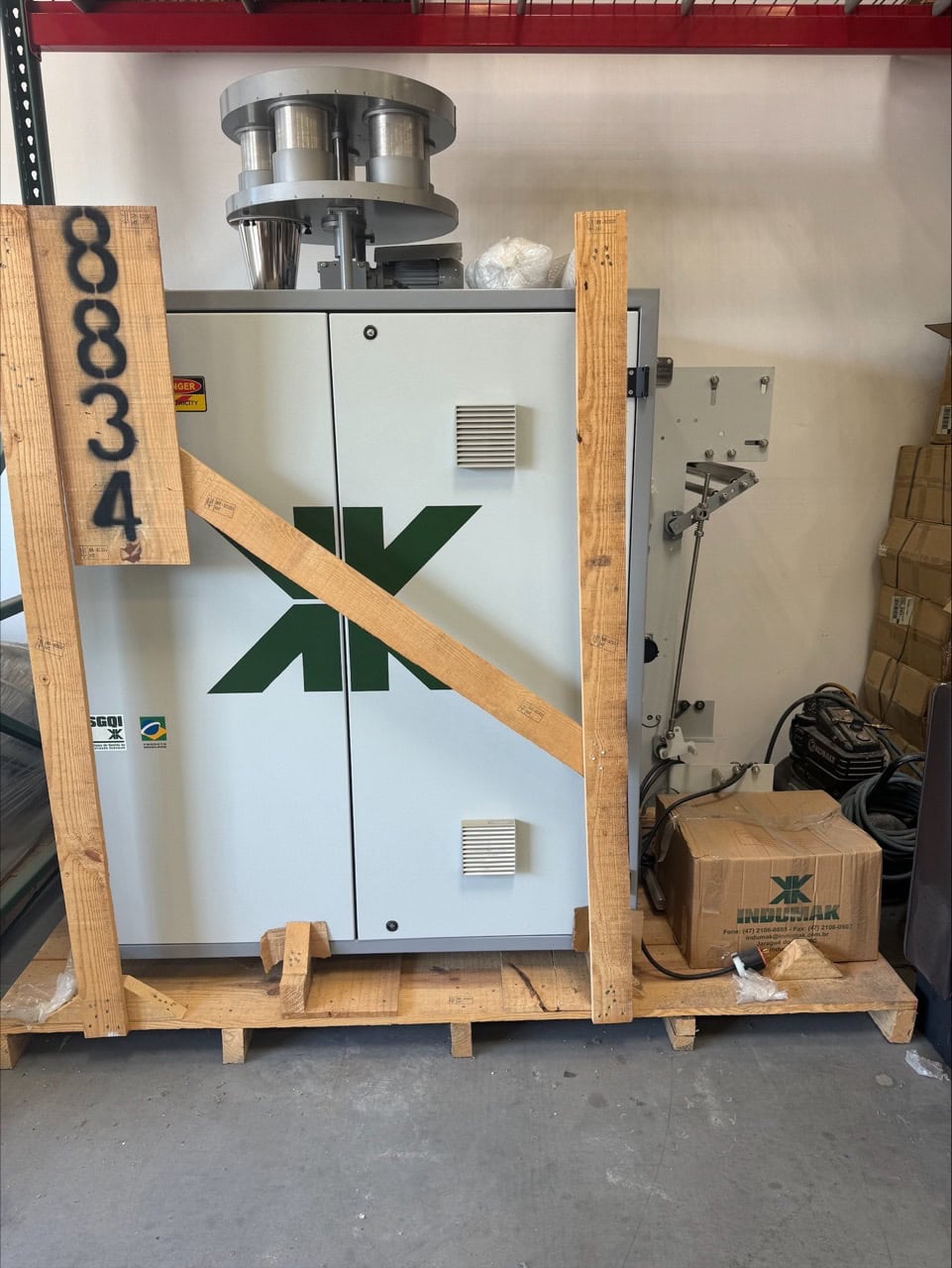

Doser (CGS Unit):
Type: Gravity multi-head carousel system
Speed Control: Independent motor indexing
Output Verified: Yes – rotation observed under power
Height: 1850 mm
Forming Tube: Present and aligned

Electrical & Pneumatics:
Voltage: 220V
Frequency: 60 Hz
Power: 1 kVA
Compressed Air: 150 L/min @ 6–7 bar

Dimensions:
Weight: 950 kg
Total Height: 1850 mm
Footprint: ~1.5m x 1.2m

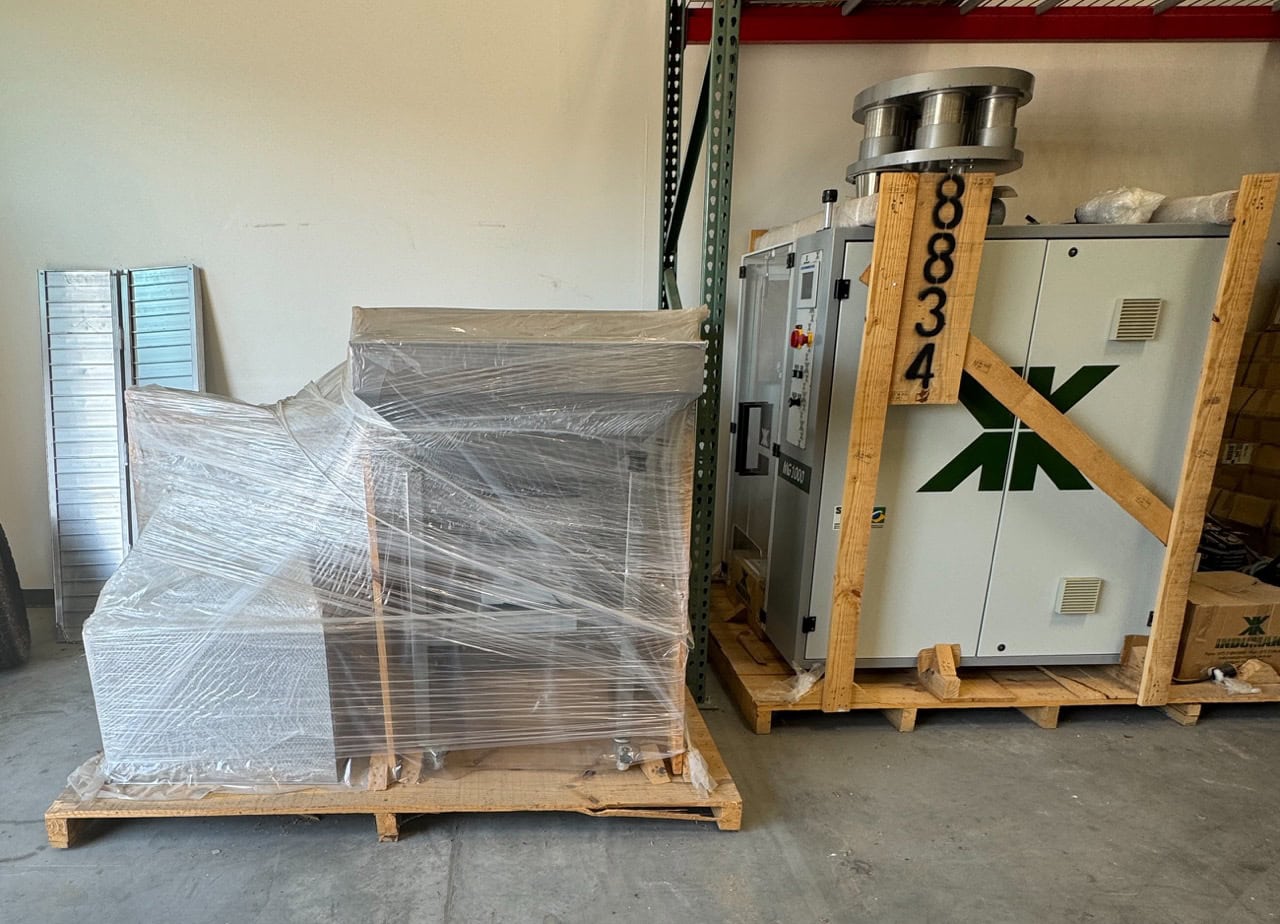

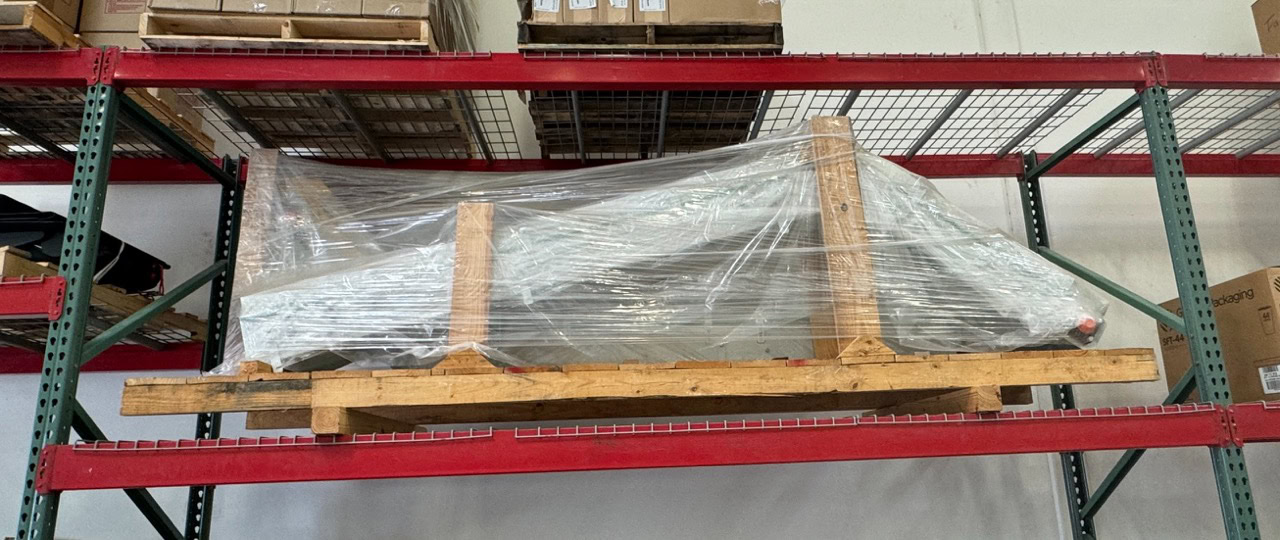

Crating: Palletized and wrapped (3 major units)
