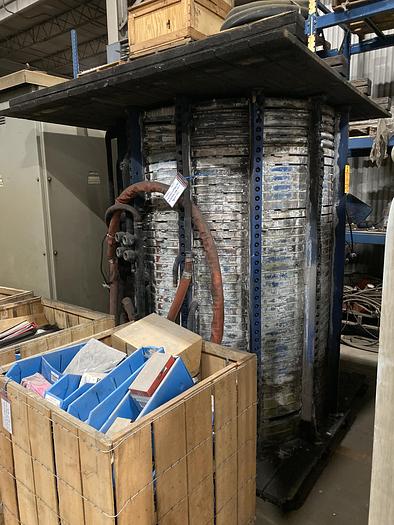

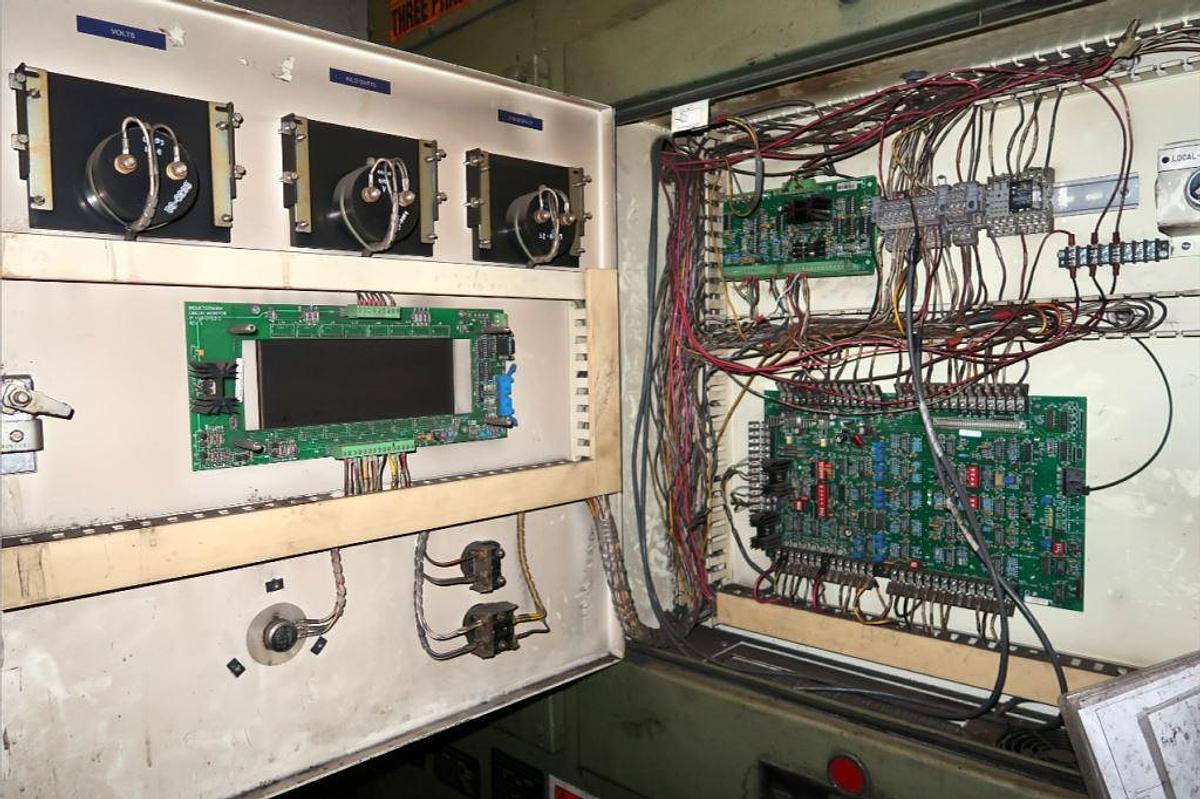

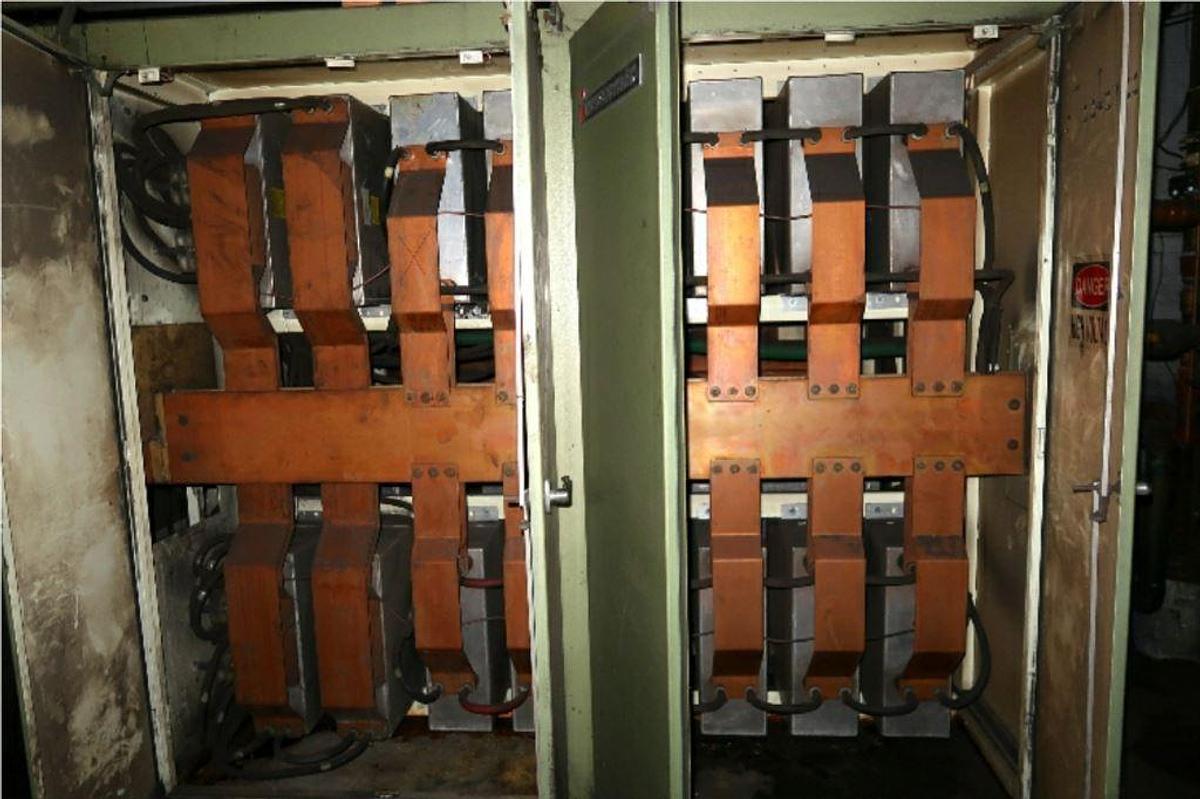

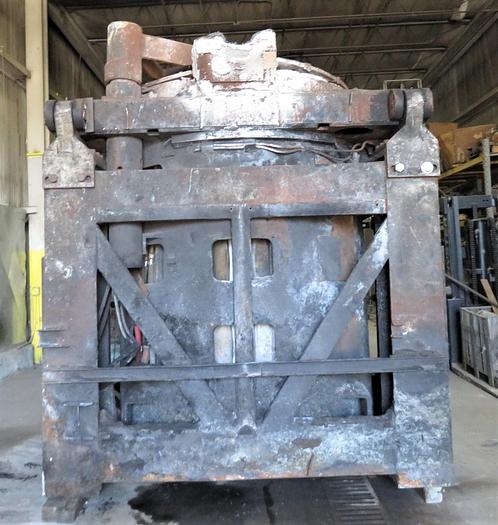

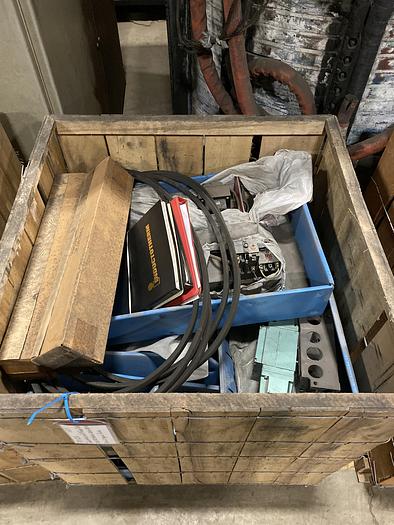

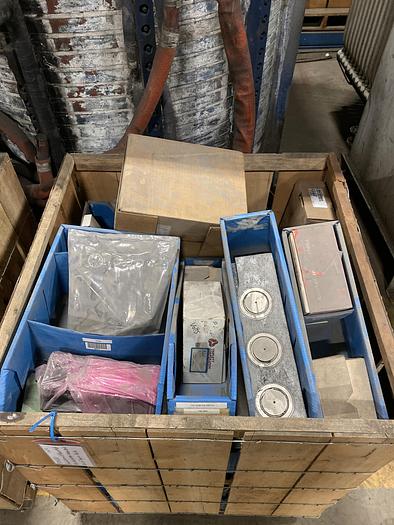

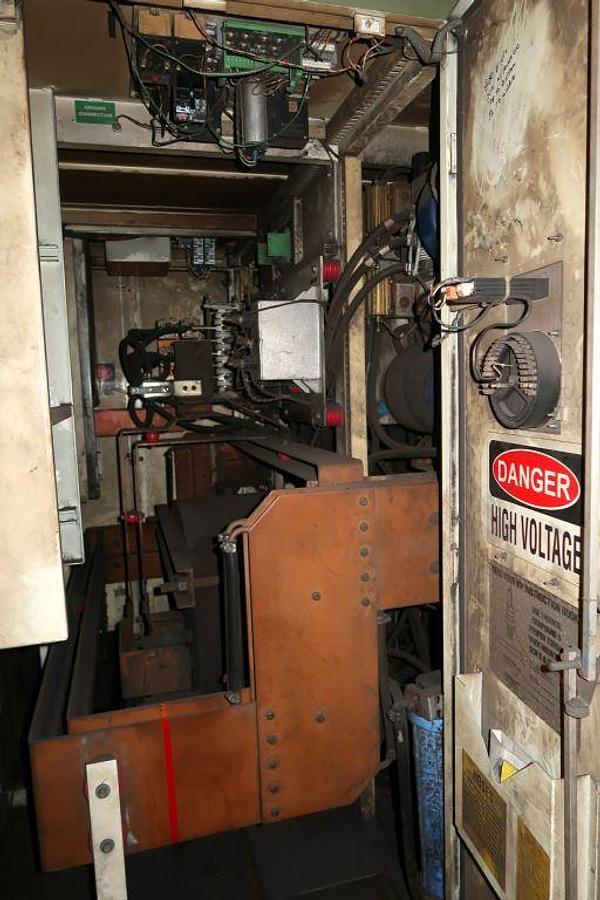

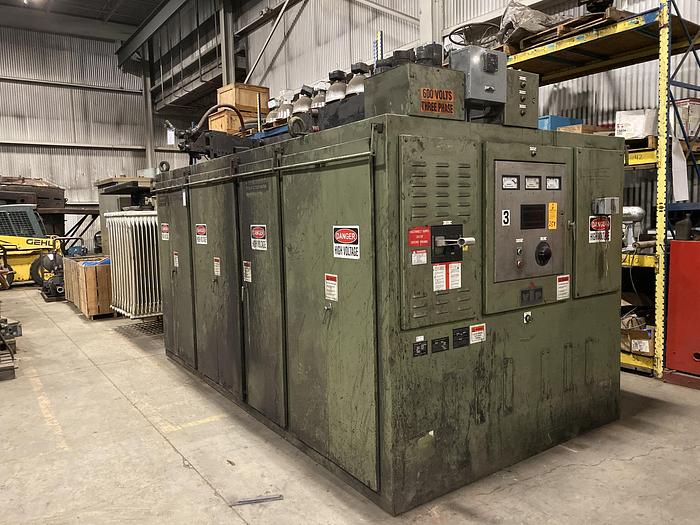

THIS INDUCTOTHERM VIP POWER MELT IS A CORELESS INDUCTION FURNACE SYSTEM RATED AT 1750 KW WITH AN OPERATING FREQUENCY OF 70 HZ. IT IS DESIGNED WITH A 7 MT SHELL AND HAS A MELT CAPACITY OF 7.5 TONS, UTILIZING A 7 TON CRUCIBLE. THE ELECTRICAL SPECIFICATIONS INCLUDE AN INPUT OF 575V, 3 PHASE, 60 HZ, 0.95 POWER FACTOR, DRAWING 1902 KVA AT 1910 AMPS. THE SYSTEM'S OUTPUT IS SUPPORTED BY 2200 VOLT CAPACITORS AT 70 HZ. THE UNIT IS PAIRED WITH A WARD TRANSFORMER FEATURING A HIGH VOLTAGE PRIMARY OF 12470 DELTA AND A LOW VOLTAGE SECONDARY OF 575Y/332. THE COMPLETE SYSTEM INCLUDES HIGH VOLTAGE SWITCHGEAR, A SPARE COIL, AND COMPONENTS SUCH AS A SPARE INDUCTOTHERM FURNACE ELEMENT AND A SKID OF CYLINDERS FOR THE FURNACE.
“InductoForge™” Single 1kHz In-Line Modular Solid State Power Supply (derated to 250kW), In-Feed Conveyor & Pinch Roll Drive Unit, Allen Bradley PLC & HMI, Model #146 Induction Coil Assembly, Fast Extractor Discharge Conveyor, Dual Color Infrared Pyrometer, Service Drawings & Manuals ...more
Power Supply Power Output: 1,500 kWOperating Frequency: 700 HzControl & Power Cabinet: 160 KVAFurnaces Capacity of Each Furnace: 5,500 lb., 1 Ton Tilting Ladle3 Ton Tilting Ladle (ACETAR)1.5 Ton Pouring Line Ladle (ACETAR) Atompsheric Ladle HeaterInductotherm VIP Power Trak 1500-5 Melting Induction ...more
Induction Heater, Make: Lepel High Frequency Laboratories (New York), Model: T-5-3-KC-J-RW, Serial No.: 69100, Type: T-504-186, Electrics: 230-460 Volt / 3 Phase / 60 Cycle / Amps: 31-15.5, Power: 12.5 KVA, Overall Dimensions (approx.): 48" x 30" x 30", Weight (estimated): 250 lbs., taken from 1st-hand ...more
Inventory No. 0226-042-0064 Manufacturer Alpha 1 Name Induction Heater Arrival Date 02-12-2026 Dimensions L x W x H (inches) Unavailable Weight (lb.) 1790 Category Heat Treating Condition Used Available Quantity 1 Item W/control Cabinets, Hydraulic Unit, Parts, (455#)89x27x43, (200#)26x30x81, (225#)30x30x36 ...more
