Estimated monthly payment valid upon approved credit.
Description

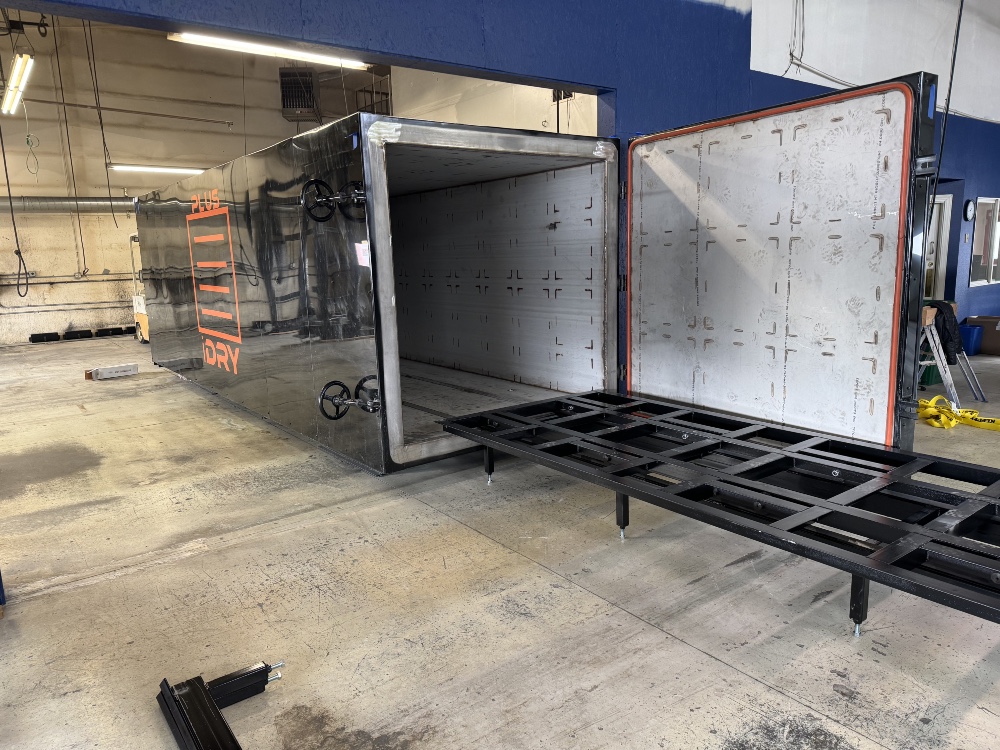

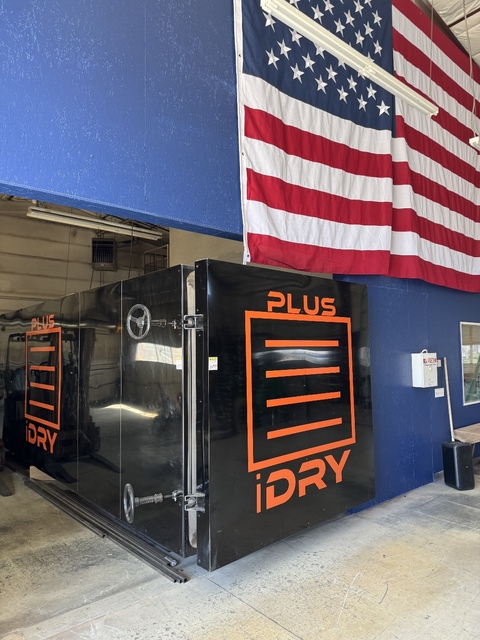

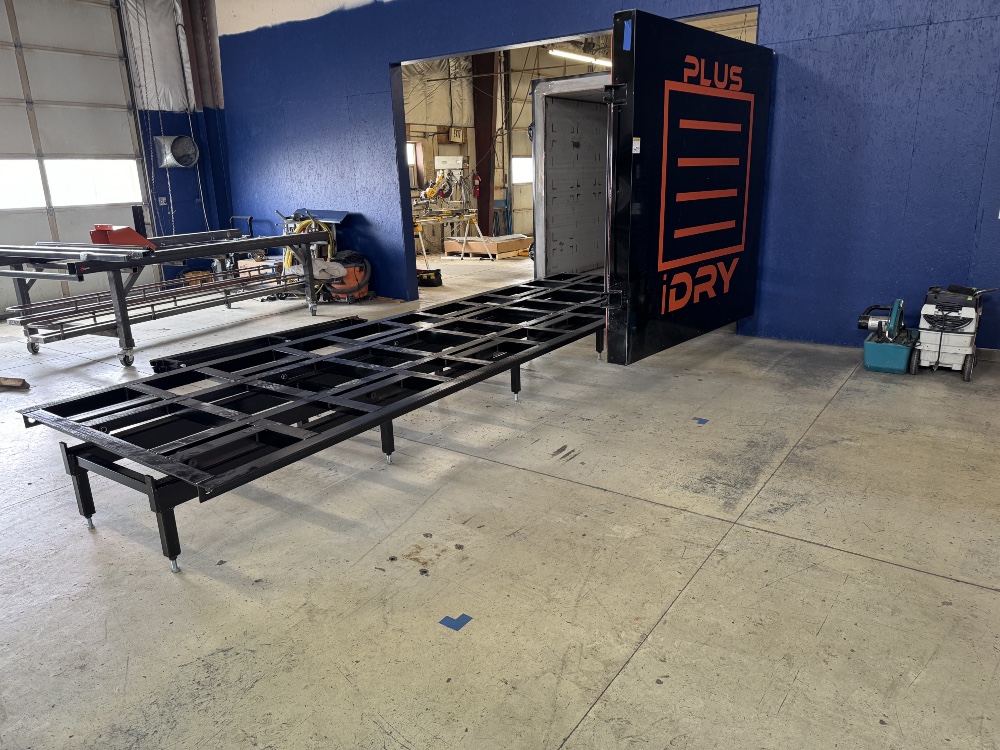

Capacity: up to 4000 board feet (More Info) StickeredLumber Pile: 16.5ft Lx60in Wx65inT Power requirement: 208-230V 1PH 60A Operating Cost: $0.04 to $0.06 per board foot Drying Time: Approximately 1 week per inch of thickness (More Info) Heating: Electric (185F max temp) Installation: Installed in above freezing and dry space, water connection, drain, 208-230V 60A power. For best performance ambient temperature should be 60-80F. Loading: Forklift loaded (External Track and Trolley Included) Water requirement: 1/2” connection, min 3/4 gpm, min 50psi Controls: Touch Screen Total Weight of equipment: 14,000lbs Includes: Remote access, Touchscreen, Track/Trolley 1 Year Limited Warranty
Runs like a top, never had one issue with it. I will include my custom built aluminmum drain basin, which allowed me not to plumb it into a floor drain. Instead it runs on water level senors and uses a pump and pipe to drain to a standard shop sink. Works perfect.
EBERL Model V-COMFORT 20/100 & 20/125 Vacuum Lumber Kiln. The significantly reduced boiling point of water in a Vacuum makes Vacuum drying particularly suitable for drying hardwood and timber. Thereby, the drying period is shortened, and energy consumption is reduced.S: The special airflow, overheated steam flows ...more
