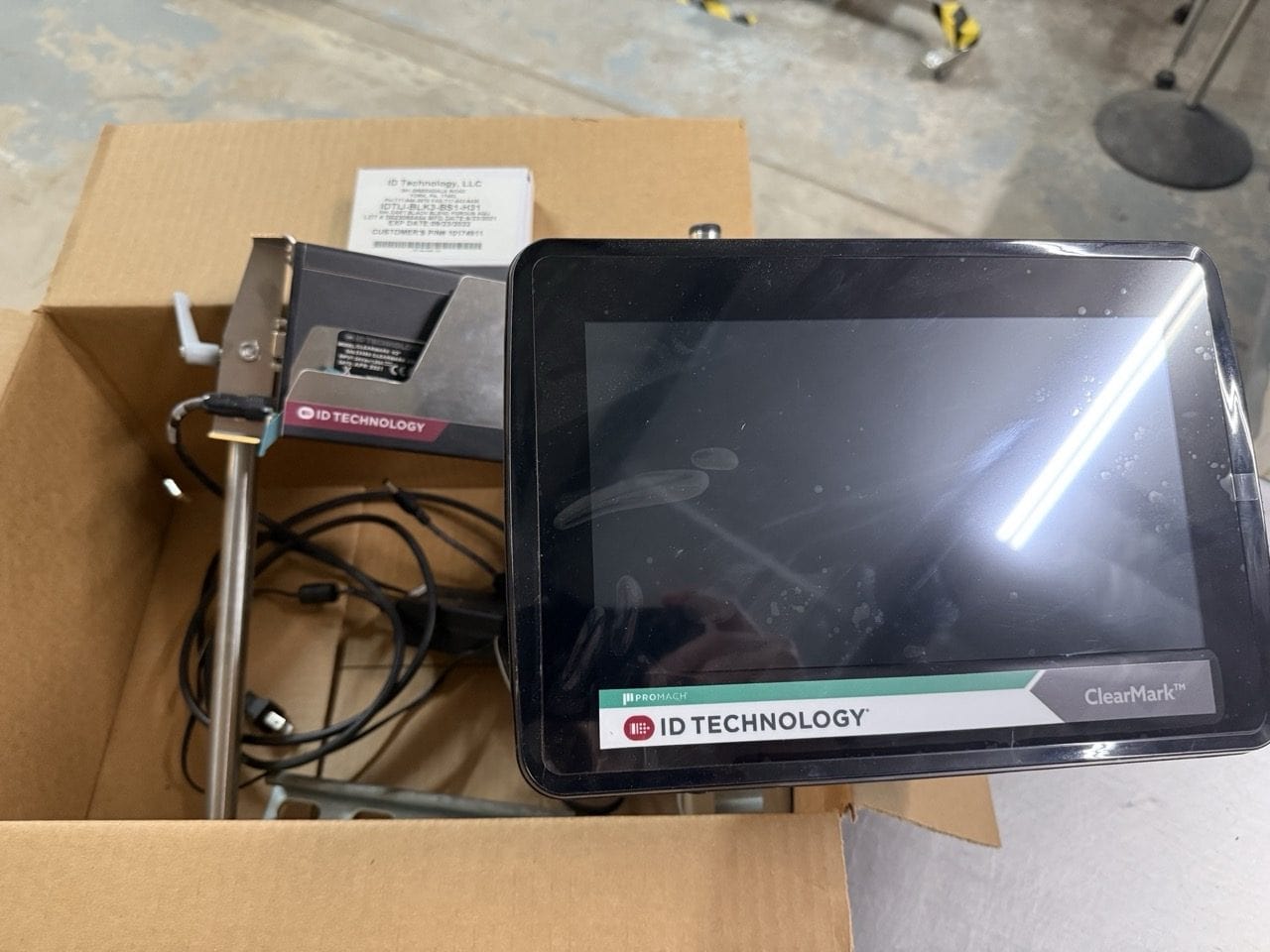

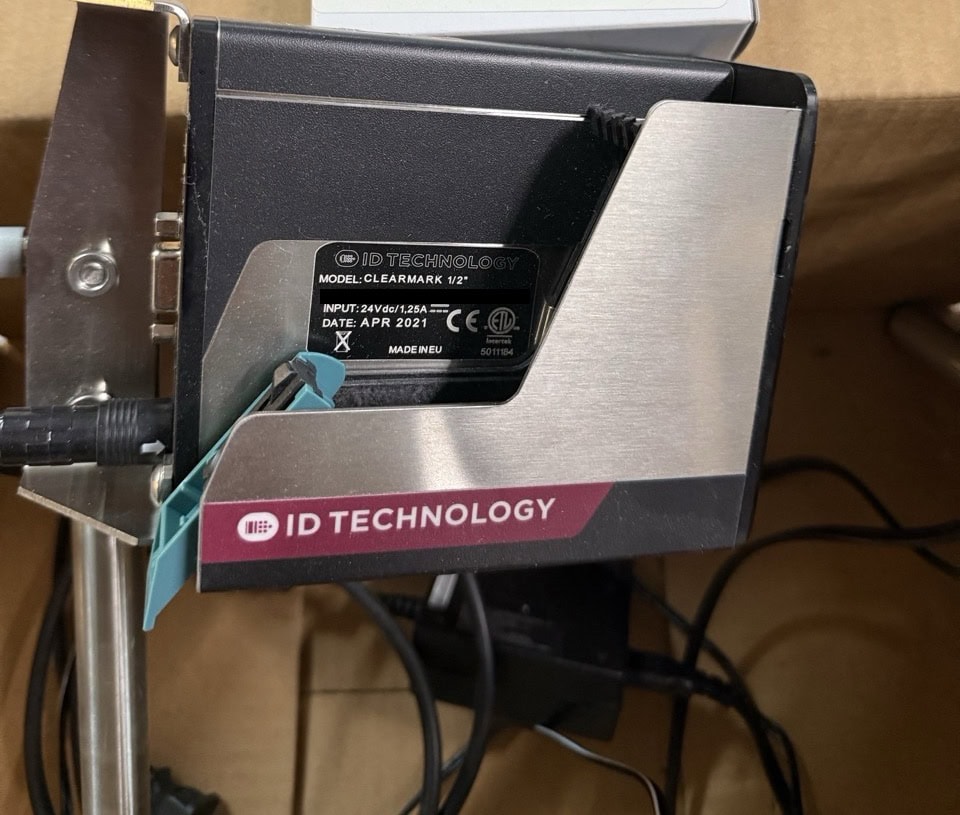

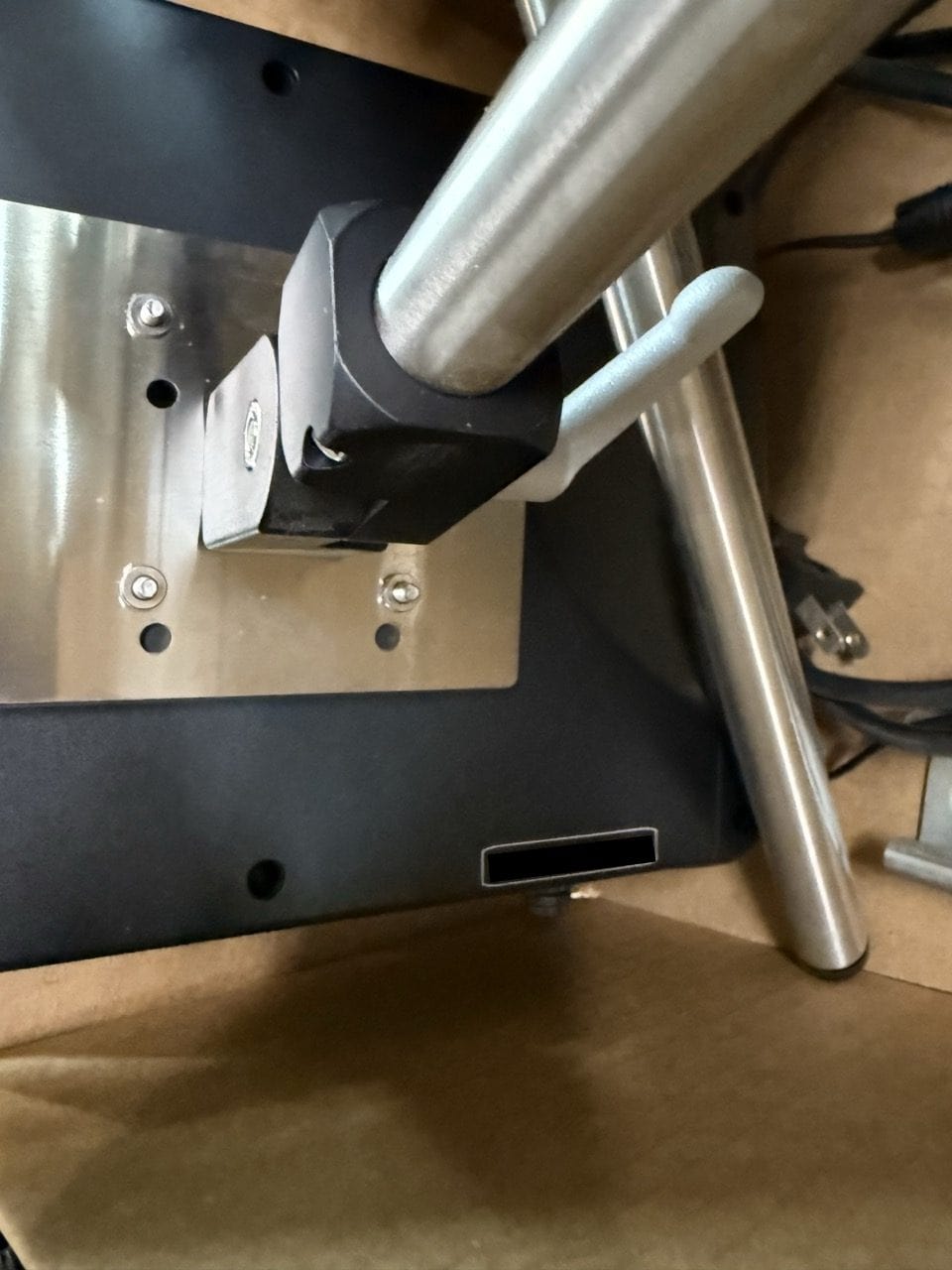

ID Technology #Clearmark-1/2", TIJ Thermal Ink Jet Printer, unused, 2021

ID Technology ClearMark 1/2″ CPQ-Inkjet TIJ Thermal Ink Jet Printer – Never used, still in Original Packaging, 2021:

Dimensions: 2.2”(55.5mm) W x 4.4”(110.5mm) H x 5.5”(138.5mm) L

Features Compact, robust metal designed smart print head.

Multiple user interfaces for operation:

– Common function buttons directly on the smart head.

– New easy to use 10” HMI.

– PC software design and control.

Applications: Coding and identification directly on products, packaging and cases.

Print Specifications

– Print height: ½ inch / 12.5mm.

– Maximum print length: unlimited.

– Nozzle distance to Surface: 0.5 – 5 mm.

– Max print speed @ 300 dpi – 200ft/min -(61m/min) – other speeds and resolutions available.

– Inputs available for selecting messages from PLC.

– Internal photocells and auto speed detection – External encoder and photocell.

– Printing direction: Left -> Right-Right -> Left according to settings or input.

Message Capabilities:

– Full WYSIWYG drag and drop touchscreen to easily manage message editing.

– Message creation wizard for easy composition.

– Unlimited fields for Counters, Time, Date, Barcodes, Logos and Graphics.

– Live feedback for count values, prints/cartridge remaining, line speed and production.

– Storage: virtually unlimited – defined by SD storage.

– True Type fonts.

Connections:

– USB pen drive.

– Ethernet.

– External encoder/photocell input.

– I/O – 5 inputs and 1 output.

Environmental Conditions Temperature:

– From 32 °F (0 °C) to 113 °F (45 °C).

– Relative humidity: up to 90%.

Electrical Requirements: 95 – 250 VAC, 50/60 Hz.

Substrates / Ink Types: Wide range of inks for porous and non-porous substrates. Inks packaged in 42ml cartridges.
