Description

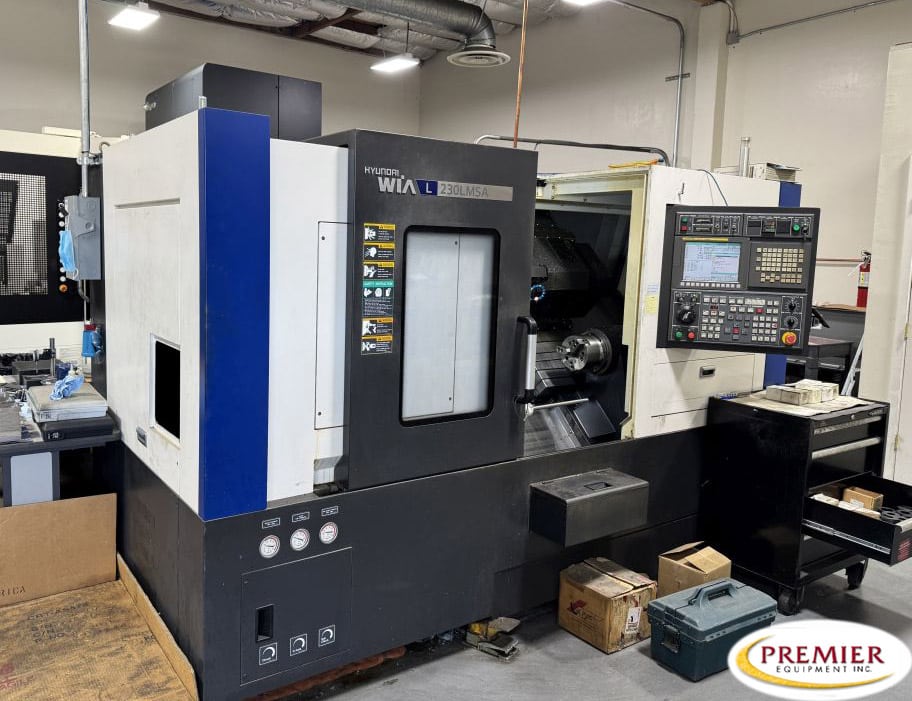

Hyundai Wia L230LMSA Multi-Axis CNC Lathe
Specifications (subject to buyer verification):
Main Spindle Turning Diameter Max:12.200″
Main Spindle Turning Length Max: 20.500″
Main Spindle Chuck Diameter: 8.300″
Main Spindle Max Swing: 21.700
Main Spindle Bar Diameter Max: 2.600″
Main Spindle 1: RPM: 4,000 HP: 20.00
Sub Spindle (Standard):RPM: 5,000HP: 7.40
Turret: 12
X Axis Travel: 8.700″
Z Axis Travel: 22″
Fanuc Series 32i-A
All tools and holder as see in machine , part catcher need repair
2 live tools in machine
3 live tools
6 inch chuck and 3 jaws sub spindle
8 inch chuck 3 jaws and accessories
8 inch main spindle true length S26 body and master collect
16 set S26 collect pads and E25 collect set
Brand new 16C true length body sub spindle
