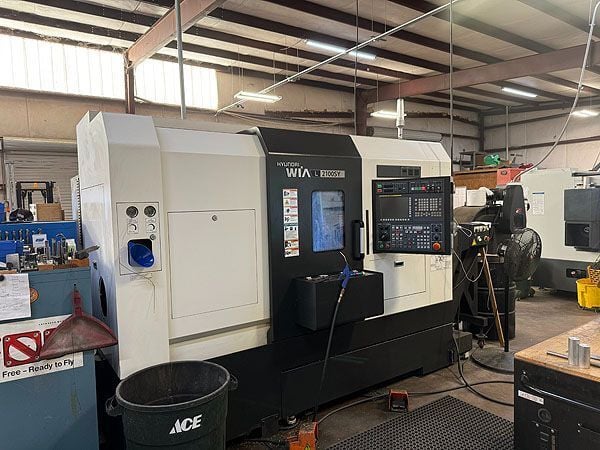

Hyundai Wia #L2100SY, CNC Turning Center W/Sub Spindle, Very Low Hours, 2018

Specs:
Main spindle: 4,000 rpm built in spindle
20 HP
Main Torque 187.5
2.6 (65mm) bar capacity
Max. turning diameter 13.2
Max. turning length 17.9
Sub spindle: 6,000 rpm built in spindle
10 HP on the sub spindle
1.4 bar capacity
Live Tool: 5,000 rpm
7.4HP (5 min) / 26 lbf.ft torque
X/Y-axis Travel 8.3 / 3.9
Box guideways
Rapid Speed
X/Y Axis Travel 8.3 / 3.9
X/Y Axis Rapids 18/12m/ min
Z/ZB Axis Travel 22.8/ 19.7
Z/ZB Axis Rapids 945 (24m/min)

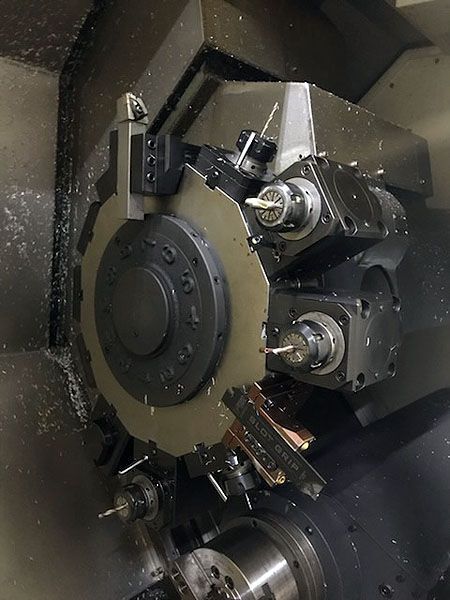

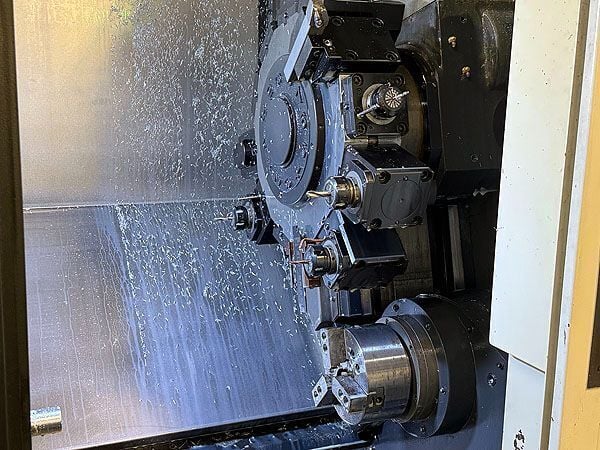

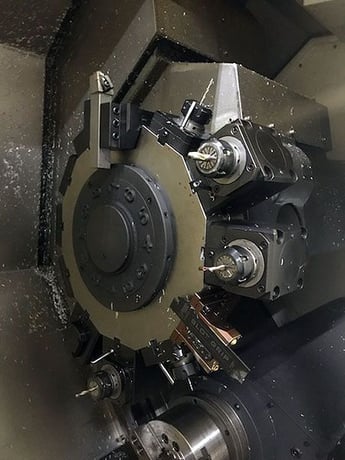

BMT 65 12 station turret
Auto Tool setter
Tool size: 1./ 2 (25mm/50mm)
87 PSI coolant system (290 PSI-opt)
Double Pre-Tensioned Ball screws

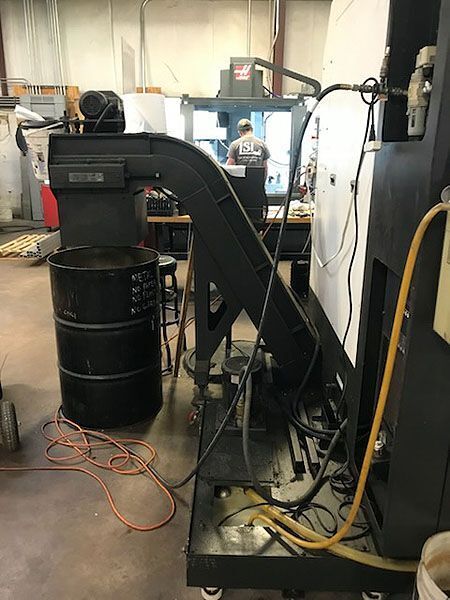

Chip Conveyor (47 discharge height)
1 color tower signal light
X/Y Ball Screws 1.1
Z/ZB Ball Screws 1.57
Machine approx. dimensions 10 x 6 without chip conveyor
Machine Chip conveyor approx. 4 5 long
Equipped with
Chip Conveyor

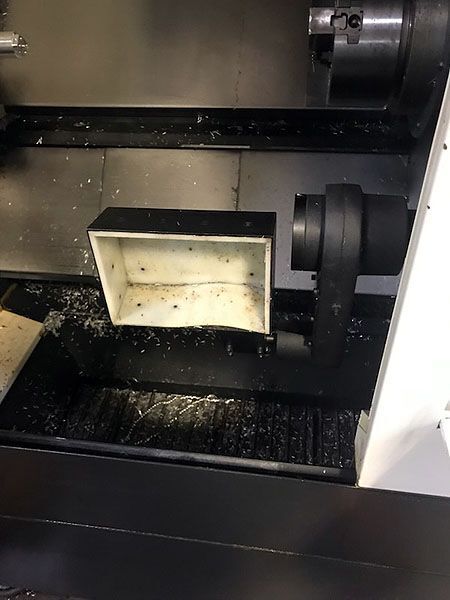

parts catcher

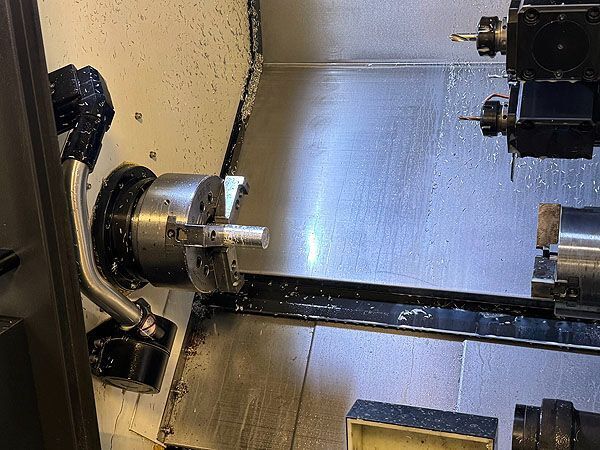

8 3 Jaw chuck,

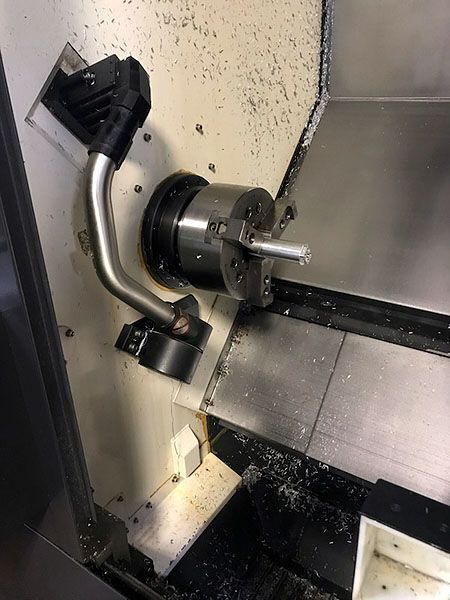

6 3 Jaw chuck-sub spindle
Tool setter,

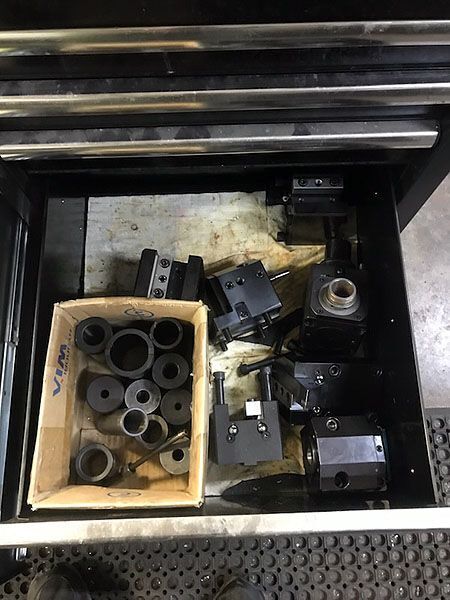

Approx. 6 Live Toolholders
Assorted Toolholders in the turret ( Drills & Inserts not included)

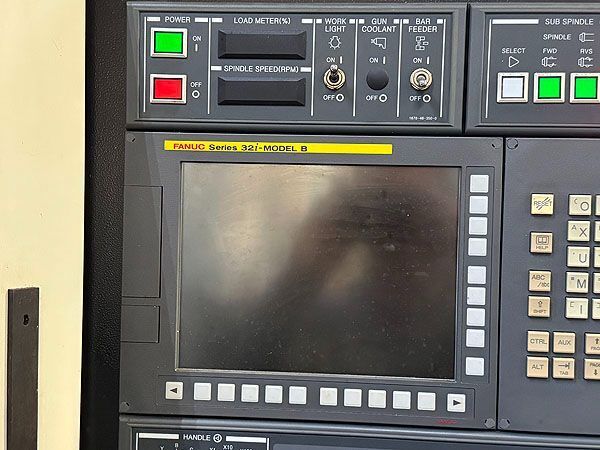

Fanuc 32-I Model B Control
Approx. 3000 Cutting hours ( Only 1 year & Half use in 7 Years)
