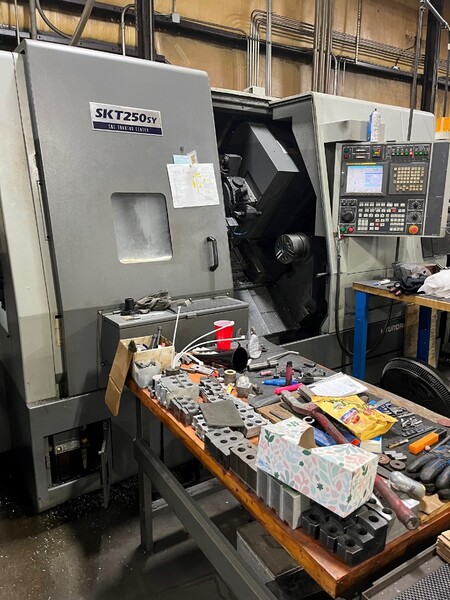

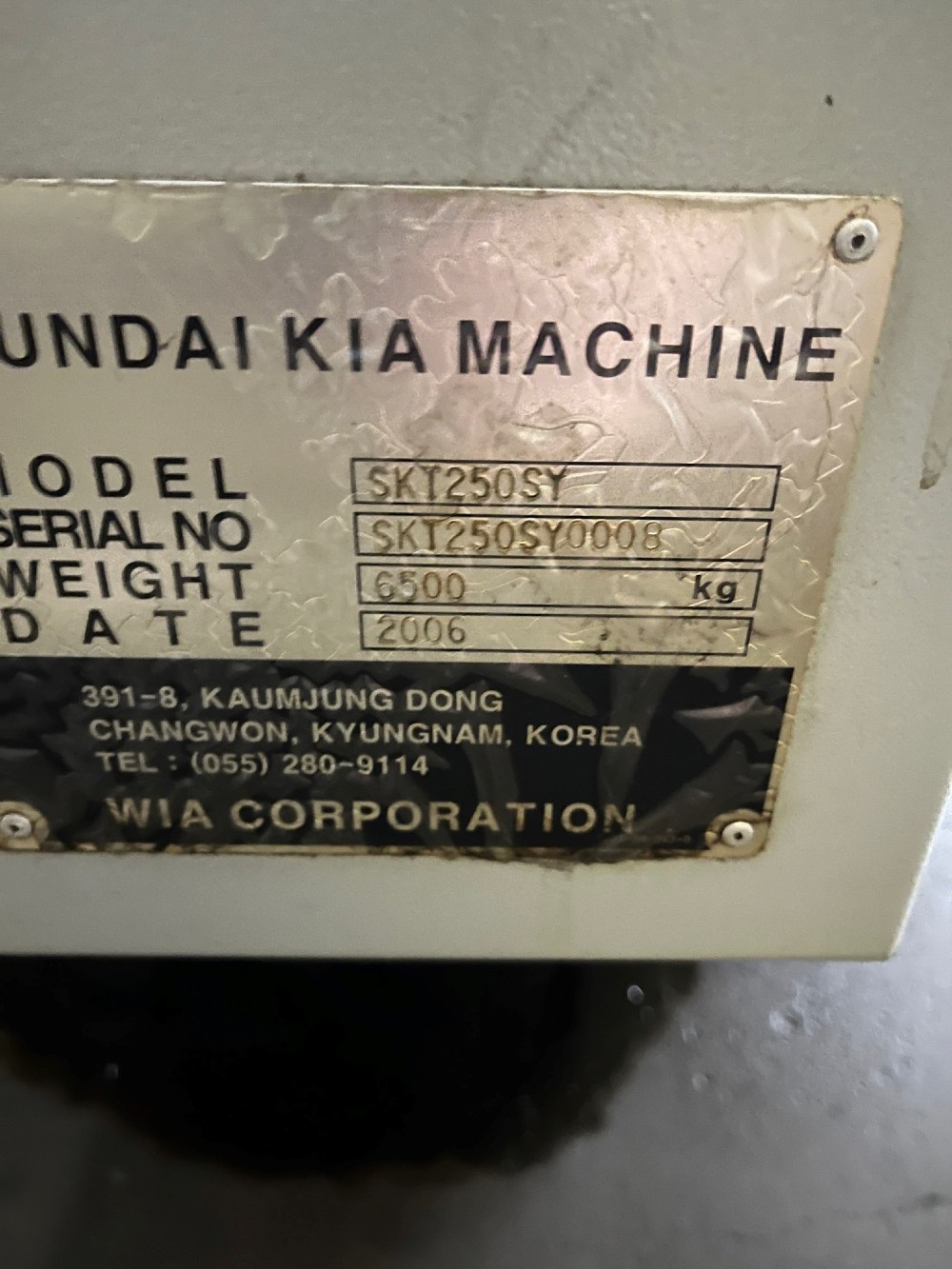

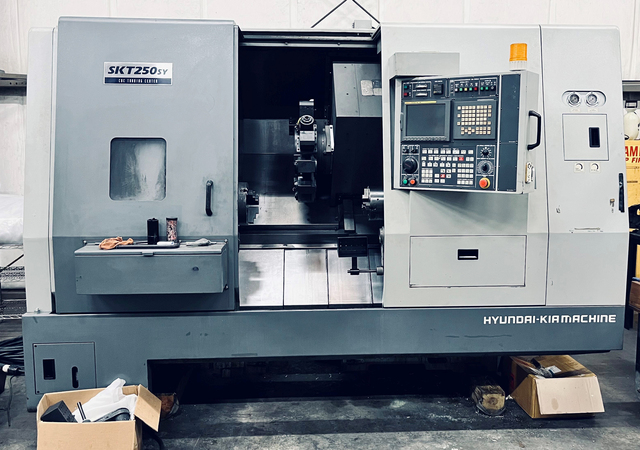

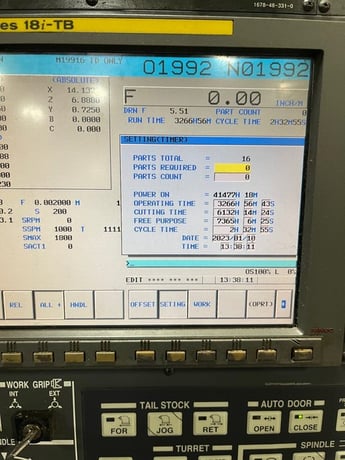

Hyundai Kia #SKT250SY, Fanuc 18iTB, 30 HP main, 10 HP sub, 3" bar, Y-Axis, live tools, parts catcher, tool setter, chip conveyor, 6,132 cut hrs., S/N SKT250SY 0008, 2006

Capacity:
Swing over bed ················································································ 24.4”
Swing over crosslide ········································································· 19.3”
Maximum distance between spindles ··················································· 24.8”
Maximum turn diameter ···································································· 16.14”
Maximum turn length ········································································ 27.55”
Spindle:
Bar capacity (3.740” hole) ································································· 3”
Main spindle speed ·········································································· 3,500 RPM
Sub spindle speed ··········································································· 6,000 RPM
Main spindle motor ··········································································· 30 HP
Sub spindle motor ············································································ 10 HP
Main spindle nose ············································································ A2-8
Travels and Rapids:
C-axis ···························································································· Main & Sub
Y-axis travel ···················································································· 4.33”, +/- 2.17”
B-axis travel of sub-spindle ································································ 27.55”
X-axis travel ··················································································· 8.27”
Z-axis travel ···················································································· 21.7”
X & Z-axis rapid traverse rate ······························································ 945 IPM

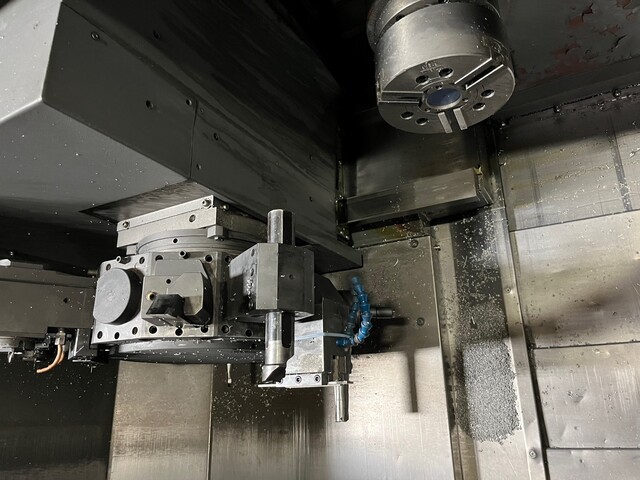

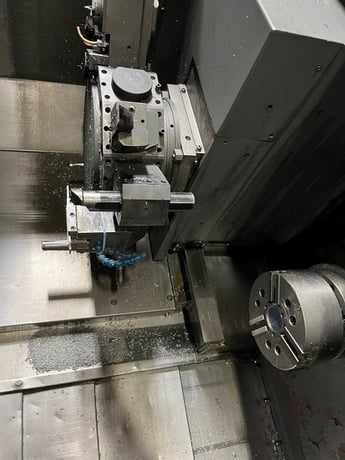

Turret:
Number of tools ··············································································· 12
Tool type ························································································ VDI
Live tool HP ···················································································· 7.5 HP
Live tool speeds ·············································································· 4,000 RPM
General:
Coolant tank ··················································································· 52 gallons
Floor space (Length x Width x Height) ·················································· 127” x 78” x 86”
Machine weight ················································································ 14,500 lbs.
Full current load ··············································································· 56 A
Voltage ·························································································· 220 V, 3 Phase

Equipped with:

• 10” Chuck, Main

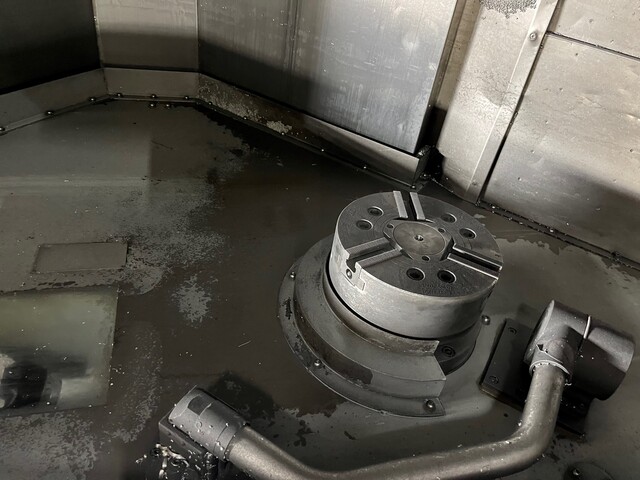

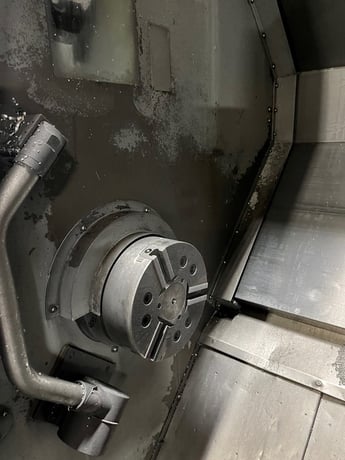

• 6” chuck, Sub
• Parts Catcher
