Description

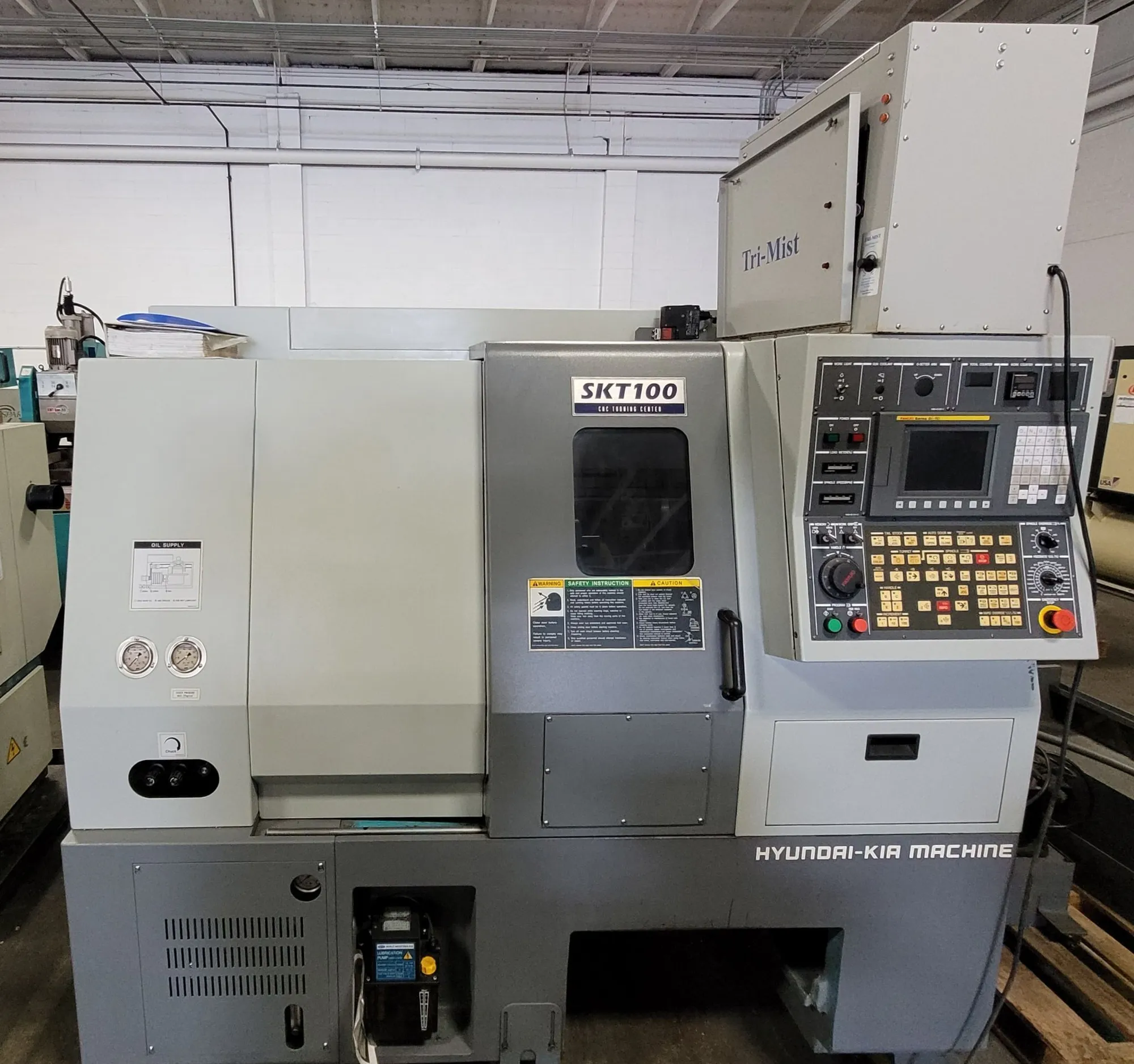

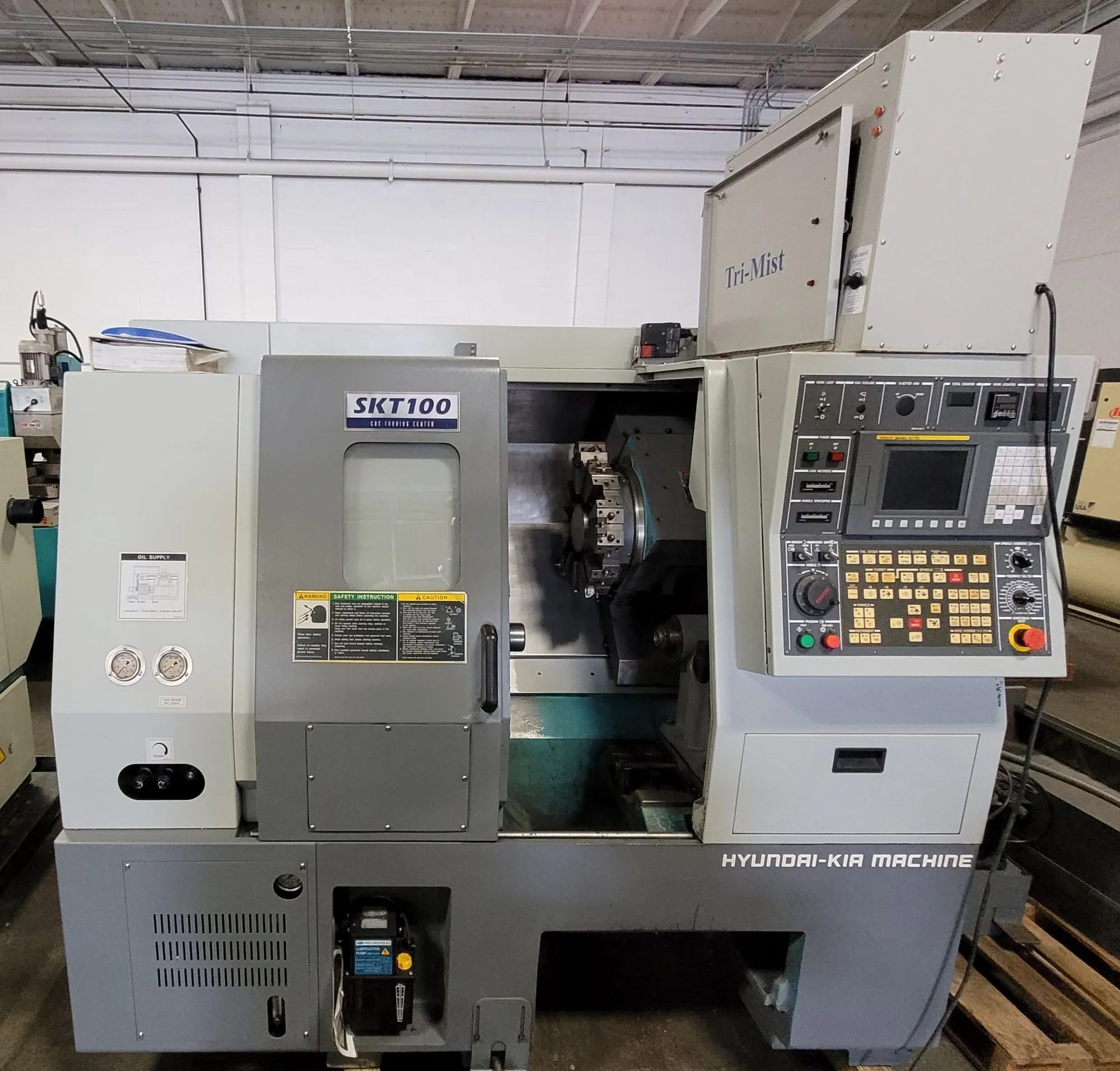

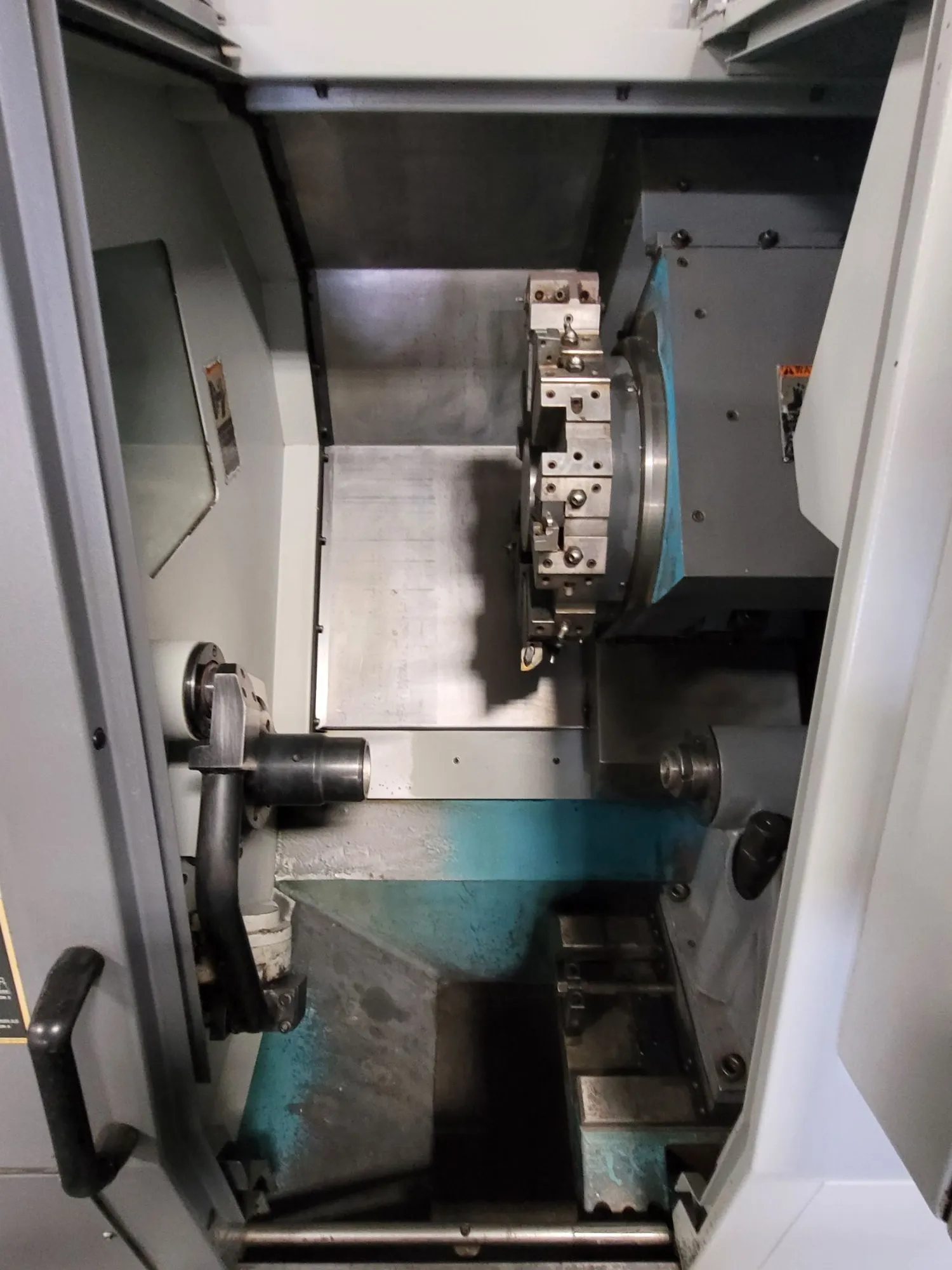

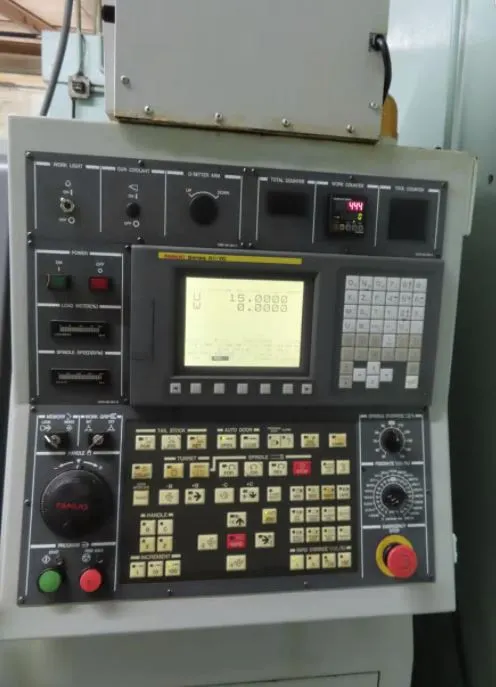

The Hyundai – Kia SKT100 CNC turning center is equipped with FANUC series OI-TC controls and a 12-position turret. It features a Kitagawa B-206 hydraulic 3-jaw chuck with a 6-inch chuck size, collet closer chuck, and tailstock. The machine offers a swing over the bed of 21.7 inches and a swing over the cross slide of 13.8 inches, with a maximum turning length of 11.8 inches and a bar capacity of 1.77 inches. Travel specifications include 8.3 inches on the X-axis and 13 inches on the Z-axis. The main spindle operates at a speed of 6000 RPM, featuring an A2-5 spindle nose and a 2.09-inch spindle bore, delivering maximum torque of 45.9 and 70.4 ft-lbs. Power is supplied by a 20.1/14.7 HP main motor via a belt drive. Rapid traverse rates are 1417 IPM for both X and Z axes. The tailstock features an MT#4 quill bore taper, a 2.6-inch quill diameter, 3.1 inches of quill travel, and a total tailstock travel of 6.3 inches. The unit has a footprint of 79.5″ x 65.0″ and weighs 8,377 lbs.
