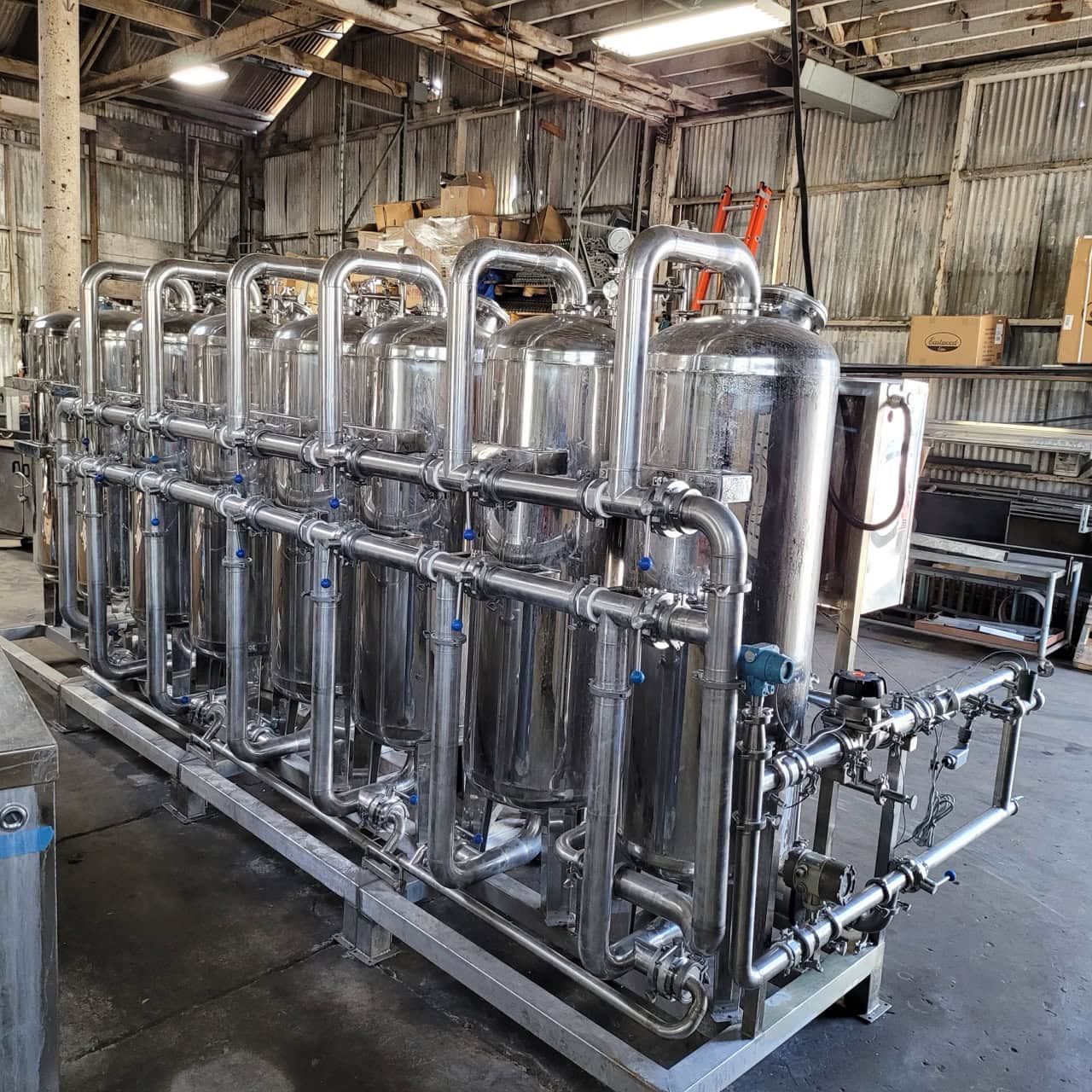

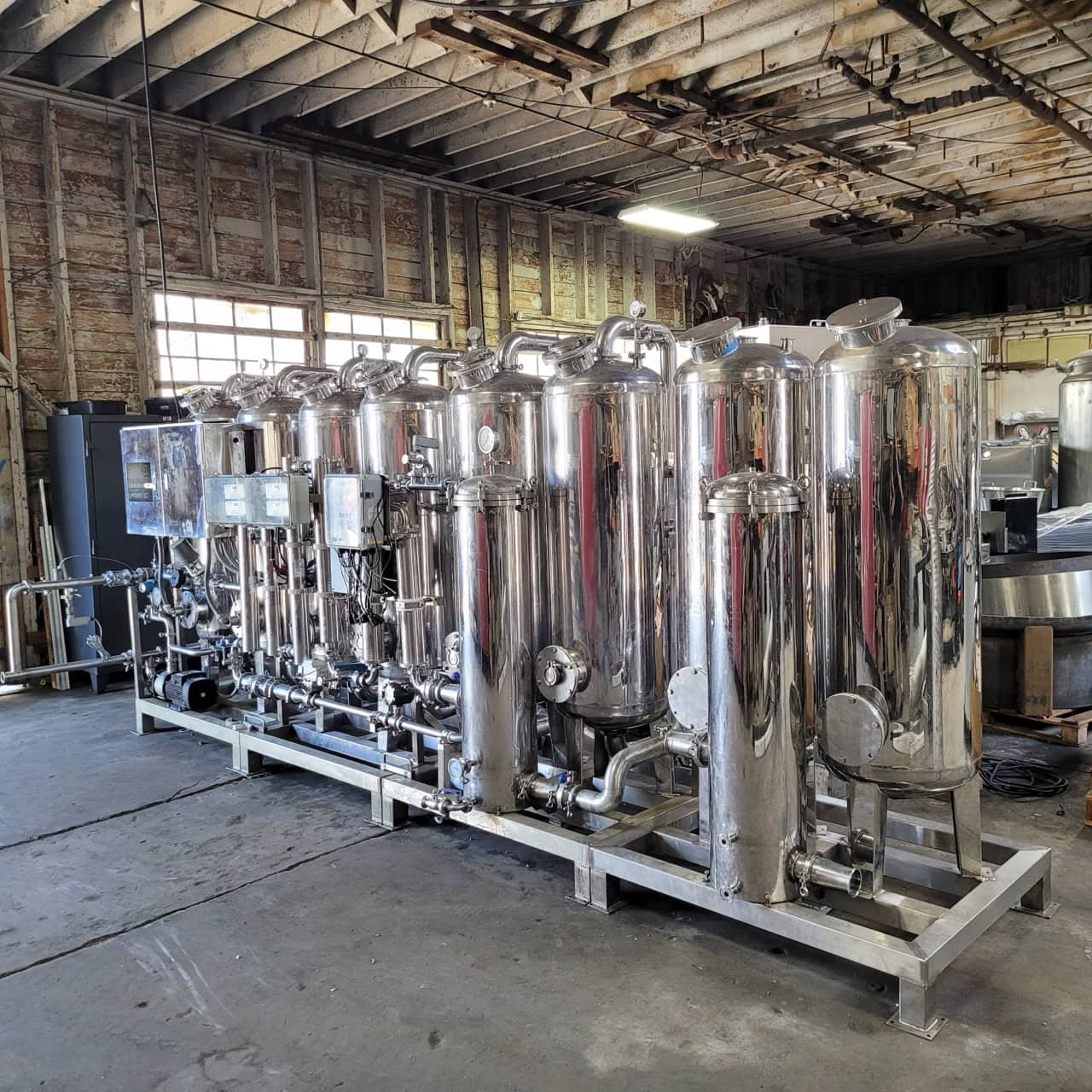

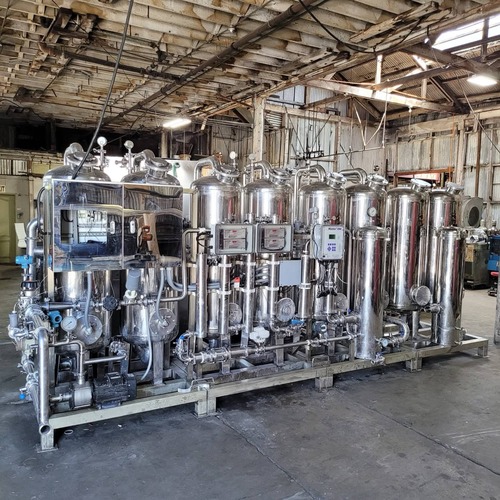

Hydrology Systems #AWS-120, Industrial Alkaline Water System, 2024, AWS-120

NO WASTE WATER: Zero-Waste proprietary process – 100% Water In Becomes Alkaline Water
REPORTED LINE SPEED FEED: Up to 500+ Bottles Per Minute – Based on 500mL Bottles
DESIGN: Mobile Interlocking Modular Cube Design Expandable & Upgradable To Fit Any Space
STRUCTURE: All custom vessels, piping, and fittings are made from 304 & 316 electropolished
sanitary stainless steel with a mirror finish built to last forever.
SMART LOGIC: 12” Touch Screen Display with 15-page menu with training and maintenance
SOP. Custom PLC system designed for data logging, online monitoring, and efficiency tracking.
PUMPS: 240v 3-Phase 5 horsepower GRUNDFOS Food-grade Sanitary Pump With Speed
Control Logic.
UV DISINFECTING: Built-in High Saturation Contact Disinfecting Units With Self-Cleaning Logic.
POWER: 120 or 240v with 80 AMP Service.
SAFETY: Electrical logic was built to surpass industrial safety codes with a dual GFI water spill
sensor for emergency shut-off. (Designed to protect personnel and equipment.)
PROCESS INTEL: Equipped with dual pH/ORP inline sensor, Dual TDS Meters, Dual temperature
meters, digital pressure meters, and 3 flow rate meters for solid data backup. (The system was
designed with redundancies for accuracy.)
OFFSITE CONTROL & MONITORING:
The system can be operated and monitored remotely worldwide.
EASY-CLEANING LOGIC: A built-in Chemical CIP support system logic designed to heat water to
160 Degrees Fahrenheit To Descale And Renew The Entire Equipment For Annual Maintenance
and Mineral Catalyst Regeneration.
AIR ASSISTED CATALYST LOADING & UNLOADING: (Optional) Proprietary Upgrade To Make
Regeneration Of Catalyst Quick & simple.
MINERAL CATALYST: Included 1 ton of mineral catalyst good for Up To 1 million Cases
Depending on Filler Speed.
INSTALLATION TRAINING & SUPPORT: Every unit includes installation tech and training to get
you up and running, as well as a 5-year warranty and technical support.
