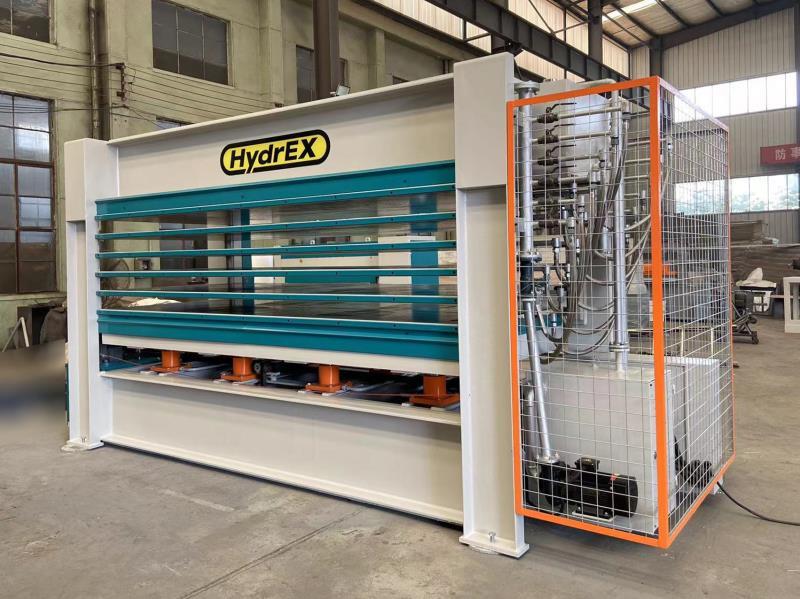

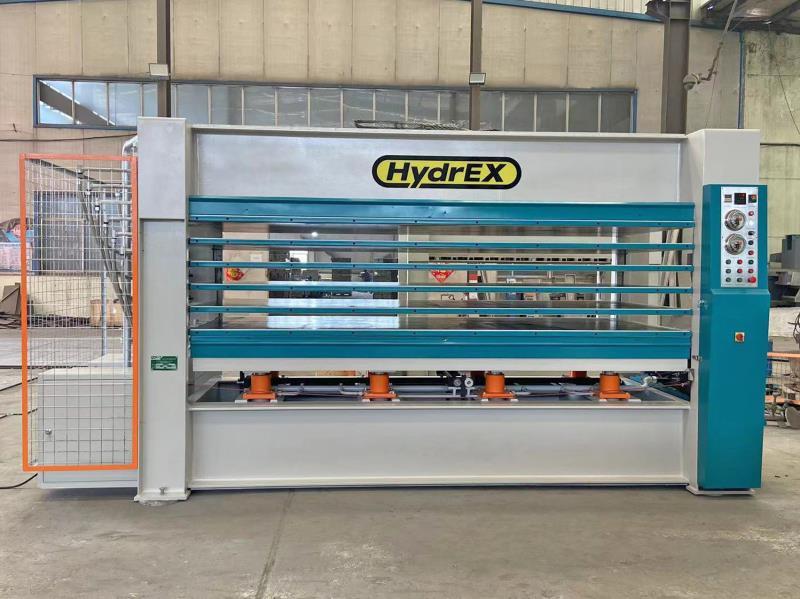

Hydrex #HPX512-5, Hot Press, w/(5) Daylight Openings, 5' x 10' Board Size, (8) 100 mm diameter Cylinders, 160 Tons Overall, 100 psi, 54 kW Heating, 2026

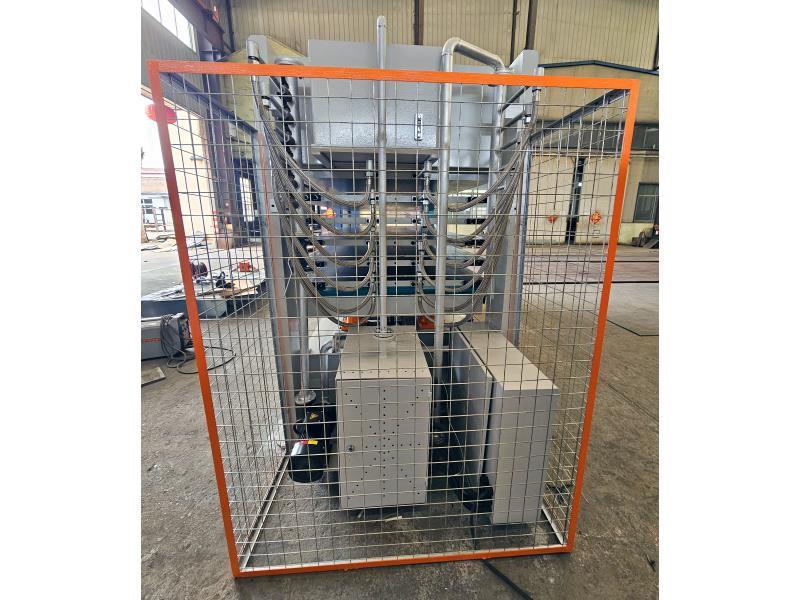

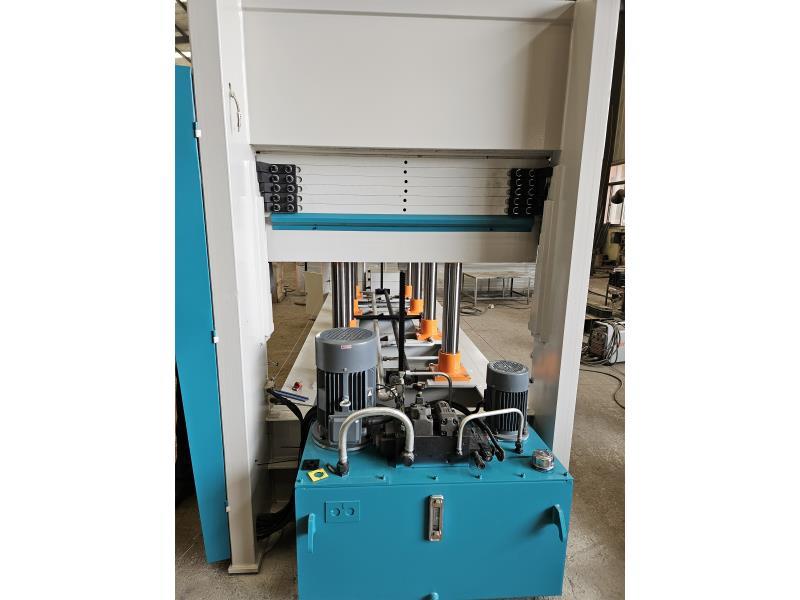

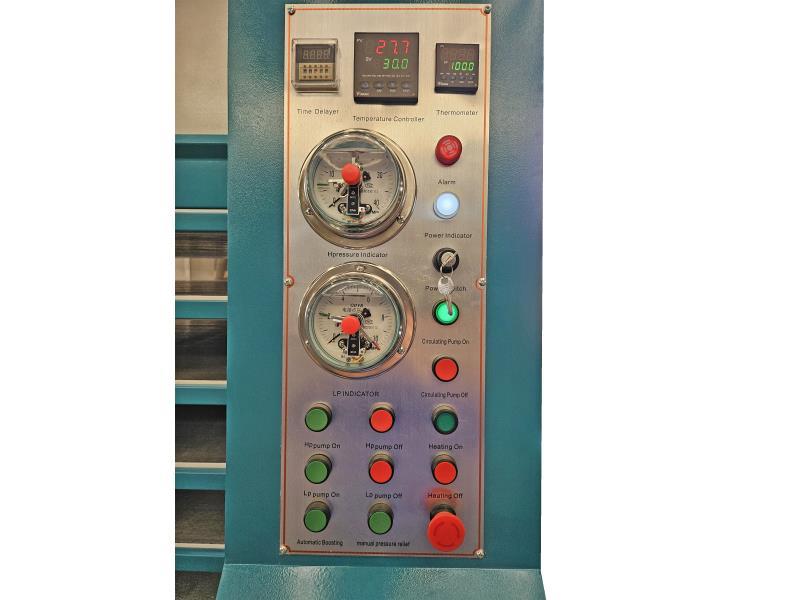

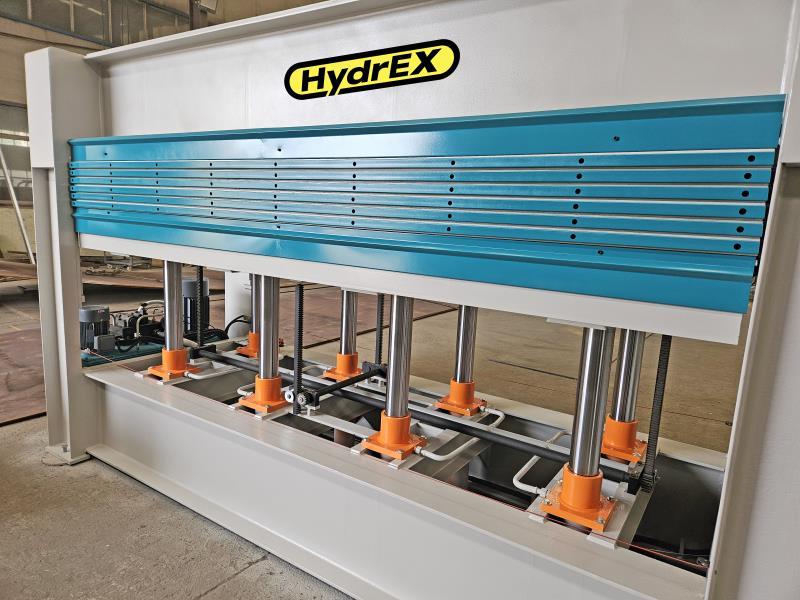

HYDREX HPX512-5 Hot Press 160 Tons with (5) Daylight openings. Suitable for laminating veneer panels/doors, plastics/decorative paper, fireproof board, etc.Features (Overall): -- Board size up to approx 5' x 12'. -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time, emergency pedal, and quad temperature protection device. -- (8) Cylinders (upstroke) -- 160 Tons of overall. Approx 100 psi unit pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 146" x 61" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick; -- (8) Hydraulic "upstroke cylinders", approx. 100 mm dia.; Rack & Pinion guide system for parallel closing of the platens. -- 54 kW of heating power. 100 PSI specific pressure over the entire platen area; 4.5 kW (6 HP) hydraulic pump motor. -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120 C (248 F) max. operating temperature. -- Max Working height is 4"; Loading from (3) sides; 39-1/2" from the floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Features: "Last" (2) cylinders can be turned off to press shorter panels. - Overall press weight is approx. 30,000 Lbs. -- Overall dimensions: 3,800 length (plus 610mm - boiler + 610mm -pump/tank) x 1,790 wide x 2,450 mm high. -- NOTE: Stated data/specs as it relates to 160 Ton and specific pressure (dimension and weight) , KW, Cylinder Dai. are based on 5' x10' platen size. Revised numbers for 5'x12' size will follow as available from factory. Also if there is a price change it will be revised according as soon as the info is provided from factaory.
