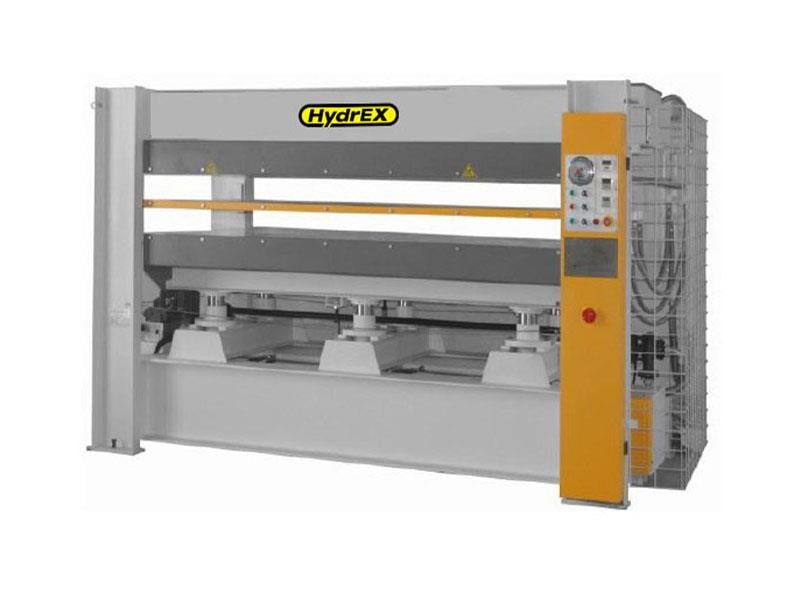

Hydrex #HPX510-1, Hot press, single daylight opening, 125" x 65" hot press, 1-5/8" thick, (8) cylinders, 14-7/8" daylight opening, 120 ton pressure, 2026, new

HYDREX HPX510-1 Hot Press, Single daylight opening. Suitable for laminating veneer panels/doors, decorative paper, fireproof board, etc.Features (Overall): -- Board size up to 5' x10', -- Front Controls for easy setup & operating configuration, incl. temperatures and cycle time , emergency pedal, quad temperature protection device. -- (8) Cylinders (upstroke) -- 120 Tons of overall pressure, -- Recirculating Thermal Oil heated with package heaters housed in a boiler tank.Detailed Specs: -- 122" x 61" Thermal Oil heated Hot Press with drilled steel platens, 1.5" thick, 4" Max Working height.. -- (8) Hydraulic "upstroke cylinders", 85 mm dia.; rack & Pinion guide system for parallel closing of the platens. -- 120 Ton total pressure, 40 PSI specific pressure over the entire platen area; 4.5 KW (6 HP) hydraulic pump motor. Platen moving speed 5 FPM -- 1.5 kW (2 HP) Hot Oil circulation pump; approx. 120 C (248 F) max. operating temperature. -- Loading from (3) sides; 39-1/2" from floor with lower platen in the down position: heavy I-beam welded steel frame construction. -- "Safety" emergency Stop Cable around the operating sides of the machine, and E-STOP mounted on the control panel. -- Features: "Last" (2) cylinders can be turned off to press shorter panels. - Overall press weight is approx. 19,500 Lbs).
