Description

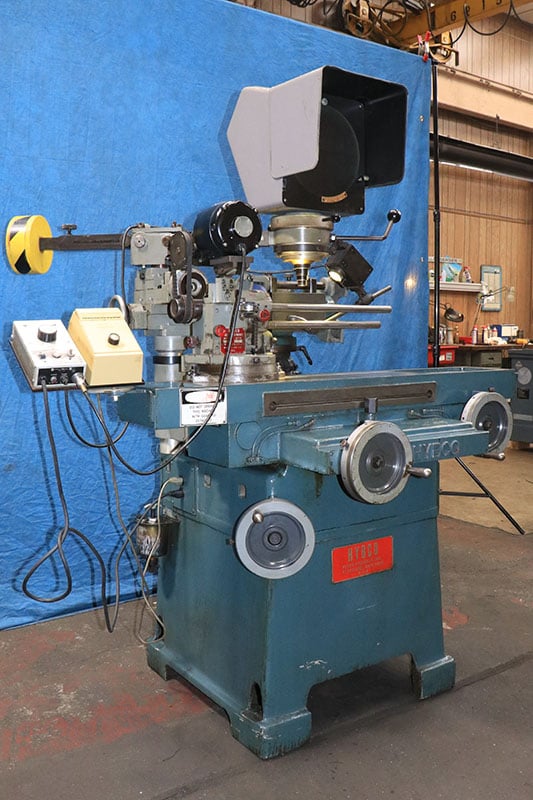

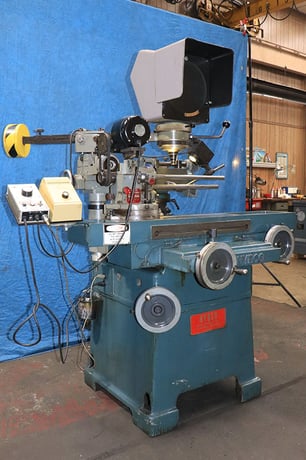

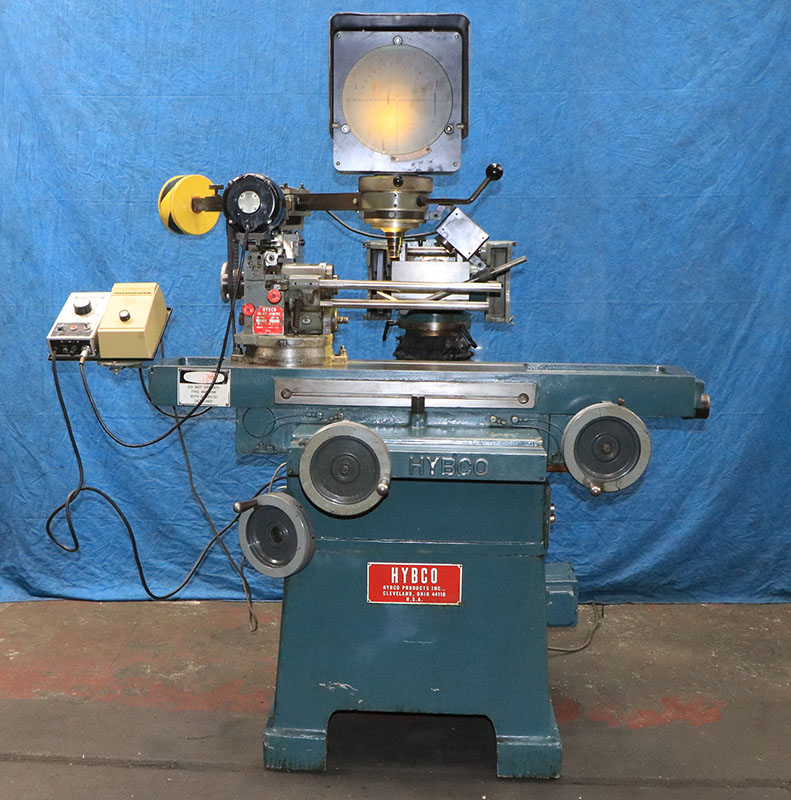

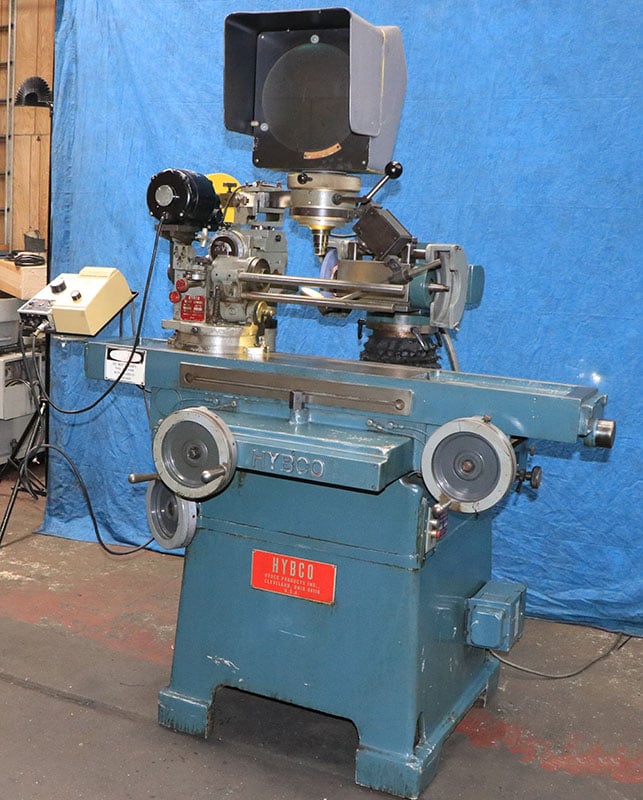

HYBCO FORM RELIEVING GRINDER w/OPTICAL COMPARATOR…
** CHOICE OF HYBCO #2100 SB MOTORIZED RELIEVING WORKHEAsD,
EITHER FOR 5C COLLETS OR ERICKSON COLLETS, BOTH IN STOCK **
**…"LISTA CABINET WITH HYBCO CAMS… ACCESSORIES **…
MODEL:… 1900/2100-SB… S/N:… TG-431… NEW:… 1988…
TABLE WORK SURFACE .................... 6" X″6"…
LONGITUDINAL TABLE TRAVEL ............. 14"…
CROSS TRAVEL .......................... 6-1/2"…
GRINDING SPINDLE, VERTICAL TRAVEL ..... 7-1/4"
HANDWHEELS, GRAD. ..................... 0.0005"…
GRINDER SPINDLE TILT .................. 25° ABOVE… BELOW…
GRINDER SPINDLE INDEXES ...............″60°
GRINDING SPINDLE SPEEDS (2) ...........″,800… 6,400 RPM
MAX. GRINDING WHEEL DIAMETER .......... 7"
GRINDING SPINDLE TAPER ................″" PER 1 FT.
MODEL #2100 MOTORIZED
TWO-WAY RELIEVING FIXTURE:
SPINDLE CENTER HEIGHT ................. 7- 1/2"
APPROX. WEIGHT OF MOTORIZED FIXTURE ... 115 LBS.

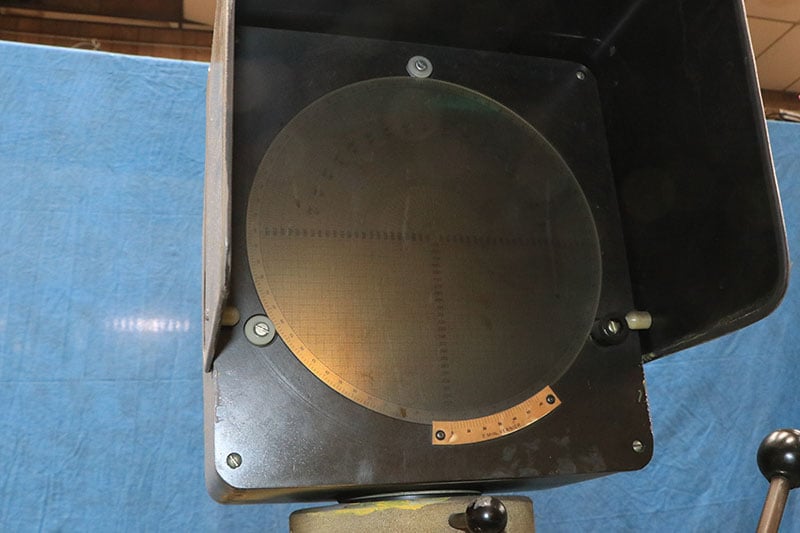

OPTICAL COMPARATOR:
SCREEN DIAMETER ....................... 10"
POSITIONING COMPOUND TRAVELS,
CROSS ................................ 2"
LONGITUDINAL ......................... 2"
MAGNIFICATION ......................... 20X
APPROX. MACHINE WEIGHT ................ 2,000 LBS.…
MACHINE FEATURES:
FULL CAST IRON CONSTRUCTION
TILTING WHEELHEAD SESIGN (+/- 25 DEGREES)
ROLLER BEARING WAYS (LONGITUDINAL… CROSS)
BALL SCREW FOR WHEELHEAD SLIDE
GEAR BOX FOR LONGITUDINAL TRAVEL - FINE/COARSE SETTINGS
EQUIPPED WITH:

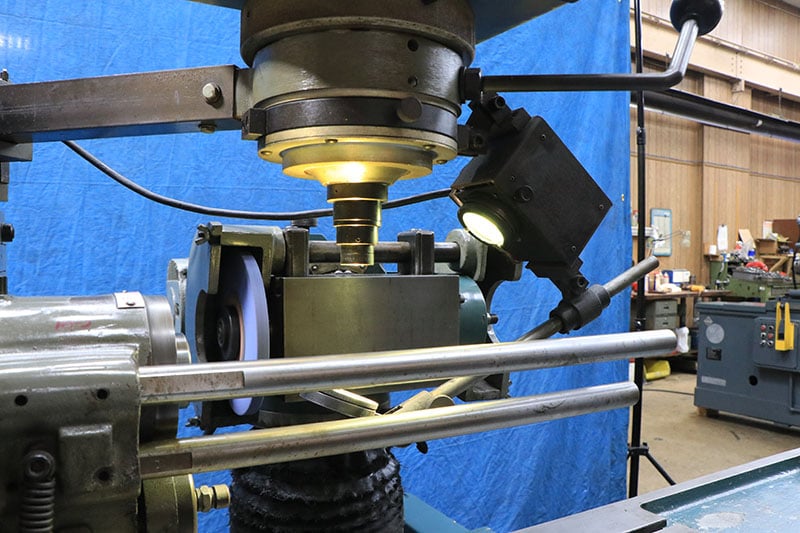

10" NIKON OPTICAL COMPARATOR ATTACHMENT W/LENS… VARIABLE LIGHT
INTENSITY CONTROL BOX
- GIVES THE OPERATOR A QUICK METHOD OF CHECKING TOOL
DIAMETERS, LENGTHS, ANGLES, AND RADII RIGHT AT THE
GRINDING WHEEL WITHOUT REMOVING THE TOOL FROM THE COLLET.…
HYBOC ASSORTMENT OF CAMS, AND WHEEL HUBS, AS SHOWN IN THE PHOTOS
"LISTA" TOOL CABINET FOR ACCESSORIES

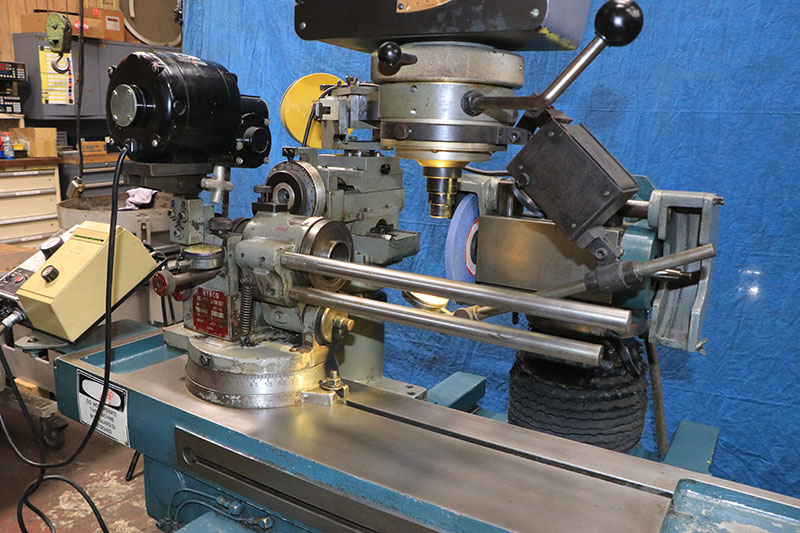

HYBCO MODEL #2100-SB (S/N: RF-1757) TWO-WAY MOTORIZED RELIEVING
FIXTURE ON SWIVEL BASE
"MINARIK" ELECTRONIC VARIABLE SPEED RHEOSTAT CONTROL…
HAND OPERATED COLLET CLOSER
THIS WORKHEAD USES ERICKSON #500 COLLETS, LARGER CAPACITY
THAN A 5C COLLET TYPE
1.5 H.P./3/60/230-460 VOLT WHEELHEAD MOTOR…
MACHINE IS PRESENTLY WIRED FOR 220 VOLTS
SPECIAL NOTE:
WE CAN PROVIDE A HYBCO No. 2100-SB FORM RELIEVING FIXTURE
WHICH USES 5C COLLETS… IN LIEU OF THE UNIT PRESENTLY ON
THE MACHINE, WHICH USES #500 ERICKSON COLLETS.
THERE IS NO CHARGE FOR THIS SWAP.
LINK TO VIDEO: https://youtu.be/jweqYmTLRMI
** INSPECT UNDER POWER IN OUR HARRISON, N.J. WAREHOUSE **
*** EXCELLENT CONDITION… APPEARANCE ***
