Manufacturer: Hwacheon
Model: HI-TECH-850L
Year: 2013
Swing: 41.3
Chuck: 32
Bar Capacity: 6.4
Stock # 53395
1 / 5
Click to zoom in
1 / 5
For Sale by Machinery Network Inc
Surplus Record Dealer Since 1989
Location: Encino, CA
Contact Sales Dept.
Phone Number: 818...> Show Phone Number 818-465-6700
Let the seller know you found their listing on Surplus Record!
Description

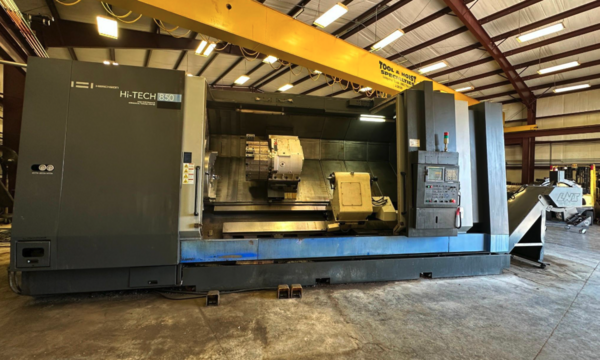

2013 HWACHEON HI-TECH 850L
SPECIFICATIONS:
Swing................... 41.34"
Machining Length........ 137.8"
Max. Turning Length..... 137.8"
Max. Turning Diameter... 36.22"
X-Axis.................. 19.1"
Z-Axis.................. 143.7"
Chuck Size.............. 32"
Bar Capacity............ 6.46"
Spindle Bore............ 7.28 in
Spindle Nose............ A2-15
Power................... 60.4 hp
Max RPM................. 1,500 RPM
Turret Stations......... 12
Tailstock............... Yes
Cut Hours............... 14,437 hr.
Dimensions.............. 307 x 114.17 x 118.11
Weight.................. 48,502 Lbs
EQUIPPED WITH:

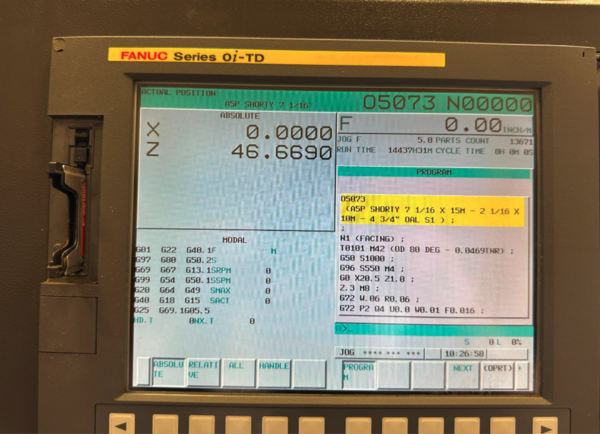

Fanuc 0i-TD CNC Control

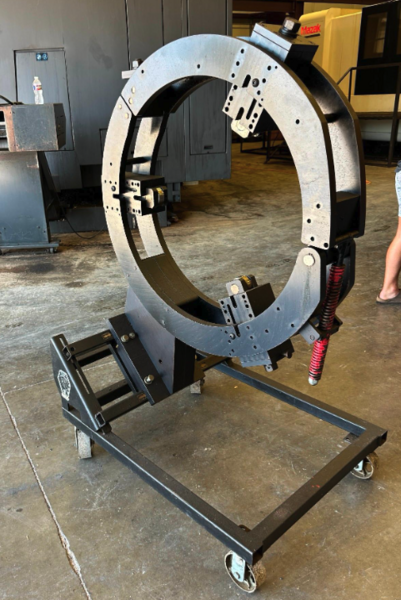

Schmidt Tool RIP-131 Heavy Duty Traveling Steady Rest
- Clamp Cap. 7,000 Lbs
- Workpiece Dia. 12.1" - 31"
- Bearing Type NUTR35
- Steady Rest Weight 809 Lbs
32" Samchully HCH-32 3 Jaw Chuck
Programmable Tailstock
Renishaw Tool Setter RP7 Probe
LNS Chip Conveyor & Remote Control Box
Manuals & Docs
SPECIFICATIONS:
Swing................... 41.34"
Machining Length........ 137.8"
Max. Turning Length..... 137.8"
Max. Turning Diameter... 36.22"
X-Axis.................. 19.1"
Z-Axis.................. 143.7"
Chuck Size.............. 32"
Bar Capacity............ 6.46"
Spindle Bore............ 7.28 in
Spindle Nose............ A2-15
Power................... 60.4 hp
Max RPM................. 1,500 RPM
Turret Stations......... 12
Tailstock............... Yes
Cut Hours............... 14,437 hr.
Dimensions.............. 307 x 114.17 x 118.11
Weight.................. 48,502 Lbs
EQUIPPED WITH:
Fanuc 0i-TD CNC Control
Schmidt Tool RIP-131 Heavy Duty Traveling Steady Rest
- Clamp Cap. 7,000 Lbs
- Workpiece Dia. 12.1" - 31"
- Bearing Type NUTR35
- Steady Rest Weight 809 Lbs
32" Samchully HCH-32 3 Jaw Chuck
Programmable Tailstock
Renishaw Tool Setter RP7 Probe
LNS Chip Conveyor & Remote Control Box
Manuals & Docs
