Manufacturer: Hwacheon
Model: HI-TECH-700
Year: 2012
Swing: 35.4
Chuck: 24
Bar Capacity: 4.6
Stock # 53392
1 / 4
Click to zoom in
1 / 4
For Sale by Machinery Network Inc
Surplus Record Dealer Since 1989
Location: Encino, CA
Contact Sales Dept.
Phone Number: 818...> Show Phone Number 818-465-6700
Let the seller know you found their listing on Surplus Record!
Description

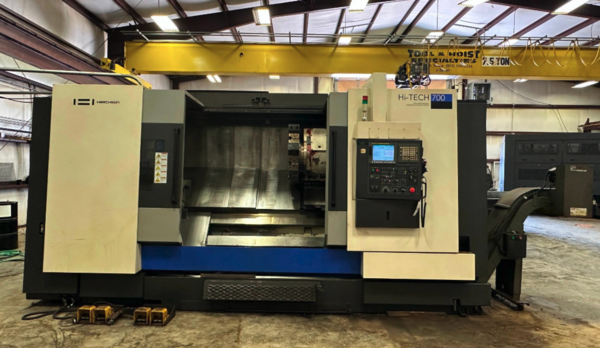

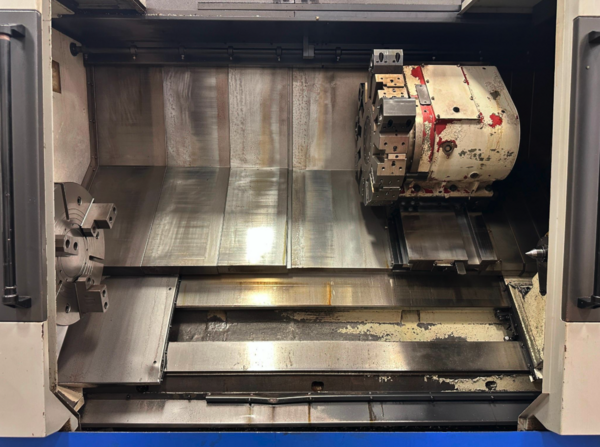

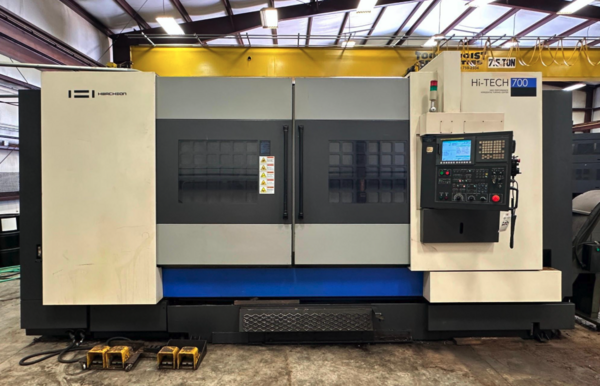

2012 HWACHEON HI-TECH 700
SPECIFICATIONS:
Swing................... 35.4"
Machining Length........ 43.3"
Max. Turning Length..... 78.6"
Max. Turning Diameter... 27.6"
Rapid Traverse X-Axis... 708.7 ipm
Rapid Traverse Z-Axis... 708.7 ipm
Chuck Size.............. 24"
Bar Capacity............ 4.6"
Spindle Bore............ 5.2 in
Spindle Nose............ ASA A2-11
Power................... 50 hp
Max RPM................. 1,800 RPM
Turret Stations......... 12
Tailstock............... Yes
Cut Hours............... 7,969 hr.
Dimensions.............. 199.41 x 89.8 x 99.8
Weight.................. 33,000 Lbs
EQUIPPED WITH:

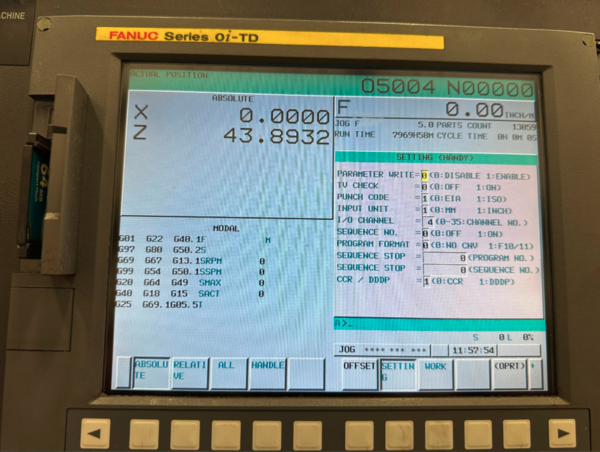

Fanuc 0i-TD CNC Control
Programmable Tailstock
Renishaw Tool Setter/ Probe
LNS Turbo Lift-Up Chip Conveyor
Hammond Power Solutions 75 KVA Dry Type Transformer
Manuals & Docs
SPECIFICATIONS:
Swing................... 35.4"
Machining Length........ 43.3"
Max. Turning Length..... 78.6"
Max. Turning Diameter... 27.6"
Rapid Traverse X-Axis... 708.7 ipm
Rapid Traverse Z-Axis... 708.7 ipm
Chuck Size.............. 24"
Bar Capacity............ 4.6"
Spindle Bore............ 5.2 in
Spindle Nose............ ASA A2-11
Power................... 50 hp
Max RPM................. 1,800 RPM
Turret Stations......... 12
Tailstock............... Yes
Cut Hours............... 7,969 hr.
Dimensions.............. 199.41 x 89.8 x 99.8
Weight.................. 33,000 Lbs
EQUIPPED WITH:
Fanuc 0i-TD CNC Control
Programmable Tailstock
Renishaw Tool Setter/ Probe
LNS Turbo Lift-Up Chip Conveyor
Hammond Power Solutions 75 KVA Dry Type Transformer
Manuals & Docs
