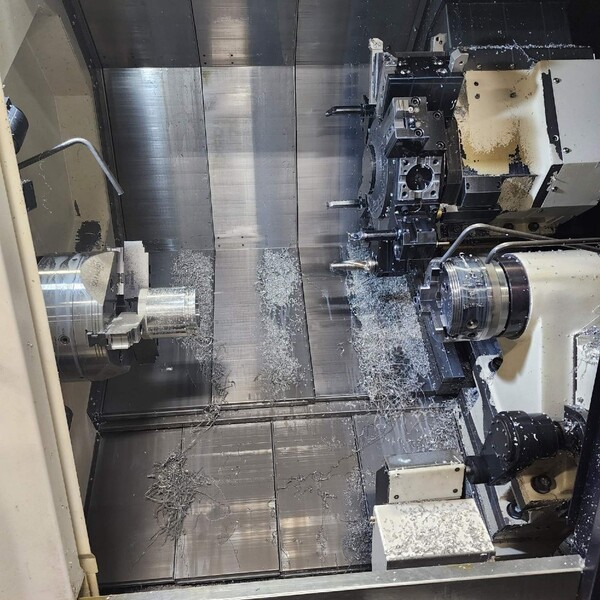

Hwacheon #Hi-Tech-230BL-YSMC, CNC lathe, box ways, Fanuc 0iTF, 29.5" swing, 2021

ONE LOW HOUR HWACHEON BOX WAY CNC LATHE WITH Y AXIS & SUB SPDL

Model: Hi-Tech 230BL YSMC

Swing over bed: 29.53”

Swing over saddle: 21.26”

Max. cutting diameter: 15.74”

Std. cutting diameter: 8.58”

Max. cutting length: 20.93”

Spindle nose main/sub: A2-8/A2-5

RPM: Main/Sub: 3,500/5000

Hole thru spindle main/sub: 3.58”/2.44”

Max bar size thru main/sub: 3.19”/2.01”

Spindle motor main/sub: 22/7.4

Turret: 12 stations & 24 positions

Tool size: OD: .98”, ID: 1.57”

Turret index time: 0.344 sec/step

Milling spindle HP/RPM: 7.4/5,000

Floor space: 123.35” x 75.77” x 82.83” high

Weight: 14,960 lbs.

Wired: 230v/3ph/60cy

EQUIPPED WITH:

Fanuc Oi-TF controls

10” chuck on main, 5” chuck on sub

Tool setter

Parts catcher

Chip conveyor with small hopper

Coolant

Static tools

One each radial & axial live tools

New: Oct. 2021

Run Hours: 2,484

Specifications are approximate, intended solely as a guide and are not binding. It is the buyers’ responsibility to inspect the goods and ascertain if the specifications, description, and condition of the goods conform to the buyers’ requirements.

In plant and under power!
