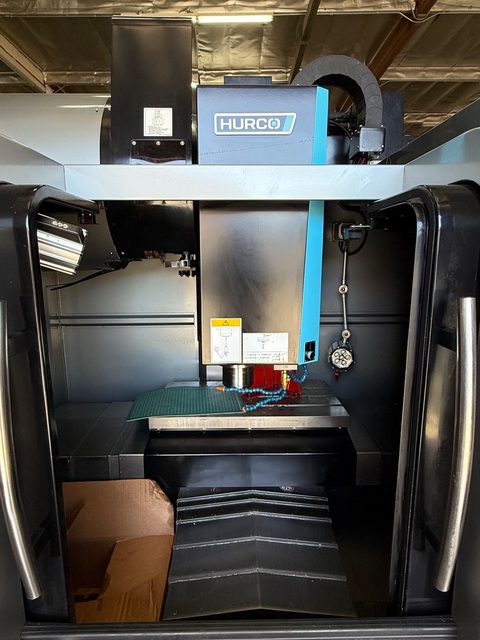

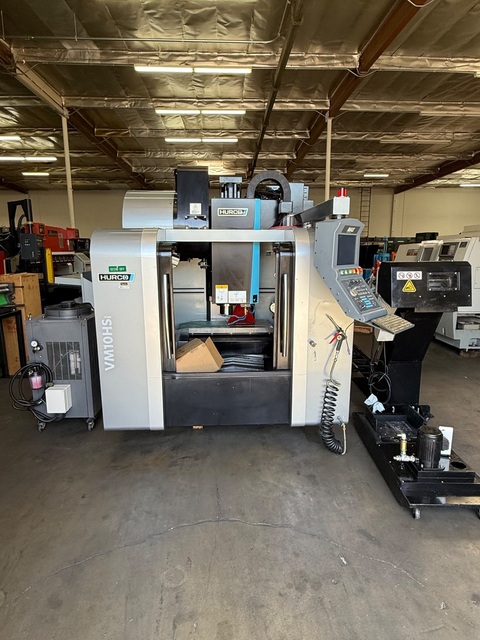

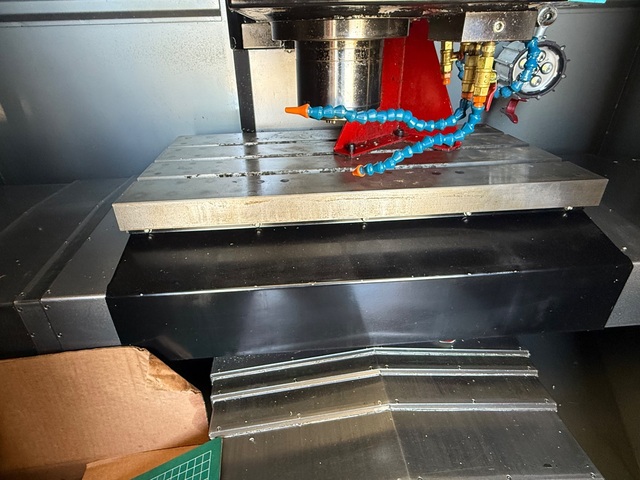

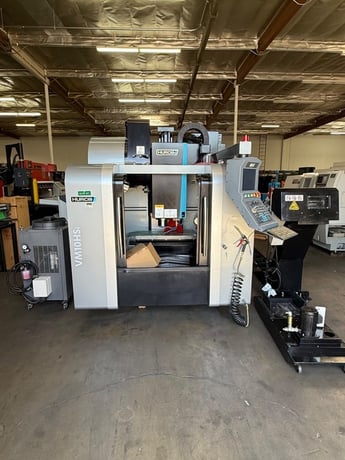

2013 HURCO VM10HSi Vertical Machining Center # 7854 VM10HSi Machine Specifications: Travels & Capacity: X, Y, Z Axis Travel: 26.02 x 16.02 x 20 in (660 x 406 x 508 mm) T-Slot Size: 3 x .71 in (3 x 18 mm) Table Size: 30 x 16 in (762 x 406 mm) Max. Weight on Table: 3,300 lbs (1,500 kg) Spindle Nose to Table: 4.0 in (102 mm) Spindle: Max. Spindle Speed: 20,000 rpm Spindle Power (peak - 1 min): 11.4 hp (8.5 kW) Spindle Torque (peak - 1 min): 4.0 ft-lbs @1500 rpm (5.4 Nm @ 1500 rpm) Tool Changer: Tool Type: BT30 Number Of Tools: 20 Max Tool Diameter: 3.15 in (80 mm) Max Tool Length: 9.8 in (250 mm) Max Tool Weight: 6.6 lbs. (3.0 kg) Feed Rates: Rapid Traverse X,Y,Z Axis: 1,102 in/min (28 m/min) Max. Programmable Feed rate: 1,102 in/min (28 m/min) Required Floor Space: 126.1 x 133.7 in (3,204 x 3,395 mm) Machine Height: 101.0 in (2,564 mm) Machine Weight: 6,746 lbs. (3,060 kg)
HURCO VM10HSi High Speed 30 Taper CNC Mill, Travels & Capacity:, X, Y, Z Axis Travel: 26.02 x 16.02 x 20 in (660 x 406 x 508 mm), T-Slot Size: 3 x.71 in (3 x 18 mm), Table Size: 30 x 16 in (762 x 406 mm), Max. Weight on Table: 3,300 lbs (1,500 kg), Spindle Nose to Table: 4.0 in (102 mm), Spindle:, Max. Spindle ...more
Vertical Machining Center for sale: used with 26"x16"x20" XYZ travel, 11.4 hp, 20,000 RPM, and BT-30 taper. s a 20-tool ATC and a 3-axis system. Table size: 16"x30"., 2012 HURCO VM10HSI, X. 26", Y. 16", Z. 20", Power. 11.4 hp, RPM. 20,000 RPM, # ATC. 20, Taper. BT-30, Table-W. 16", Table-L. 30", # Axis. 3.

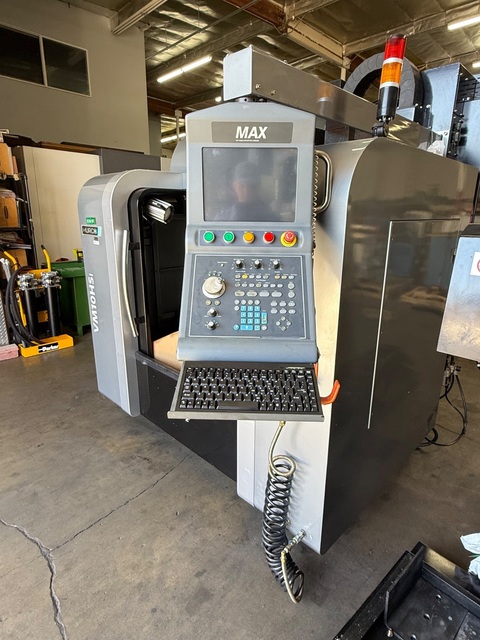

26” X 16” X 20” Vertical Machining Center with Hurco WinMax CNC Control, 20 - Station ATC, Side - Mounted Swing Arm Tool Changer Style, Automatic Central Lubrication System and Coolant System., Table Size: 30” X 14”, Table Load Capacity: 750 Lbs, X - Axis Travel: 26”, Y - Axis ...more
