Description

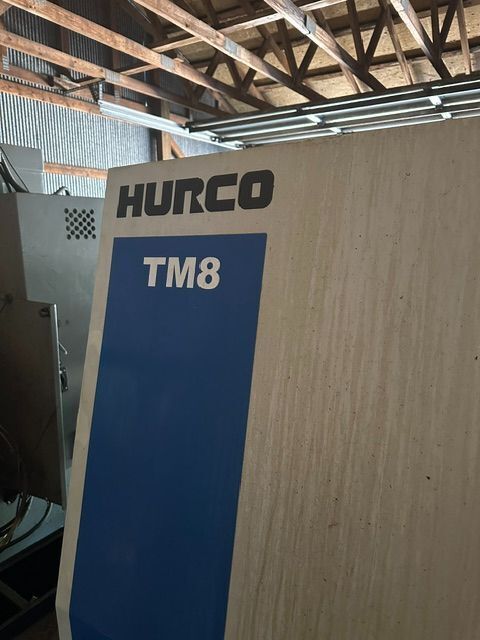

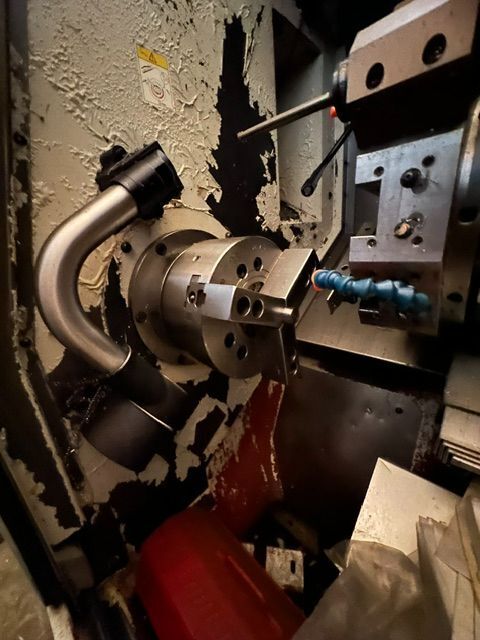

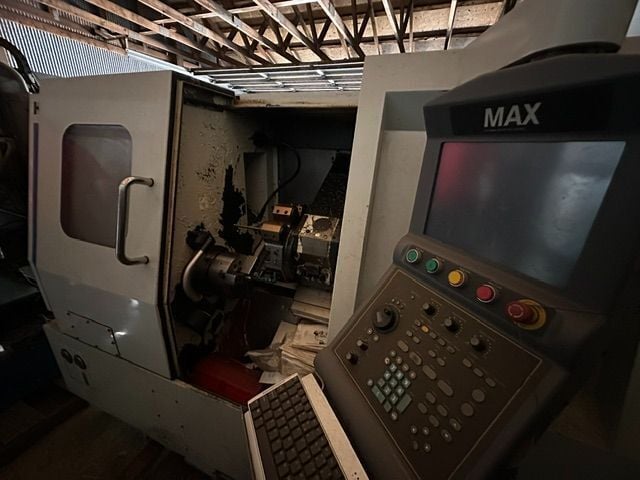

HURCO TM8 CNC Lathe, used. Features 23.5" swing, 18.8" machining length, 8" chuck, 2" bar capacity, and 19.0 power. Capable of 4800 RPM with 12" turning diameter and equipped with a tailstock for versatile operations.
X-Axis Travels: 8
Z-Axis Travels: 20
Max Turning Length: 18.8
Max Turning Diameter: 12
Swing Over Bed: 21.6
Swing Over Cross Slide: 11.8
Distance Between Centers: 27.9
Chuck Size: 8
Spindle Bore: 2.4
Spindle Speed: 4,800 Rpm
Spindle Motor: 15 Hp
Bar Capacity: 2.0
Turret Positions: 10
Electrics: 230 V; 3 Ph; 60 Hz
Approx Weight: 8,500 Lbs.
Approx Dimensions (l x w x h): 116 x 91 x 80
X-Axis Travels: 8
Z-Axis Travels: 20
Max Turning Length: 18.8
Max Turning Diameter: 12
Swing Over Bed: 21.6
Swing Over Cross Slide: 11.8
Distance Between Centers: 27.9
Chuck Size: 8
Spindle Bore: 2.4
Spindle Speed: 4,800 Rpm
Spindle Motor: 15 Hp
Bar Capacity: 2.0
Turret Positions: 10
Electrics: 230 V; 3 Ph; 60 Hz
Approx Weight: 8,500 Lbs.
Approx Dimensions (l x w x h): 116 x 91 x 80
