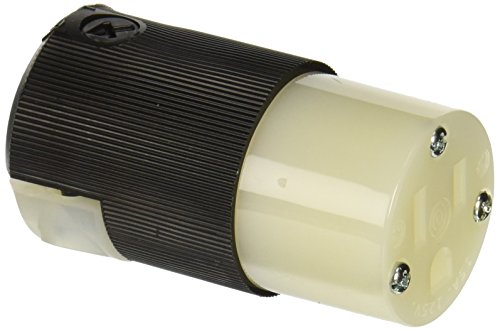

Hubbell HBL5269C Insulgrip Series Straight Blade Electrical Connector, NEMA 5-15R, 15A 125V 2-Pole 3-Wire Grounding

HBL5269C | Hubbell | Electrical Connector, NEMA 5-15R, 15A | New - Body Style: Straight. Standard: NEMA. Amperage: 15A. Voltage: 125V. Poles and Wires: 2 Pole, 3-Wire Grounding. Wiring Method: Back Wire. Hospital Grade: No. Plug/Connector Grade: Insulgrip. Color: Black. NEMA No.: 5-15R. Cord Dia.: .230"-.720" (5.8-18.3). Type: 2 Pole, 3 Wire, Grounding. Rating: 15A, 125V. Certification: UL Listed to UL498 File E1706, CSA Certified to C22.2 No. 42 File 280. IP Suitability: IP20. Housing Material: Nylon-Black. Retainer Material: Polycarbonate-Clear. Cord Clamp Material: Nylon-Natural. Terminal Screw Material: #8-32 Brass, Multiple Drive. Ground Screw Material: #8-32 Brass, Multiple Drive (Green). Contact Holder Material: Nylon-Natural. Power Contacts Material: .040" (1.0) Copper Alloy. Dielectric Voltage: Withstands 2,000V minimum. Current Interrupting: Certified for current interrupting at full rated current. Temperature Rise: Max 30C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%. Terminal Identification: Terminals identified in accordance with UL498 (Brass, White, Green). Terminal Accommodation: #18-#10 AWG copper stranded conductor. Product Identification: Ratings are a permanent part of the device. Flammability: UL 94 HB or better. Operating Temperatures: Maximum continuous 75C, minimum -40C (w/o impact). UPC Number: 783585173252. Weight in LBs: 0.150. - Hubbell - Hubbell - HBL5269C - HBL5269C
