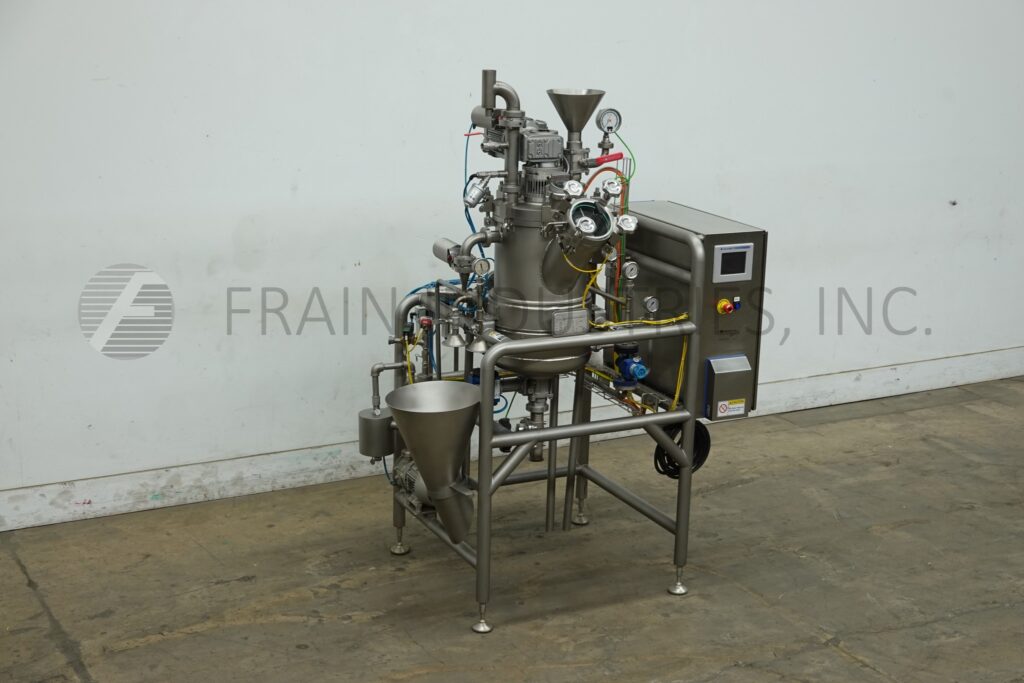

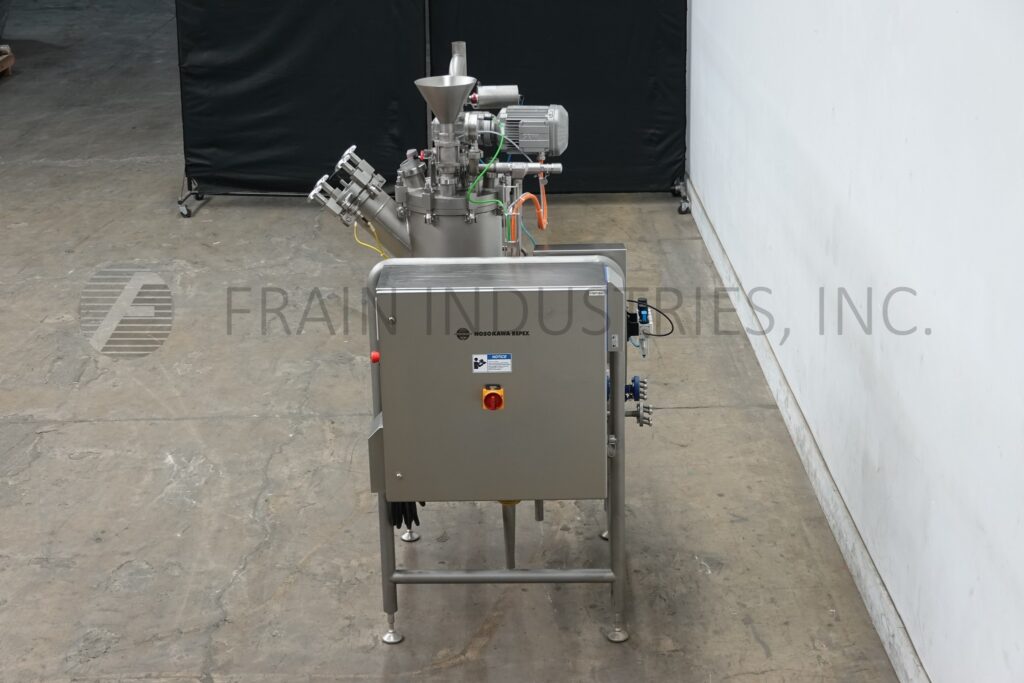

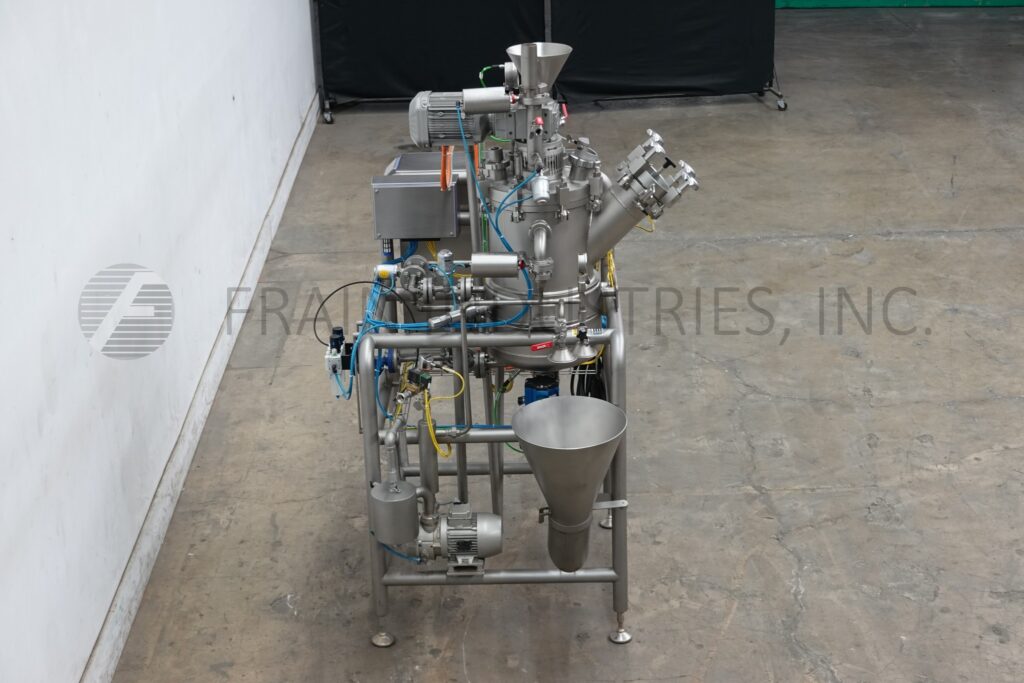

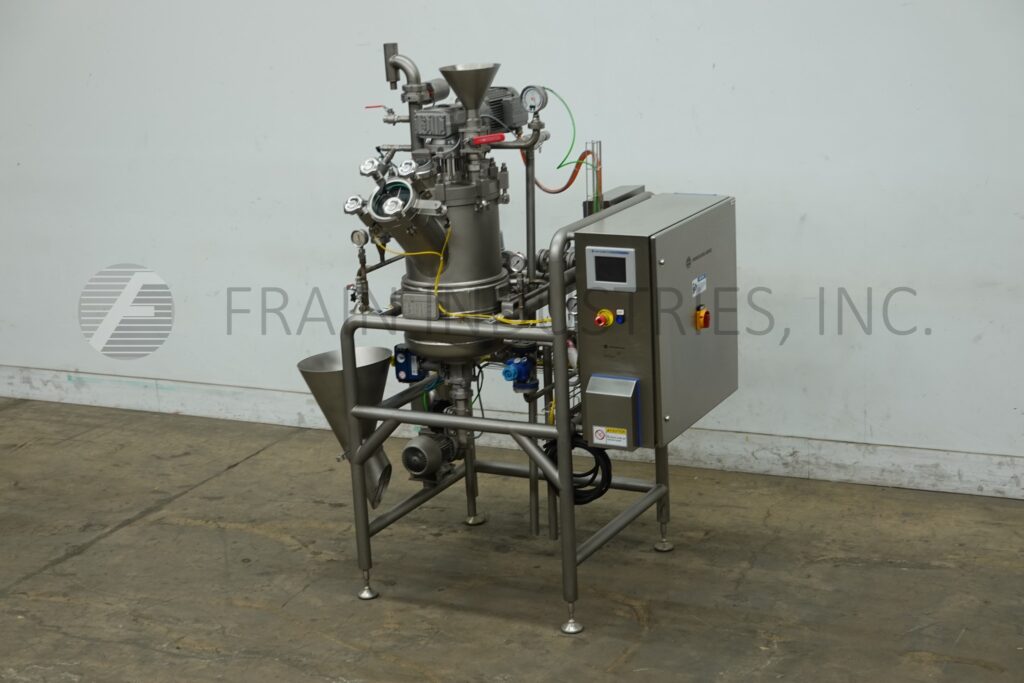

15 gallon Hosokawa, #TBT20V, 304 Stainless Steel, single motion, vacuum kettle, 14" dia., 24" depth, bolt down cover top

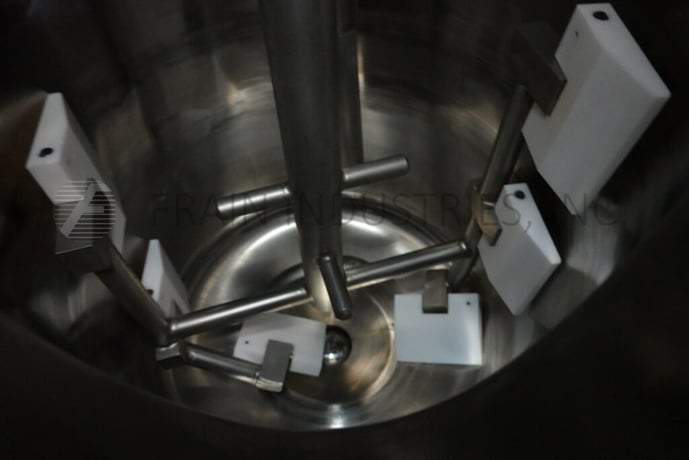

Hosokawa, 15 Gallon, 304 stainless steel, single motion, vacuum kettle. Vessel dimensions: 14" in Diameter; 24" in Depth. Equipped with a bolt down cover top, scrape agitation powered by a 1½ hp drive, 6" ID sight glass, top light, 2hp vacuum system and 2½" OD / 1½" ID bottom discharge with manual ball valve and 22" ground clearance. Control panel with touch screen HMI.

Nat’l Brd: 1269
MAWP: 58 PSI @ 365°F (Jacket)
MAEWP: 14.5 PSI @ 365°F (Vessel)
MDMT: -20°F @ 58 PSI (Jacket)

MAWP: 130.5 PSI @ 365°F (Vessel)
MAEWP: 14.5 PSI @ 365°F (Vessel)
MDMT: -20°F @ 130.5 PSI (Vessel)

Top Access:
(1) 2½" OD / 2" ID Seated Bevel
(3) 3" OD / 2½" ID Seated Bevel
(1) 3½" OD / 3" ID Seated Bevel

Side Access:
(1) 2½" OD / 2" ID Seated Bevel

Jacket Access:
(4) 4"OD / 5/8"ID Flange
(1) 1"

OAD: 50"L x 62"W x 80"H
