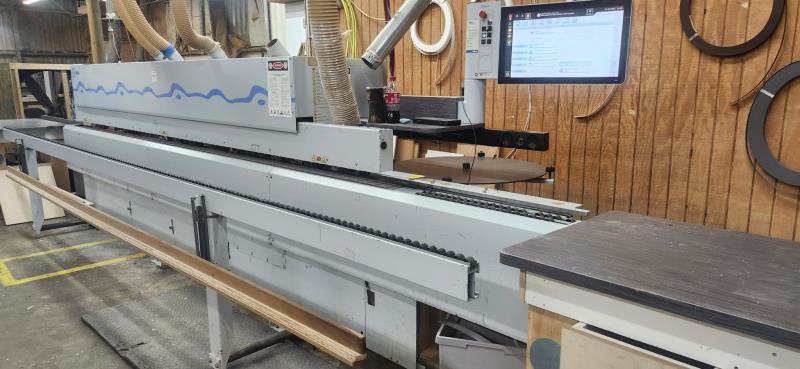

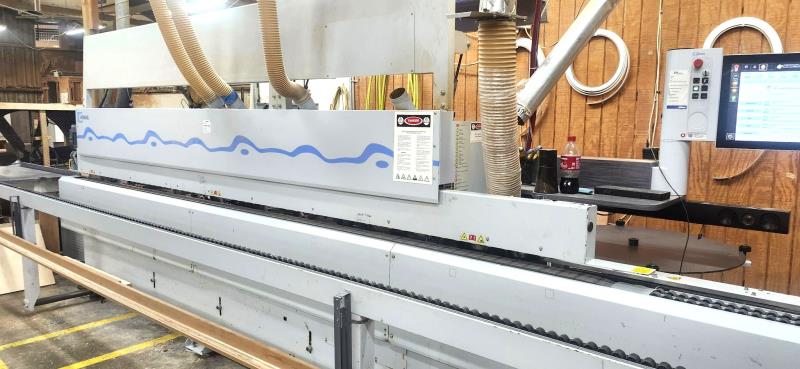

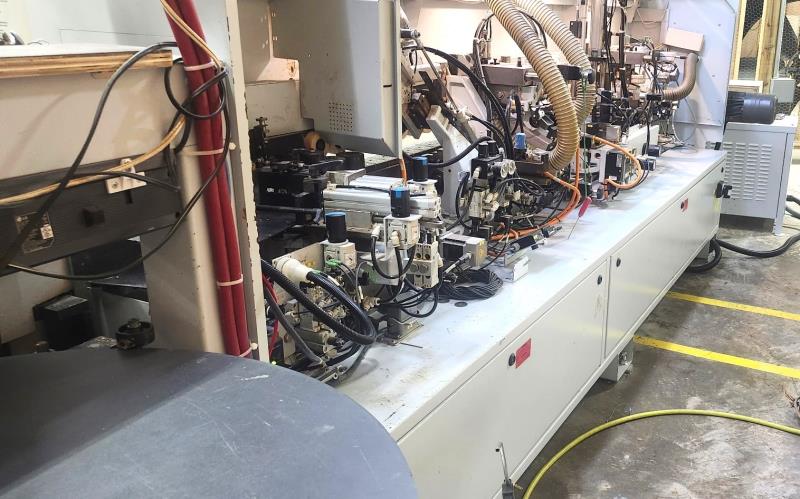

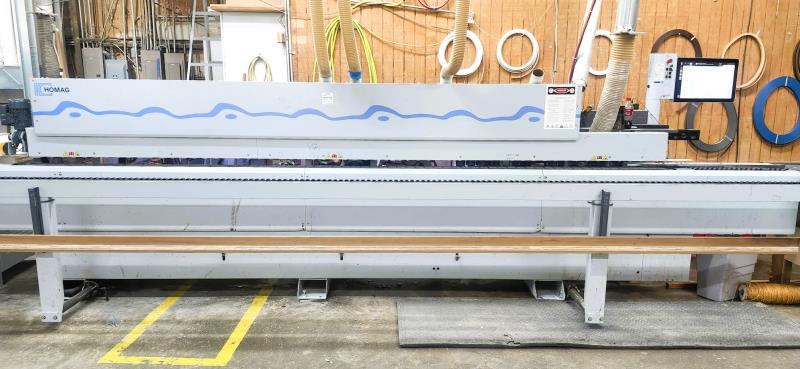

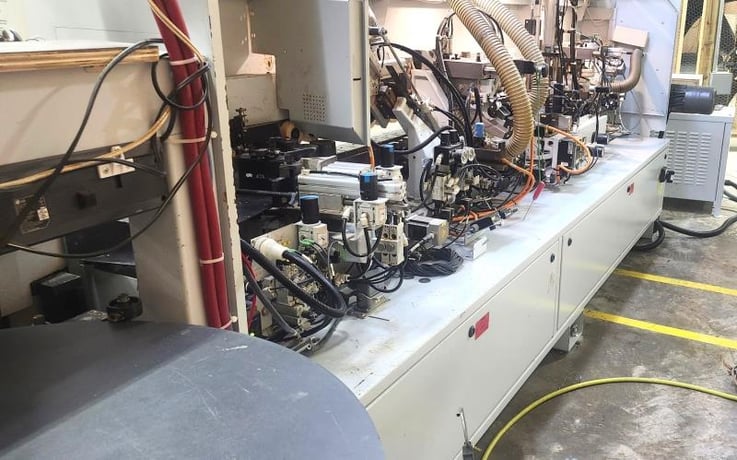

Homag #Optimat-KDF-440C, edgebander w/ pre-mill & corner rounding, 2018

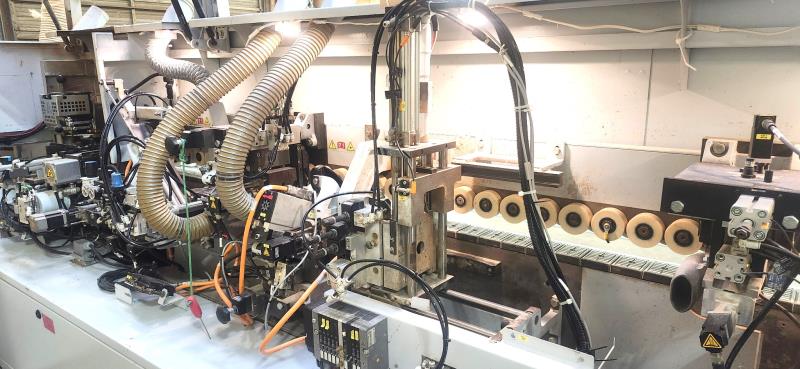

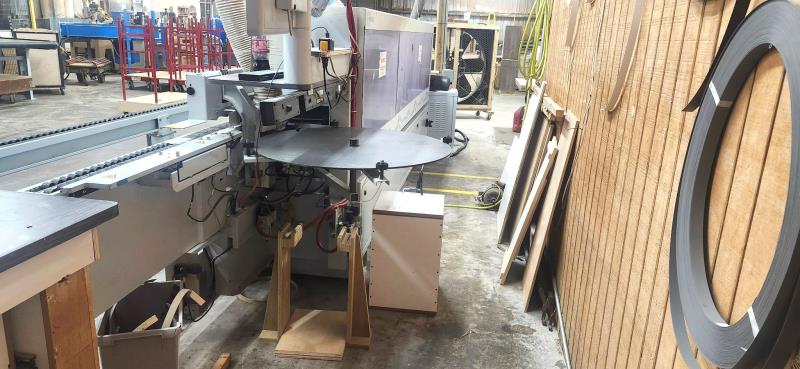

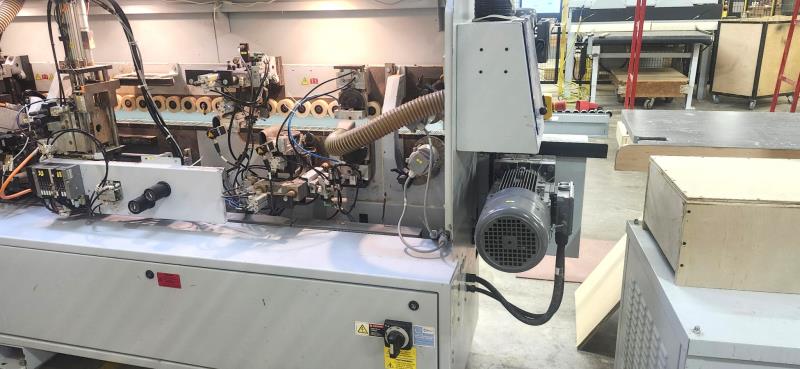

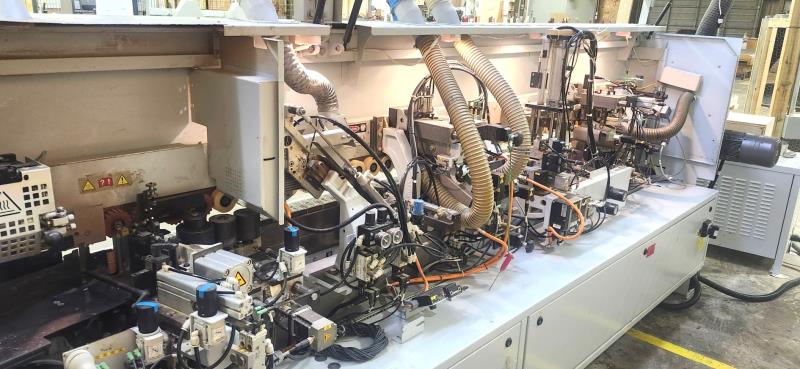

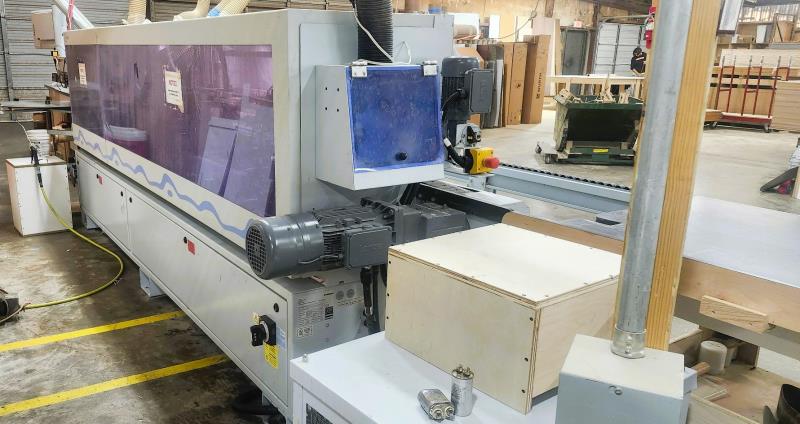

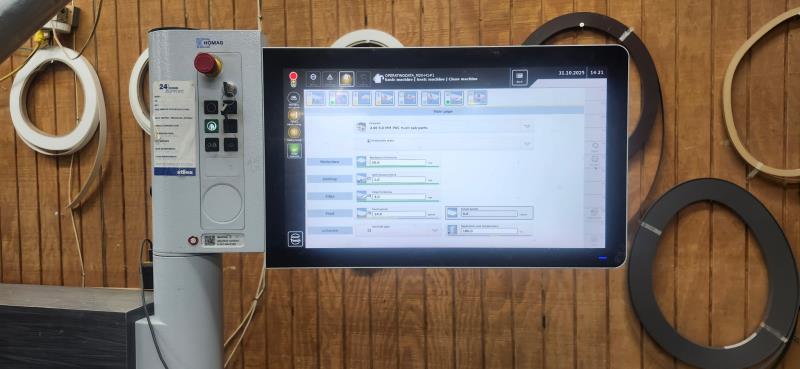

HOMAG - OPTIMAT KDF 440C: Special RH Feed Direction Edgebander w/Premilling & Corner Rounding (aka BRANDT - KDF 440C)Specifications: Premilling & Corner Rounding; HIGHFLEX Automated package. -- Edge & Workpiece Capacity: 0.4 - 8 mm (0.016 - 5/16") Edge; 8 - 60 mm (5/16 - 2-3/8") panel thickness; 160 mm (6-3/8") min. panel length; 70 mm (2-3/4") min. panel width.Equipped with: -- Premilling Station: (2) Motors @ 2.25 kW (3.0 HP) - 12.000 RPM; LH & RH rotation w/pneumatic jump control for chipfree & clean panel edges. Equipped with diamond cutterheads -- Infeed Fence with: Servo motor positioning. -- Infrared Radiant Quartz Heating Unit between: Glue roller and pressure section. -- Automatic Edge Magazine: Strip & coil stock; strips: 0.4 mm - 8 mm (0.016 - 5/16"); coils up to 3 mm PVC; "HD" guillotine "Quick Change" Glue Tank for maintenance & glue color change. -- Pressure Section: 1st Roller driven plus: (3) Idle rollers; timed pneumatic pressure controlled; Servo motor positioning for programmable edge thickness changeover. -- Feed Speed: Variable 8 - 14 MPM (26 - 46 FPM); 11 MPM (36 FPM) when using contour trimming. -- BRANDT "Power Touch Control"; memory: 256 MB RAM; 1 GB flash card drive; Operator control panel: 22" Color HD widescreen; soft keypad; internal modem for remote diagnostic link.Workstations -- End Trimming -- (2) Motor @ 0.35 kW (1/2 HP) - 12,000 RPM; automatic chamfer from control panel 0- 15. -- Flush/Bevel-Fine/Radius Trimming Unit: Top/Bottom (2) motors; 0.55 kW (3/4 HP) - 12,000 RPM; auto. tilt positioning; 0 - 25 with combination flush/radius/chamfer cutterheads; horizontal & vertical tracing wheels.Equipped with: Brushless multiaxis Servo motors for positioning of work unit & horizontal copy wheels for quick changeover. Includes: (3) Positioning options: Profile-1, Profile-2; flush trimming -- Corner Rounding Unit(1) Motor: 0.35 kW (1/2 HP) - 12,000 RPM for leading & trailing edges vertical corner rounding of panels; either radius or chamfer cutters can be mounted; 3 mm max. edge thickness -- Scraping, multi-profile (PVC): Top/Bottom with (2) profiles.1 mm & 2 mm or 3 mm instead of 2 mm; Servo control positioning of vertical & horizontal copy wheels. - PVC scrape collection box. -- Scraping Glue Unit: Flush Top/Bottom on panel surface with floating insert knives. -- Buffing Unit: Top/Bottom (2) motors; 0.10 kW (0.125 HP) - 2,800 RPM. -- RIEPE anti-adhesion and RIEPE detergent.Complete with: -- Motorized, programmable holddown pressure beam; padded sound enclosure and used tooling. -- Actual Model: RH Feed HOMAG - OPTIMAT KDF 440C (aka BRANDT - KDF 440C, but branded HOMAG).
