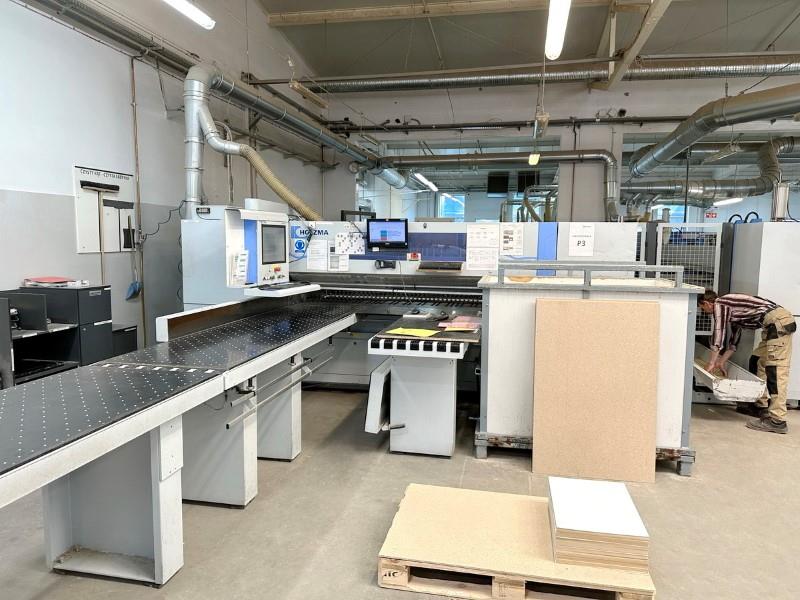

Holzma #HKL-400, angular panel saw system, 169" rip capacity, 86.6" crosscut capacity, 2013

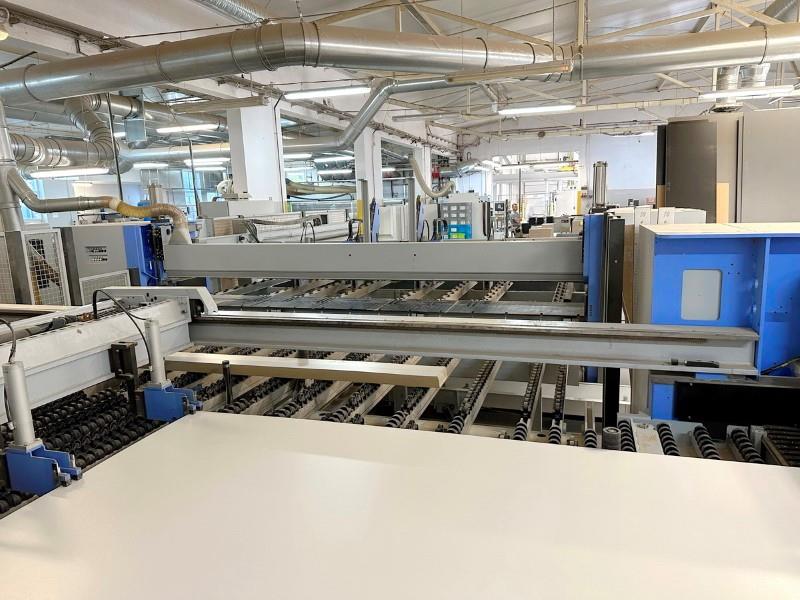

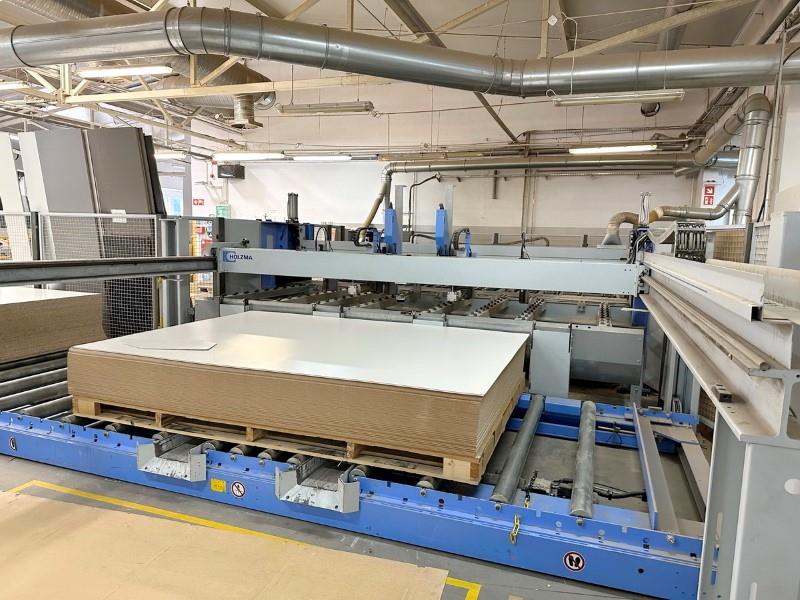

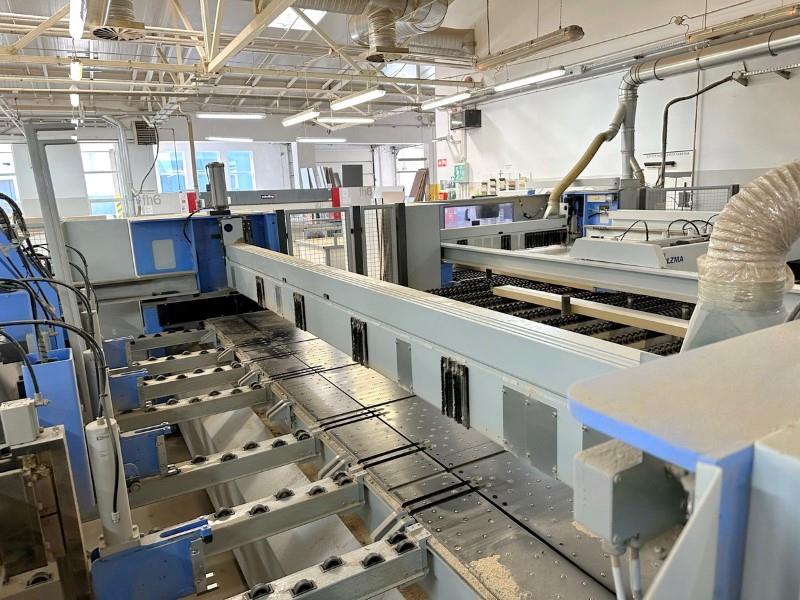

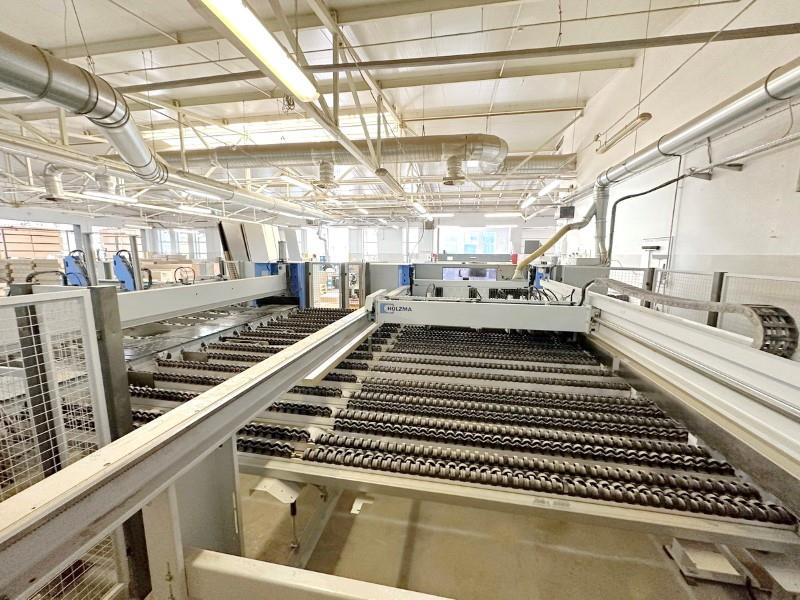

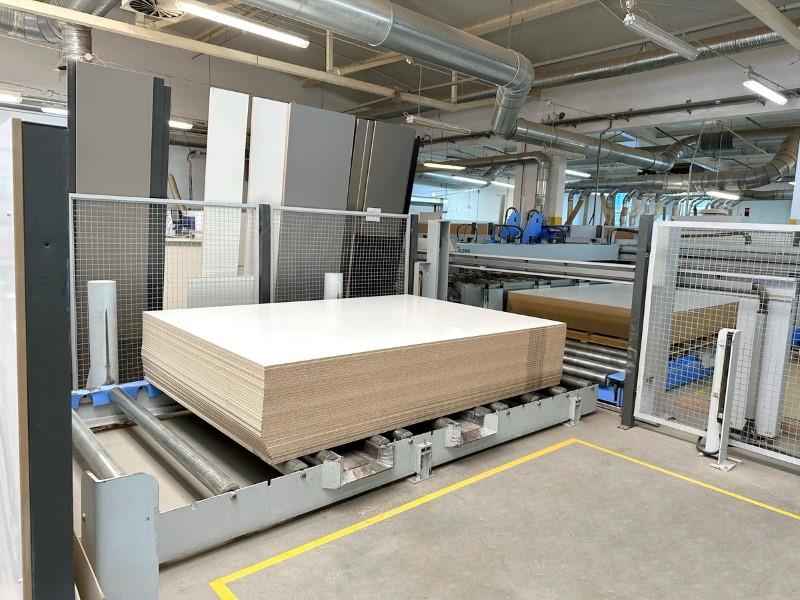

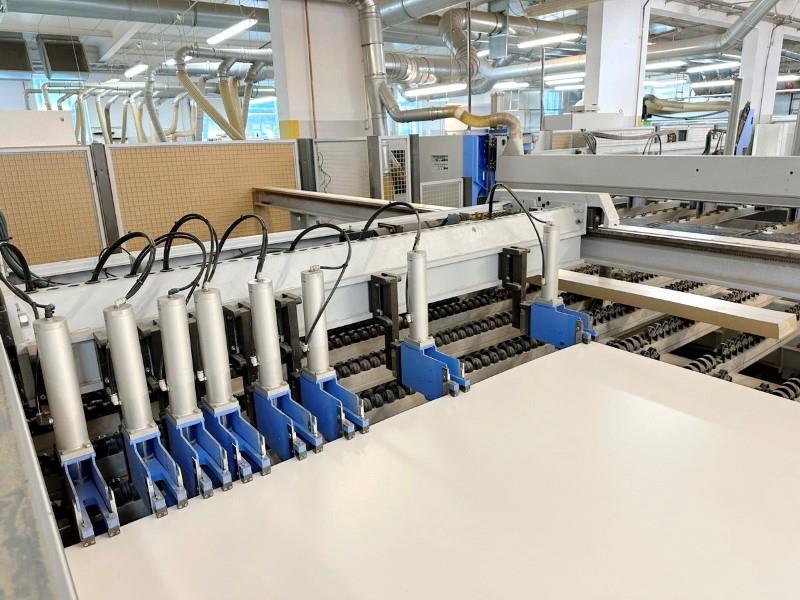

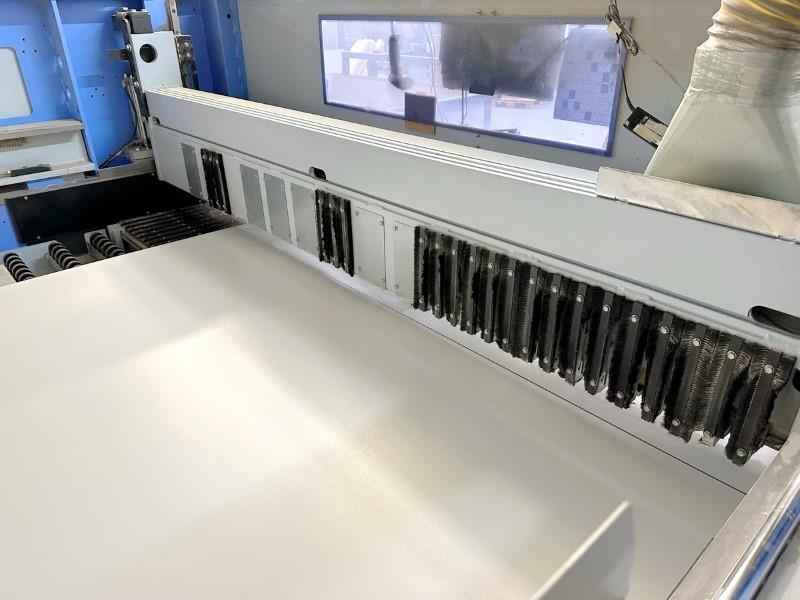

HOMAG/HOLZMA HKL 400/43/22/L ANGULAR PANEL SAW SYSTEM: -- Specifications:169" (4,300 mm) Rip and 86.6" (2,200 mm) crosscut cap., 125 mm (4.9") main saw blade projection;18 kW (24 HP) Main motor, 2.2 kW (3 HP) scoring motor in the rip & cross-cut sections; -- Saw Carriages:Saw carriages have infinitely variable travel speed from 0 - 150 MPM (0 - 492 FPM), 492 FPM (150 MPM) constant return speed; -- Infeed Systems:(1) Infeed roller table with fork cut-outs on the rear RH facing side of the lift table; 169" x 87" (4,300 mm x 2,200 mm) max. material cap. -- Lift Table:(1) Rear load (4) column, electro-hydraulic lift table with fork cut-outs at the rear of the machine; 169" x 87" (4,300 mm x 2,200 mm) max. material cap. -- Rip Cut Section:Electronically controlled program fence with (4) Heavy Duty material clamps, 90 MPM (295 FPM) feed speed forward & 140 MPM (459 FPM) return speed,Saw bed panel supports consist of (8) sets of 3-track rollers mounted between panel grippers. -- Material Transfer Section:Outfeed from the rip section to drop table for scrap removal, then onto intermediate table with 3-track roller supports,incorporated pneumatic jump aligners move the ripped panel stacks to the crosscut section onto the same type 3-track roller supports in crosscut saw bed;(2) very heavy side aligners push panel strip stacks against heavy, full length crosscut fence. -- Crosscut section:Electronically controlled program fence with (8) material clamps; 90 MPM (295 FPM) Forward feed speed & 140 MPM (459 FPM) return speed;Crosscut saw table with (12) banks of double row, narrowly spaced wear resistant PVC wheels. -- Rip & Crosscut pressure beams:Equipped with pneumatic rack & pinion on each side for evenly controlled movement, assures smooth operation & precise cutting dimensions. -- Operator & Machine control:HOLZMA "POWER CONTROL 22" + "CADMatic" 4.0 "Professional" + Windows "XP" operating system; 19" TFT Flat-screen monitor;Displays cutting dimensions & patterns in "Real-Time" moving colored graphics, data input by CD & keyboard or online via network connection is possible.Electrical cabinets with operator control center next to crosscut outfeed; -- Complete with:(3) outfeed air float tables 2,100 mm x 800 mm (82,6" x 31.4" ). Actual Model is HOLZMA HKL 400/43/22/L .Note: EX-FACTORY’s Logistic Department is experienced and setup to provide “Full Service Logistic"; from Overseas Suppliers to your Door. …Packaging, Container Loading, Ocean Freight, Marine Insurance (door to door), US or Canadian Customs, Duty and domestic shipping to your Plant Door.
