Manufacturer: Holz-Her
Model: EVOLUTION
Year: 2021
X-Axis: 126
Y-Axis: 36
Z-Axis: 2
Stock # BP-012816
1 / 3
Click to zoom in
1 / 3
For Sale by Ex-Factory
Surplus Record Dealer Since 2022
Location: Charlotte, NC
Contact Sales Dept.
Phone Number: 704...> Show Phone Number 704-285-2223
Let the seller know you found their listing on Surplus Record!
Description

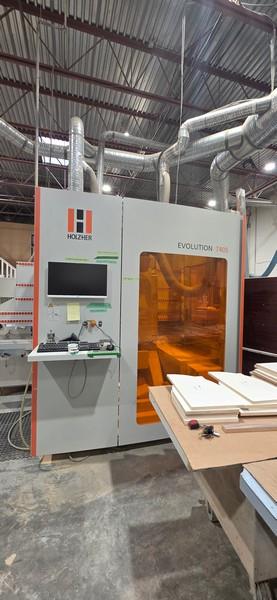

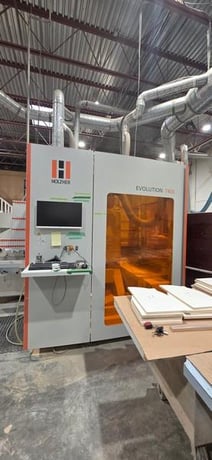

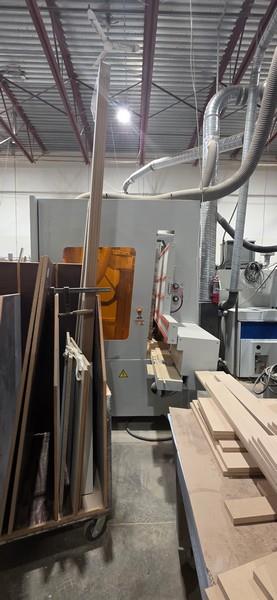

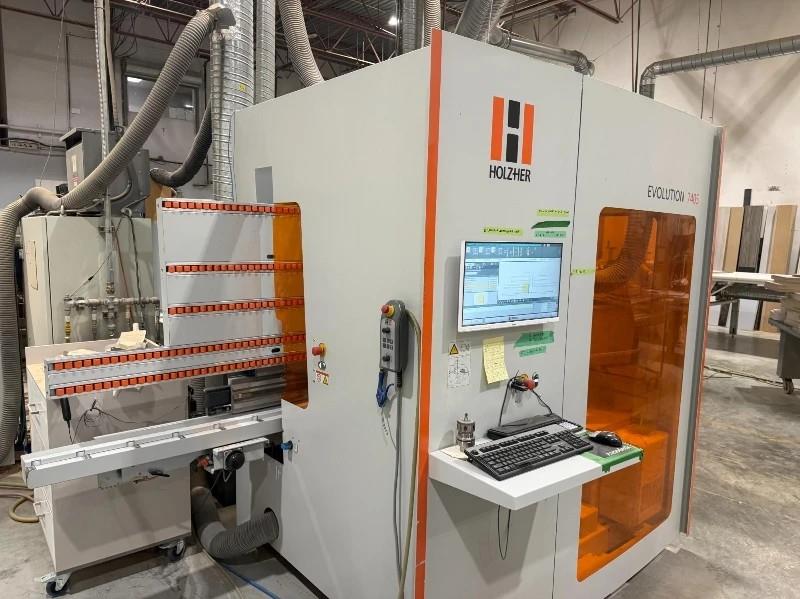

HOLZ-HER - EVOLUTION 7405: CNC Machining Center (Vertical) -- SpecificationsFlexible "Vertical" Machining Center can reach movement speeds of: 223 FPM (68 MPM) in "X" & "Y" axis; 49 FPM (15 MPM) in "Z" axis with total safety. -- Working CapacityMaximum part size for "X" axis: 126" (3,200 mm); "Y" axis: 36.2" (920 mm); max. part thickness: 2.8" (70 mm).Minimum part size for "X" axis: 7.8" (200 mm); "Y" axis: 2.76" (70 mm); min. part thickness of 0.31" (8 mm).Automatic infeed/outfeed from the LH or RH side."Patented" NC Controlled vacuum clamping system with: (1) 8 m/Hr Vacuum Pump. -- Boring Unit(1) Boring block with: 3 HP (2.2 kW) - 4,000 RPM motor.(9) Vertical spindles with: (5) Spindles in "X" axis; (4) spindles in "Y" axis.(6) Horizontal spindles with: (2+2) in "X" axis; (1+1) horizontal spindle in "Y" axis.(1) 2-1/4 HP (1.7 kW) "X" Axis grooving saw; 5,000 RPM; max. 120 mm saw blade diameter. -- Machining(1) 9 HP (6.7 kW) Router with: HSK F63 Adaptor; variable speed from: 1,000 - 18,000 RPM.(1) 6-Position ATC rack mounted inside the working unit. -- Operator & Machine ControlPC Front End with: HOLZ-HER "CAMPUS" + "NC Hops"+ Windows "7" Operating System.19" TFT Monitor; international keyboard, soft touch keypad; industrial mouse.RS-232 Serial ports; USB ports; (1) CD ROM drive; Ethernet connection.Real-time multitask processing; programs can be transferred via diskette or downloading by wire is possible. -- Complete with:Pneumatic part clamping roller devices; auto lubrication system; handheld control pendant; sound enclosure; safety devices. -- Actual Model: HOLZ-HER EVOLUTION 7405
Get Your Price from Ex-Factory!
