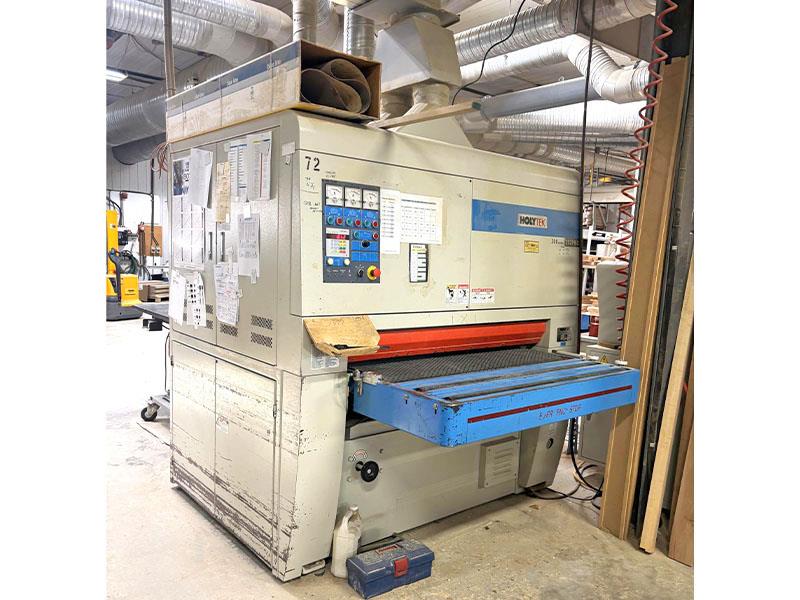

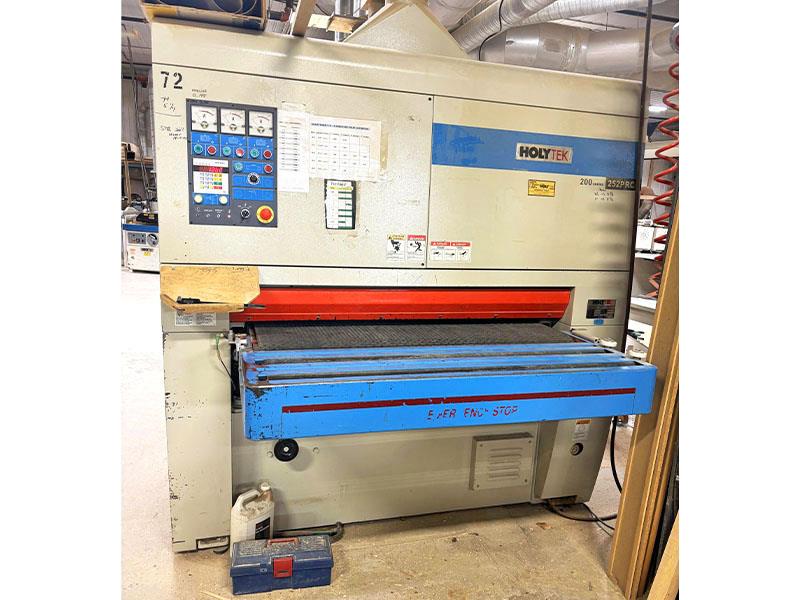

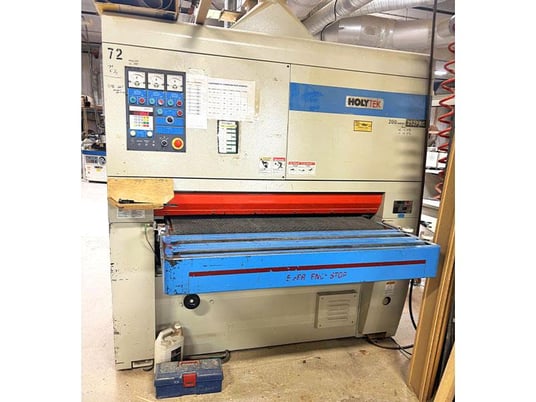

Holytek #252PRC, 3-head knife planer / sander, PLC Control, 2011

Estimated monthly payment valid upon approved credit.

Request Formal Quote

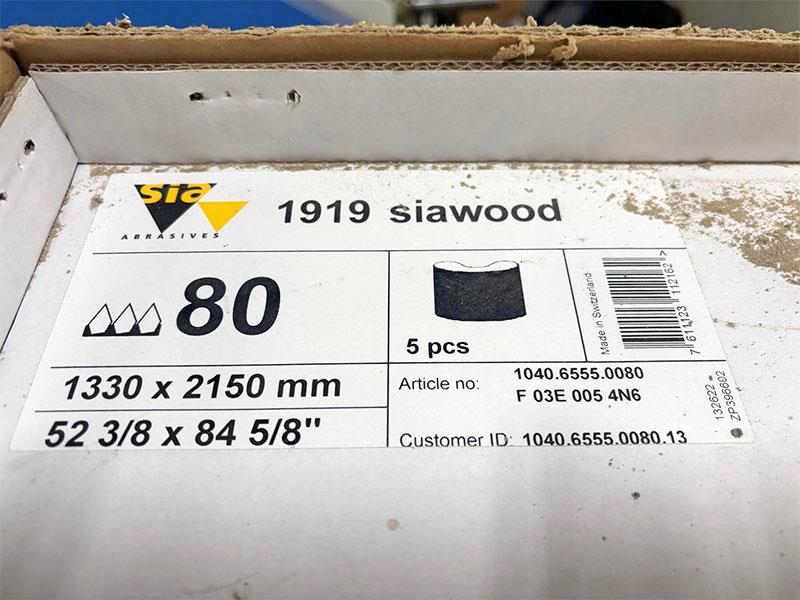

HOLYTEK - 252 PRC Series 200: (3) Heads Planer Sander3-Head, 1,300 mm (52") Width cap.; (1) Knife Planer head followed by: (1) Rubberized Drum, (1) Combination Drum/Platen.Specifications -- 5 mm - 125 mm (0.196" - 5") Motorized opening with: PLC Control; keypad entry; LED readout for part thickness. -- 1st Head. 150 mm (6") Dia. helical planer head; (6) rows of staggered (312) carbide inserts; each insert has: (4) Usable sides; 30 HP motor. -- 2nd Head. Rubberized Drum sanding head with: 215 mm (8-1/2") Dia. rubber covered contact roll; 25 HP motor. -- 3rd Combi Head. Drum & finishing platen; 20 HP motor. -- Sanding belt: 1,330 mm x 2150 mm (52 3/8" x 84 5/8"). -- TRU-TRAK Solid-state belt tracking. -- 3 HP Variable feed drive from: 15 - 50 FPM; GOODYEAR endless belt conveyor with automatic tracking. -- Powered lowering & raising of bed table on: (4) Columns via a 1/2 HP motor; handwheel for fine adjustment of thickness control.Complete with: -- Infeed over thickness bar; emergency stops at infeed & outfeed; air-operated disc brakes on sanding heads; electrical interlocks on main access doors; TELEMECHANIQUE electrical controls with overload protection; motor load meters.Note: Scissor Lift not included.
