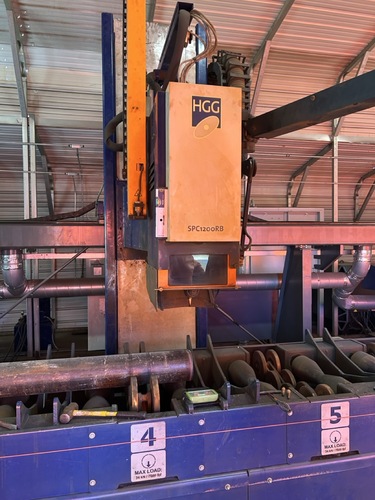

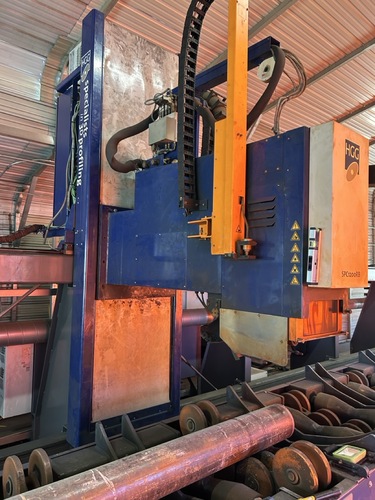

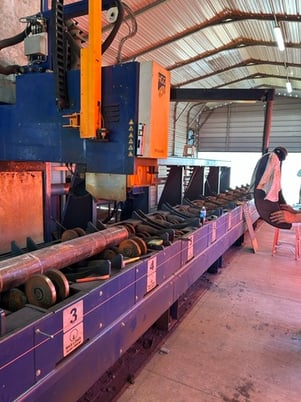

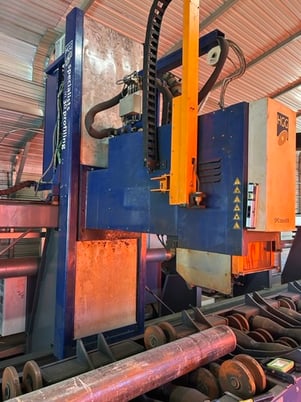

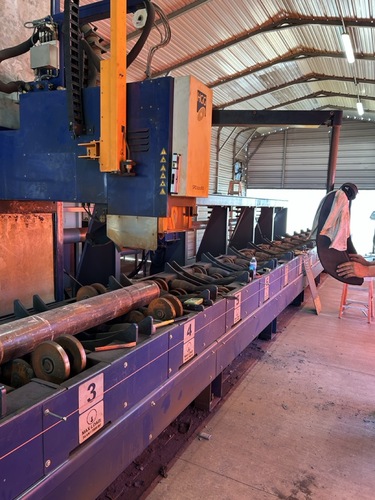

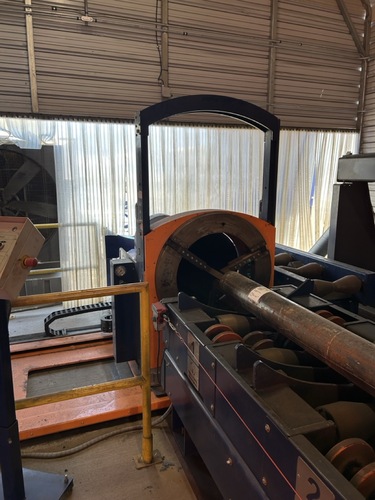

HGG #SPC-1200-RB, Thermal Profiling Machine, 48" outside dimension, 2022

Max Outer Diameter: 48″
Min Outer Diameter: 3″
Max Pipe Weight: 26,455 lbs (12 t)
Max Pipe/Shell Weight for Rotation (Main Drive 1200): 26,455 lbs (12 t)

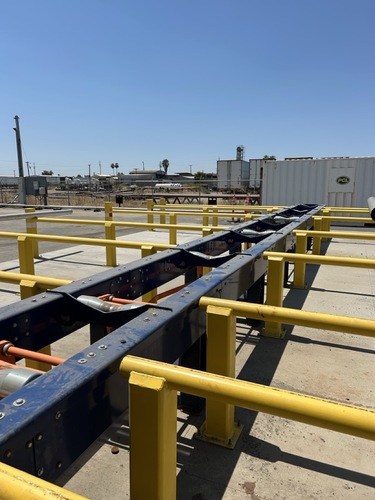

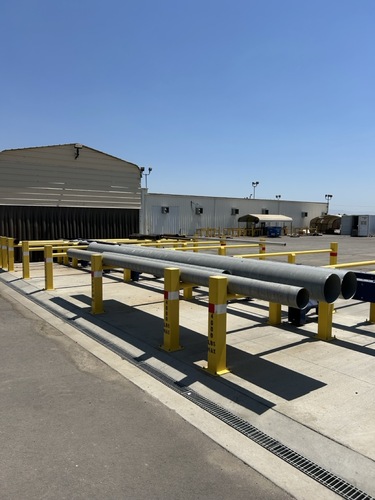

Max Pipe Weight per Meter (Roller Bed): 4,409 lbs (2 t)
Max Pipe Length: 20’/40′ — any length possible adding increments of 6′
Min Scrap Length (Long Jaws): 2″
Min Scrap Length (Zero Scrap Jaws): 0″

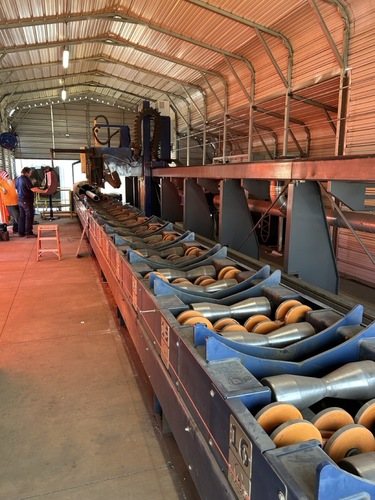

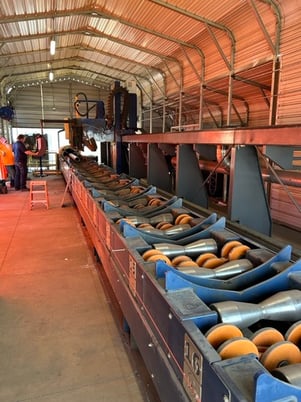

Min Infeed Length (Roller Bed): 79″
Min Outfeed Length (Roller Bed): 39″
Admissible Ambient Temperature: 41–104°F
Cutting Trolley Tilt Angle: -70° to 70°
Cutting Trolley Rotation: 540°
Cutting Holes Minimum Diameter: 8 mm (~0.31″) or 2× wall thickness
Cutting Holes Diameter 40 mm (~1.57″): Independent of wall thickness

Equipped With
• Deltatau Motion Control
• Control Techniques Electronics and Motors
• Wago Remote Bus IO
• Oxyfuel and Hypertherm XPR 300 Cutting Technology
• All Available Manuals
