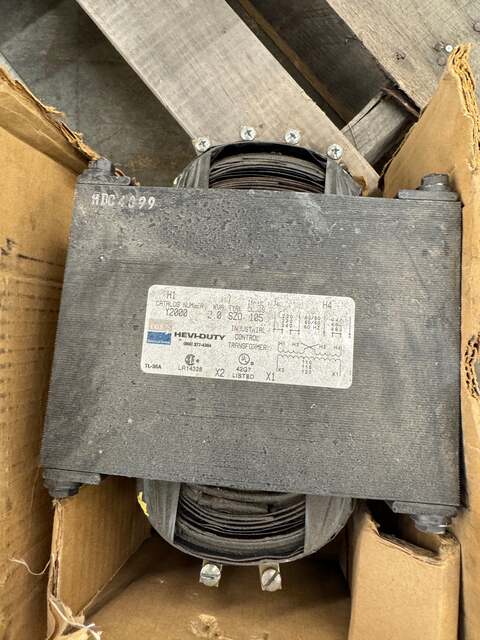

Hevi-Duty Industrial Control Transformer Y2000

Used in industrial machine tool and automation control circuits, the Hevi-Duty Y2000 is a 2.0 kVA single-phase industrial control transformer manufactured by EGS Electrical Group under the Hevi-Duty brand. The unit carries catalog number Y2000, Type SZO, and is rated Class 105. Primary voltage taps accommodate 220, 230, and 240 volts as well as 440, 460, and 480 volts at 50/60 Hz, providing flexibility for a wide range of US industrial supply voltages. The secondary side delivers 110, 115, or 120 volts as shown on the nameplate wiring diagram. Terminal designations follow standard H1 through H4 primary and X1 through X2 secondary conventions. The transformer is open-frame, dry-type construction with a laminated steel core and copper windings, consistent with the SZO series design. It is UL Listed (file 42G7) and bears CSA mark LR14328, along with TL-35A designation. The Y2000 is a well-established catalog number in the SolaHD and EGS Hevi-Duty product line and is commonly used as a control power source in machine tool panels, motor control centers, and industrial equipment enclosures requiring isolated 120V control voltage from higher primary supply voltages.

Stock # 0226-799
