Description
Machine Specifications
Stock Number:
DR-45000
Name:

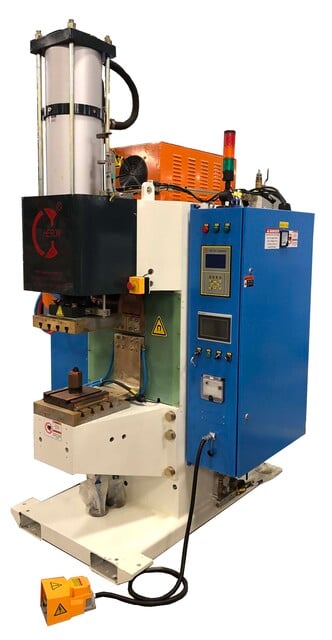

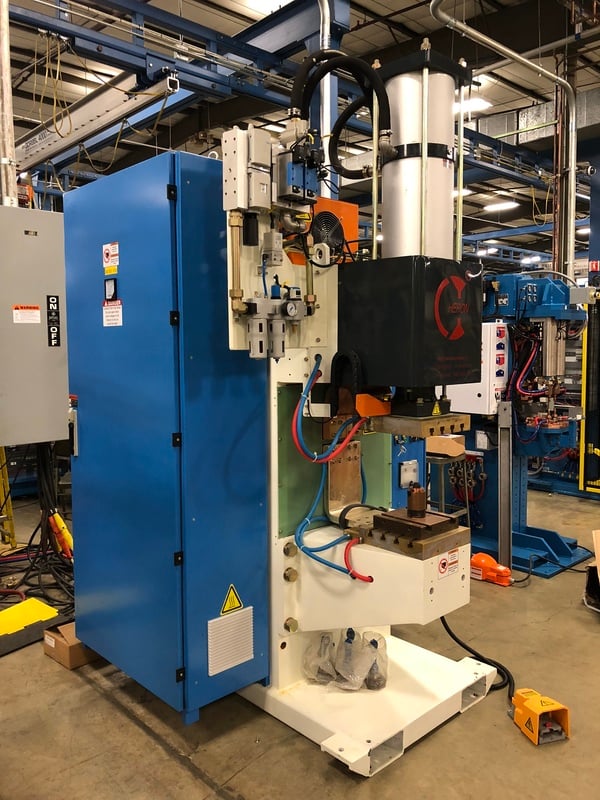

HERON 45kJ Capacitor Discharge Projection & Spot Welder, NEW!
Manufacturer:
Heron
Mfg. Model Number
DR-45000
Voltage:
440/460/480 Volts, Three Phase
Throat Depth:
12 - 15.78 in
Secondary Volts:
27 - 30
Secondary Amps:
190,000
Initiation:
Foot Switch & Dual Palm Button
FAST SHIP Machine:
YES
Additional Details:
Model No. DR-45000, 45 kJoule Power Supply, Throat Depth/Gap: 306mm / 401mmWeld Force: ???? Newtons = (???? lbs.) by pneumatically operated welding cylinder; pressure setting by proportional pressure valve. Fast follow-up mechanism and LVDT- Linear Variable Differential Transducer is included.Secondary Voltage: 27 - 30 VoltsMax. Short CircuitSecondary Current: 190,000Discharge: Electronically controlled discharge by high current pulse transformersForce Monitoring: Automatic; force is captured by load cellInitiation: Dual palm buttons mounted to a T-standFrame: Heavy Duty C-frame, designed as stable welded constructionDimensions (mm): W x H x L = 1402 x 2610 x 1643Customer Utility Services Required:Electrical: 480 Volts / 60 HZ / Three Phase rated at 200 amperes.Air: Clean and dry at 80 PSIG (minimum).Water: Clean and non-conductive at 35 PSIG (10 GPM)
