Hermle #C600U, 5-Axis CNC vertical machining center, 30 automatic tool changer, 23.6" X, 17.7" Y, 17.7" Z, 16000 RPM, 2006

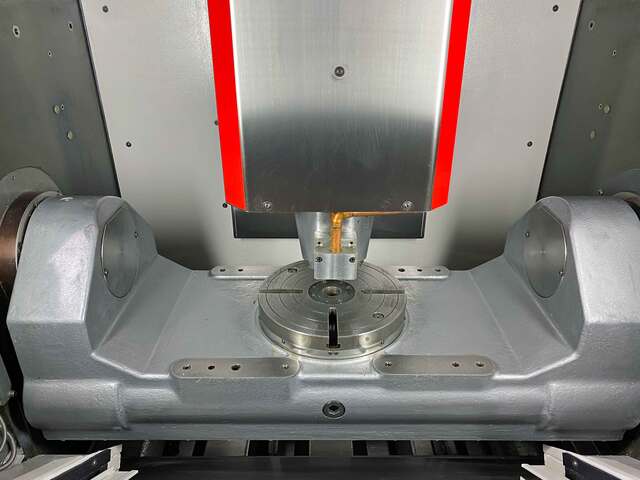

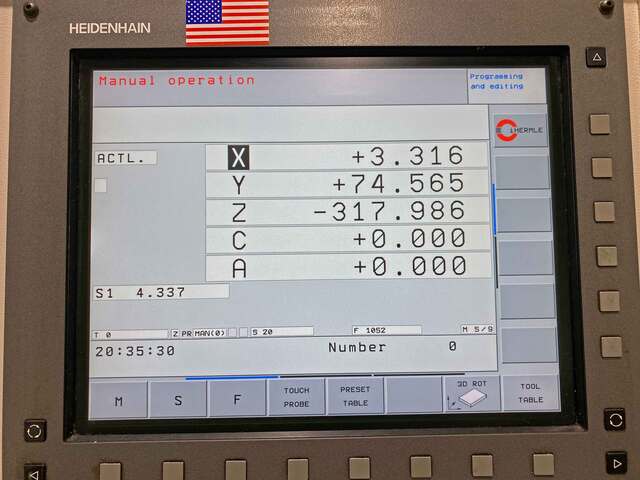

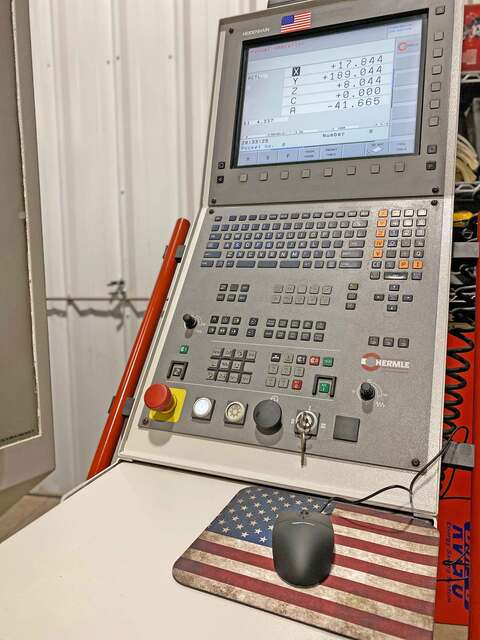

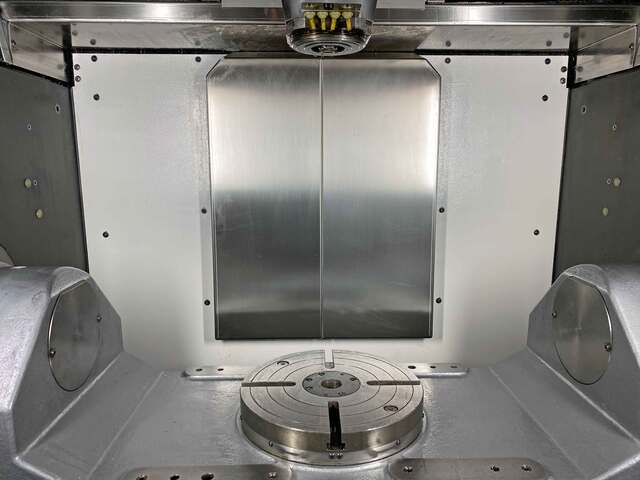

5-AXIS MACHINING CENTERS C600U Subject to availability, and terms and conditions of FRANKE CNC sales contract, we offer for your consideration: One used 2006 HERMLE C600U Full 5-Axis Simultaneous Gantry Style VMC: May be inspected under power in our Wisconsin showroom by appointment. Fly into MKE or ORD. Machine was produced in the Black Forest at Maschinenfabrik Berthold Hermle AG-Gosheim, Germany HEIDENHAIN iTNC 530 CNC Control with HEIDENHAIN HR410 electronic handwheel TECHNICAL DATA: NC swivelling rotary table Fixture Table maximum swing.20 x 20 (508 mm x 508 mm) not included Optional table plate possible for 5-Axis machining..14.6 x 14.6 (370 mm x 370 mm) not included Optional table plate possible for 3-Axis machining..23.6 x 14.6 (600 mm x 370 mm) not included EQUIPPED WITH: Mineral casting machine base Approximate machine weight 14,330 lb (6,500 kg) HEIDENHAIN linear glass scales direct measuring in X/Y/Z Axes HEIDENHAIN rotary encoders direct measuring in 4th and 5th Axes Water tank Chip conveyor Machine light Fully enclosed cabin enclosure Spindle air blast Orientation spindle stop M19 Helical interpolation Rigid tapping RS 232 port and Ethernet port RENISHAW infrared parts measuring touch probe BLUM laser tool measuring of tool length, diamter, and broken tool detecti Temperature Compensation Leveling Shoes Ball Bar Test-at inspection Geometry Test-at inspection Spray pistol Books, manuals and technical documentation on hand for the machine CONNECTION REQUIREMENTS: Price quoted in United States Dollars Purchase Point is Hartland, WI 53029 To the best of our knowledge all details listed above are deemed correct. It is the Buyer's responsibility to confirm all details and we encourage an inspection of the machine(s) and accessories prior to purchase.
