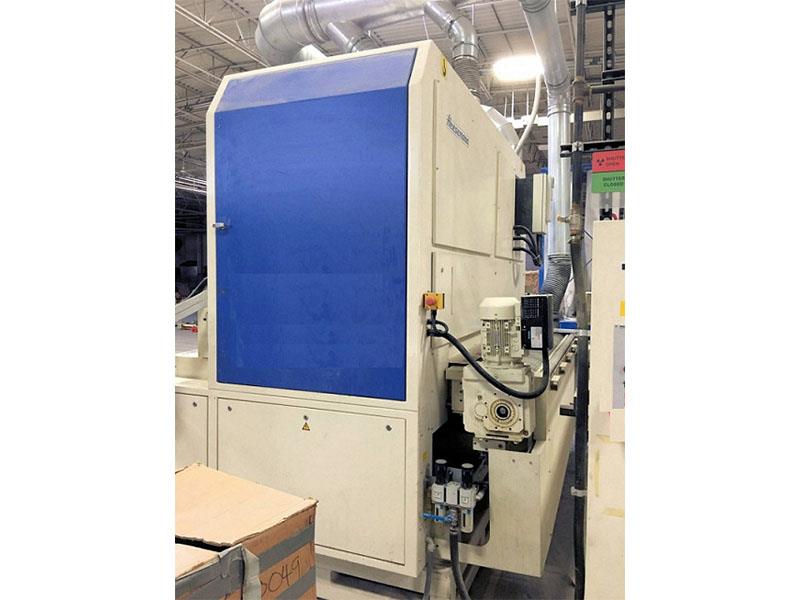

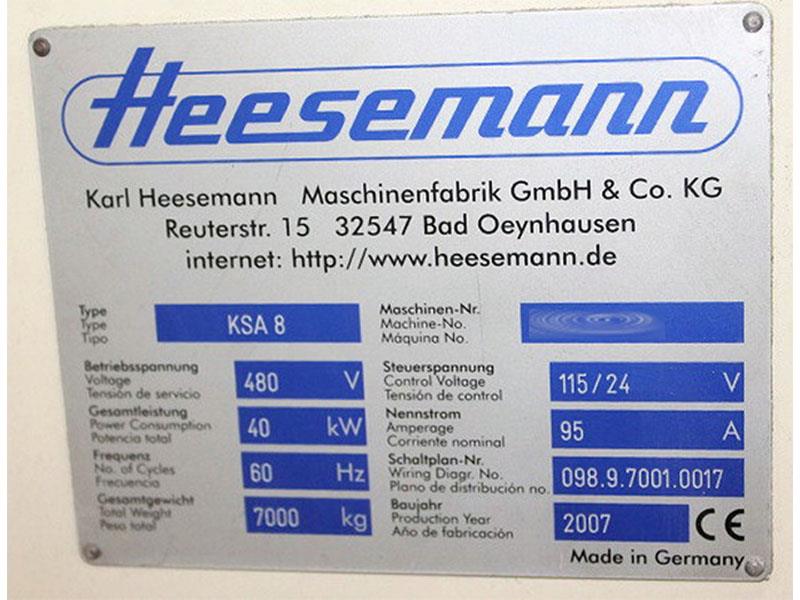

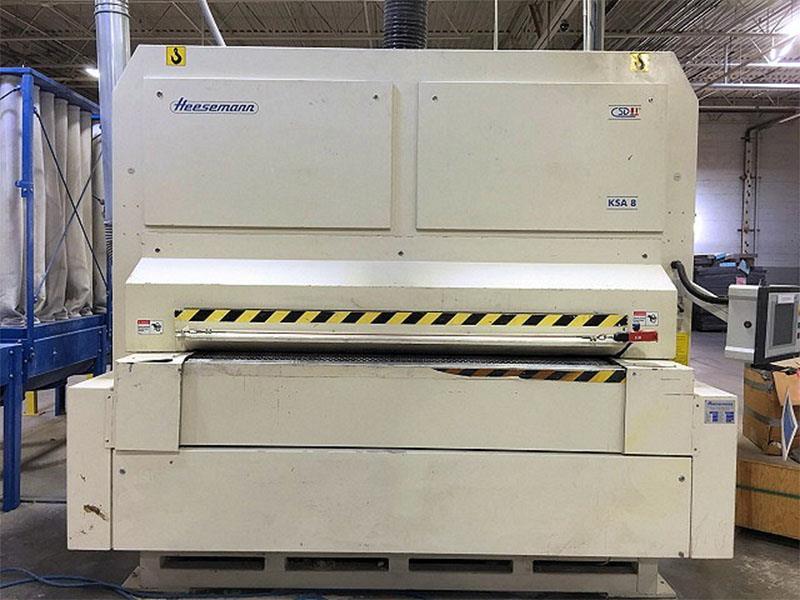

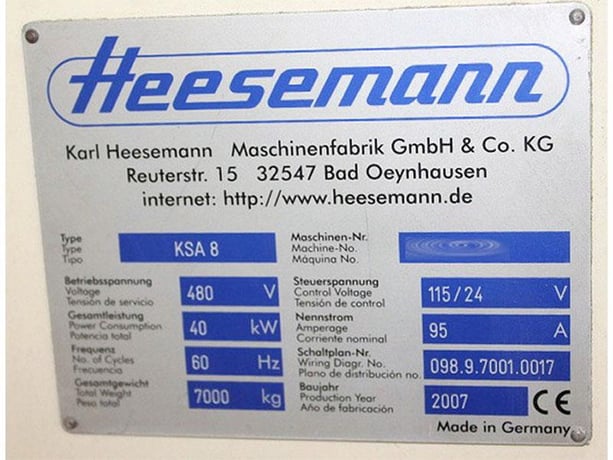

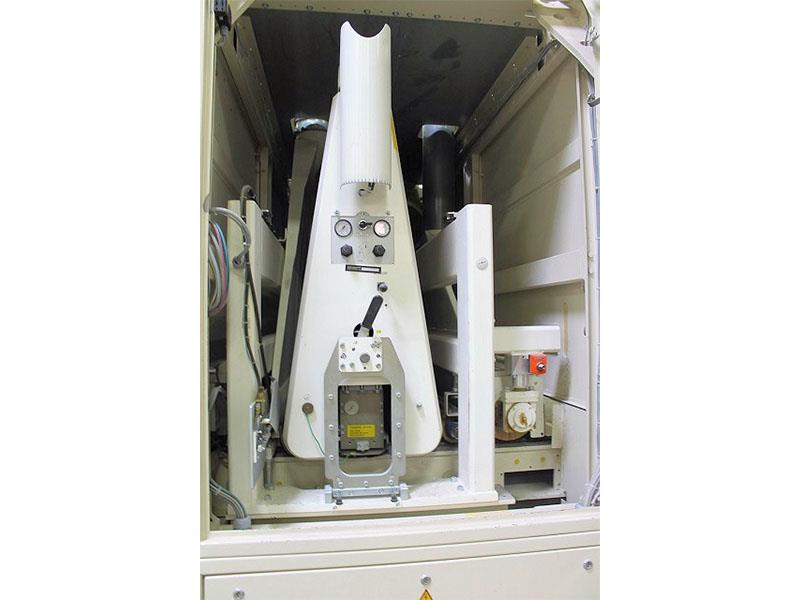

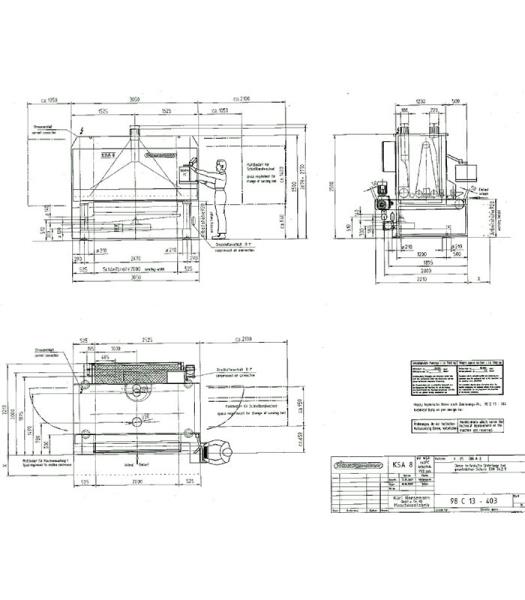

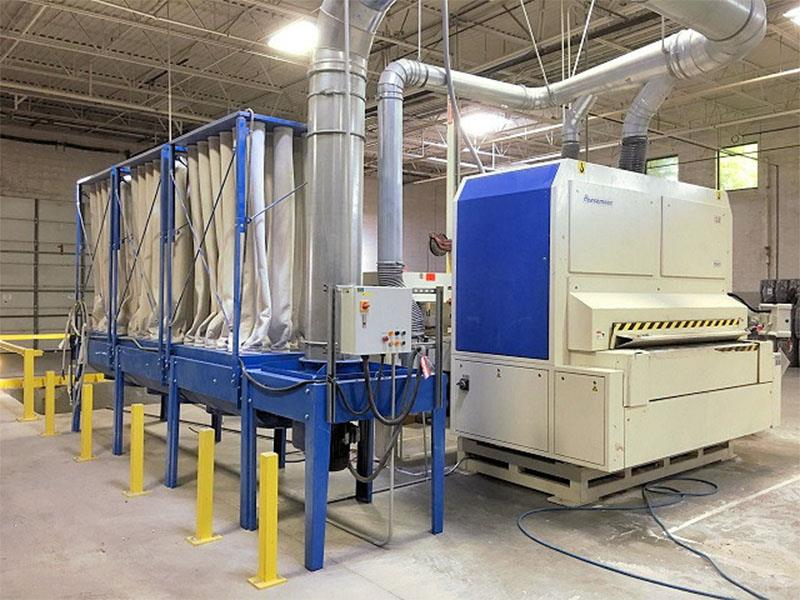

Heesemann #KSA-8, Lacquer/Sealer Sander, 80.7" x 128" abrasive belt, 35 & 42 HP dual speed motor, 9.8" diameter rotary panel cleaning brush, 480 Volt, 2007

Estimated monthly payment valid upon approved credit.

Request Formal Quote

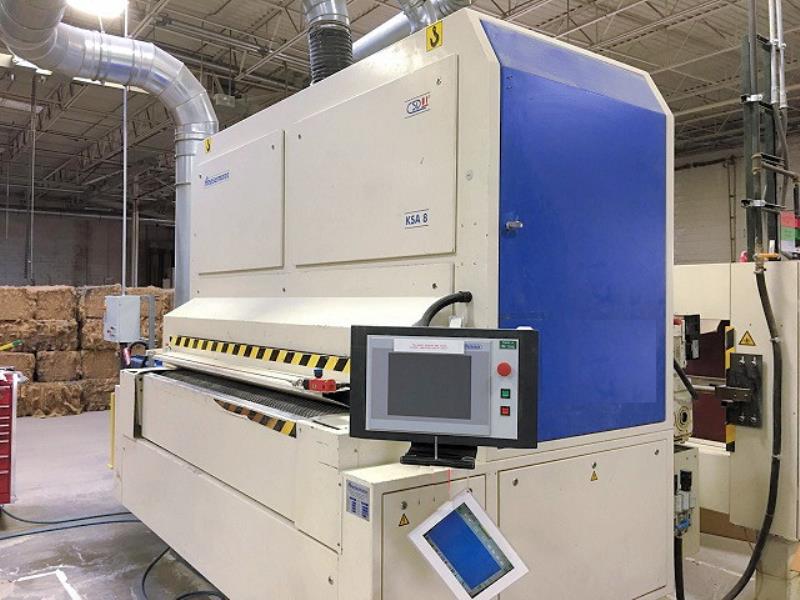

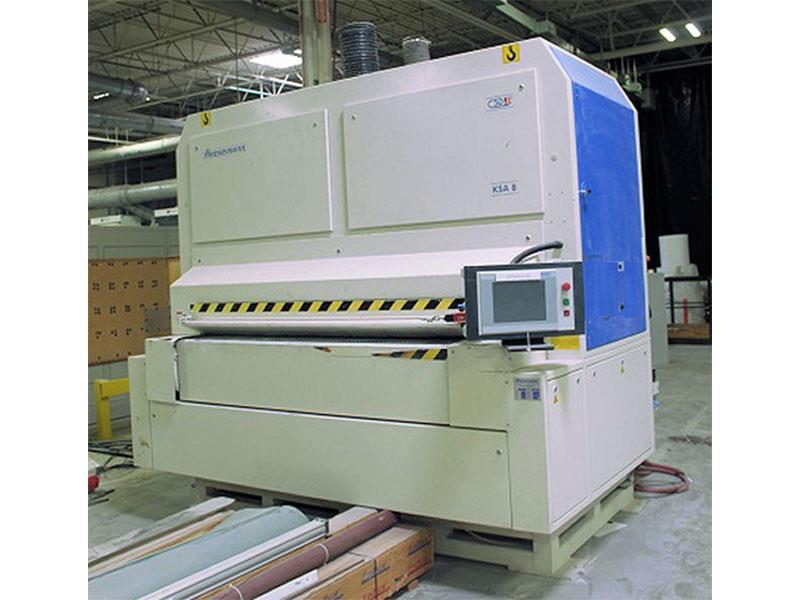

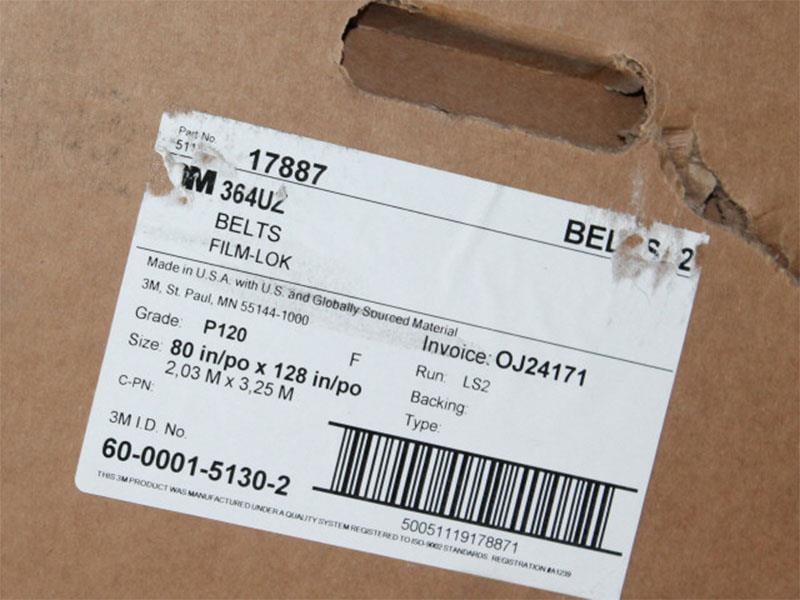

HEESEMANN - KSA 8 CSD, ...Lacquer/Sealer Sander w/80" Belt WidthThis is a Very Special "extra wide" HEESEMANN equipped with: HEESEMANN's patented "CSD" selective pressure adjustment system, sensors placed every 5/8" (16 mm) sense part configuration; pressure for each segment can be preprogrammed to provide less pressure on the outer edges, or more in the center if desired. The "CSD" computer control will hold a max. of (20) programs.Equipped with: -- Segmented Polishing Platen: Segments are computer controlled to conform to irregular shaped panels; sanding pressure on panel edges is adjustable. -- Platen will accept panel thickness variation up to 5/64" (2 mm). -- Dual speed motor: 26 & 31 kW (35 & 42 HP); abrasive belt speed: 10 + 20 MPS (33 + 66 FPM); abrasive belt size: 2,050 mm x 3,250 mm (80.7" x 128"); pneumatic air tension and tracking control. -- 250 mm Dia. Rotary Panel Cleaning Brush, 5 HP motor, 150 mm Outfeed Rotary Panel Cleaning Brush, and 2 HP motor.Additional Features: -- Vacuum bed assembly to ensure flatness of parts and feeding of small parts. -- Computer control and monitor, light indication of panel movement; electronic abrasive belt tracking.Feed System: -- Variable feed speed from 5 - 15 MPM (16 - 49 FPM); 4 kW (5 HP) feed motor; motorized thickness opening.NOTE: This Sander had a "Brand New" ...$ 17,000 display/control installed shortly before it was taken out of service in 2016. The machine has been in storage since that time.
