For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Sales
866-69...> Show Seller's Phone Number 866-692-8933 Let the seller know you found their listing on Surplus Record!
Description
SERIAL .......................... 326203/233
MODEL ........................... FU450X1800

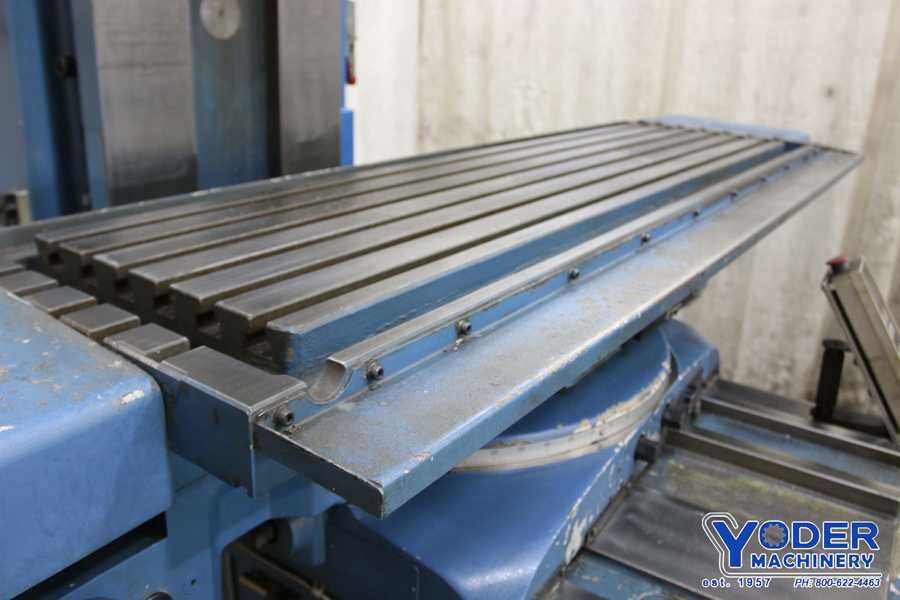

AREA OF TABLE ................... 72" X 21"
TABLE SWIVELS ................... 45 DEGREES EACH WAY
HORIZONTAL SPINDLE SPEEDS ....... (18) 45 TO 2240 RPM
FEED RANGE, LONG AND CROSS ...... (18) .63-31.5 IPM
FEED RANGE, VERTICAL ............ (18) .20-10 IPM
LONGITUDINAL TRAVEL ............. 52"
CROSS TRAVEL .................... 14"
VERTICAL TRAVEL ................. 24-3/4"
SPINDLE TAPER, HORIZ/VERT ....... 50 NS
VERTICAL SPINDLE TO TABLE ....... 31-1/2" MAX, 6-5/8" MIN
HORIZONTAL SPINDLE TO TABLE ..... 25-3/8" MAX, 5/8" MIN
VERTICAL SPINDLE TO COLUMN WAYS.. 48" MAX, 14" MIN
PLC ............................. SIEMENS
RAPID TRAVEL .................... YES

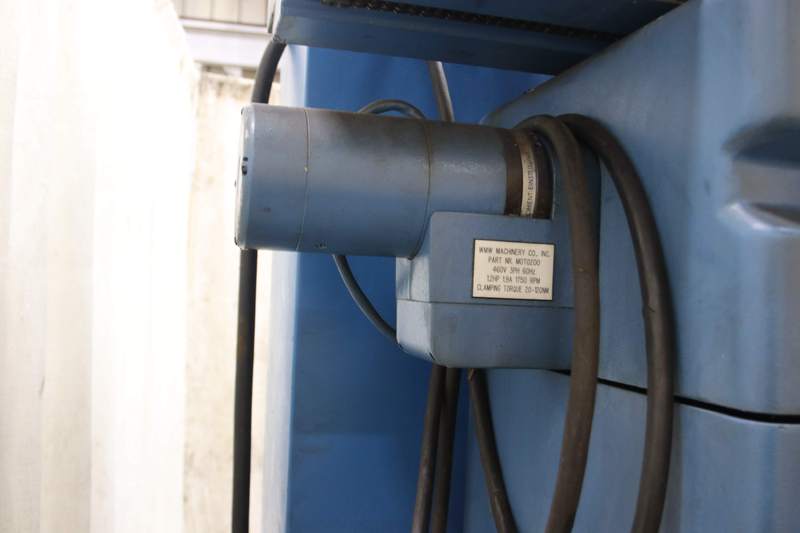

POWER DRAWBAR ................... YES

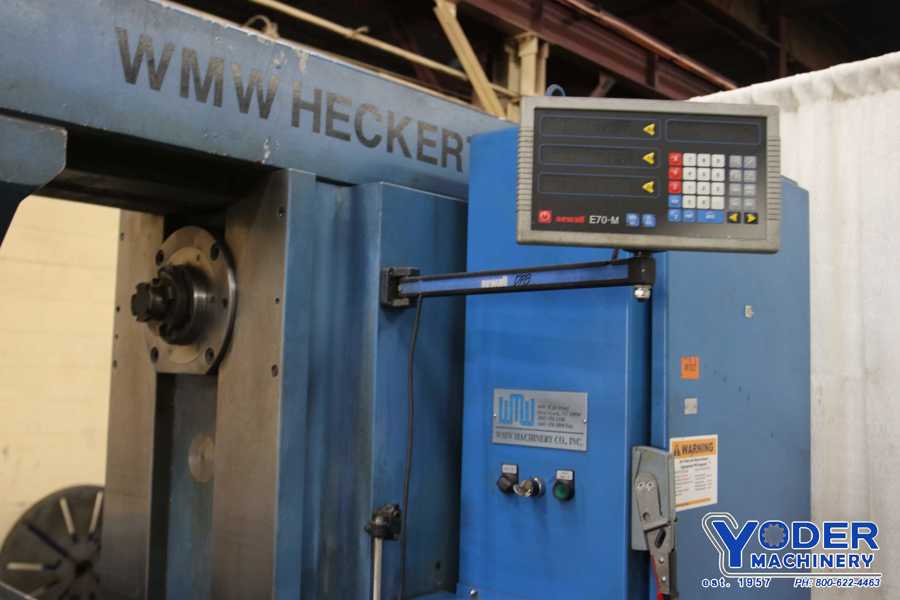

DIGITAL READOUTS ................ 3 AXIS
COOLANT ......................... YES
MOTOR HORSEPOWER, HORIZONTAL .... 20 HP
MODEL ........................... FU450X1800
AREA OF TABLE ................... 72" X 21"
TABLE SWIVELS ................... 45 DEGREES EACH WAY
HORIZONTAL SPINDLE SPEEDS ....... (18) 45 TO 2240 RPM
FEED RANGE, LONG AND CROSS ...... (18) .63-31.5 IPM
FEED RANGE, VERTICAL ............ (18) .20-10 IPM
LONGITUDINAL TRAVEL ............. 52"
CROSS TRAVEL .................... 14"
VERTICAL TRAVEL ................. 24-3/4"
SPINDLE TAPER, HORIZ/VERT ....... 50 NS
VERTICAL SPINDLE TO TABLE ....... 31-1/2" MAX, 6-5/8" MIN
HORIZONTAL SPINDLE TO TABLE ..... 25-3/8" MAX, 5/8" MIN
VERTICAL SPINDLE TO COLUMN WAYS.. 48" MAX, 14" MIN
PLC ............................. SIEMENS
RAPID TRAVEL .................... YES
POWER DRAWBAR ................... YES
DIGITAL READOUTS ................ 3 AXIS
COOLANT ......................... YES
MOTOR HORSEPOWER, HORIZONTAL .... 20 HP
Get Your Price from Yoder Machinery Sales!
