Manufacturer: Elanco
Description: spiral plate heat exchange
Pounds per Square Inch: 75
Stock # S744389
1 / 5
Click to zoom in
1 / 5
For Sale by Machinery & Equipment Co
Surplus Record Dealer Since 1969
Location: Brisbane, CA
Contact Dominic Piazza
Phone Number: 415...> Show Phone Number 415-649-9611
Let the seller know you found their listing on Surplus Record!
Description

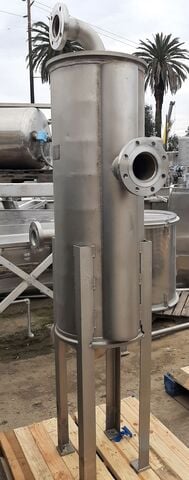

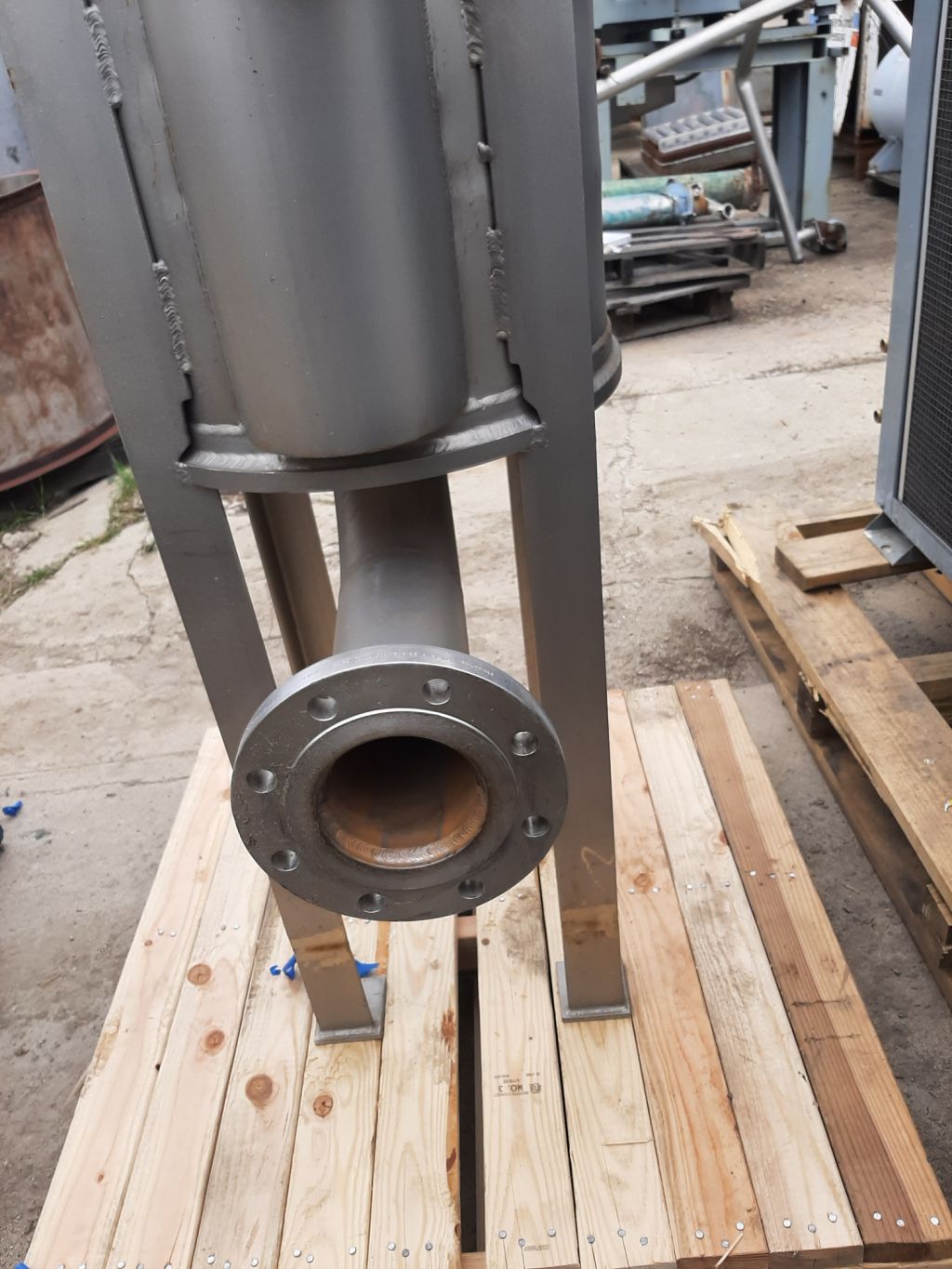

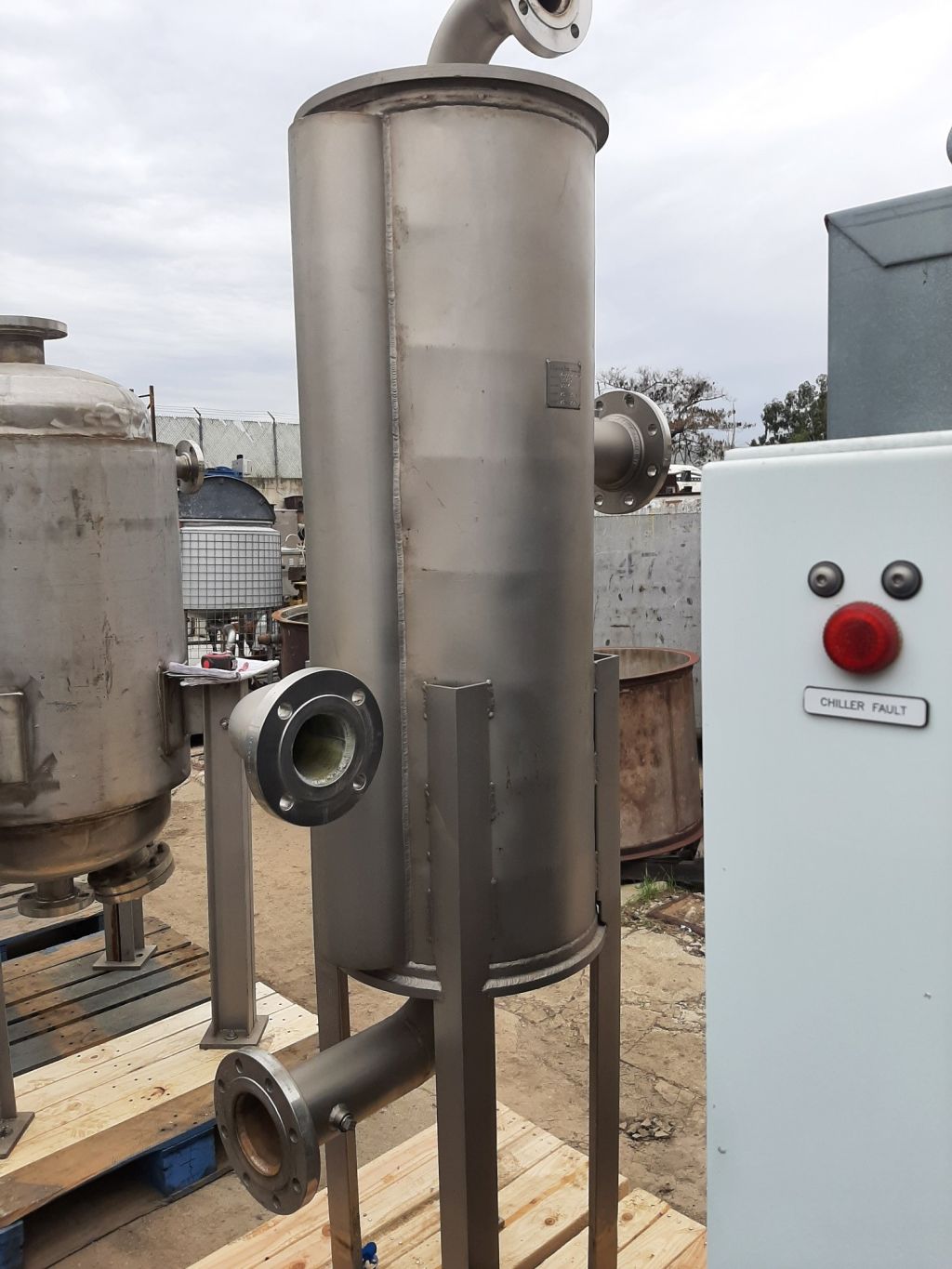

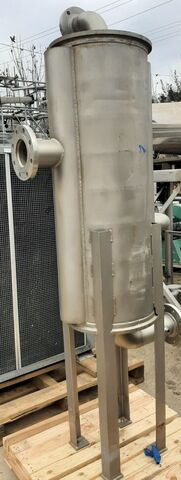

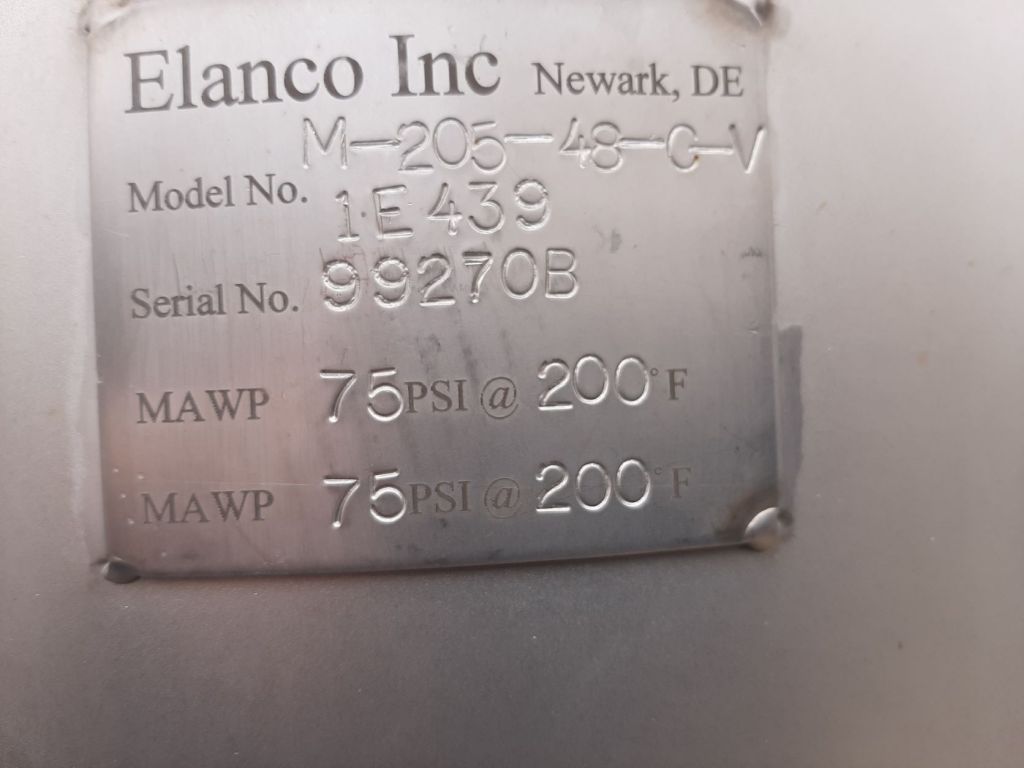

Elanco Spiral Plate Heat Exchanger, Type C, Model M-205-C-V, 304 stainless steel. Shell measures 16"diameter X 48" straight side, rated for 75 PSI at 200 degrees Fahrenheit. Includes 4" diameter cold pass inlet, 3" diameter outlet, 4" diameter hot pass inlet and 3" diameter outlet. Serial number 99270B.
Manufacturer Specification:
- Spiral flow both circuits all welded on both sides both fluids are in spiral flow, true counter flow
- Used when the flows are clean, when gasketing is problematic, or when cost must be kept to a minimum. Example (deionized water to tap water).
Basis: FOB
Tube Measurements: 16" Diameter X 48" High
Number of Tubes: 75 PSI @ 200 F
Tube Materials: 304 Stainless Steel
Manufacturer Specification:
- Spiral flow both circuits all welded on both sides both fluids are in spiral flow, true counter flow
- Used when the flows are clean, when gasketing is problematic, or when cost must be kept to a minimum. Example (deionized water to tap water).
Basis: FOB
Tube Measurements: 16" Diameter X 48" High
Number of Tubes: 75 PSI @ 200 F
Tube Materials: 304 Stainless Steel
Get Your Price from Machinery & Equipment Co!
