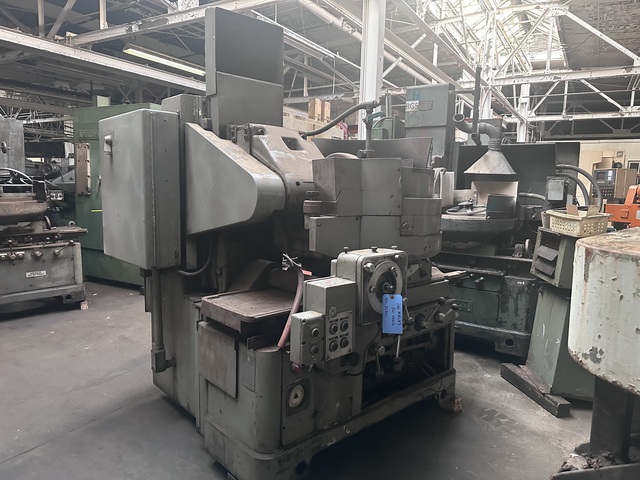

Heald #361, rotary surface grinder, 28" swing, 24" chuck, 14" diameter x 1.5" width wheel, 12" vertical Range, 20 FPM, 15 HP, 1760 RPM, 1957

Heald 361-24" Surface Grinder, 24" Fork Pattern Chuck, 14" OD GW, 15 HP GWS
361-24” HEALD ROTARY SURFACE GRINDER
S/N 36361 YEAR: 1958
STANDARD CATALOG SPECIFICATIONS
Magnetic chuck face diameter....................... 24"
Swing inside coolant .............................. 28"
Vertical range (full wheel) ....................... 12"
Convex............................................. 17 Degrees
Concave............................................ 10 Degrees
24" Chuck.......................................... 32 85 RPM
Table speeds Rapid traverse...................... 20 FPM
Rapid traverse..................................... 0 15 FPM
MOTOR & CONTROLS: 15 HP, 220/440/3/60 Cycle, 1760 RPM
OVERALL DIMENSIONS
Floor space with coolant tank...................... 115" x 79"
Approximate net weight............................. 12,900 lbs.
EQUIPPED WITH
24" Diameter fork pull mag chuck Convex Concave
14" Diameter wheel Compensation
1 1/2" Wide wheel face Hydraulic table
28” Swing Inside Guards Push button station
Attached Electrical
