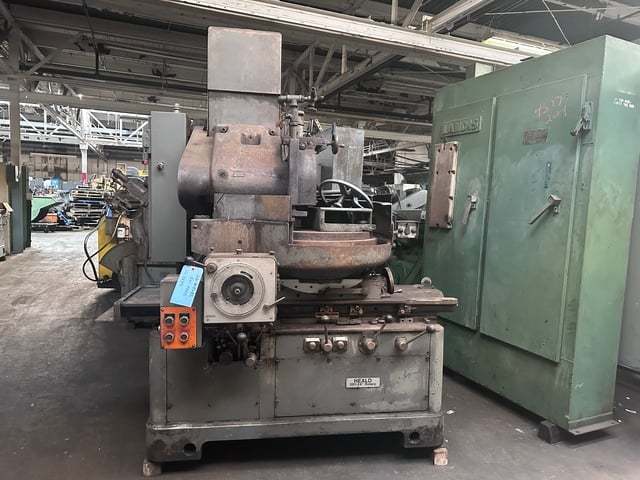

Heald #361, rotary surface grinder, 28" swing, 24" chuck, 14" diameter x 1.5" width wheel, 12" vertical Range, 20 FPM, 15 HP, 1760 RPM, 1957

Heald 361-24" Surface Grinder, 24" Fork Pattern Chuck, 14" GW, 15 HP Spindle
361-24” HEALD ROTARY SURFACE GRINDER
S/N 35391 YEAR: 1957
STANDARD CATALOG SPECIFICATIONS
Magnetic chuck face diameter....................... 24"
Swing inside coolant .............................. 28"
Vertical range (full wheel) ....................... 12"
Convex.............................................17 Degrees
Concave............................................10 Degrees
24Chuck.......................................... 32 ‑ 85 RPM
Table speeds ‑ Rapid traverse...................... 20 FPM
Rapid traverse..................................... 0 ‑ 15 FPM
MOTOR CONTROLS: 15 HP, 220/440/3/60 Cycle, 1760 RPM
OVERALL DIMENSIONS
Floor space with coolant tank...................... 115 x 79
Approximate net weight............................. 12,900 lbs.
EQUIPPED WITH
24Diameter fork pull mag chuck Convex ‑Concave
14Diameter wheel Compensation
11/2 Wide wheel face Hydraulic table
28”Swing Inside Guards Push button station
Attached Electrical
Specifications are deemed accurate, however, subject to verification or prior sale.
