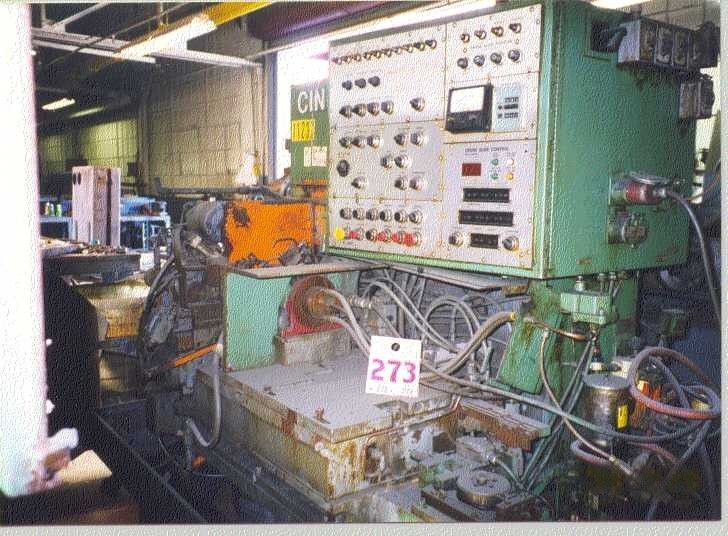

Heald #0CF-80, internal grinder, Roll Type, 1.56" O.D. x 1.63" L work capacity, 5" table travel, 7.5 HP, 3600 RPM, 1974

OCF-80 Heald Internal Grinder, Roll Type Workhead, Hydraulic Single Point Diamond Dresser, Hi-Frequency Spindle, Auto Load-Unload, Oscillator, As Is.
0CF-80 CINCINNATI HEALD ROLL TYPE INTERNAL GRINDER
S/N 46051 Year: 1975
STANDARD SPECIFICATIONS
CAPACITIES
Maximum outside diameter of work.............. 1 9/16" or 40mm
Minimum outside diameter of work.............. 5/32" or 4mm
Maximum length of work........................ 1 5/8" or 41mm
Minimum bore of work.......................... 3-32" or 2mm
Maximum swivel of work................... +/- 3 Degrees (optional)
Center of wheel spindle from floor............ 40 3/4" or 1035mm
Floor space (with coolant tank)............... 94" X 83 1/2"
2390 X 2120 mm
Gross weight crated (approx.)................. 8500 lbs.
3825 kgs.
SPEEDS & FEEDS
Table travel (total including runout)......... 5" or 127mm
Table oscillation stroke...................... 0-1" or 0-25mm
Cross slide travel (total).................... 1" or 25mm
Controlled force feed stroke (on dia.)........ .500" or 13mm
Rate feed stroke (on dia.).................... .010" or 0.25mm
Work surface speed............................ 200 - 500 SFPM
High force (adjustable).................. 0 - 150 lbs. or .00125mm
Wheel wear compensation (on dia.)....... .000050" min. or .00125mm
.005" max. or 0.012mm
DRIVE AND POWER REQUIREMENTS
Hydraulic pump motor.......................... 3 HP @ 1800 RPM
Coolant pump motors (2) (optional)............ 3/4 HP + 1/2 HP
Work head motor............................... Hydraulic
Wheel head motor (CRP4B).................. 7-1/2 HP @ 3600 RPM
EQUIPMENT & FEATURES
Roll type work head
Hydraulic single point auto diamond dresser
Hi frequency spindle
Auto load - Unload capabilities
Exterior oscillator
All electrics & controls
Specifications are deemed accurate, however, subject to verification or prior sale.
