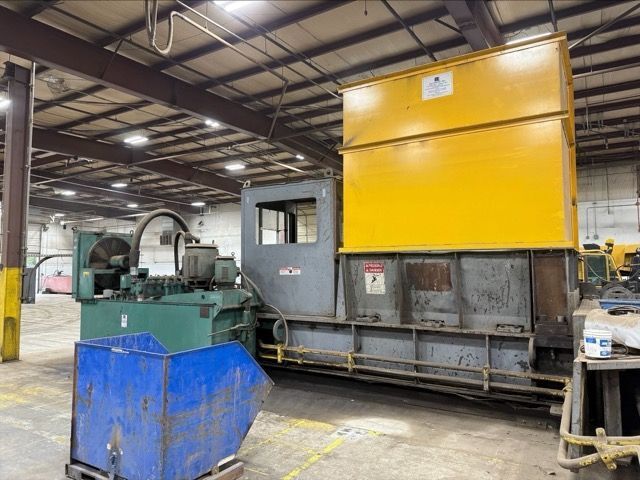

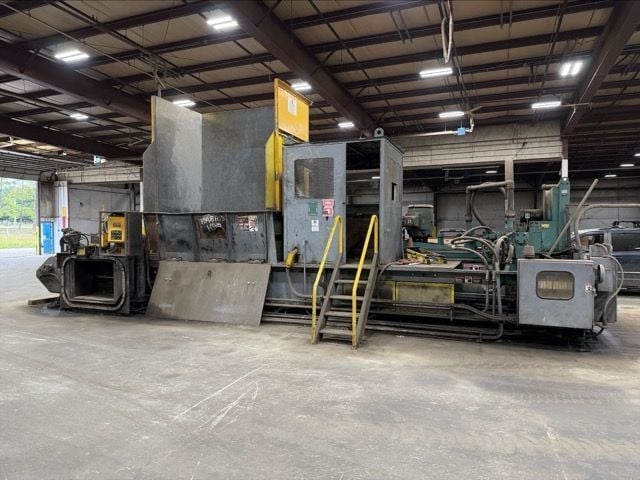

Harris #HRB-918W-BR, 2-ram baler, 45" x 31" x 64" bale size, 74" x 108" top hopper, 100 HP

• Bale Dimensions & Weight:
• Bale Size: 45 in W × 31 in H × ~64 in L (Adjustable)
• Typical Bale Weight:
• ~1,400 lbs (Corrugated / OCC)
• ~1,500 lbs (Newsprint / High-Grade Paper)
• ~1,200 lbs (PET / Plastics)
• ~2,500 lbs (Municipal Solid Waste)
• Cycle Time & Throughput:
• Cycle Time: ~100–150 seconds (Material Dependent)
• Throughput:
• ~19 tons/hour (Bulk OCC)
• ~45 tons/hour (Municipal Solid Waste / Dense Waste)

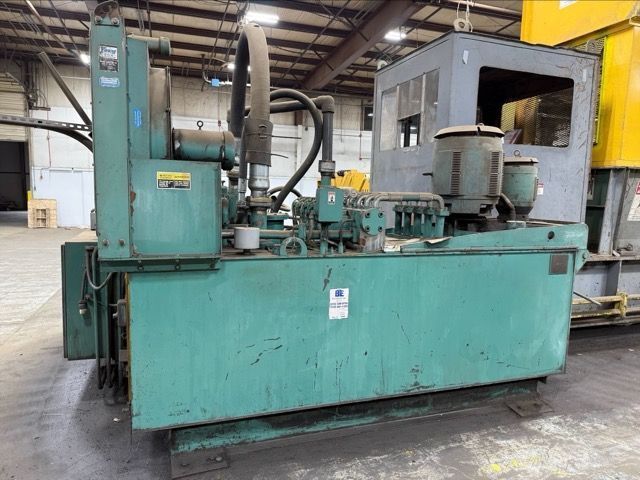

• Ram Force & Hydraulics:
• Main Compression Ram:
• 12 in Bore
• ~160–198 Tons Compression Force
• Eject (Side) Ram:
• 8 in Bore
• ~80–88 Tons Force
• Hydraulic Reservoir Capacity: ~600–700 gal
• Hydraulic Cooling: Air-to-Oil Cooler (~3 HP)
• Hydraulic Filtration: Fine Filtration System
• Hydraulic Drive: Multi-Pump System

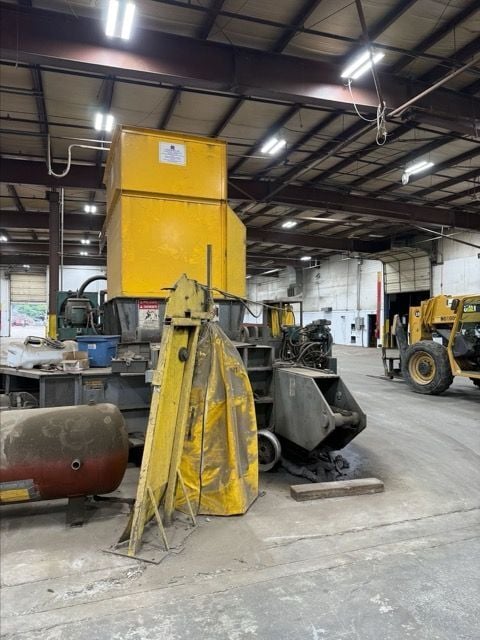

• Hopper & Feed Opening:
• Top Hopper Opening: ~74 in × 108 in
• Charge (Feed) Box: ~57 in × 96 in
• Compression Chamber: ~40 in × 29 in × 60 in
• Power & Drive:
• Main Motor:
• 100 HP
• 460 V
• 3-Phase
• Hydraulic Drive: Multi-Pump System
• Motor Starting: Soft Start
• Control & Features:

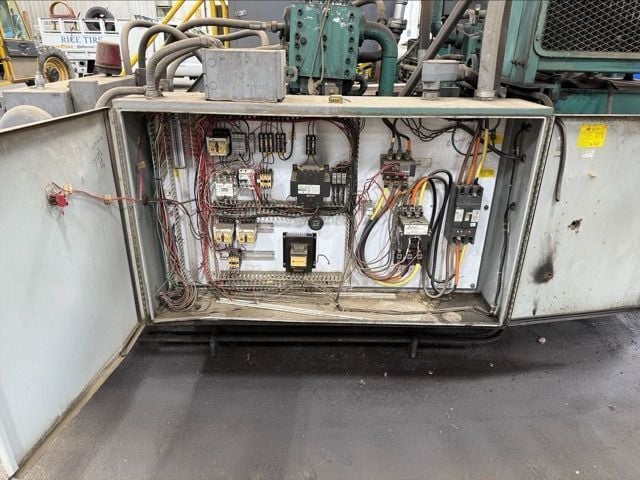

• PLC-Based Control System
• Operator Console with Diagnostics

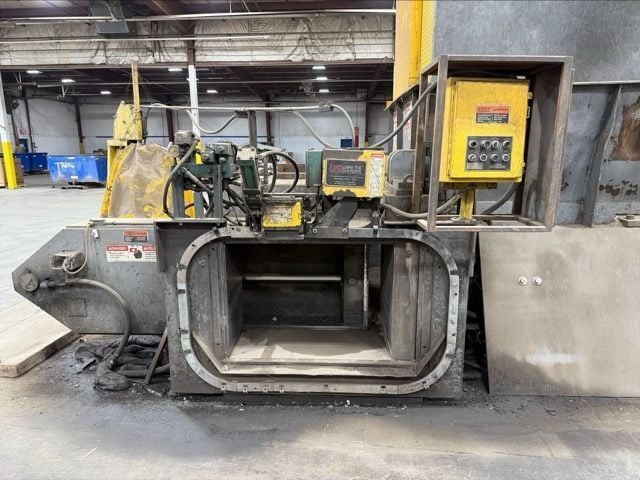

• Automatic Wire Tie System (U.S. Wire Tie Model 341 or Equivalent)
• Bale Separation Door (BR)
• Oversize Release Door (BD)
• Material Compatibility:
• Corrugated Cardboard (OCC)
• Newsprint
• Mixed Paper
• PET
• HDPE
• Aluminum Cans
• Municipal Solid Waste (MSW)
• Nonferrous Metals
• Physical Dimensions & Weight:
• Machine Footprint: ~34 ft L × ~21 ft W × ~10 ft H
• Shipping Weight:
• ~29 tons (Base Machine)
• Up to ~46 tons (With BR/BD Options)
• Optional Features:
• Higher Horsepower Drive Packages
• Hopper Extensions
• Diverter Chutes
• HVAC Operator Cab
• Navigator Plus Advanced Control System
