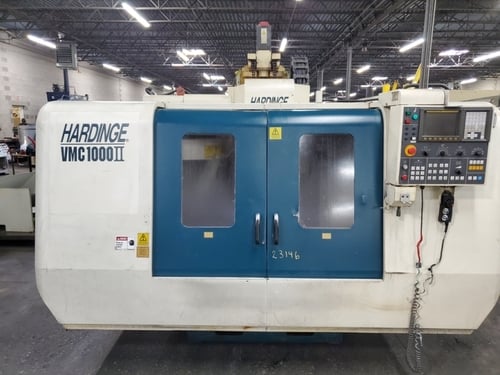

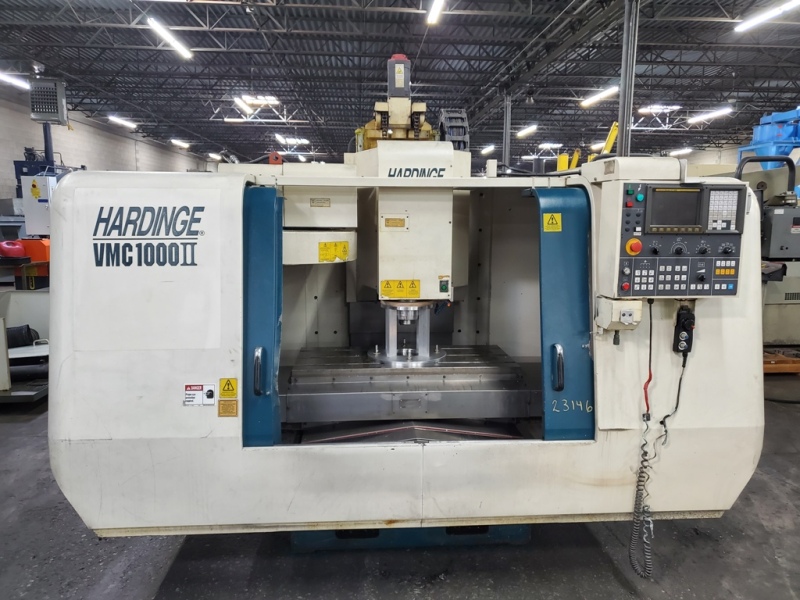

Hardinge #VMC-1000II, CNC vertical machining center,Fanuc 0iMB, 40" X, 20" Y, 20" Z, 8000 RPM, 20 automatic tool changer,Cat 40,thru spindle coolant, 2003

HARDINGE CNC VERTICAL MACHIING CENTER
PRICE: Loaded on Truck, Our Warehouse, York, PA … $12,500.00
HMC Stock # 23146
Machine Serial No.: NVC-703
Machine Model No.: VMC 1000II
New Date: 12-24-2003
Made in Taiwan
Spindle Nose to Table: 6.1" to 26.1"

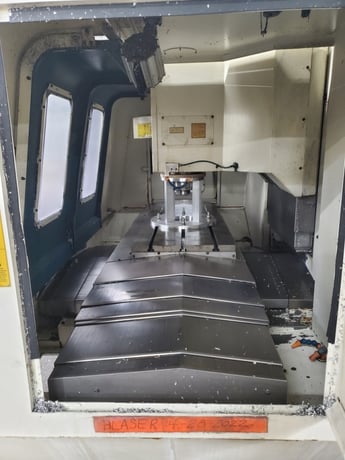

Table Size: 44.4" Long x 20.0" Wide
Maximum Weight on Table: 1,540 Lbs.
Spindle Taper Size: 40 CAT
Speed Range: 60 to 8,000 RPM
X-Axis Travel: 40.16"
Y-Axis Travel: 20.08"
Z-Axis Travel: 20.08"
4TH Axis Wired for ONLY None Included
Rapid X,Y & Z: 1,181 IPM
Cutting Feed Rate: 472 IPM
20 Tool Capacity Automatic Tool Changer
Maximum Tool Weight: 13.2 Lbs.
Maximum Tool Length: 9.84"
Maximum Tool Diameter: 5.90"
Air Required: 80 PSI, 4 SCFM
EQUIPPED WITH:

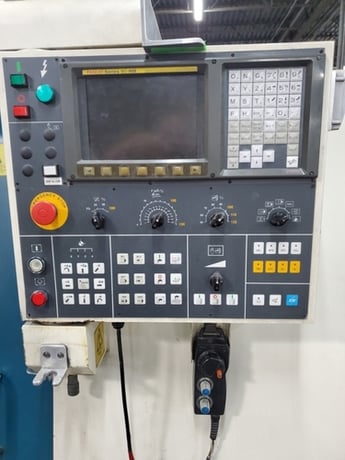

Fanuc Oi-MB CNC Control
M & G Code Functions
Manual Pulse Generator
Rigid Tapping
Operations, Parameters, Schematics, Maintenance Manuals
Thru Spindle Coolant
Spindel Air Blast and Chip Air Blower
Powerful High Torque Spindle Motor
Fast Rapid Traverse Rate
Flood Coolant with Large Separate Coolant Tank
Metal Slat Chip Conveyor
Spindle Power: 17.3 HP, FLA 66
Wired for 3 Phase, 60 Hz, 220 Volts ONLY
Overall Size:
Machine 116" LR x 84" FB x 99-1/4" High (to head to down floor, no blocks) x 11,000 Lbs.

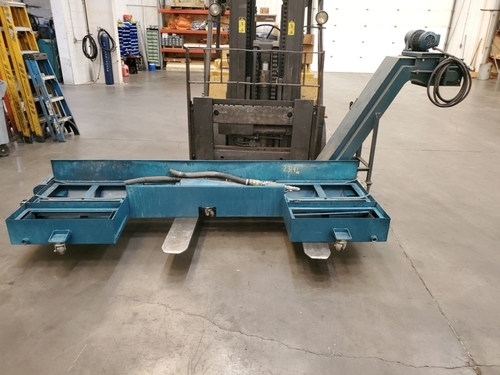

Chip Conveyor and Coolant Pan Together: 158" Long x 49" Wide x 64" High x Est. 750 Lbs.
