For Sale by Toolquip Inc
Surplus Record Dealer Since 2025
Location: Lebanon, OH
Contact Daniela Weaver
Phone Number: 513...> Show Phone Number 513-450-6223
Let the seller know you found their listing on Surplus Record!
Description

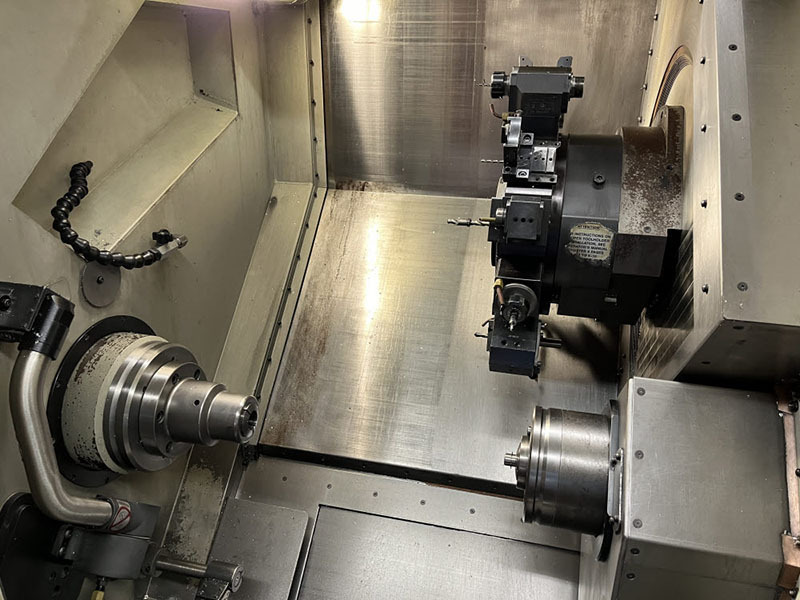

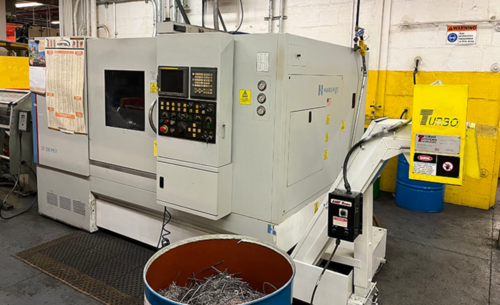

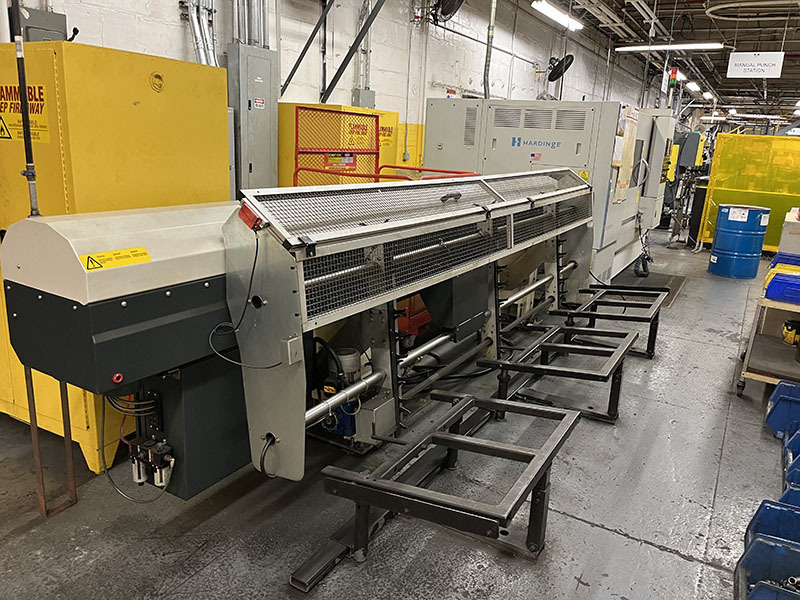

Used CNC Lathe, equipped with FANUC "i" Series Control, features 20.44" swing, 12.28" max turning diameter, and 17.2" turning length. Includes tool setter, hydraulic collet chuck, and LNS barfeed, 30 HP.
SWING DIAMETER OVER WAY COVER ....... 20.44"
TURNING DIAMETER MAX ................ 12.28"
MAX. TURNING LENGTH ................. 17.2"
X-AXIS TRAVEL ....................... 7.45"
Z-AXIS TRAVEL ....................... 21.54"
Y-AXIS TRAVEL ....................... 3.377"

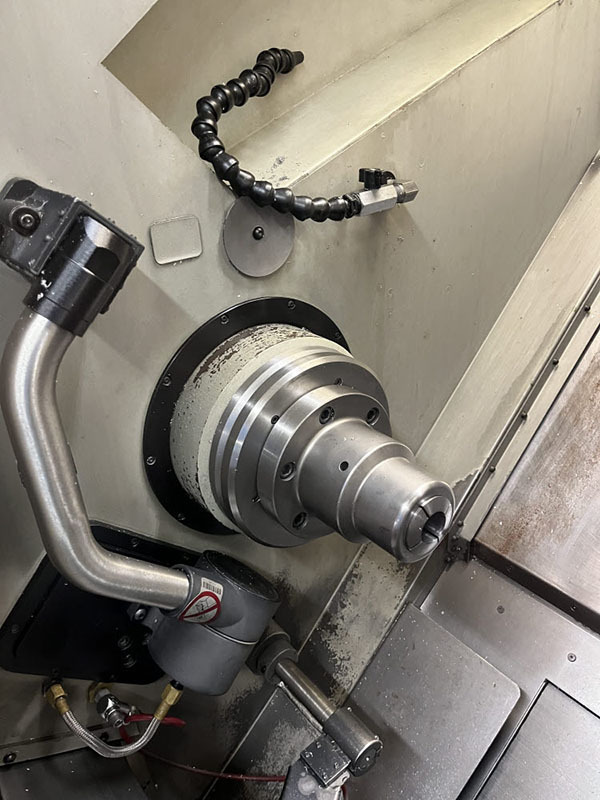

SPINDLE NOSE ........................ A2-6
SPINDLE THROUGH-HOLE ................ 3.15"
BAR CAPACITY ........................ 2.5"
SPINDLE SPEED RANGE ................. 45-4500 RPM
POWER RATING AT BASE SPEED .......... 30 HP
RAPID TRAVERSE X/Z .................. 1100/1500 IPM

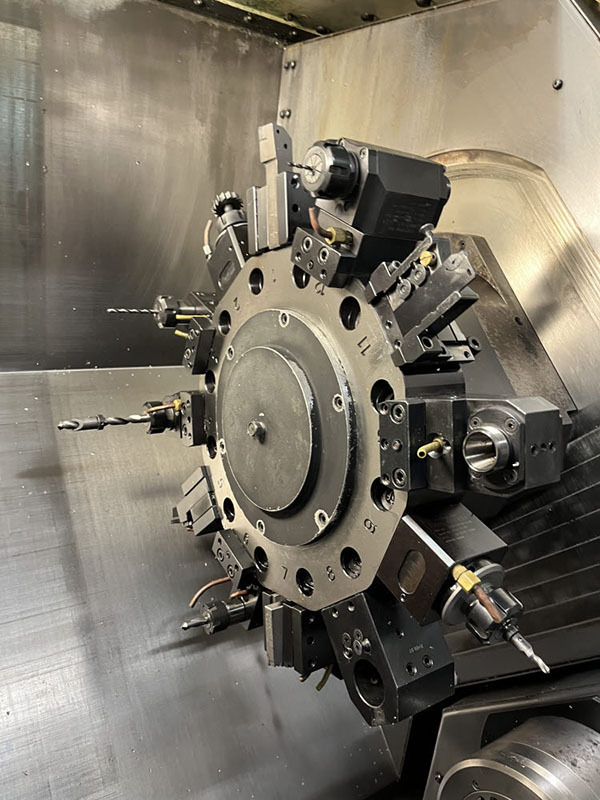

TURRET TYPE ......................... 12 STATION VDI 30
ROTARY TOOL MOTOR ................... 5HP
ROTARY TOOL SPEED ................... 8000 RPM

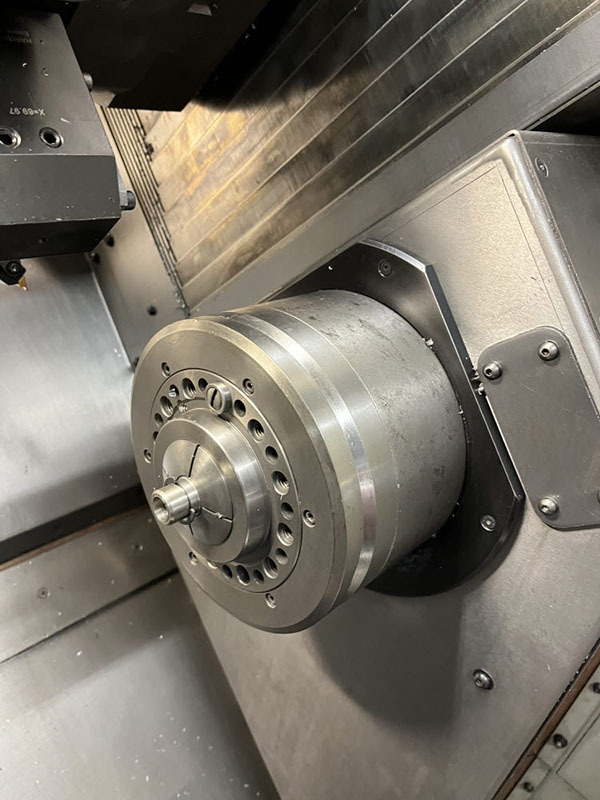

SUBSPINDLE NOSE ..................... A2-5, 16C
ROUND 16C THROUGH CAPACITY .......... 1.625"
SPINDLE SPEED RANGE ................. 60 TO 6000 RPM
POWER RATING AT BASE SPEED .......... 10 HP
SUBSPINDLE TRAVEL ................... 17.90"
APPROX. MACHINE LENGTH W/CONVEYOR ... 165"
APPROX. WEIGHT ...................... 15,500 LBS.
SWING DIAMETER OVER WAY COVER ....... 20.44"
TURNING DIAMETER MAX ................ 12.28"
MAX. TURNING LENGTH ................. 17.2"
X-AXIS TRAVEL ....................... 7.45"
Z-AXIS TRAVEL ....................... 21.54"
Y-AXIS TRAVEL ....................... 3.377"
SPINDLE NOSE ........................ A2-6
SPINDLE THROUGH-HOLE ................ 3.15"
BAR CAPACITY ........................ 2.5"
SPINDLE SPEED RANGE ................. 45-4500 RPM
POWER RATING AT BASE SPEED .......... 30 HP
RAPID TRAVERSE X/Z .................. 1100/1500 IPM
TURRET TYPE ......................... 12 STATION VDI 30
ROTARY TOOL MOTOR ................... 5HP
ROTARY TOOL SPEED ................... 8000 RPM
SUBSPINDLE NOSE ..................... A2-5, 16C
ROUND 16C THROUGH CAPACITY .......... 1.625"
SPINDLE SPEED RANGE ................. 60 TO 6000 RPM
POWER RATING AT BASE SPEED .......... 10 HP
SUBSPINDLE TRAVEL ................... 17.90"
APPROX. MACHINE LENGTH W/CONVEYOR ... 165"
APPROX. WEIGHT ...................... 15,500 LBS.
Get Your Price from Toolquip Inc!
