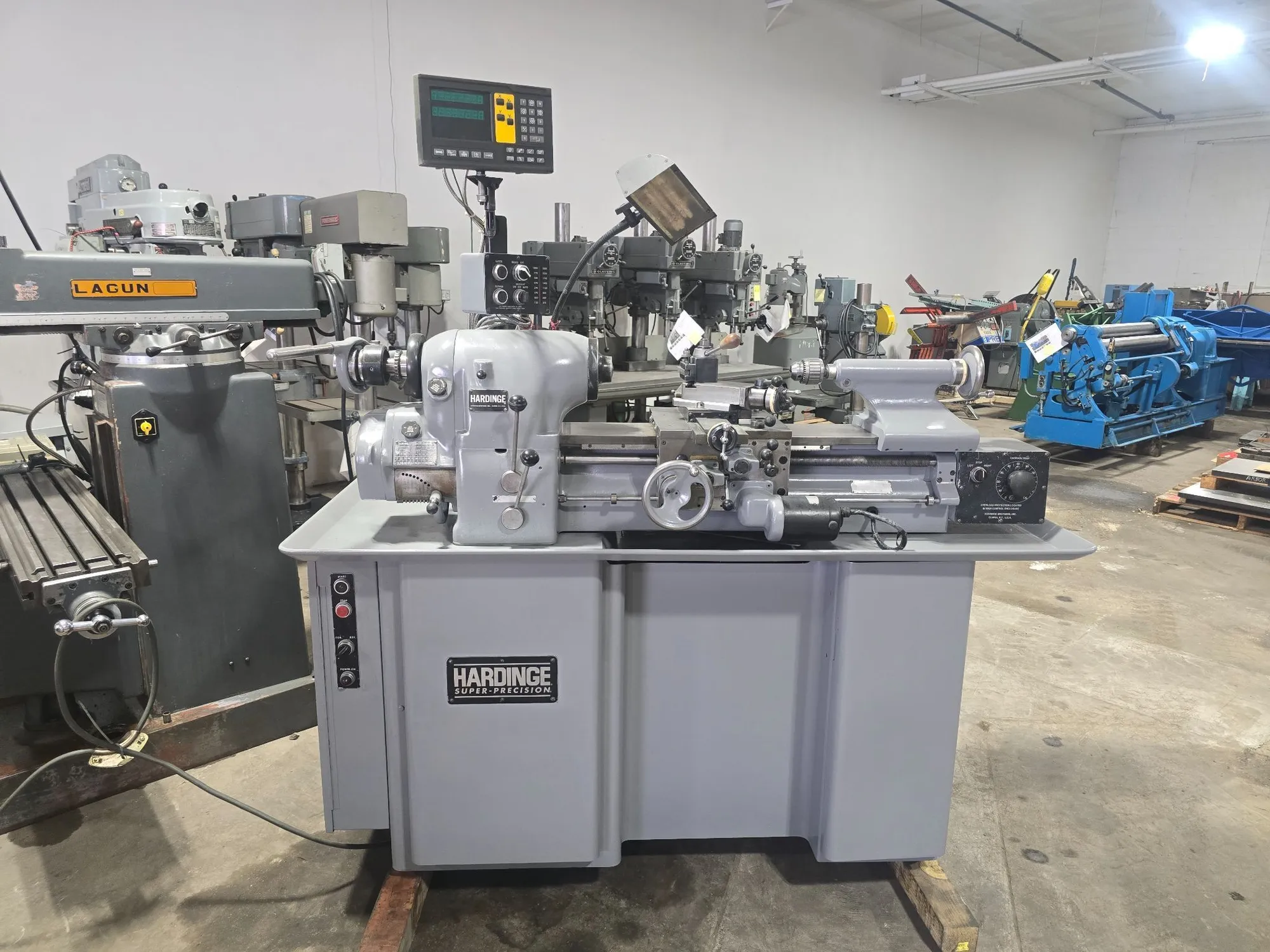

Hardinge #HLV-H, Wide Bed Tool Room Lathe, 11" Swing, 2-Axis digital read out, 4" 3-Jaw Chuck, Quick Change Toolpost

Estimated monthly payment valid upon approved credit.

Request Formal Quote

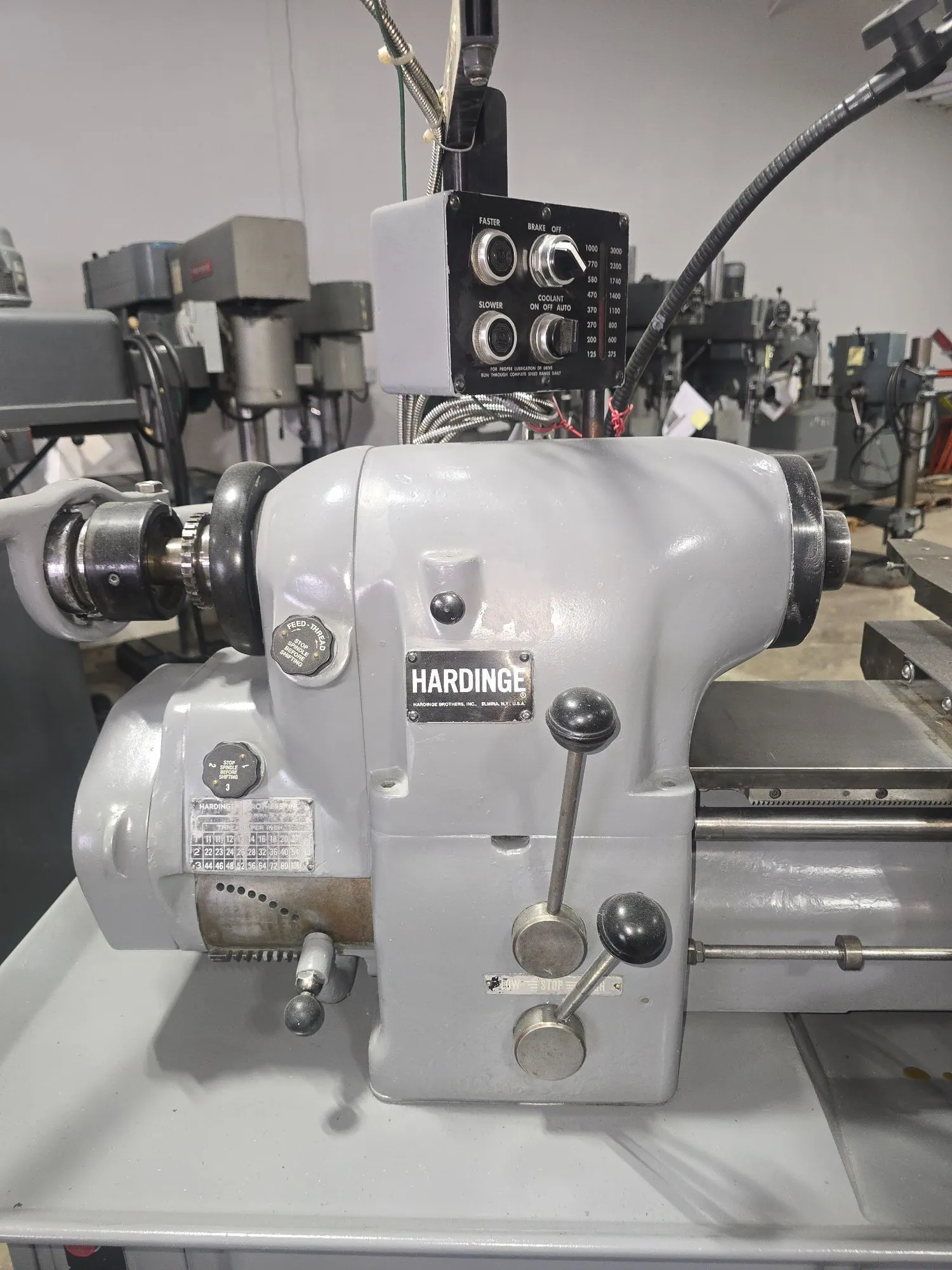

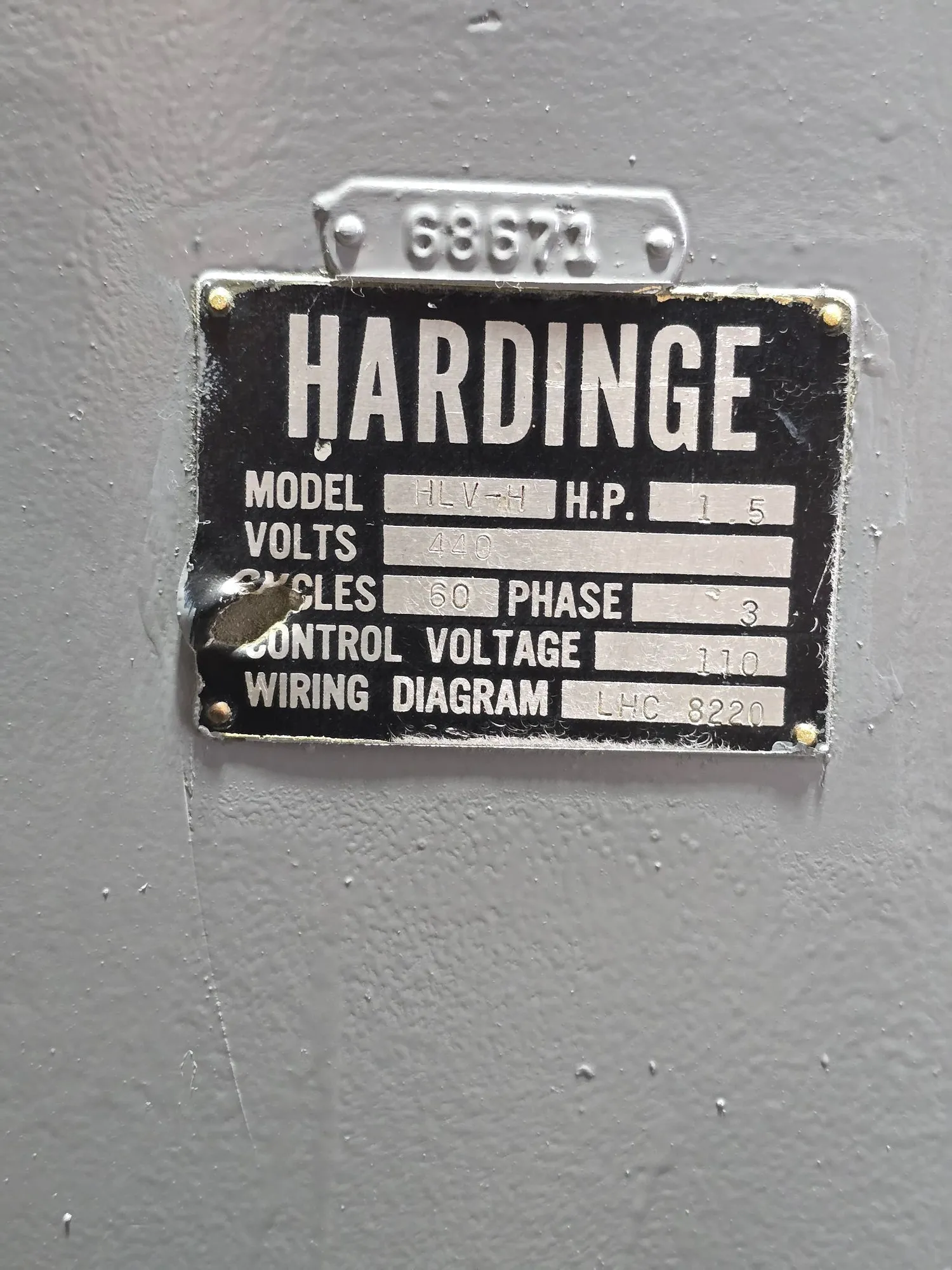

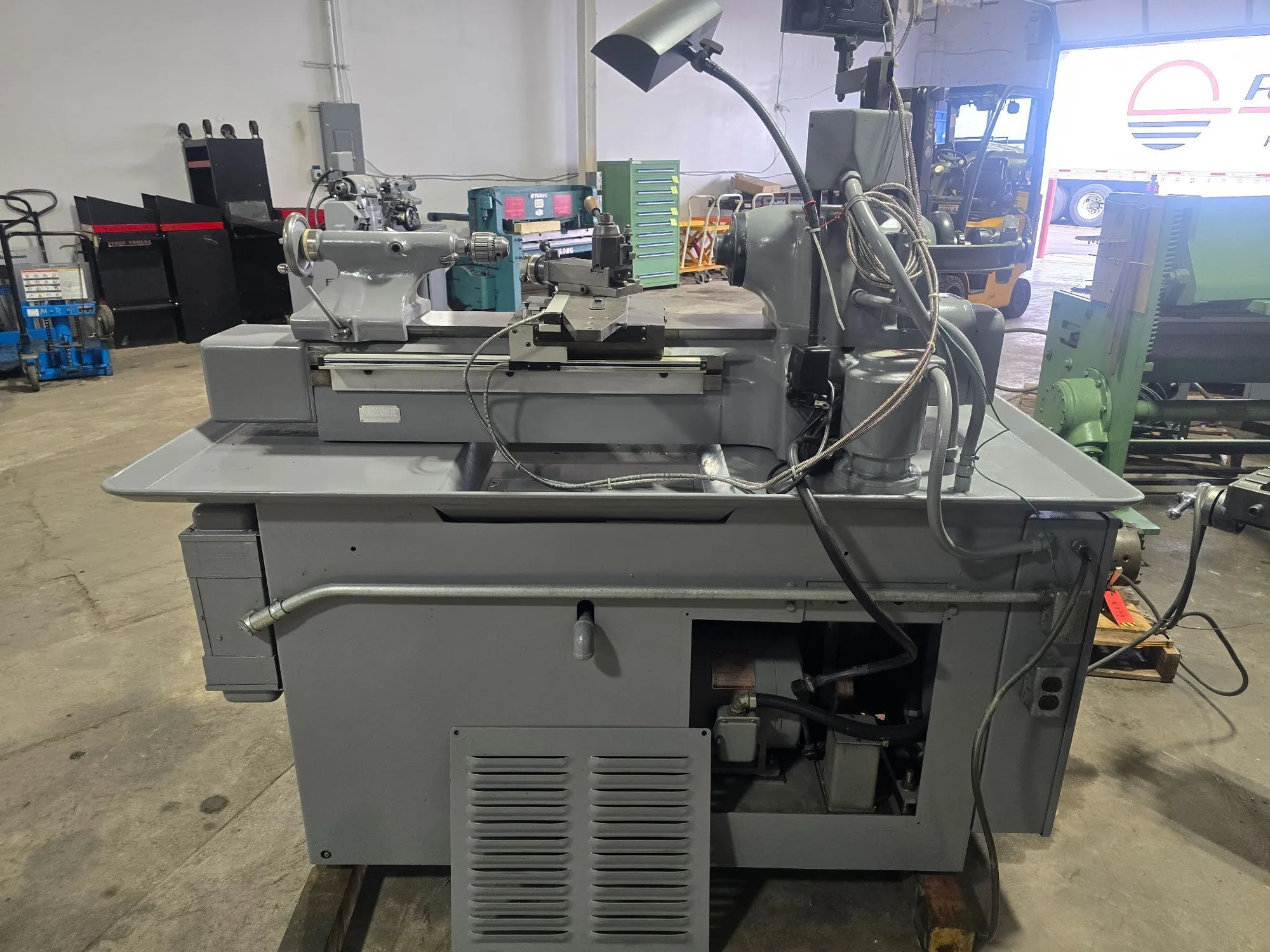

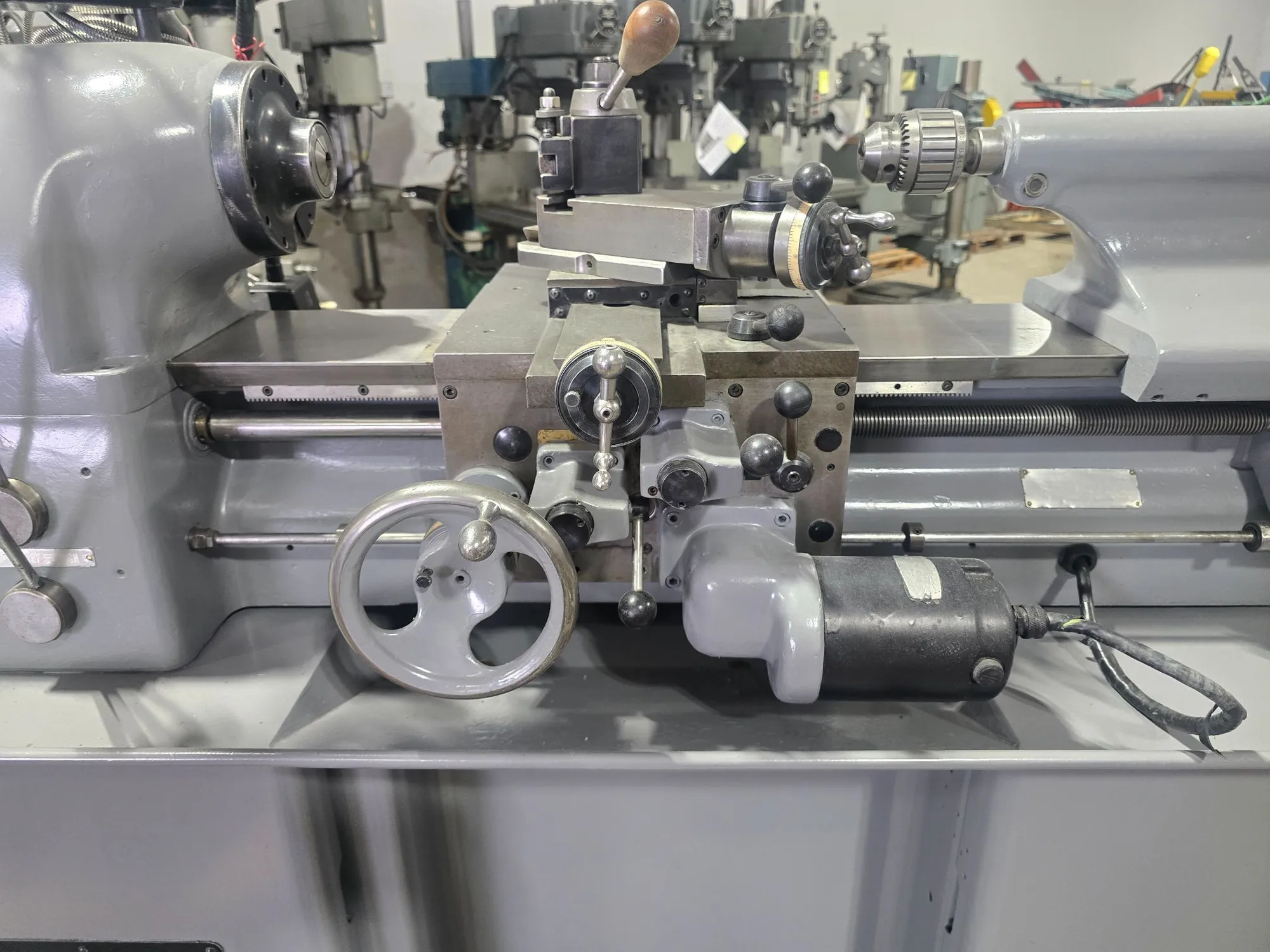

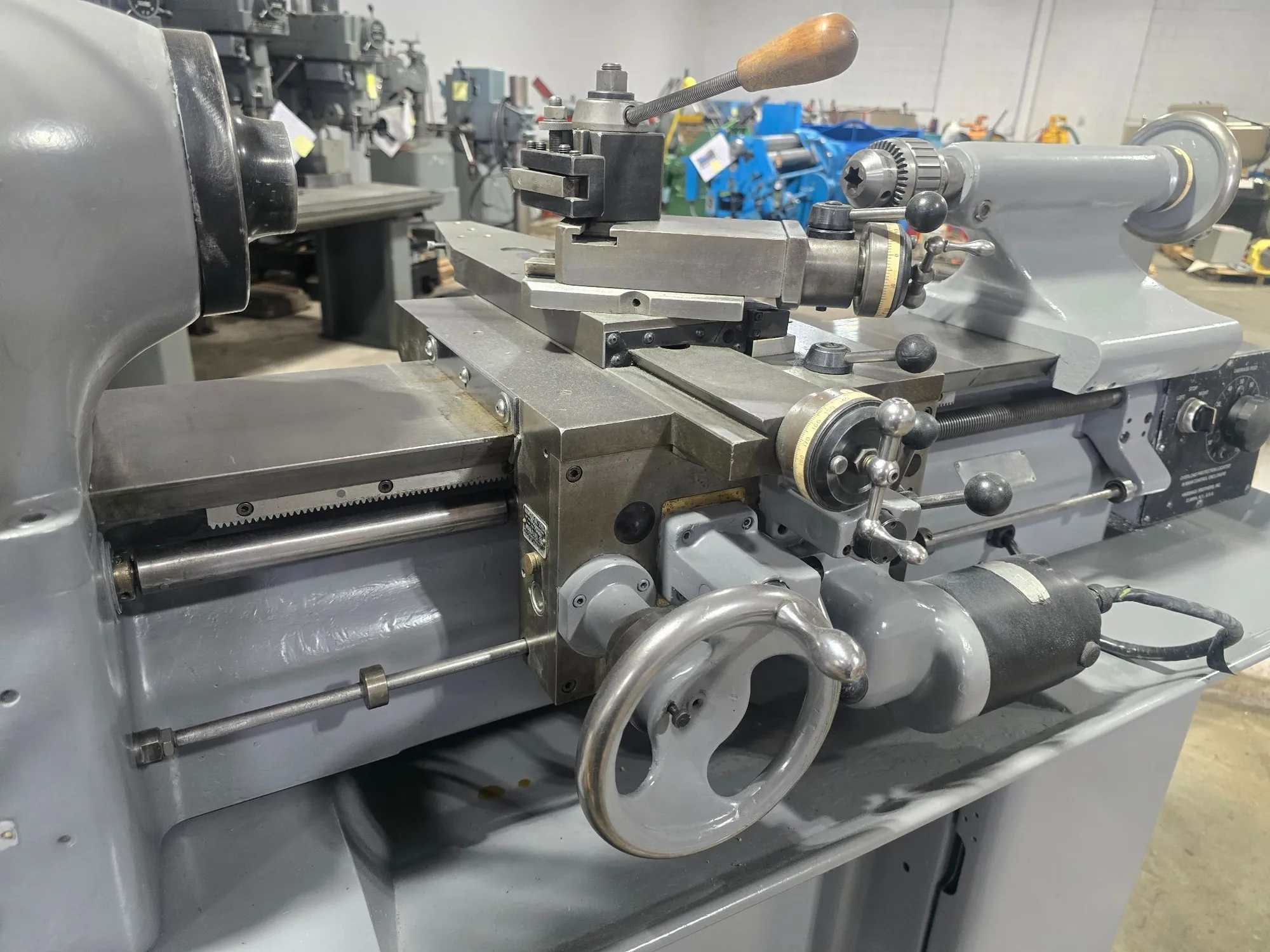

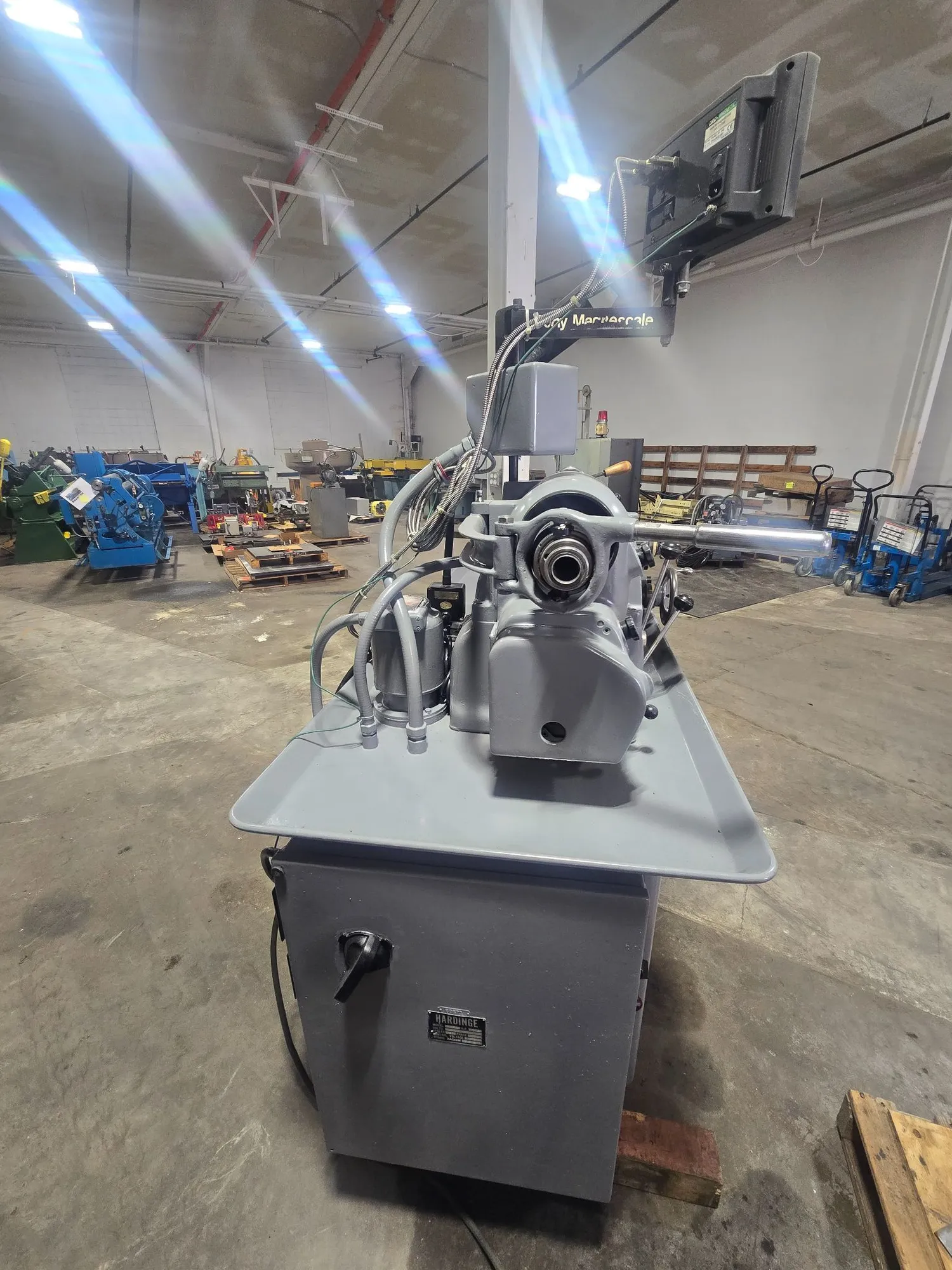

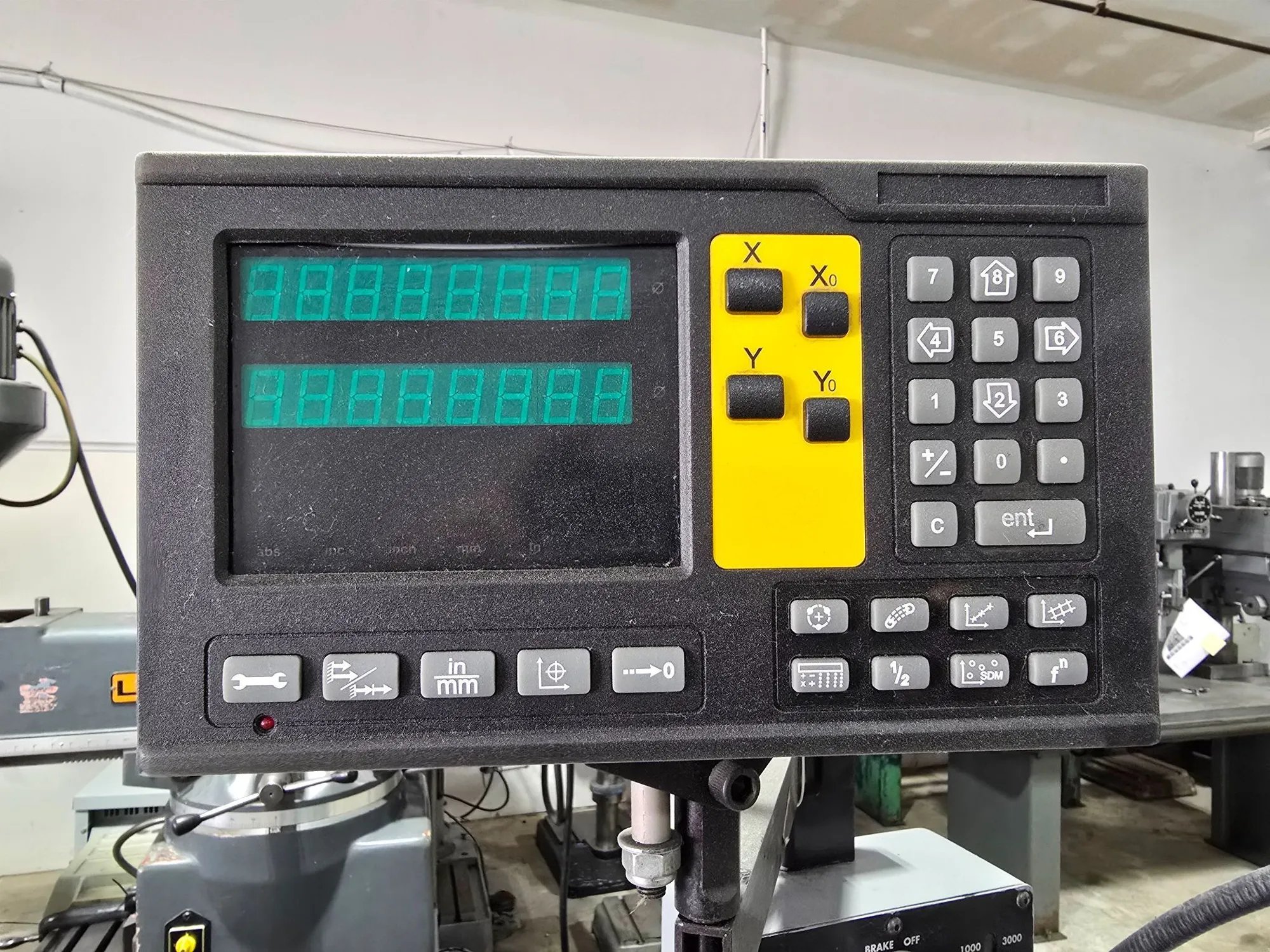

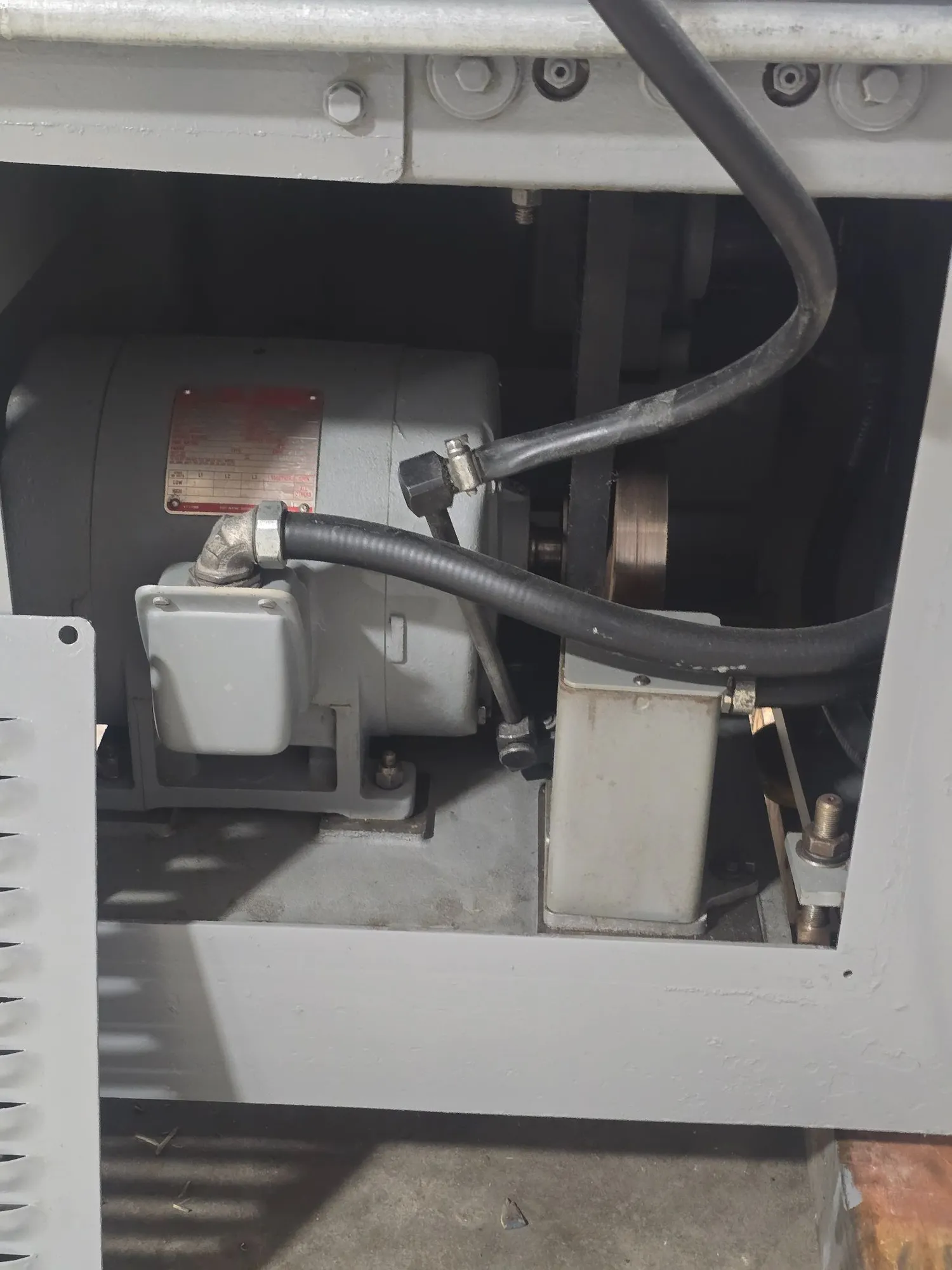

THIS IS A HARDINGE HLV-H WIDE BED TOOLROOM LATHE. IT FEATURES AN 11-INCH MAXIMUM SWING OVER THE BED, A 9-INCH MAXIMUM SWING OVER THE CARRIAGE, AND A 5.75-INCH MAXIMUM SWING OVER THE CROSS SLIDE. THE DISTANCE BETWEEN CENTERS IS 18 INCHES WITH THE TAILSTOCK FLUSH AND 20 INCHES WITH THE TAILSTOCK OVERHUNG. THE LATHE HAS A 1.25-INCH SPINDLE BORE AND A HARDINGE TAPERED SPINDLE NOSE. IT IS POWERED BY A 1.5 HP VARIABLE SPEED MOTOR, OFFERING VARIABLE SPINDLE SPEEDS FROM 125 TO 3000 RPM. THE MACHINE IS EQUIPPED WITH A 2-AXIS DRO, A 4-INCH 3-JAW CHUCK ON A 5C COLLET, AND A QUICK-CHANGE TOOLPOST. POWER FEED RANGES FROM 0.25 IPM TO 7 IPM, WITH A LONGITUDINAL FEED RATE OF 0.31 IPM TO 7 IPM AND A CROSS FEED RATE OF 0.18 IPM TO 4 IPM. THE COMPOUND SLIDE TRAVEL IS 3 INCHES, AND THE TAILSTOCK SPINDLE TRAVEL IS 3.75 INCHES WITH A NO. 2 MORSE TAPER. POWER REQUIREMENTS ARE 208 VOLTS / 60 HERTZ / 3 PHASE. THE DIMENSIONS ARE 6 FT. X 3 FT. X 5 FT.
