For Sale by Perfection Global
Surplus Record Dealer Since 1964
Location: Elk Grove Village, IL
Contact Sales Dept.
Phone Number: 847...> Show Phone Number 847-427-3333
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
- Max. Swing Over Bed: 11"
- Max. Swing Over Carriage: 9"
- Max. Swing Over Cross Slide: 5.75"
- Compound Slide Travel: 3"
- Distance Between Centers (Tailstock Flush): 18"
- Distance Between Centers (Tailstock Overhung): 20"
- Power Feed Range: 0.25 IPM - 7 PM
- Longitudinal Feed Rate: 0.31 IPM - 7 IPM
- Cross Feed Rate: 0.18 IPM to 4 IPM
- Tailstock Spindle Travel: 3.75"
- Tailstock Spindle Taper: No. 2 Morse
- Spindle Bore: 1.25"
- Spindle Speeds (Variable): 125 - 3000 RPM
- Spindle Nose: Hardinge Tapered
- Spindle Construction
- With Step Chucks: 1" - 6"
- With Jaw Chucks: 5"
- With Jaw Chucks Through Spindle: 1.15"
- With Round 5C Hardinge Collets: 1.06"
- With Hexagon 5C Hardinge Collets: 0.87"
- With Square 5C Hardinge Collets: 0.75"
- Range of Threads in Gear Box: 11 - 108
- Number of Thread Changes in Gear Box: 27
- Motor: 2-Speed, 530 / 1710 RPM
- Electricals: 220V AC Only / 3 PH / 60 Hz / 3.4 Amps

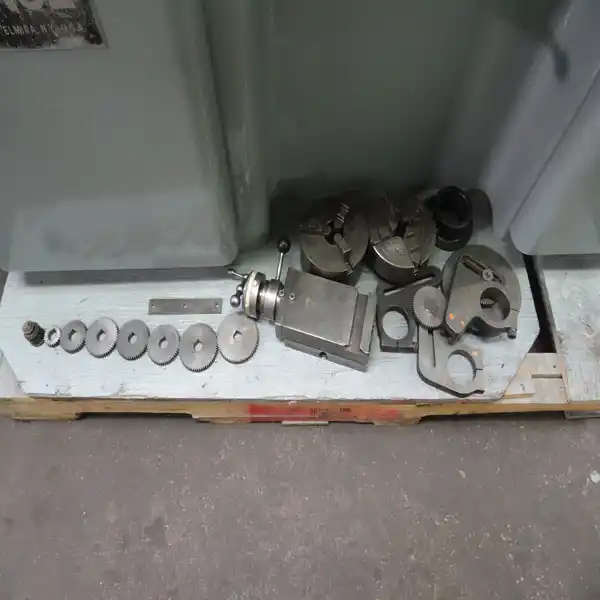

Equipped With
- Quick Acting Lever Type 5C Collet Closer
- 3-Jaw & 4-Jaw Chucks
- Tailstock
- Taper Turning Attachment
- Micrometer Carriage Stop with Dial Indicator
- Set of Gears
- Accessories and Attachments
- Operators Manuals
- Cabinet Base
Get Your Price from Perfection Global!
