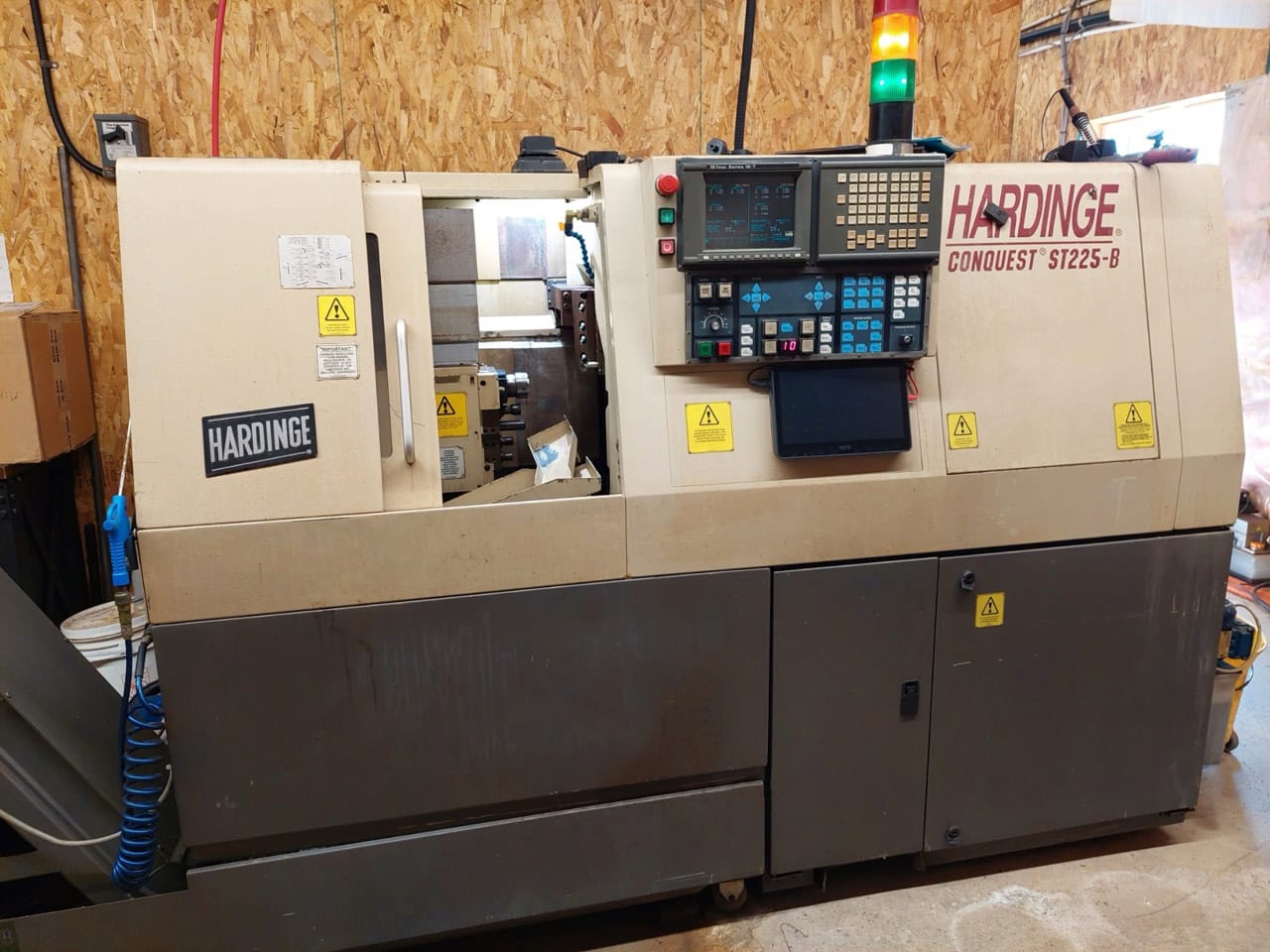

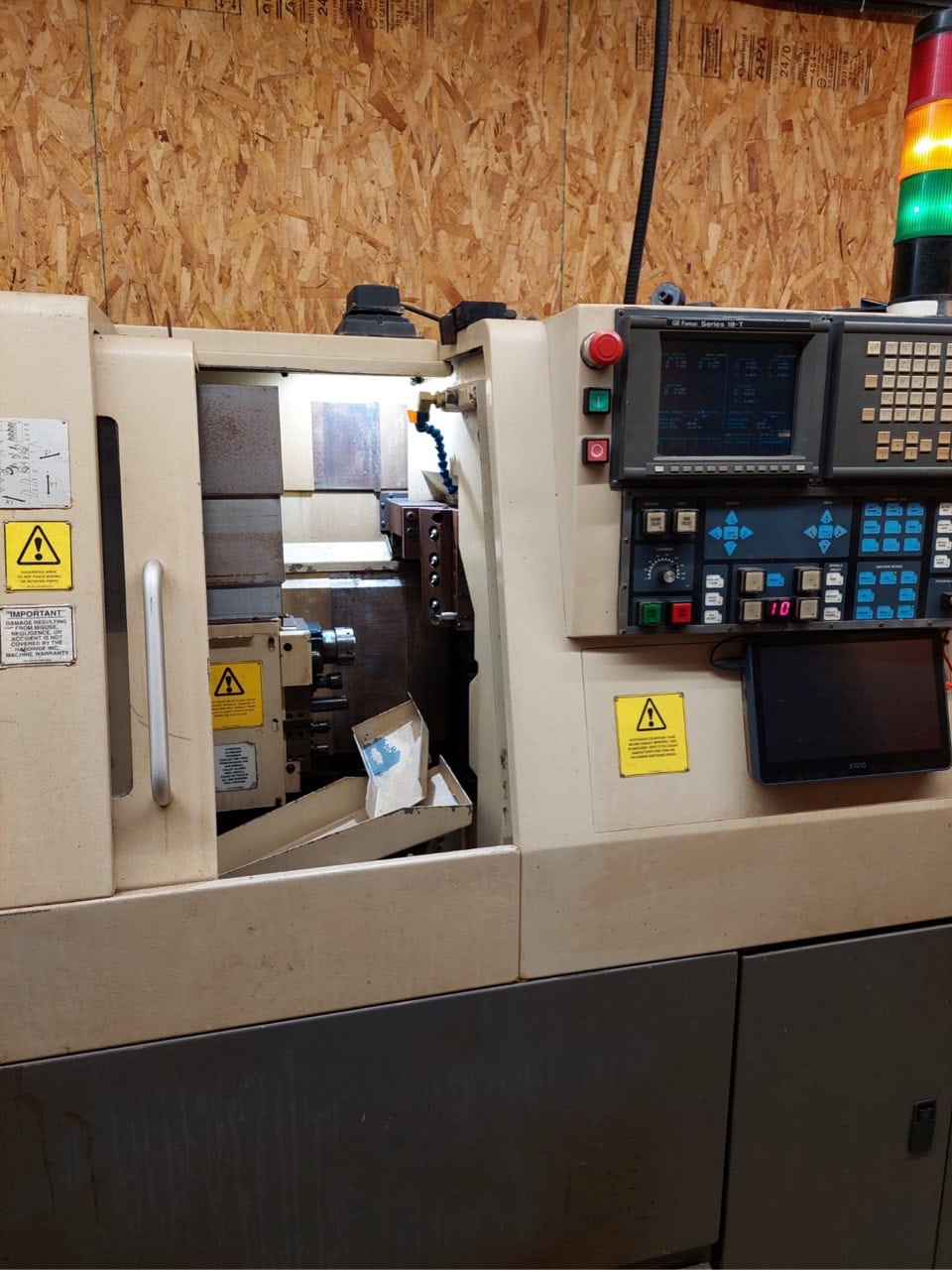

Hardinge #Conquest-ST-225-B, CNC Multi-Axis lathe, LNS Super Hydrobar barfeeder, 2000

Spindle:Collet Style: S25-HMBar Capacity W/ Collet: 1″Machining Length – Single Chuck: 9.65″Speed: 200 – 6300 RPMDrive Motor: 7.3 HPIncrements W/ C-Axis Option: 0.001°Number of Axes w/C-Axis Option: 6X1-Axis Travel 2.75″, Y1-Axis Travel 7.5″Z1-Axis Travel – One Chucking: 9.65″Y2-Axis Travel: 9″Z2-Axis Travel: 8.5″X-Axis Speed: 472 IPMY1 and Y2 Axis Speed: 630 IPMZ2-Axis Speed: 787 IPM

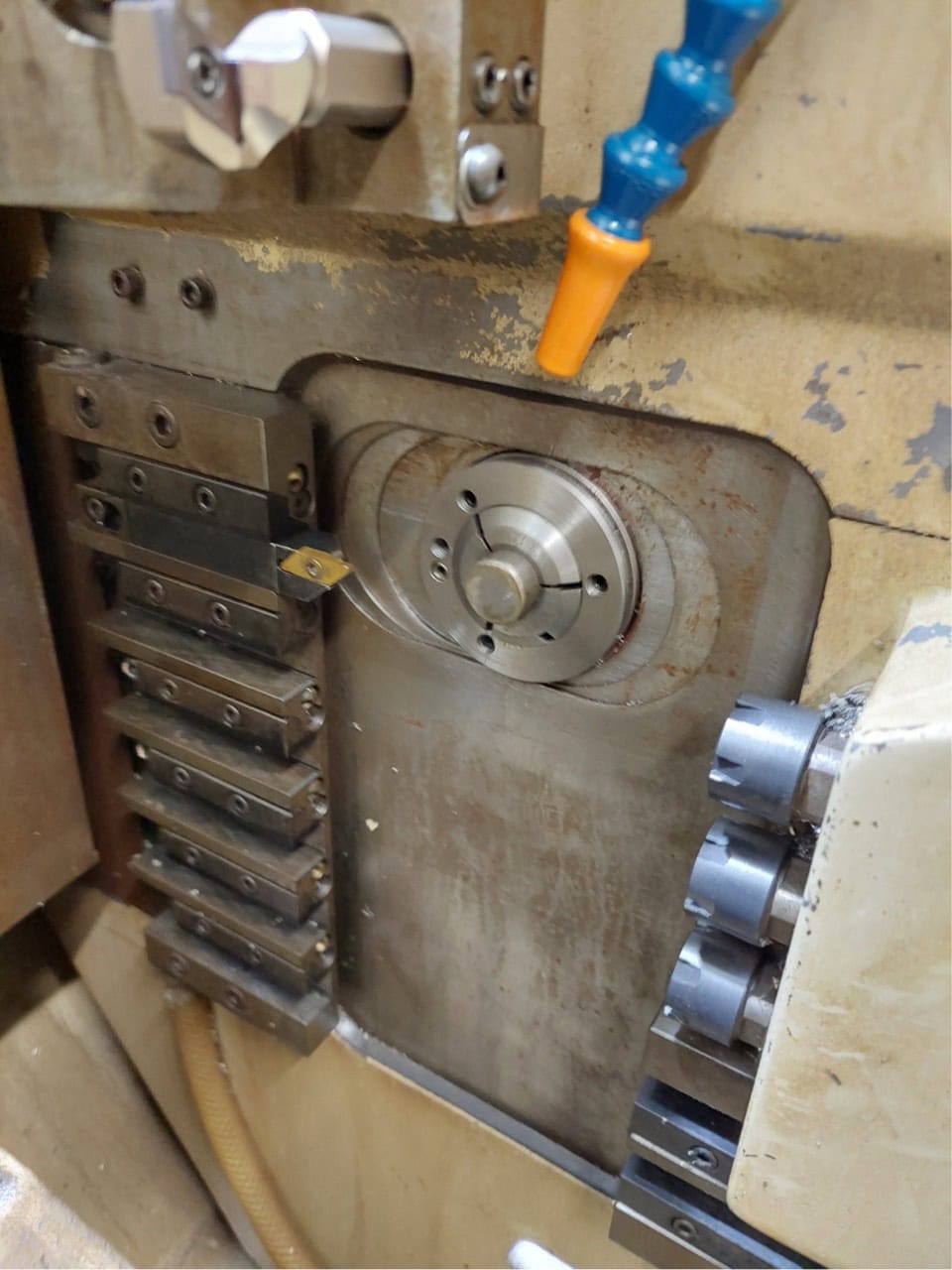

Tooling:Square Shank Tool Size: 5/8″Number on Front & Rear Tool Slide: 6(Number) and Size of Round Shank Tools – Type B – Front End Working: (4) 1″(Number) and Size of Round Shank Tools – Type B – Back End Working: (4) 5/8″Tool Shank Diameter W/ Collet Front & Back End Working: 0.04″ – 0.5″Sub Spindle – Mill/Drill Unit:Collet Style: S25-HSSpeed Range: 200 – 8000 RPMDrive System: 3 HPRound Shank Tool Size: 1″Number of Tools for Front End Working (W/ Live Tool Mill/Drill Option): 3 + 1 LiveLive Tooling (Option):Number of Live Tools for Cross Working: 3, 1 for Mill/Drill Sub

SpindleSpeed Range – Cross Working: 250-6000 RPMSpeed Range – Sub Spindle: 200 – 8000 RPMRated Motor Power – Cross Working: 1.9 HPRated Motor Power – Sub Spindle: 3 HP

General:Machine Dimensions: 108″ x 60″ x 66″ Chip Conveyor: 84″ x 24″ x 60″ Weight – Approximate: 7500 Lbs.Electrics: 230V/3Ph/60 Hz

Equipped With:
LNS Super Hydrobar Barfeeder
Chip Conveyor
