Halton #ECOL-O-6-ESP-EF-OC-C-B, Exhaust Filtration System, 6,000 cfm, 15 HP, 3500 RPM, 9.16" w.g., Danfoss variable frequency drive, 575 Volt, 3PH

$6,179 USD

Request Formal Quote

SKU: 157727

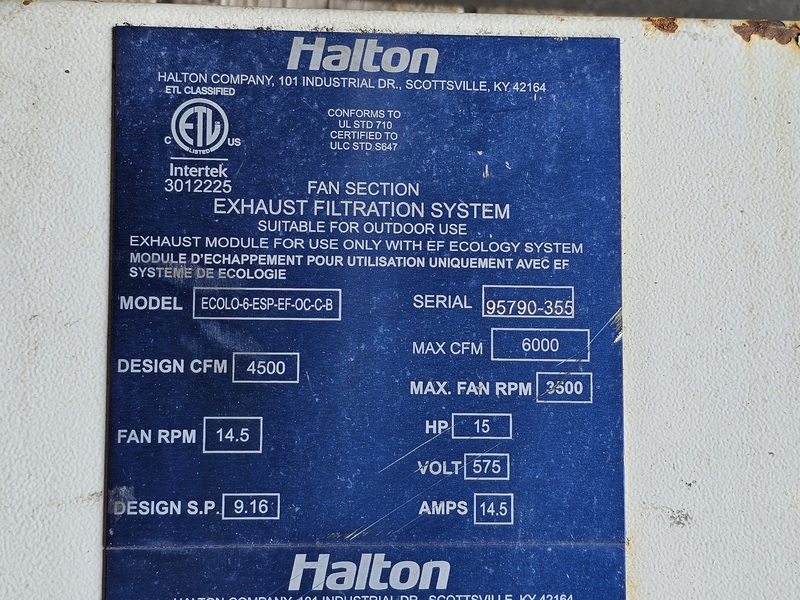

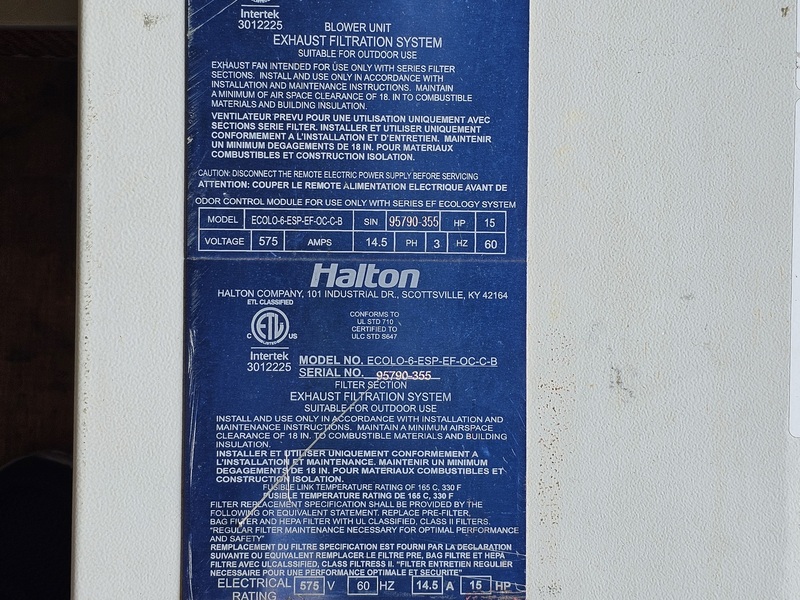

Model: ECOL-O-6-ESP-EF-OC-C-B
Condition: Used
S/N: 95790-355
Electrical Specifications:
Horsepower: 15 hp
Voltage: 600 volts
Dimensions: 12.00 (H) x 30.00 (W) x 36.00 (L) inches
Additional Description:
System: EF Ecology System
Design Airflow: 4,500 CFM
Maximum Airflow: 6,000 CFM
Design Static Pressure: 9.16 in. w.g.
Maximum Fan RPM: 3,500 RPM
Motor Rating: 15 HP
Voltage: 575 VAC
Phase: 3-Phase
Frequency: 60 Hz
Rated Current: 14.5 A
Installation Rating: Suitable for outdoor use
VFD
Manufacturer: Danfoss
Series: VLT HVAC Drive FC-102
Type Code: FC-102P11KT6P21HXXGXXXXSXXXXAXBXCXXXXDX
Part Number: 131H9344
Serial Number: 107133H169
Power: 11 kW / 15 HP
Input: 3 x 525-600 VAC, 50/60 Hz
Input Current: 17/16 A
Output: 3 x 0-Vin VAC, 0-590 Hz
Output Current: 19/18 A
Enclosure Rating: Type 1 / IP21
Maximum Ambient Temperature: 45C / 113F

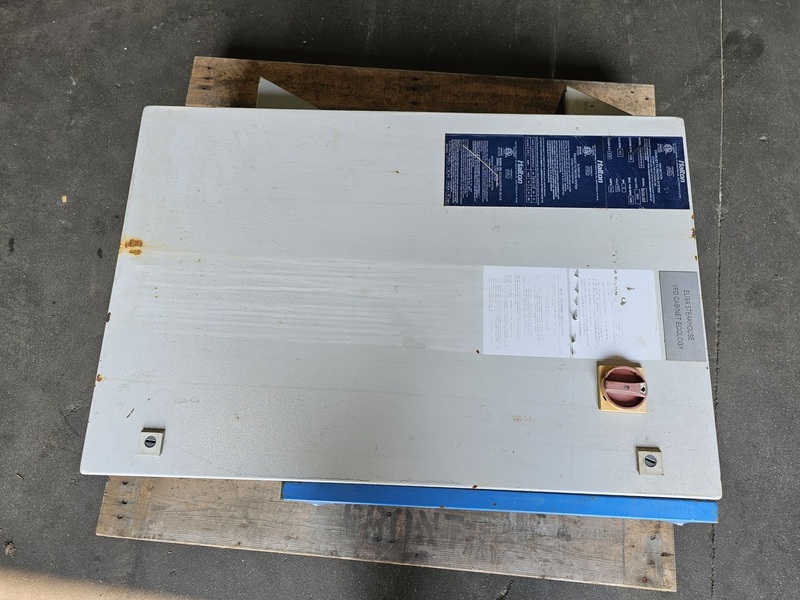

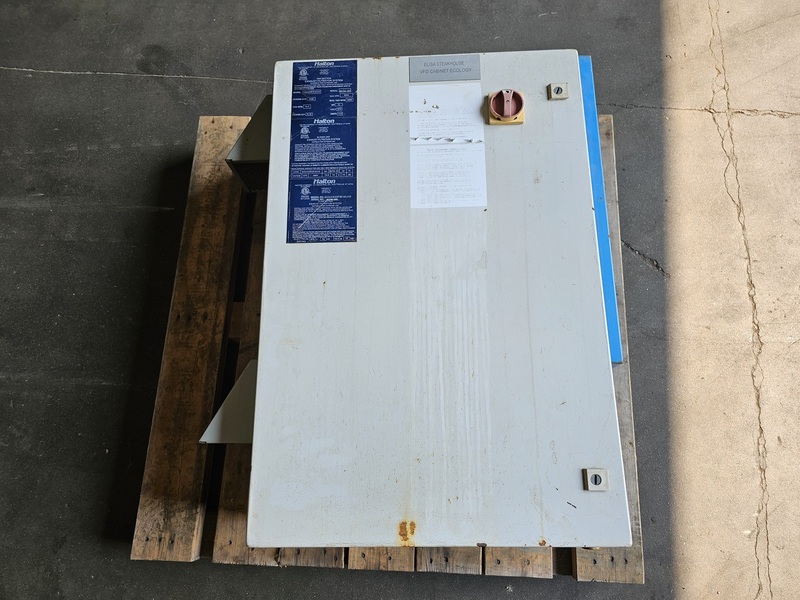

Control Enclosure
Manufacturer: Rittal
Model / ID: WM 8017573
Serial Number: US01296521
Enclosure Rating: Type 1 / 3R / 12
Main Breaker / Protection Brand: Allen-Bradley
Allen-Bradley Rating: 60 A, 3-pole
Control Relay Brand: Schneider Electric
Disconnect / Switch Brand: Lovato
Control Transformer Manufacturer: Emerson Hevi-Duty / SolaHD
Original Installation/Application: Elisa Steakhouse
