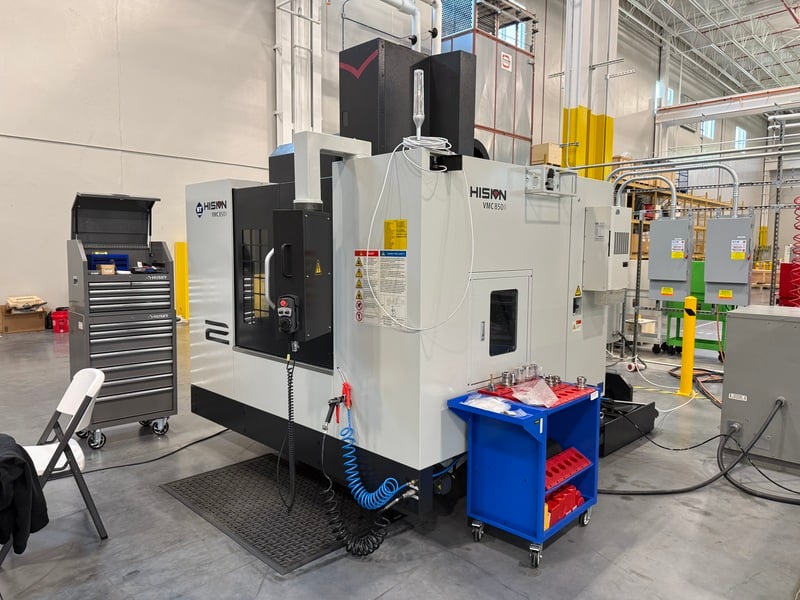

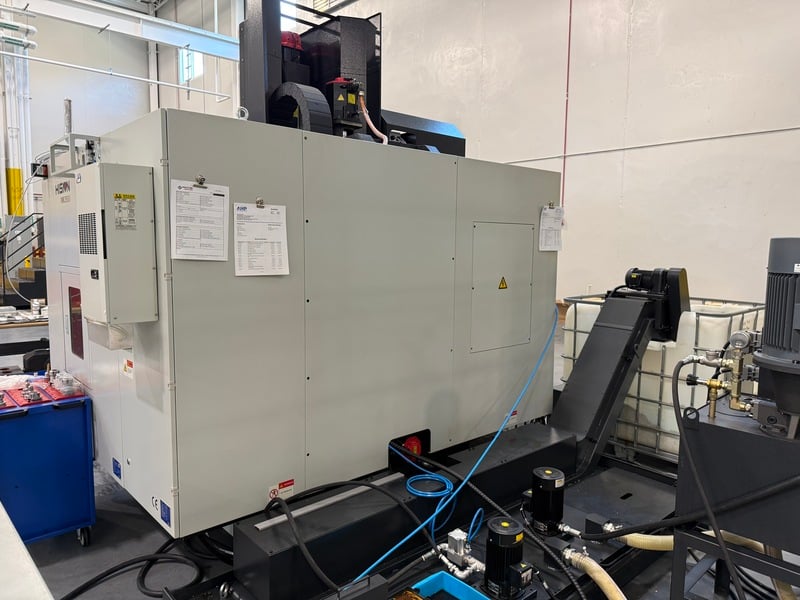

Haitian, Precision #VMC850II, CNC vertical machining center, Fanuc 0iMF Plus, 33.5" X, 19.7" Y, 19.7" Z, 12000 RPM, 24 automatic tool changer, new, 2023

Description

The Haitian Precision VMC 850 II is a high-performance vertical machining center designed for precision metalworking tasks. This new CNC machine offers an extensive working range with X, Y, and Z travels of 33.5, 19.7, and 19.7 inches, respectively. The sizeable table measures 39.4 by 19.7 inches and can support loads of up to 1,323 pounds, catering to a variety of workpiece sizes and applications. This machining center is equipped with a powerful direct drive spindle capable of reaching speeds up to 12,000 rpm, supported by a robust motor providing 20 HP and 70.4 ft-lbs of torque. The CAT40 spindle taper enhances tool-changing efficiency, supported by a 24-tool magazine, ensuring a smooth operation for high-volume production. With rapid traverse rates of 1,417 inches per minute across all axes, it is designed for speed and efficiency. The VMC 850 II is controlled by the reliable FANUC 0i-MF PLUS (1) system, offering advanced features for optimized machining processes. Despite its substantial capabilities, requiring a power capacity of 91 amps, the machine maintains a manageable footprint, weighing in at approximately 13,228 pounds. This machining center represents a blend of performance, precision, and reliability for demanding industrial environments.

Specifications

X Travel In: 33.5
Y Travel In: 19.7
Z Travel In: 19.7
Table Size In: 39.4x19.7
Table Load Lbs: 1323
T Slot In: 0.7 / 3.1
Rapid Traverse X Y Z In Min: 1417/1417/1417
Cutting Feedrate X Y Z In Min: 591/591/591
Max Spindle Speed Rpm Direct Drive Spindle: 12000
Spindle Power Hp: 20 / 15
Spindle Torque Ft Lbs: 70.4 / 38.7
Spindle Taper: CAT40
Tool Magazine Capacity: 24

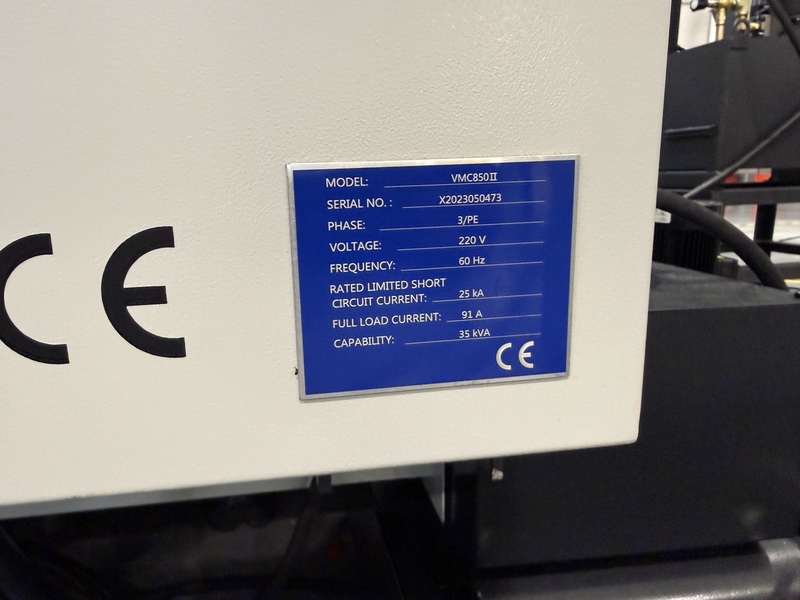

Power Capacity A: 91
Machine Weight Lbs: 13228

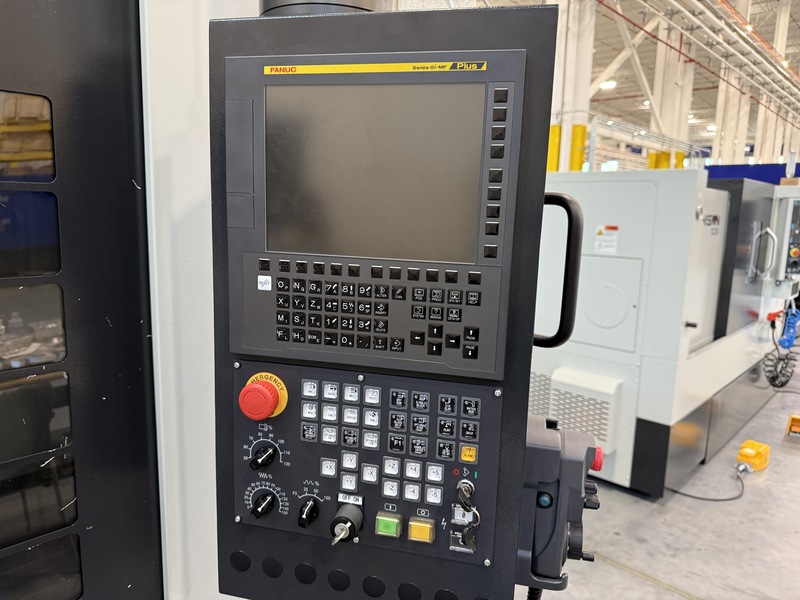

Control: FANUC 0i-MF PLUS (1)
